Item Description

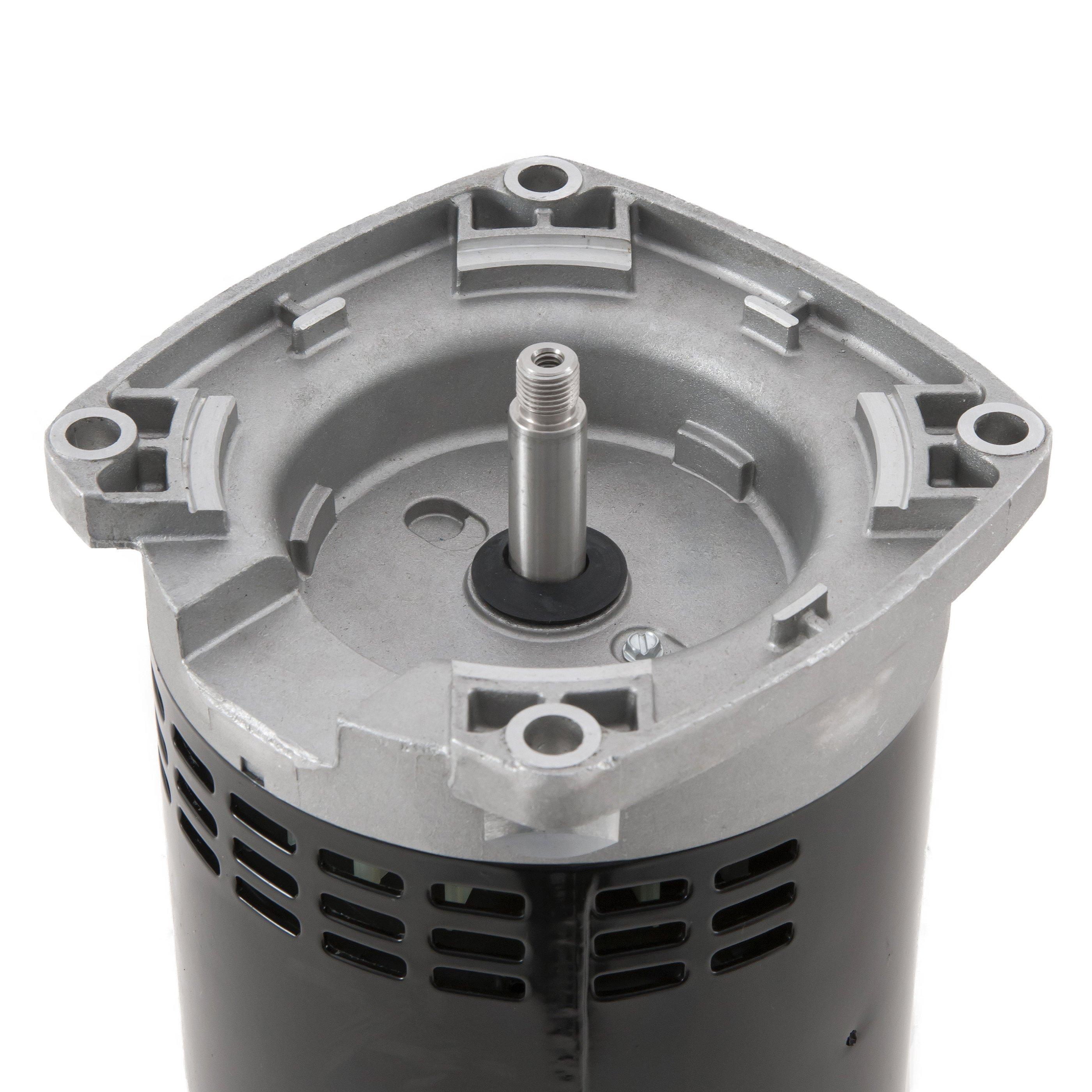

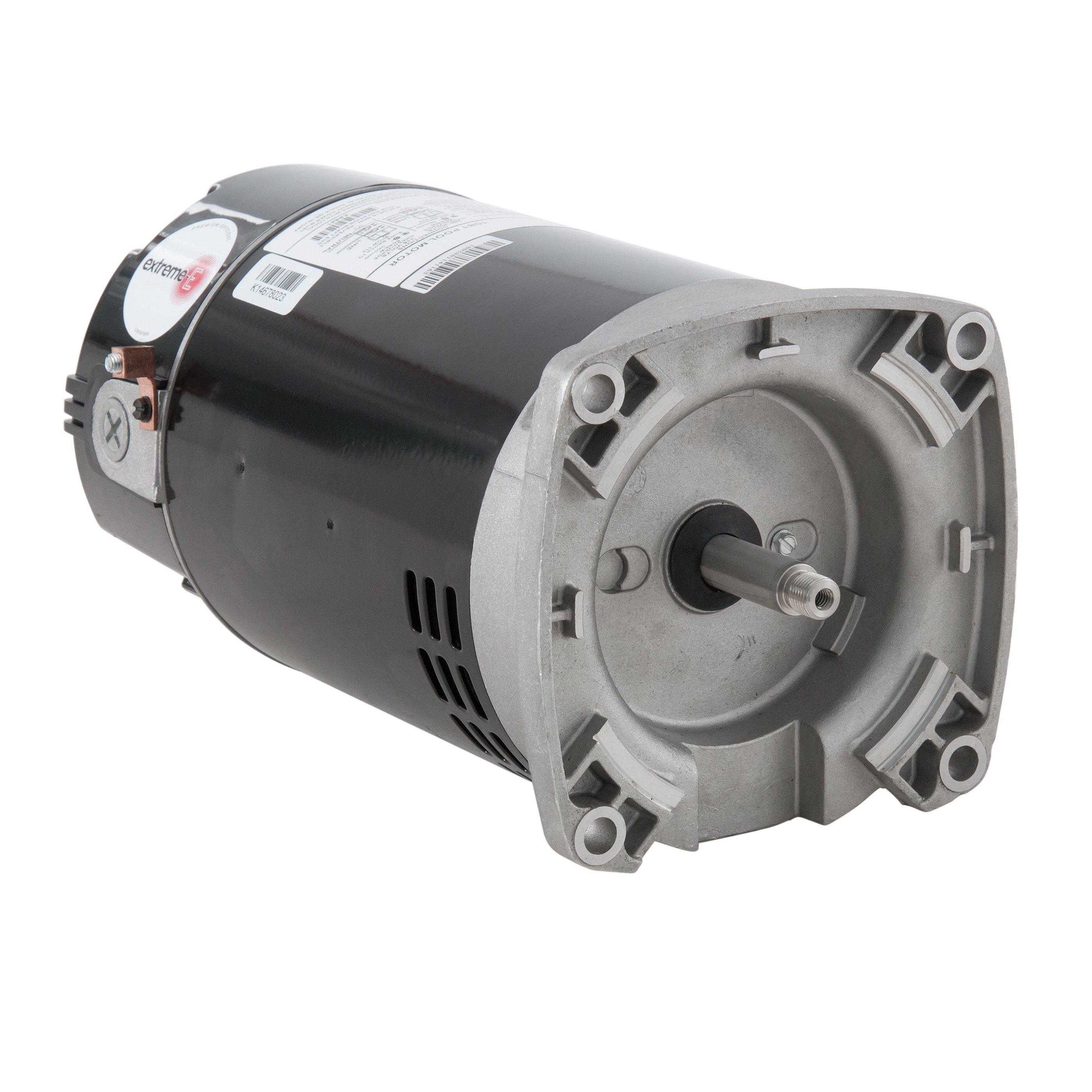

The U.S. Motors Emerson ASB841 Square Flange 1 HP Full Rated 56Y 115/230V Single Speed Pool and Spa Pump Motor is a powerfully designed replacement motor. Similar to spa and pool replacement motors, the Emerson 56 Y-Frame Motor is a two-compartment model with a voltage selection device, running at 1HP and 115/230V. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is a single speed pool and spa motor and its 1 HP rating delivers optimum performance.

Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.

• Two compartments
• Shaft Threads 1/2-20 UNF-2A
• 50 degrees Celsius ambient
• 1081 Design
• Continuous Duty
• Switchless design
• Voltage selection device (dual voltage only)
• Service Factor: 1.65
• RPM: 3450
• Length without Shaft: 11.99
• 7.6-7.2/14.4A 208-230/115V

Installation Instructions:

• Ensure the pool motor is compatible with your pool pump.
• Turn pump power off during replacement.
• Check voltage requirements on your current setup.
• Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
• Turn on the pump to test for leaks and pump operation.
• Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
• Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
