2，Water Cooled Spindle Motor Has Higher Stability and Better Concentricity than Air Cooled Motor.



Applicable User&Skills：

1. Advertising&Design Staff

2. Pcb Engineer

3. Woodwork Fans

4. Model Fans

5. User Should Better Have Electronics Background

6. Diy Ability to Repair

Highlights of Water Cooling System :

It Can Cool the Spindle and Protect the Machine

Avoid the Spindle Burn out

Can Engrave the High Hardness or Metal

It Can Improve the Efficiency and Accuracy of the Machine.

Friendly Reminder

The Engraver Will Come with Installment Software (Free Version

If You Followed the Installation Tips Offered by Us, It Works like Full Version.)

Installation Tips:

The Software Perform Better on the 32bites System Computer.

Please Close the Firewall and Antivirus Software on the Computer Before Downloading and Installing the Software.(This Is Very Important)

Otherwise, the Antivirus Will Regard the Cnc Software As Virus and Stop the Installation.

Ps:

Please Don't Update the Software When Installed, Then It Will Not Need the License Numbers.

Sku:1500w-6040tusb-1+1500w-6040tusb-2+1500w-ts002usb+Ot-xjz-453----(4axis 6040 1.5kw)

Description:

1. This Cnc 6040t Machine Is Suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

2. It Can Work with Various Materials(Metallic & Non-metallic), Such As: Wood, Pmma or Other Plastic, Mdf Board, Native Wood, Pvc, Acrylic, Wood, Composite Board Plywood. and Soft Metal, like Aluminum, Copper and Silver to Engrave Them into 3d/2d Works Etc.

3. It Can Used for Engraving: Advertising Signs, Pcb, Nameplates, Badges, Seals, Bronzing Plate, Aluminum Alloy, Acrylic Plates, Abs Resin Double Color Plate, Pvc Foaming Board, Indentation Plates, Signs, Construction Models,Instrument Panels, Wooden Products, Etc.

4. the Mini Cnc Router Frame Is Movable. the Machine Can Connect with Computer As Other External Device Such As Printer, Scanner...

5. with the Assist of the Cnc Router 6040t, Your Design Idea Will Be Real-time Display.

Cnc Engraving Machine Parameters:

X, Y, Z Working Area: 600(Y)*390（X）*120(Z)Mm

Outside Dimension: 865*680*570mm（L*W*H）

Table Size: 770（Y）*490（X）Mm

Lathe Structure: 6061/6063 Aluminium Alloy

Max. Feeding Height: ≤100mm

Drive Unit:

X Axis---1605 Ball Screws

Y Axis---1605 Ball Screws

Z Axis---1204 Ball Screws

Sliding Unit:

X Axis---High Intensity Chromeplate Shaft

Y Axis---High Intensity Chromeplate Shaft

Z Axis---High Intensity Chromeplate Shaft

Stepping Motor: 57 Two-phase 3a 150n.cm

Spindle Motor

（Tips：1. the Spindle Motor Must Connect with the Vfd.

2. It Cannot Directly Connect with the Supply Voltage (Ac 220v).

3. Please Don’t Change the Data Setting of the Vfd If You Are Not Professional Technicians, or It Might Damage the Spindle Motor.

Outside Dimension: 65*158mm

Material: 304 Stainless Steel, Copper Coil, Pressure Cast Aluminum Pipe Water Jacket

Volts, Current, Power: Ac 220v, 50hz, 5a,1.5 Kw Vfd

Spindle Speed: 24000 Rpm

Max Working Frequency: 400hz

Principal Axis Collet: Er11collet, Standard Configuration :6mm

Nut Model: Er11-a

Cooling: Water-cooling

Speed Mode: by Adjusting the Vfd Output Voltage and Operating Frequency from 0-24000rpm

Lubrication Way: Lubricated by High Grease

Repeat Accuracy: 0.05mm

Spindle Precision: Radial Beat Acuities 0.03mm

Carving Instructions: G Code / Tab Files / Nc File / Ncc Files

Communication Interface: Through Usb Connection with Computer

Software Environment: Windows Xp / Win7 32/64 Bits System

Maximum Speed: 0-4000mm/Min

Carving Speed: 0-2500mm/Min(Different Materials Differ)

Control Box Parameters:

Operating Voltage: Ac 220v

Control Unit: Toroidal Transformer + Pwm Power Supply Module + Tb6560 Stepping Motor Drive

Computer Connection:usb Port

Command Code: G Code

Acceptable Software: Installment Software, Emc2

Protection: Emergency Stop Button

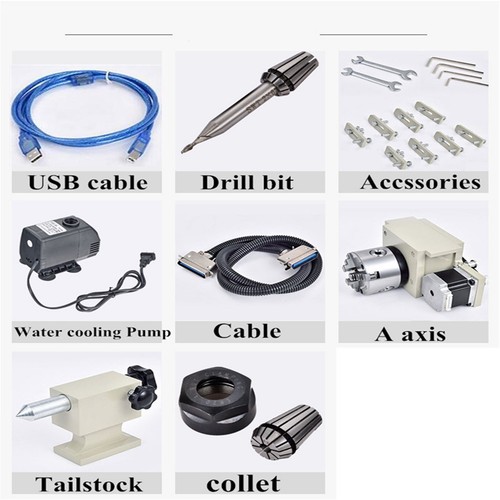

Pack List:

1x Main Unit (Frame)

1x Main Unit (Working Base)

2x Fence Baffle

1x Control Box

1x a Axis

1x Sinal Cable for a Axis

1x Pump

1x 25pin Parallel Lines

2x Cutter 2*6mm

2x Cutter 3*6mm

10x 4*7mm Round Head

6x 4*10mm Black Inner Six Angle Screw with Nut

8x 5*20mm Black Inner Six Angle Screw

4x 5*8mm Flat Philip's Head Screw with Nut and Gasket

8x 6*24mm Balck Flat Inner Six Angle Screw

12x Aluminium Fastener

1x 13-15# Wrench

1x 14-17# Wrench

2x Six Angle Wrench(3mm)

2x Six Angle Wrench(4mm)

1x Teflon Tape

2x Fuse (5a)

1x Power Cable

1x Manual

Feature:

1. the New 1.5kw Water-cooled Vfd Is Available Operating for Long Time,Which Can Reinforced the Processing Ability of the Machine and Can Be Used to Process Aluminum Alloy and Hard Wood.

2. Water Cooling Spindle Works More Stable and Durable.

3. High Quality Accurate Ball Screws Drive Make the Engrving More Precision.anti-blackflash,High Precision,Long Life Circle.

4. Software Compatability: Installment Software/Emc2/Type3/Artcamparameter

How to Use:

1. Assembling and Locating the Cnc Machine on Steady Desk Well.

2. Make Sure That Your Computer Has a Usb Port Output.

3. Place the Control Box in a Ventilated Dry Place Where There Is No Dust,No Moisture

4. Connecting the Control Box with the Cnc Machine and You Computer and Make Sure the Plug Will Not Come off.

5. Correctly Connect the Machine with the Controller. Don't Suspended the Cable Which Connect the Spindle Motor with Axis(X,Y,Z,a).Otherwise. It Will Damage the Driver of the Controller.

6. Correctly Install the Spindle Motor and the Heat Pump. the Heat Pump Should Be Covered Completely in the Water, Then Turned on the Electric Current to Check Whether the Water-cooling System Working Well.

7. Installing a Cnc Control Software and Drive Such As the Installment Software or Emc2on Your Computer.

8. Following Our Manual or Guideline to Set Uo the Software.

9. Before Turn on the Machine, Please Check All the Cable and Water- Cooling System to Make Sure They Are Working Fine.

10. You Can Enjoy Making You Dream with Using Our Cnc Machine Now.

Note: the Installment Software Handwheel Remote Control Will Be Shipped from China, It Will Only Take Few More Days to Arrive Your Place, Hope You Can Understand!

4 Axis Cnc Engraving Machine Manual Remote Controller Jog Encoder for Installment Software Us



Description:

Industrial Installment Software Cnc Engraving Machine Controller Was Designed for Mach System

Do Not Need to Install Any Software and Driver, Spring Can Be Stretched to 3 Meters

Waterproof Design, Very Durable, Anti-dirt, Oil Spray

Power by Usb Port

Dimensions: 22 X 8 X 3cm

Please Note: This Item Works with Installment Software Only

The Usb Self-check Light, You Can Type the " Scroll" on the Keyboard to Activate It.

Directional Motion Control: X+, X-, Y+, Y-, Z+, Z-, a+, a-

Feed Rate Control: F+, F-

Jog Rate: J+, J-

Spindle Speed: Speed up, Slow down

Programming: E-stop, Cycle Start, Spindle on/off, Redo, Single Step, Original Point

Package Include

1 * Remote Controller

1 * Cable
