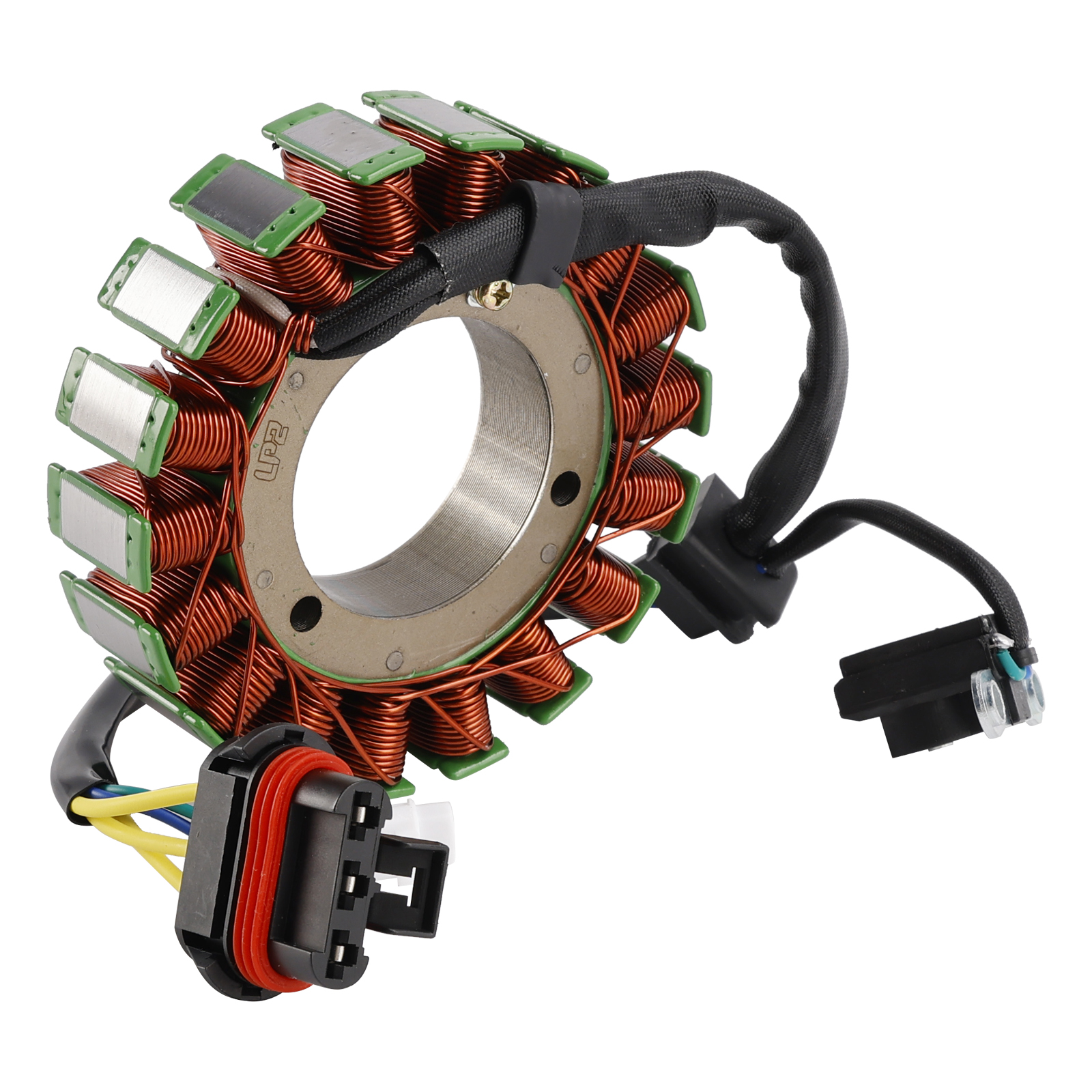

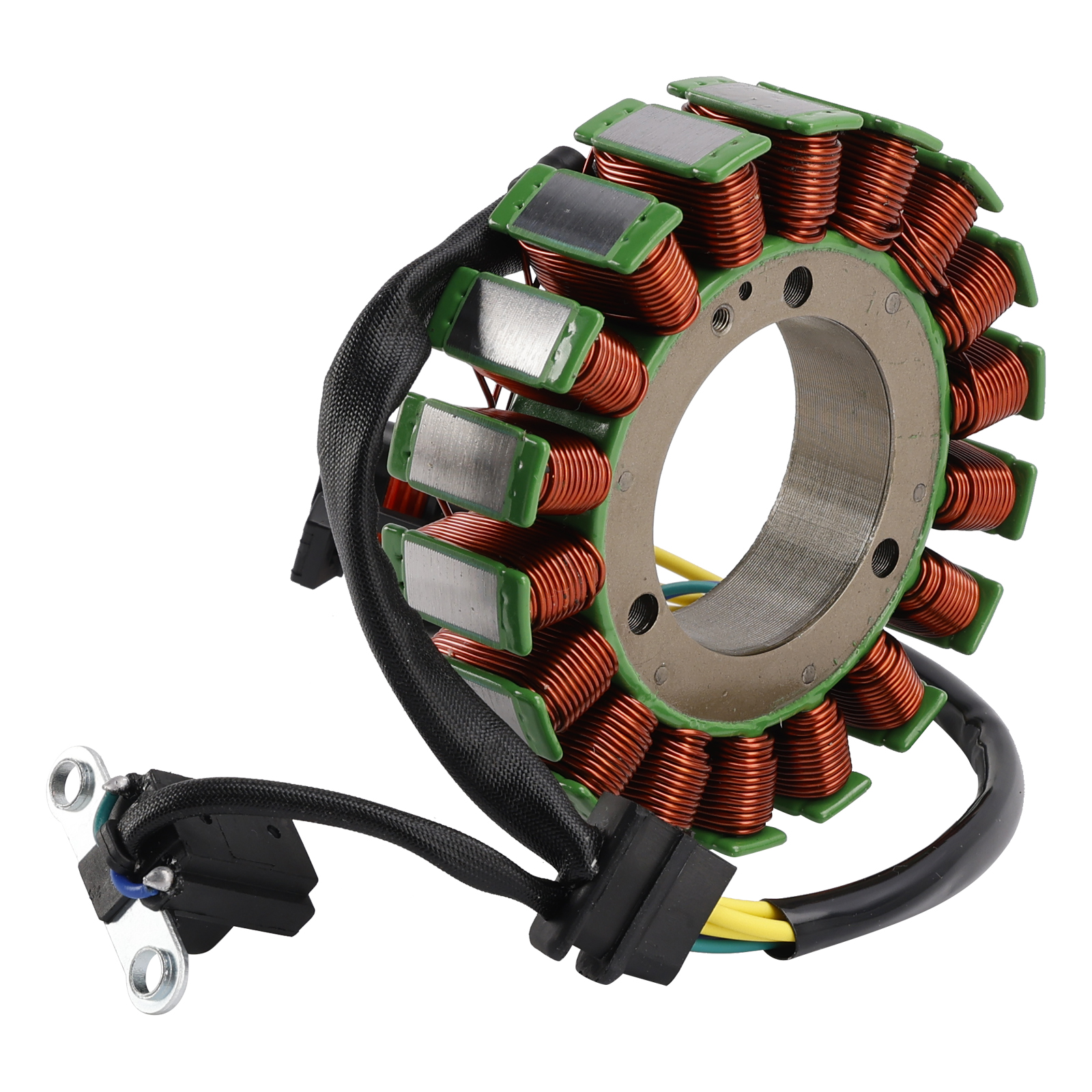

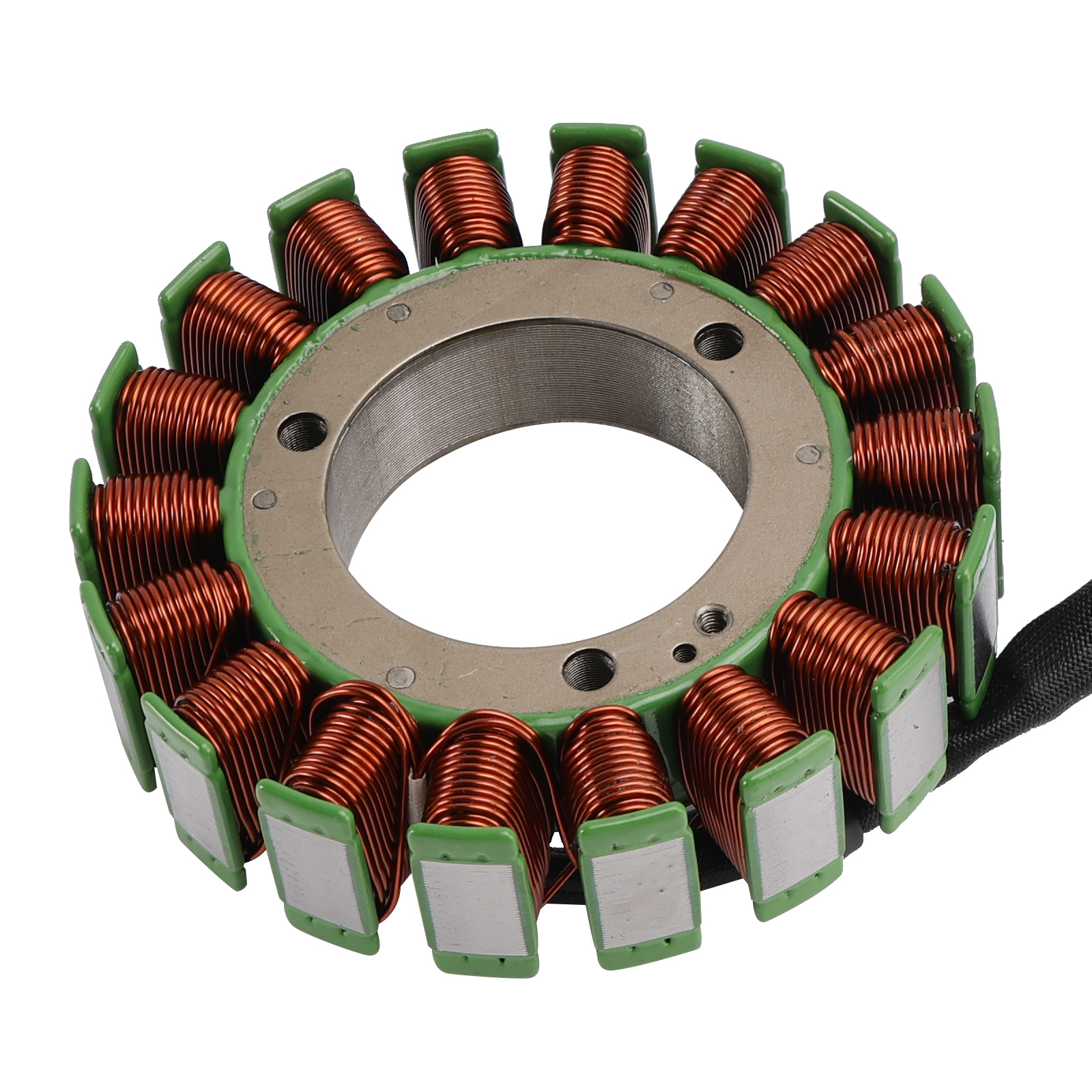

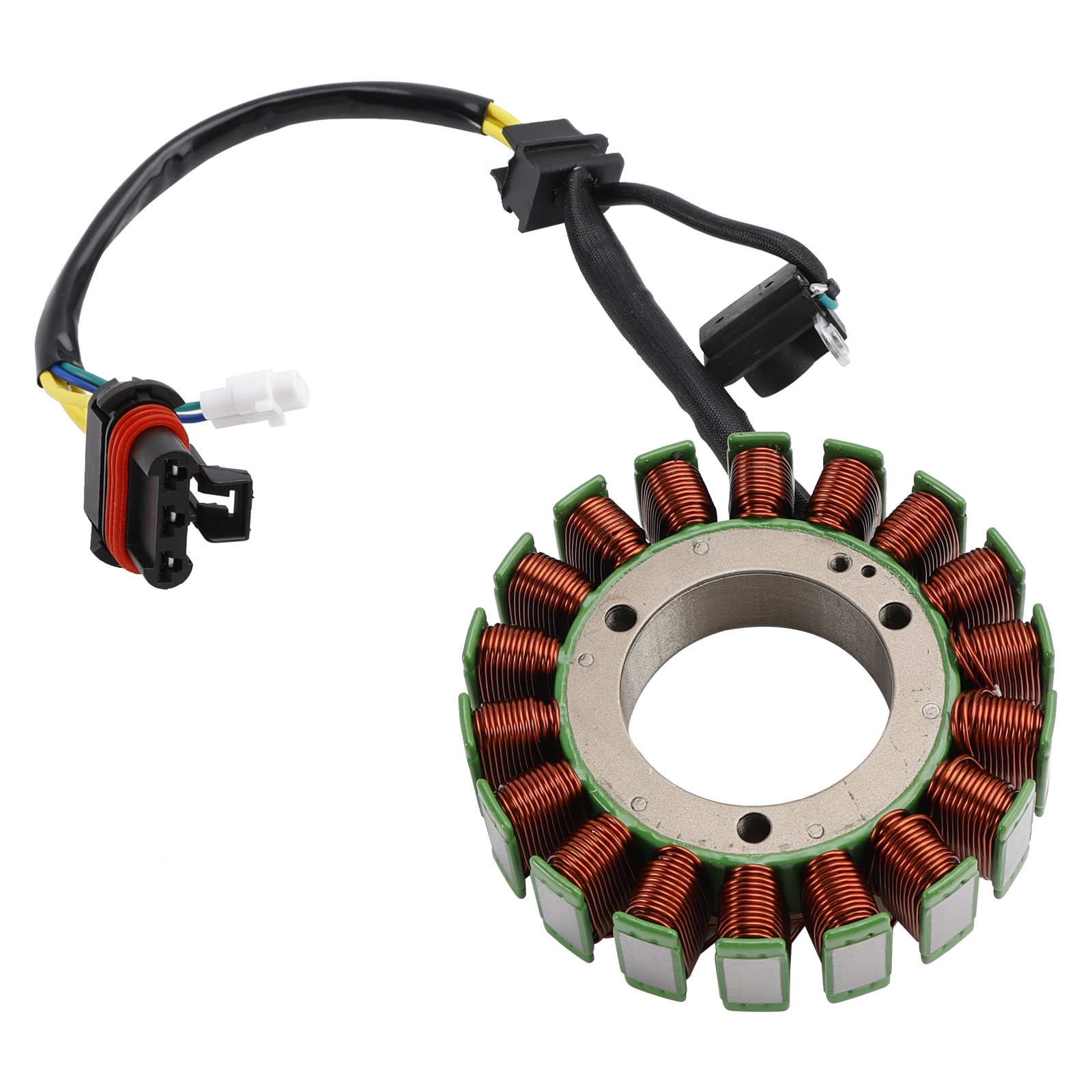

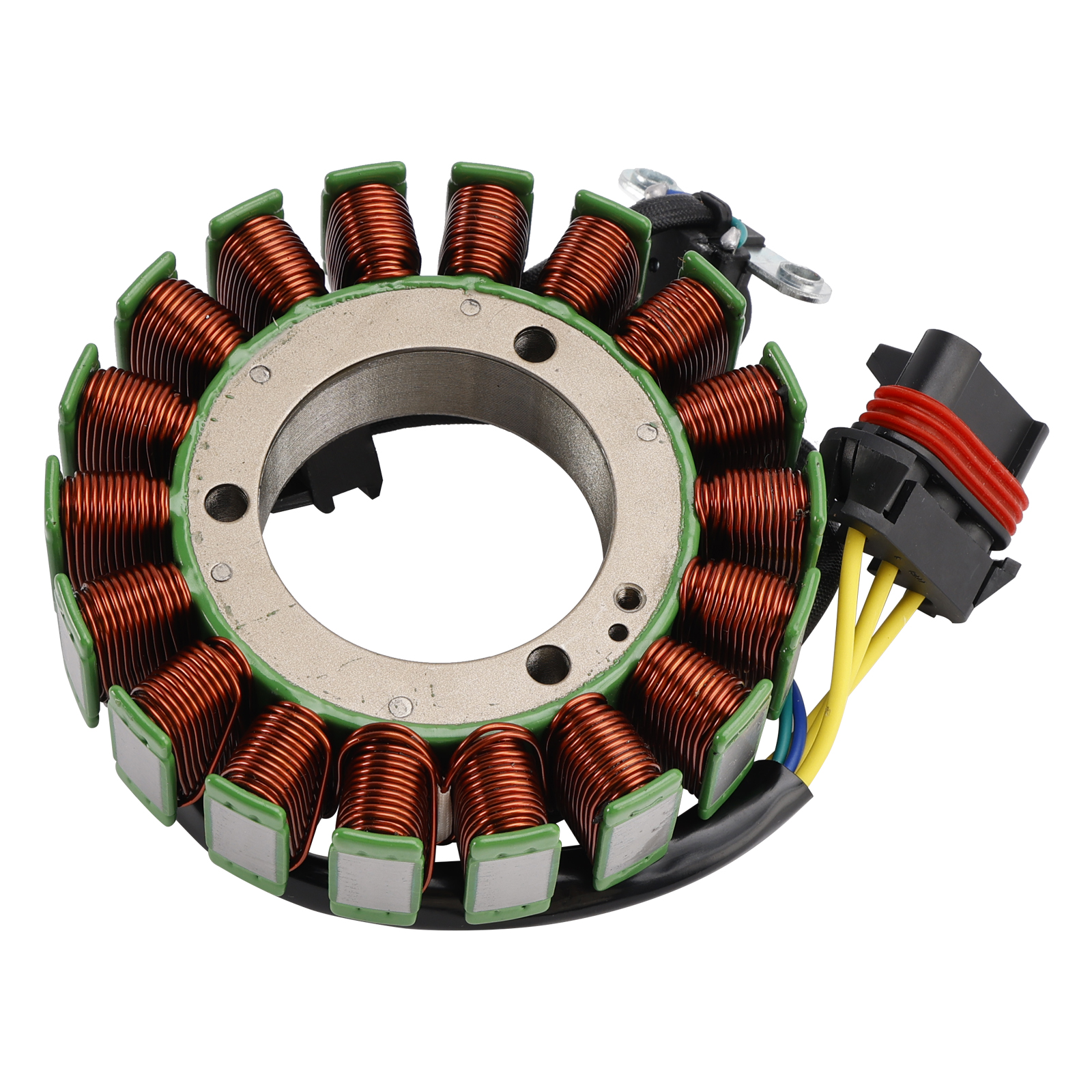

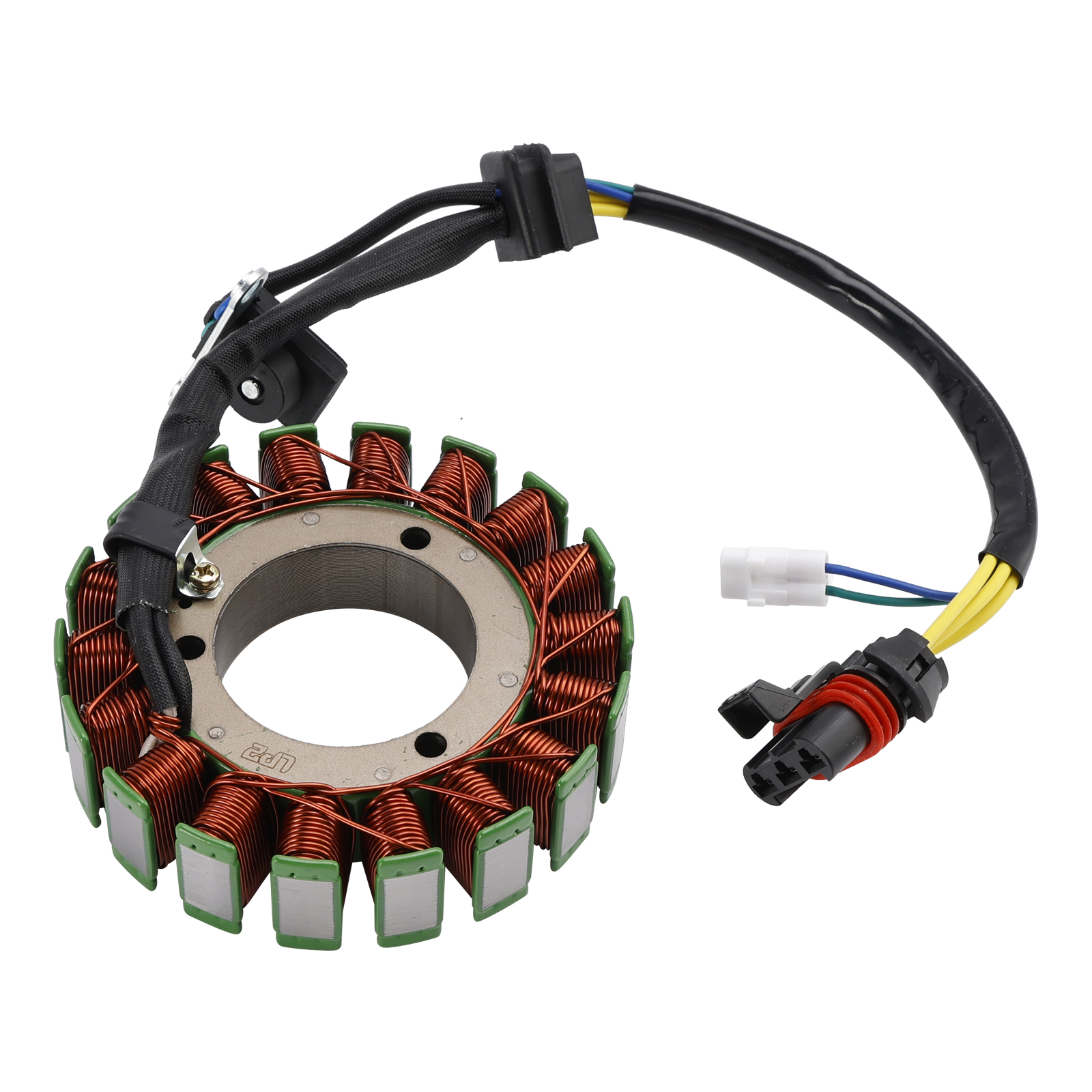

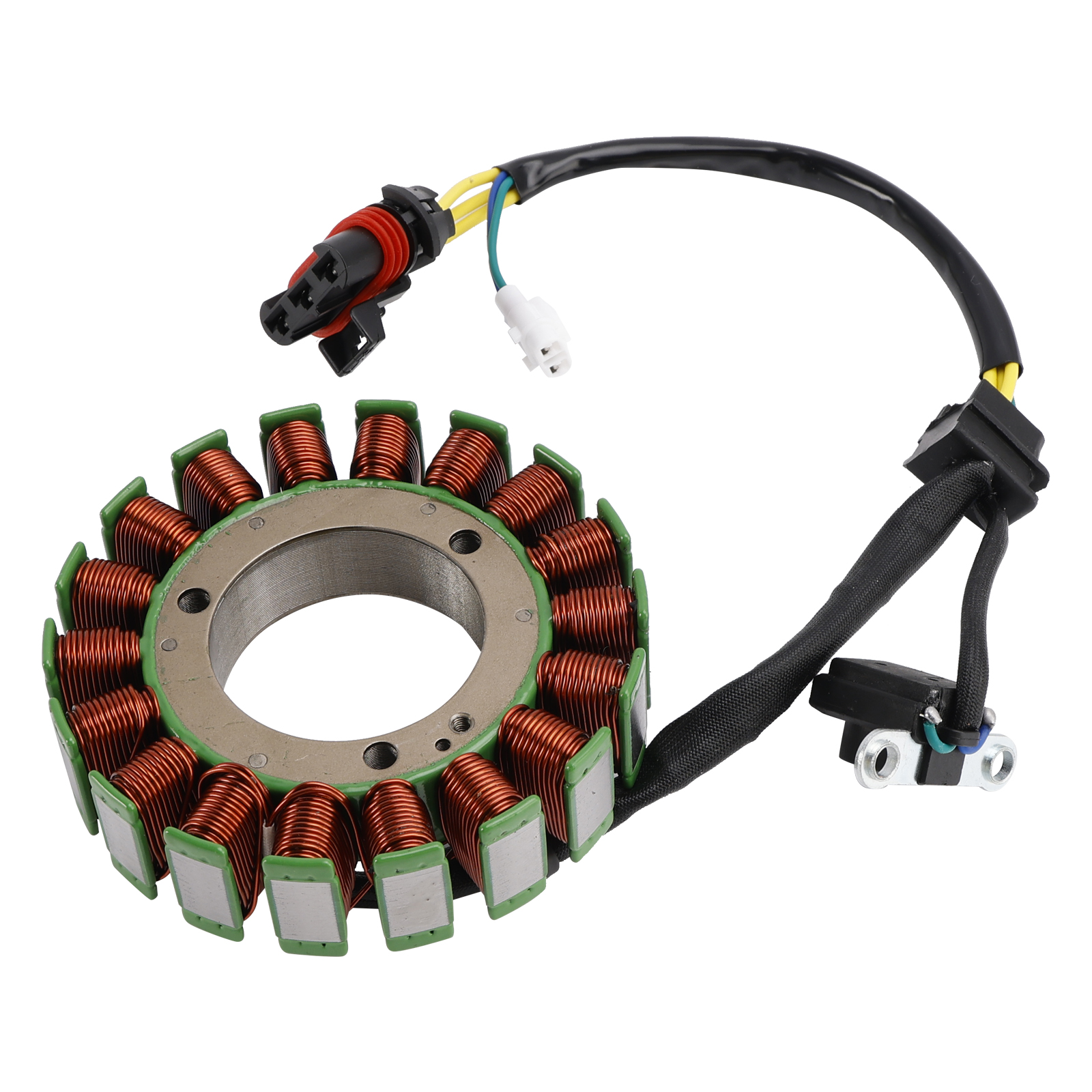

18-Pole Magneto Generator Stator Fit for TGB Blade 550 600
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

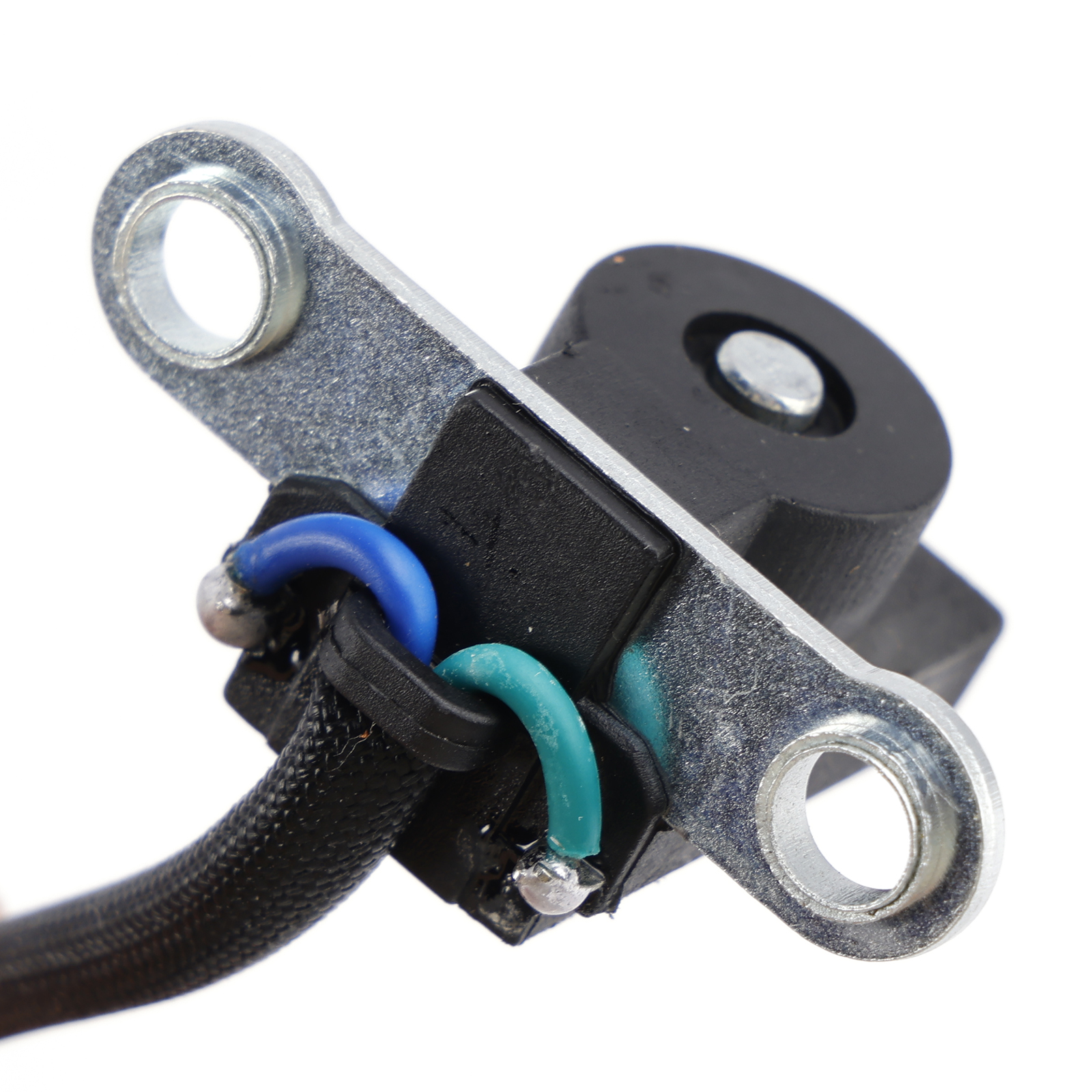

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil
other specifications:
Number of wires: 5

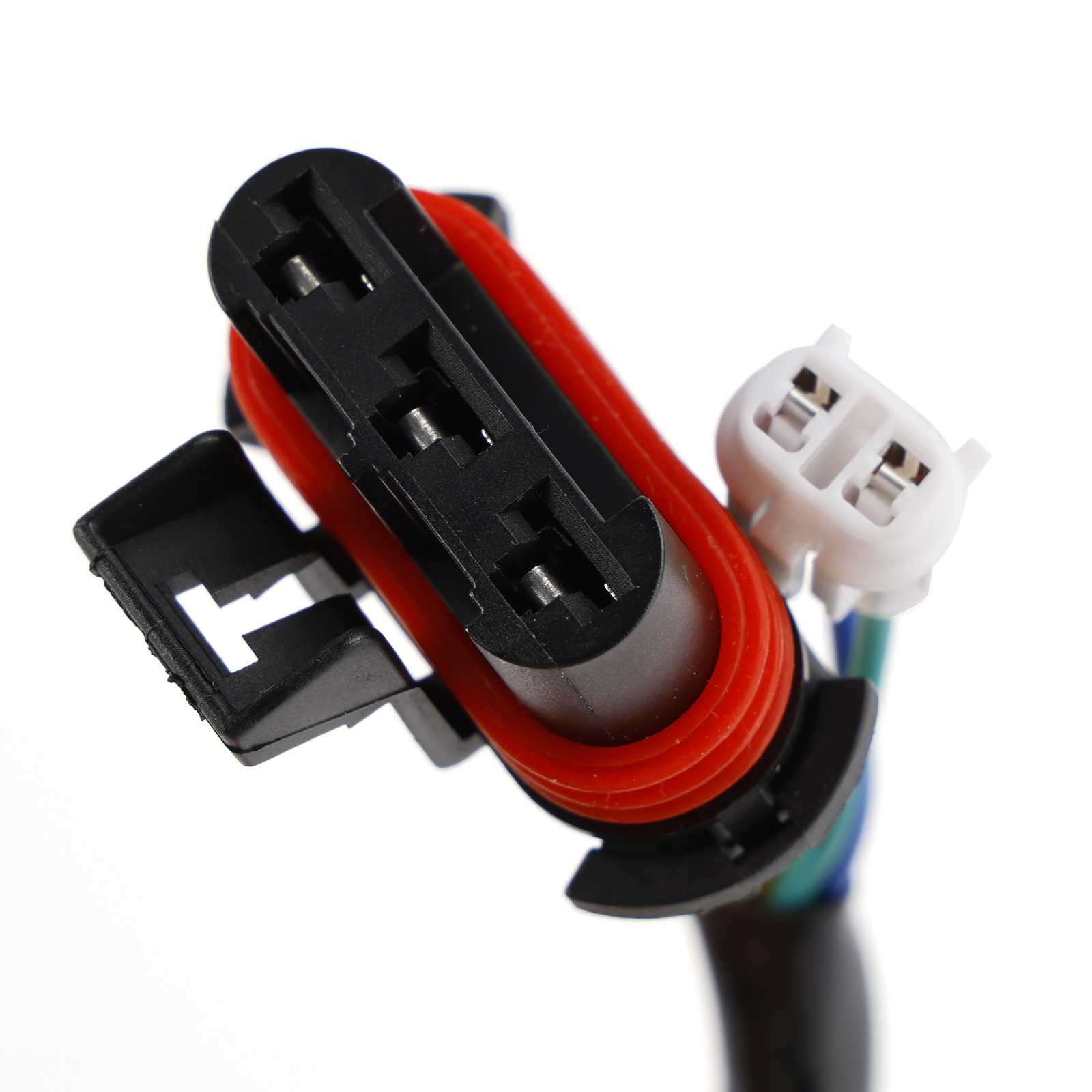

Number of plugs: 2 (1x 3-pin Oval shape plug, 1x 2-pin Oval shape plug)
Number of pins: 3 + 2
Number of fixation holes: 3
Number of poles: 18
Please compare the number of pins and plugs with the old part before purchasing.
Replacement Part Number:
927756A
(Always compare part numbers to your parts schematics and cross reference appropriately.)
Fits Make/Model:
Fit for TGB ATV Blade 550 EFI FL
Fit for TGB ATV Blade 550 EFI 2016
Fit for TGB ATV Blade 550 EFI EPS 2016
Fit for TGB ATV Blade 550 EFI LT EPS (Servo)
Fit for TGB ATV Blade 550 EFI EPS Facelift 2020
Fit for TGB ATV Blade 600 LT EPS LOF
Fit for TGB ATV Blade 600 SE EPS (Servo)
Fit for TGB ATV Blade 600 LT E4
Fit for TGB ATV Blade 600 LT T3b
Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.
There are two stators for the Blade 550/600, and the plugs are different. Please compare ours with your original one to ensure this is what you need.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
Deutsch
18-Pol Magneto Generator Stator passend für TGB Blade 550 600
Merkmale:
Direkter Ersatz für Ihr Originalgerät
Plug-and-Play, direkter Einbau, einfache Installation.
Hochwertigste Laminiermaterialien.
Inklusive Pick-up-Pulsar-Spule.
Inklusive Stecker.
Inklusive Gummidurchführung.
Alle ausgelieferten Produkte sind getestet.
Spezifikationen:
Zustand: Aftermarket 100% Brandneu
Typ: Stator Spule
andere Spezifikationen:
Anzahl der Drähte: 5
Anzahl der Stecker: 2 (1x 3-poliger Stecker in ovaler Form, 1x 2-poliger Stecker in ovaler Form)
Anzahl der Stifte: 3 + 2
Anzahl der Befestigungslöcher: 3
Anzahl der Pole: 18
Bitte vergleichen Sie vor dem Kauf die Anzahl der Stifte und Stecker mit dem alten Teil.
Ersatzteilnummer:
927756A
(Vergleichen Sie die Teilenummern immer mit Ihren Ersatzteilplänen und nehmen Sie entsprechende Querverweise vor).
Passt für Marke/Modell:
Passend für TGB ATV Blade 550 EFI FL
Passend für TGB ATV Blade 550 EFI 2016
Passend für TGB ATV Blade 550 EFI EPS 2016
Passend für TGB ATV Blade 550 EFI LT EPS (Servo)
Passend für TGB ATV Blade 550 EFI EPS Facelift 2020
Passend für TGB ATV Blade 600 LT EPS LOF
Passend für TGB ATV Blade 600 SE EPS (Servo)
Passend für TGB ATV Blade 600 LT E4
Passend für TGB ATV Blade 600 LT T3b
Bitte überprüfen Sie vor dem Kauf, ob die Anzahl der Statorpole mit der unseren übereinstimmt und ob Ihre Stecker und der Kabelbaum wie auf dem Foto aussehen.
Es gibt zwei Statoren für den Blade 550/600, und die Stecker sind unterschiedlich. Bitte vergleichen Sie unseren Stator mit Ihrem Originalstator, um sicherzustellen, dass Sie diesen benötigen.
(Die Kompatibilitätstabelle dient nur als Referenz!!!)
(Bitte vergleichen Sie mit Ihrem defekten Gerät und das Bild, das wir zur Verfügung gestellt, um zu entscheiden, Fitments)
Paket enthalten:
1x Stator Generator
HINWEIS!
Bevor Sie Ihren neuen Stator installieren
Prüfen Sie den AC-Ausgang des Stators.
Ersetzen Sie alle verbrannten oder korrodierten Stecker an Stator und Regler/Gleichrichter.
Überprüfen und reparieren Sie alle geschmolzenen Kabel.
Verwenden Sie dielektrisches Hochtemperaturfett für alle Anschlüsse.
Unser Stator verwendet möglicherweise einen anderen Farbcode für die Drähte als Ihr Original.
Alle Drähte sind in der richtigen Reihenfolge verlegt; bitte ändern Sie keine der Verdrahtungskonfigurationen.
Dieser Stator ist als direkter Plug-in-Ersatz konzipiert und sollte auch so verwendet werden.
Verwenden Sie bei der Verschraubung des Stators immer Schraubensicherungslack.
Wenn unser Stator eine Pickup-Spule enthält, stellen Sie immer sicher, dass der Luftspalt bei der Installation korrekt ist.
Alle Artikelbilder sind akkurat; im Zweifelsfall zögern Sie nicht, unseren Artikel mit Ihrem Originalteil zu vergleichen.
Der Zustand der Batterie ist wichtig. Kein Stator kann eine schlechte oder schwache Batterie ausgleichen. Im Zweifelsfall laden Sie Ihre Batterie auf und lassen Sie sie einem Belastungstest unterziehen, oder ersetzen Sie sie einfach.
STARTEN SIE IMMER MIT EINER VOLL GELADENEN BATTERIE!
Bei dem angebotenen Produkt handelt es sich um ein Zubehör- oder Ersatzteil und somit nicht um ein Originalprodukt des Fahrzeugherstellers.
Der Name des Fahrzeugherstellers wird nur als Hinweis auf die Bestimmung des als Zubehör oder Ersatzteil angebotenen Produktes angegeben, um zu verdeutlichen, für welches Fahrzeug das angebotene Produkt passt.
