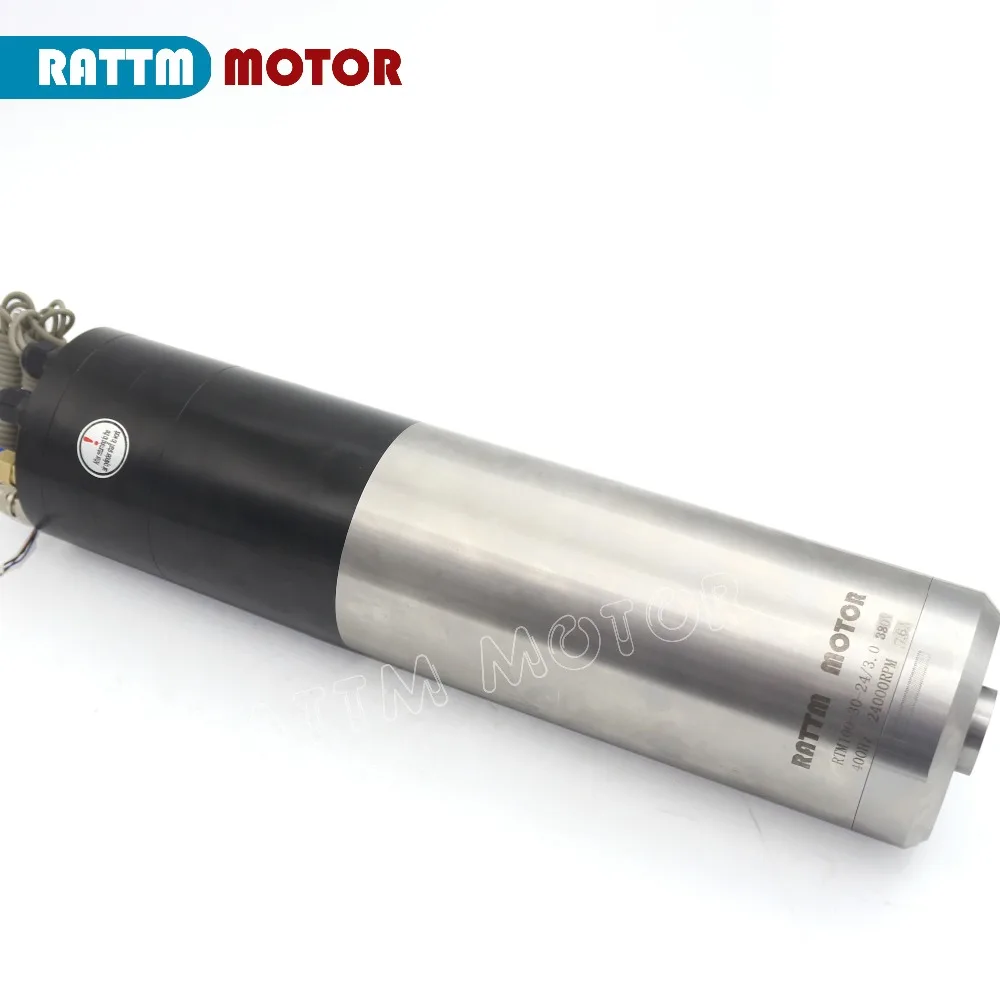

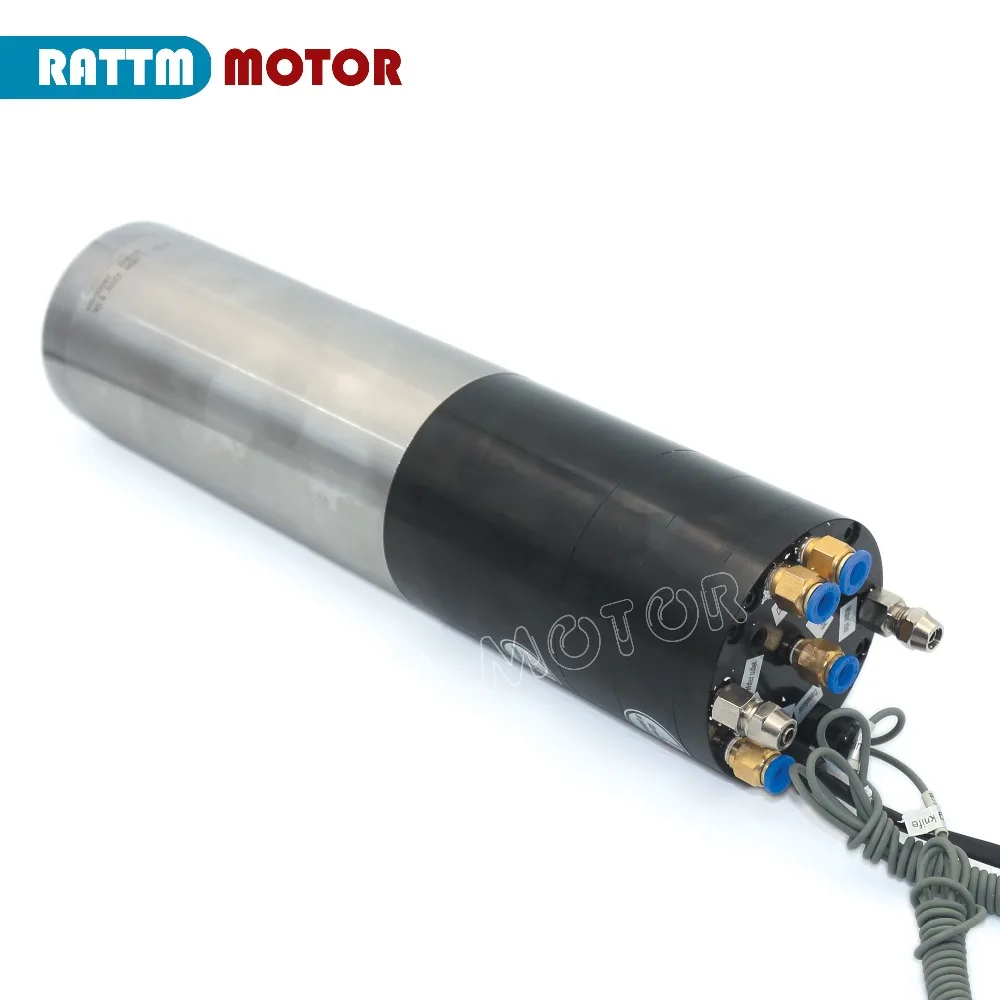

3KW BT30 ATC Automatic Tool Change CNC Water Spindle Motor 400hz 24000rpm 100mm
Package included:
1 x 3KW Water cooling Automatic Tool Change Spindle Motor 220V,6.7A,24000rpm,400Hz
1 x BT30 ER25 tool holder
- English user manual will send by email
Note:we will send 220V by default,if you need 380V type,please leave a message in order.
Product overview
1.This
spindle is built-in type spindle motor, built-in three asynchronous
motors,by the inverter control.As the spindle has a compact
structure,high power, big torque, small vibration, low noise
characteristics,so it can achieve high speed,high powe cutting,high
precision and high stability operation.
2.The bearing of spindle
use grease lubricated angular to contact bearings,can be achieved
lifelong lubricating within the life cycle.
3.The spindle use

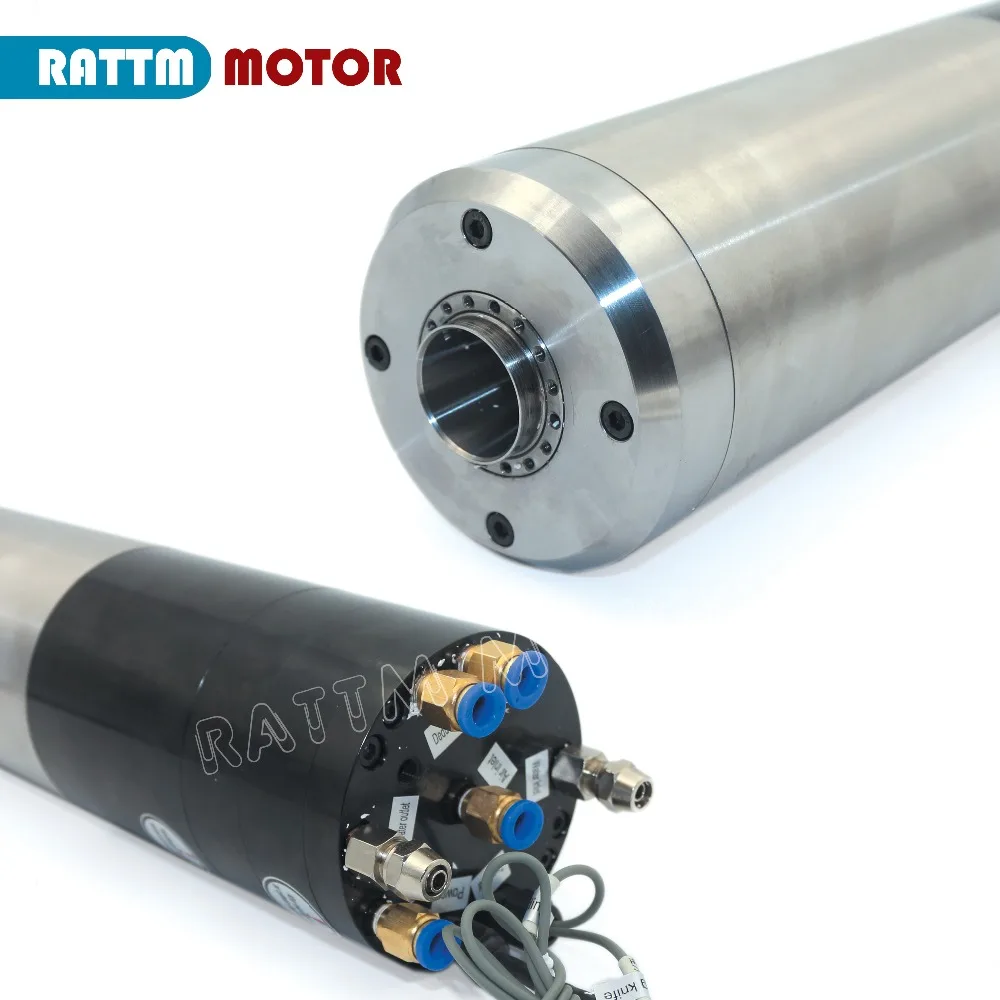

forced coolling mode to coolling motor,front and rear bearings.Coolant
flow through the reasonable arrangement cycle watercourse of the spindle
body,thus can take the heat generated of the spindle rotation speed, to
achieve thermal equilibrium,let spindle temperature within a certain
constant value. External cooling device effect:maintaining a constant
temperature of the coolant.
4.The spindle built-in PTC 140
temperature sensor(Technical parameters are visible in other sections of
this specification),you can read it anytime if you need to protect the
motor temperature.
5. The tool clamping methods:this spindle built-in automatic tool change device,shank form is BT30.
Please note that when stopping the spindle, you need to wait until the spindle is stopped before using the tool, so as to avoid causing the spindle and the tool mechanism to be connected together and cannot be separated. When loosening the tool and broaching the tool, you need to return the air, and pls keep the air intake and return air during the whole work.
