3KW BT30 ATC Spindle Motor,24000rpm 400Hz,220V Water Cooled w/ 3.7KW VFD for CNC
Package include:

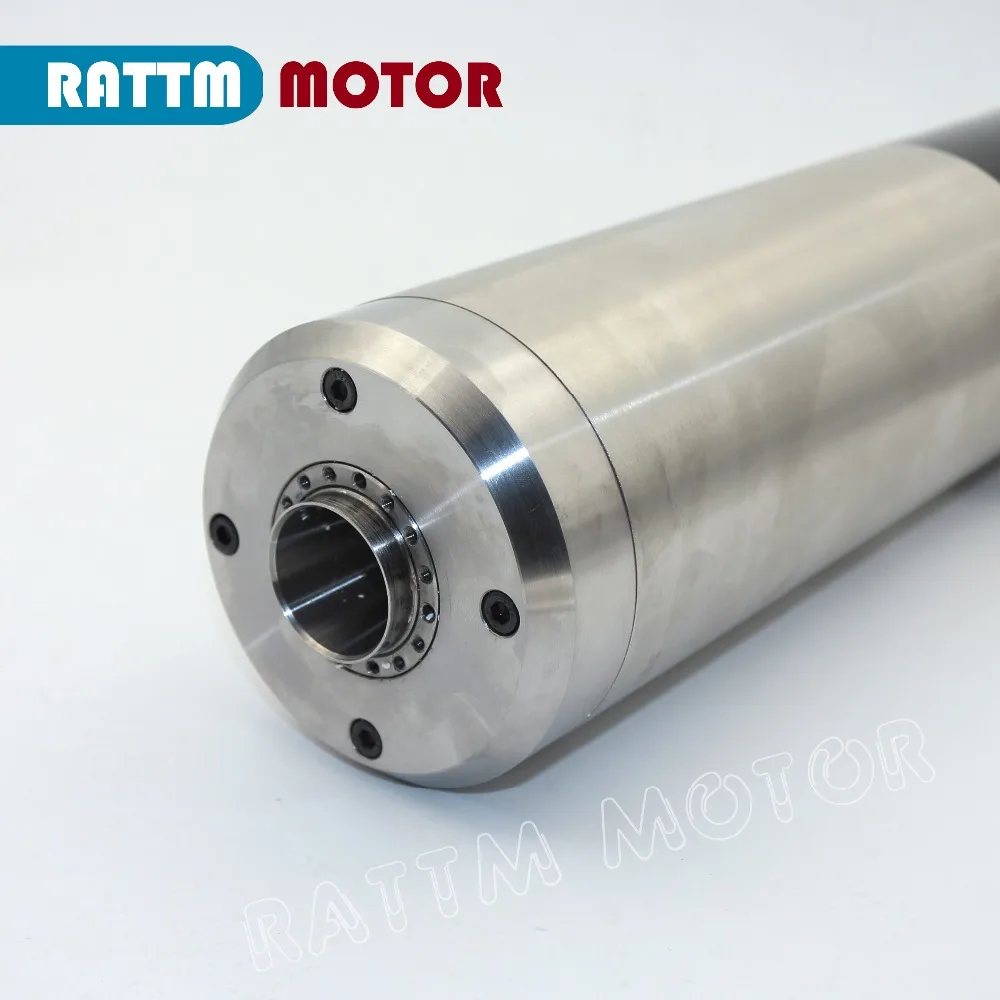

- 1 x 3KW ATC Automatic tool change Water-cooled spindle motor 220V BT30 400HZ 24000rpm 100mm
- 1 x 3.7KW 220V Fuling Brand Inverter VFD
- 1 x BT30-ER25 tool holder with 45 degree pull stud
- 1 x user manual
Ps:inverter's parameters have been set well to run this spindle.
100% Brand New and High Quality!!!

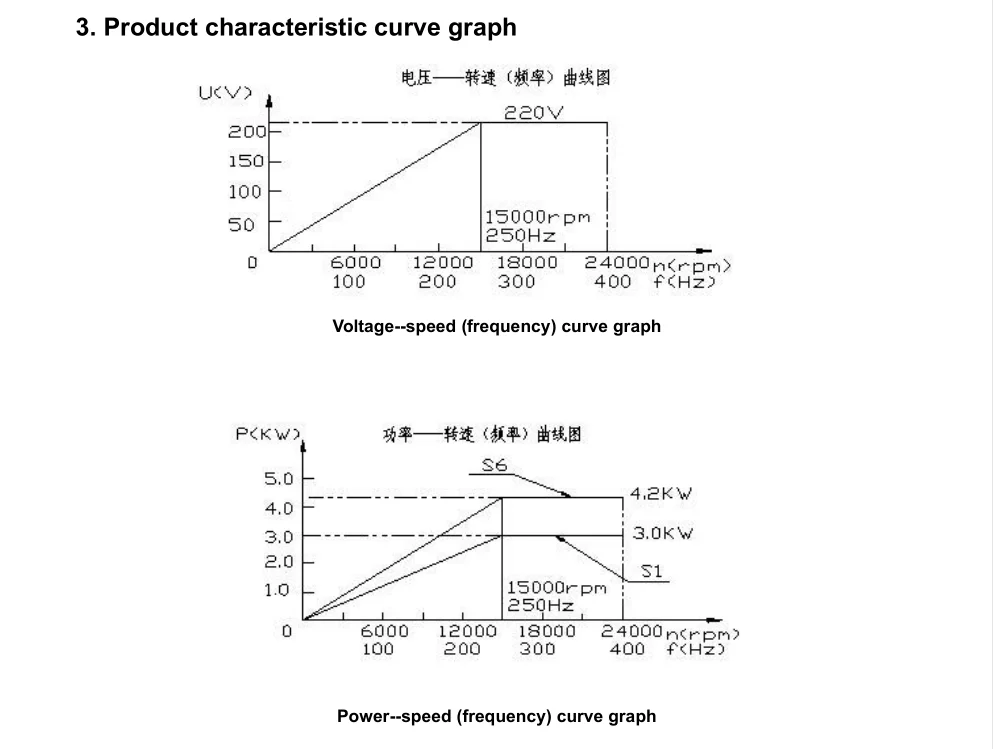

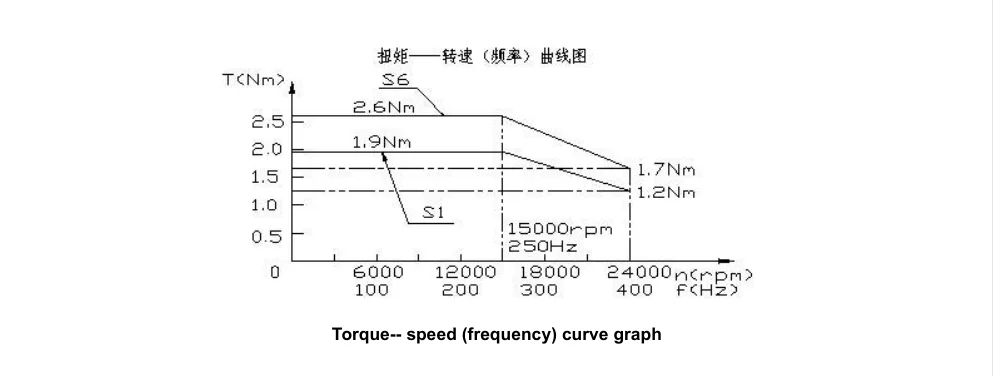

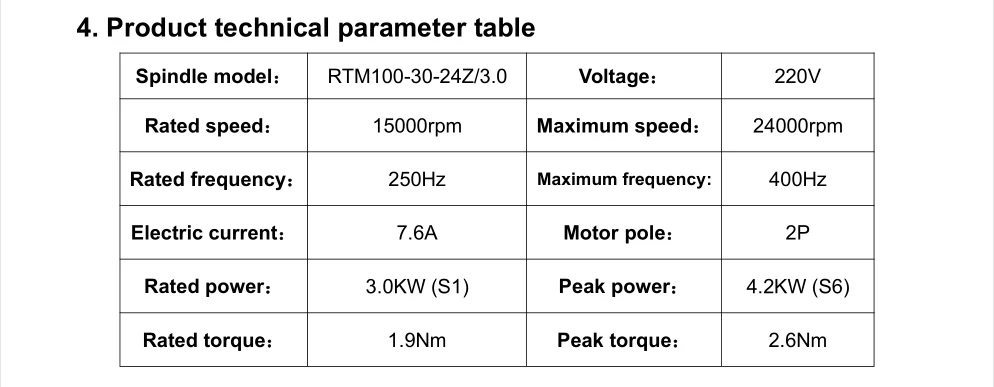

Product overview

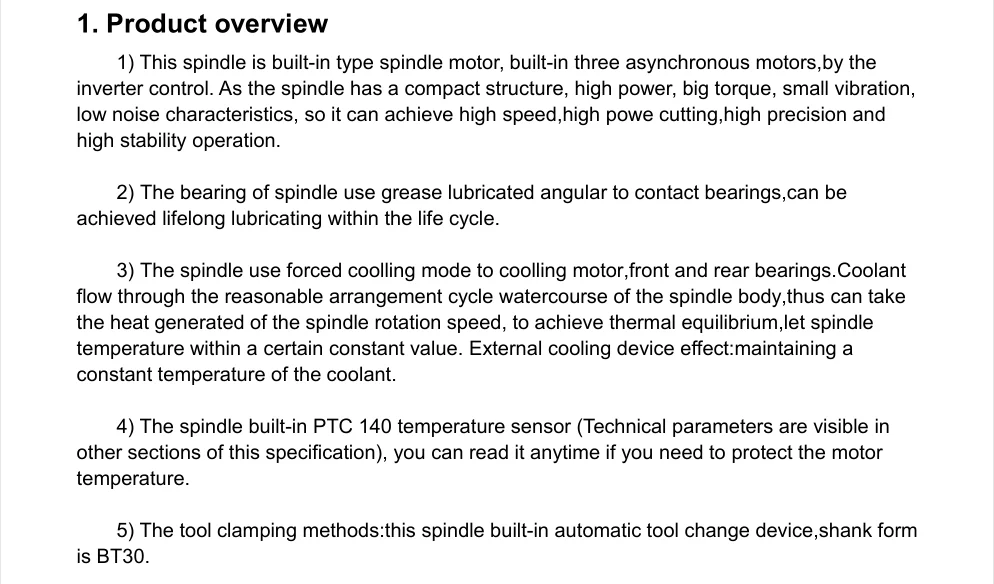

1.This
spindle is built-in type spindle motor, built-in three asynchronous
motors,by the inverter control.As the spindle has a compact
structure,high power, big torque, small vibration, low noise
characteristics,so it can achieve high speed,high powe cutting,high
precision and high stability operation.
2.The bearing of spindle
use grease lubricated angular to contact bearings,can be achieved
lifelong lubricating within the life cycle.

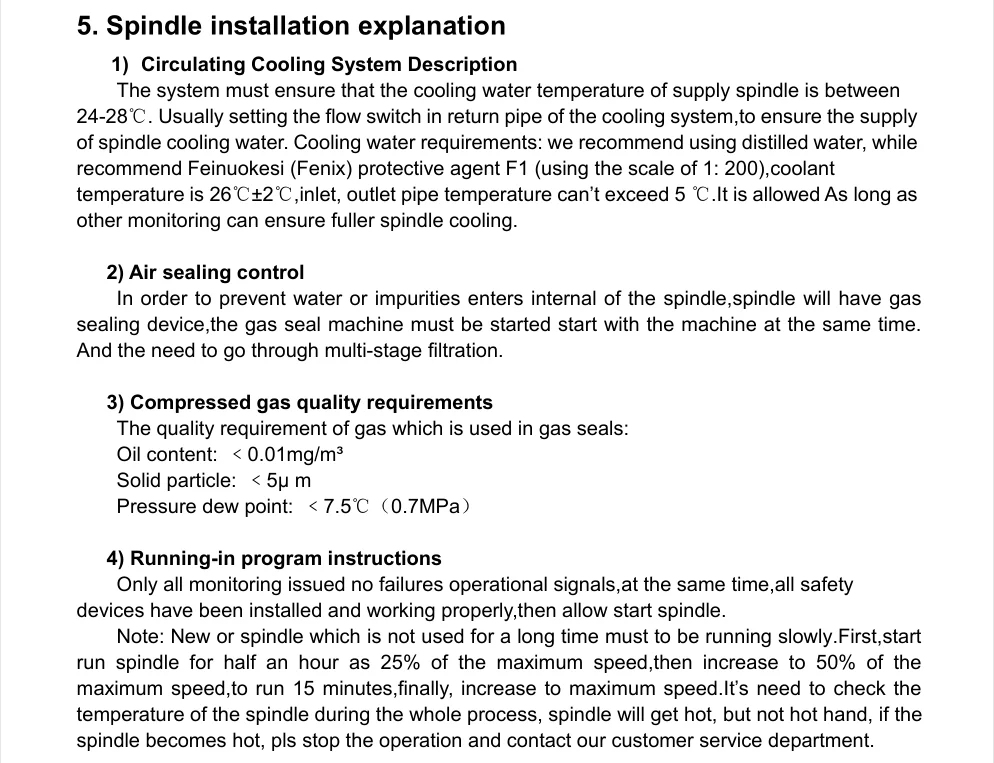

3.The spindle use
forced coolling mode to coolling motor,front and rear bearings.Coolant
flow through the reasonable arrangement cycle watercourse of the spindle
body,thus can take the heat generated of the spindle rotation speed, to
achieve thermal equilibrium,let spindle temperature within a certain
constant value. External cooling device effect:maintaining a constant
temperature of the coolant.

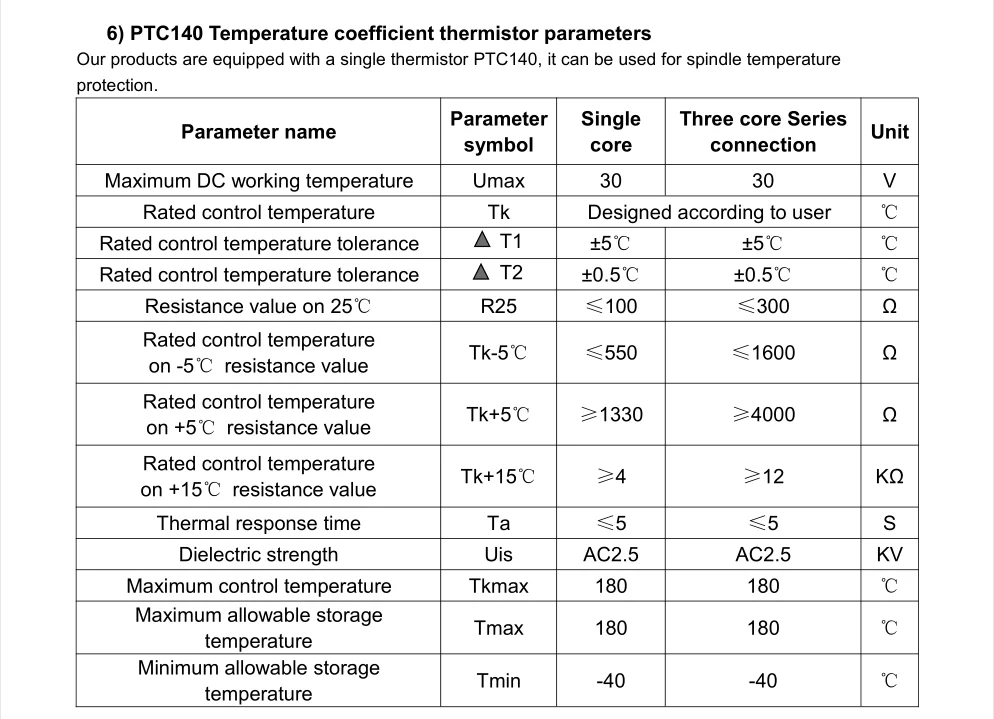

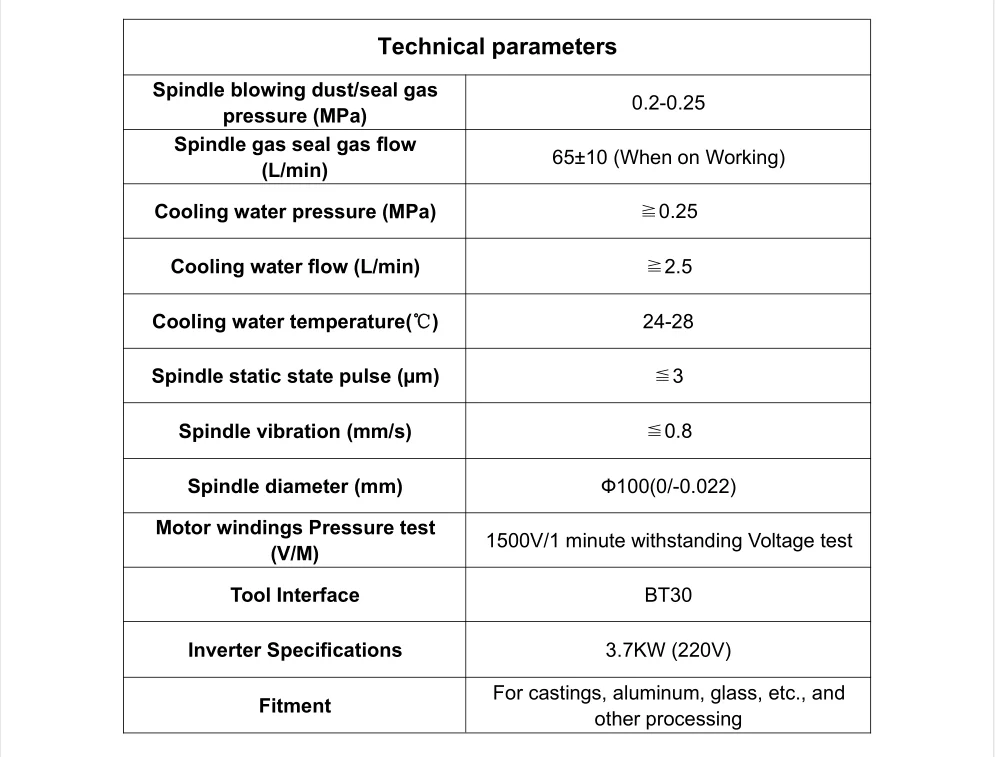

4.The spindle built-in PTC 140
temperature sensor(Technical parameters are visible in other sections of
this specification),you can read it anytime if you need to protect the
motor temperature.

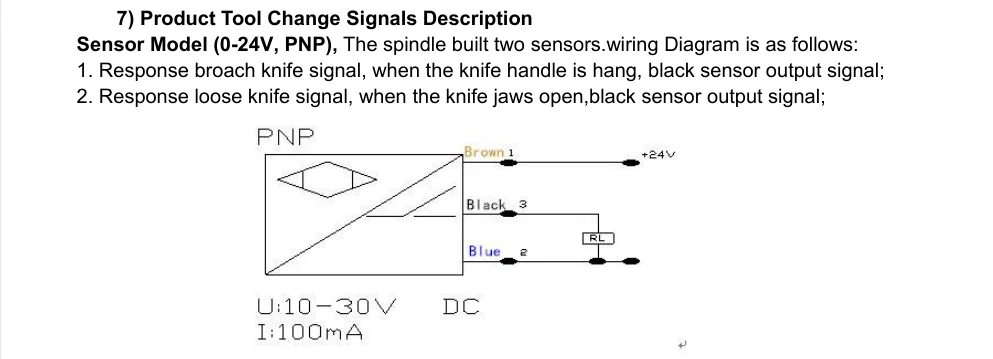

5. The tool clamping methods:this spindle built-in automatic tool change device,shank form is BT30.
Please
note that when stopping the spindle, you need to wait until the spindle
is stopped before using the tool, so as to avoid causing the spindle
and the tool mechanism to be connected together and cannot be separated.

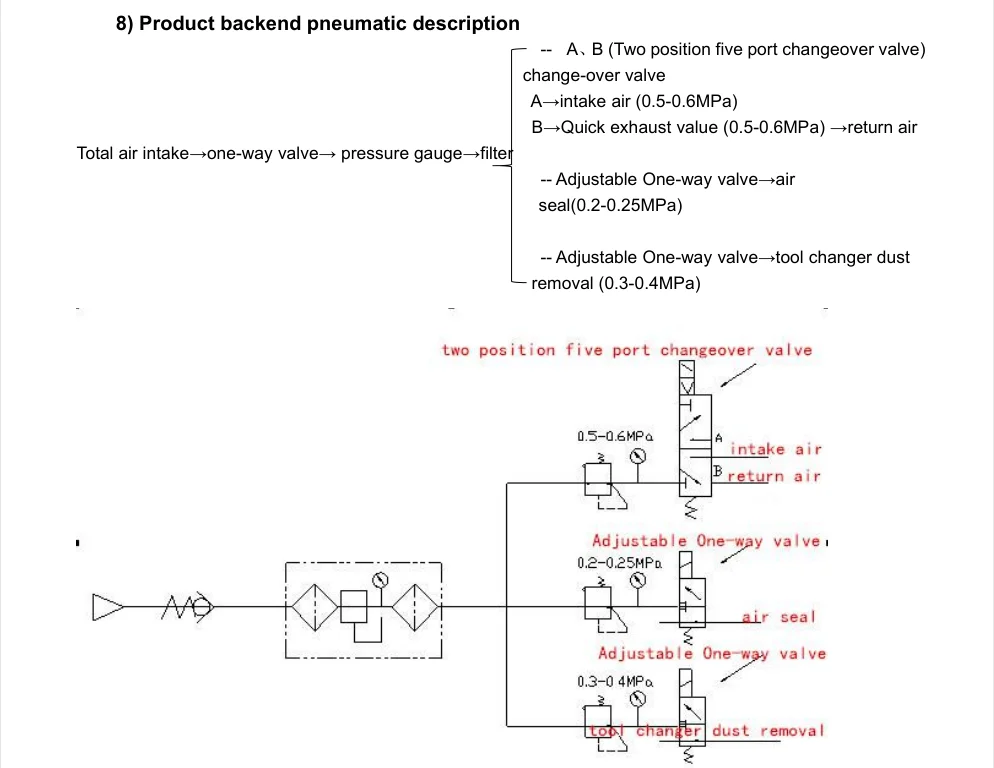

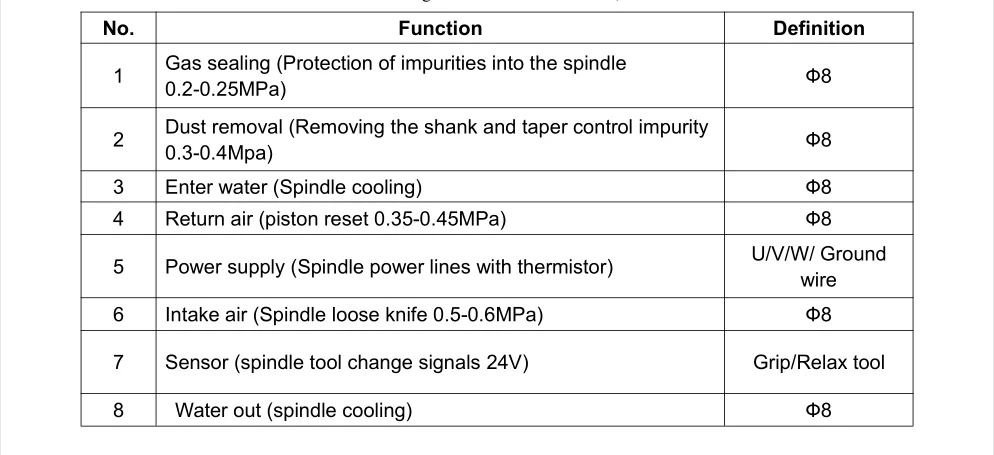

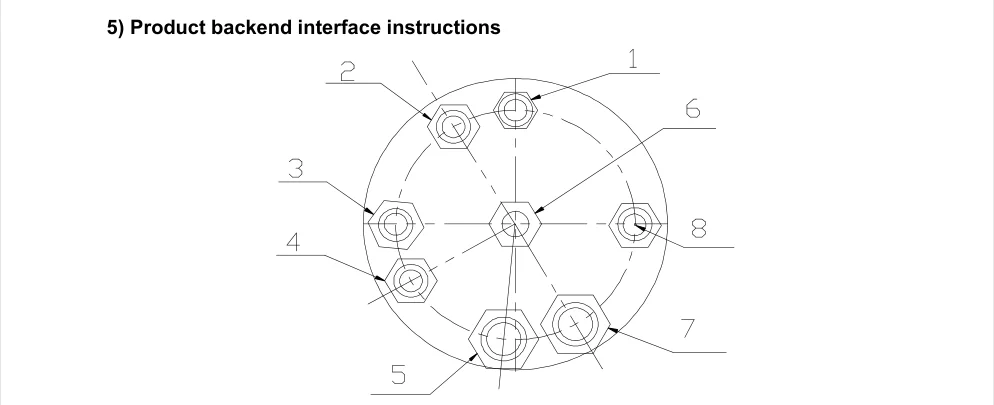

When loosening the tool and broaching the tool, you need to return the
air, and pls keep the air intake and return air during the whole work.

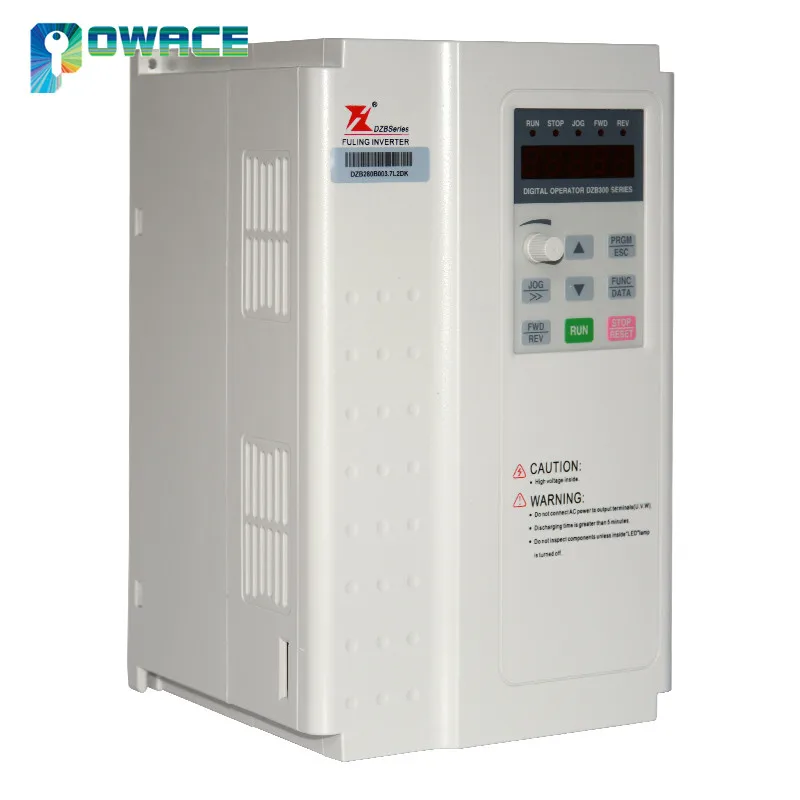

3.7KW VFD Fuling Inverter 220V
Inverter Number: Fuling 220v 3.7kw
Input Voltage: 220v(+/-15%)
Input Frequency: 50/60Hz
Input Phase: 1 or 3 phase
Output Voltage: 220vAC
Output Frequency: 0-1000 Hz
Output Current:15A
Output Phase: 3 phase
Warranty: 2 year from the date you purchased
Two speed control modes: no PG vector control (SVC), V/F control
No PG vector control (SVC): starting torque 0.5Hz up to 150%
8-stage simple PLC function, multi-speed control and PID control
Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting
I/O terminals can be freely programmed to combine multiple working modes according to user needs.
With
jump frequency control function, it can effectively suppress mechanical
resonance and make the system more stable and reliable.
With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure
With over torque and under torque detection
Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor
Provide
a variety of fault protection functions: over-current, over-voltage,
under-voltage, over-heat, overload, lack of equal real-time monitoring
and protection to ensure safe operation
Built-in reactor with
inverter above 37kW, which improves the power factor of the input side
and improves the efficiency and stability of the whole machine
built-in braking unit.

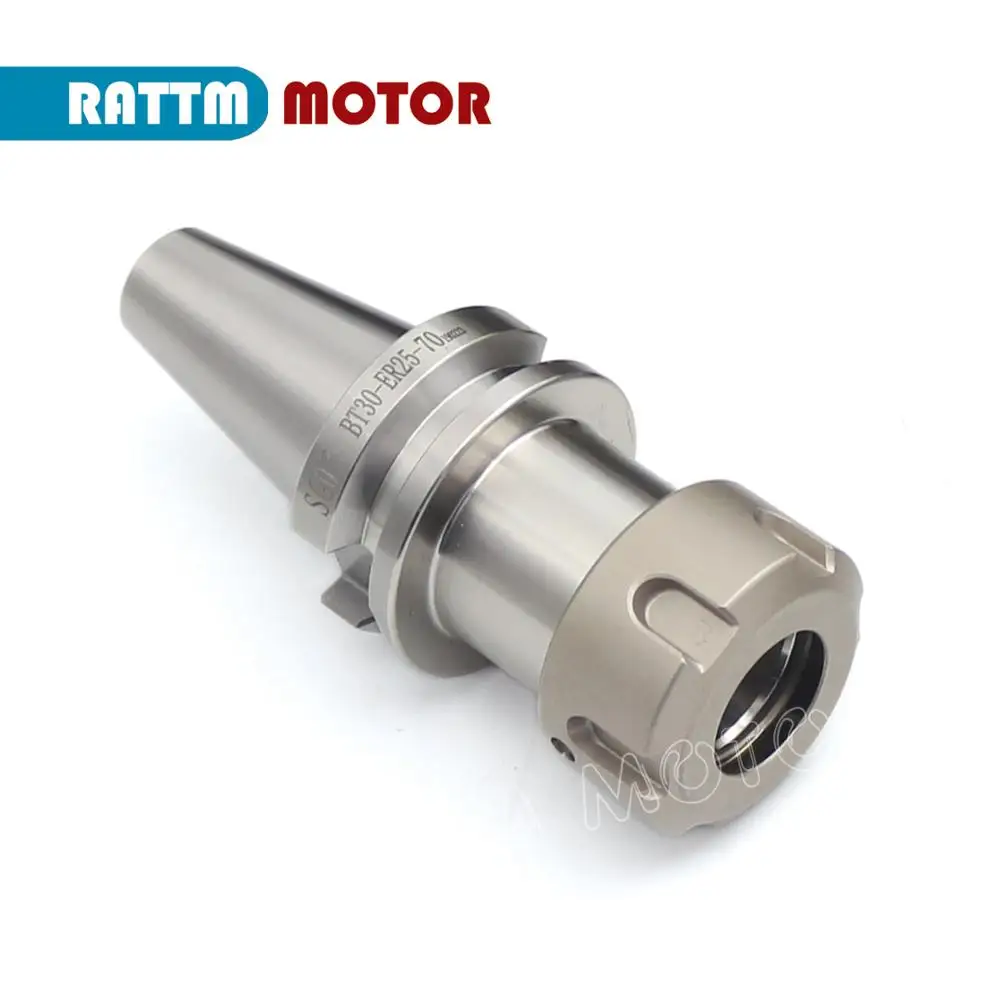

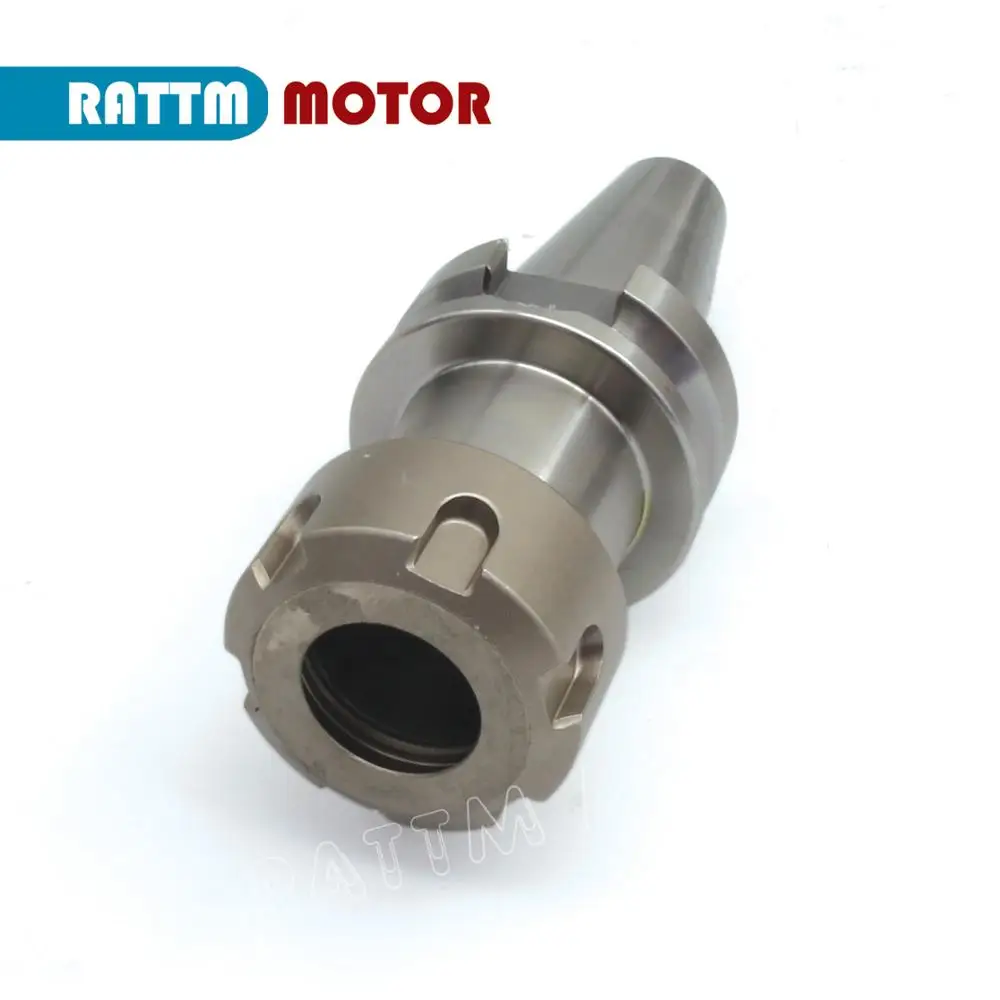

3. BT30-ER25 Tool Holder with 45 degree pull stud
- 1 x 3KW ATC Automatic tool change Water-cooled spindle motor 220V BT30 400HZ 24000rpm 100mm
- 1 x 3.7KW 220V Fuling Brand Inverter VFD
- 1 x BT30-ER25 tool holder with 45 degree pull stud
- 1 x user manual
100% Brand New and High Quality!!!
Product overview
1.This
spindle is built-in type spindle motor, built-in three asynchronous
motors,by the inverter control.As the spindle has a compact
structure,high power, big torque, small vibration, low noise
characteristics,so it can achieve high speed,high powe cutting,high
precision and high stability operation.
2.The bearing of spindle
use grease lubricated angular to contact bearings,can be achieved
lifelong lubricating within the life cycle.
3.The spindle use
forced coolling mode to coolling motor,front and rear bearings.Coolant
flow through the reasonable arrangement cycle watercourse of the spindle
body,thus can take the heat generated of the spindle rotation speed, to
achieve thermal equilibrium,let spindle temperature within a certain
constant value. External cooling device effect:maintaining a constant
temperature of the coolant.
4.The spindle built-in PTC 140
temperature sensor(Technical parameters are visible in other sections of
this specification),you can read it anytime if you need to protect the
motor temperature.
5. The tool clamping methods:this spindle built-in automatic tool change device,shank form is BT30.
Please note that when stopping the spindle, you need to wait until the spindle is stopped before using the tool, so as to avoid causing the spindle and the tool mechanism to be connected together and cannot be separated. When loosening the tool and broaching the tool, you need to return the air, and pls keep the air intake and return air during the whole work.
Input Frequency: 50/60Hz
Input Phase: 1 or 3 phase
Output Voltage: 220vAC
Output Frequency: 0-1000 Hz
Output Current:15A
Output Phase: 3 phase
Warranty: 2 year from the date you purchased
No PG vector control (SVC): starting torque 0.5Hz up to 150%
8-stage simple PLC function, multi-speed control and PID control
Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting
I/O terminals can be freely programmed to combine multiple working modes according to user needs.
With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.
With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure
With over torque and under torque detection
Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor
Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation
Built-in reactor with inverter above 37kW, which improves the power factor of the input side and improves the efficiency and stability of the whole machine
built-in braking unit.
3. BT30-ER25 Tool Holder with 45 degree pull stud
