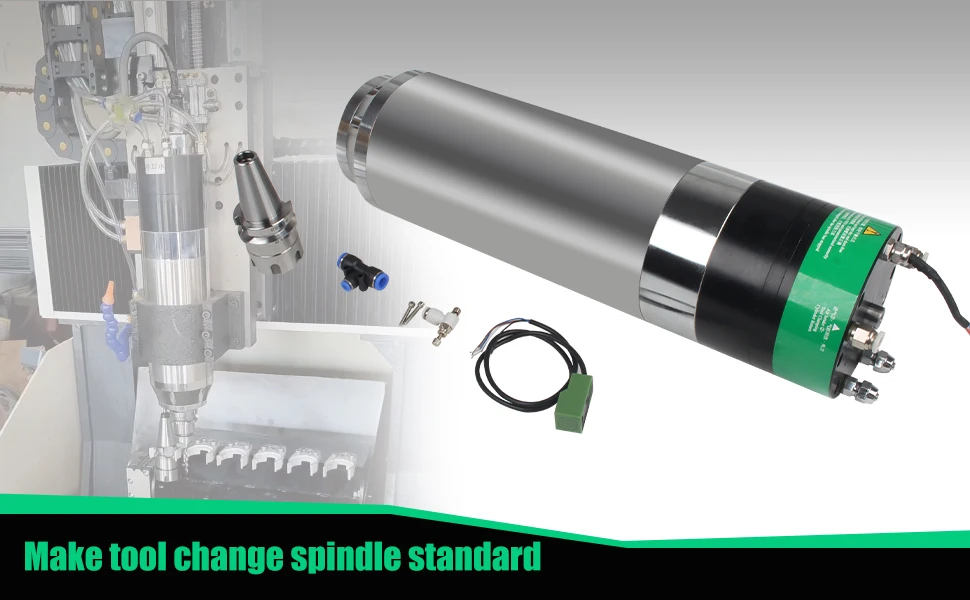

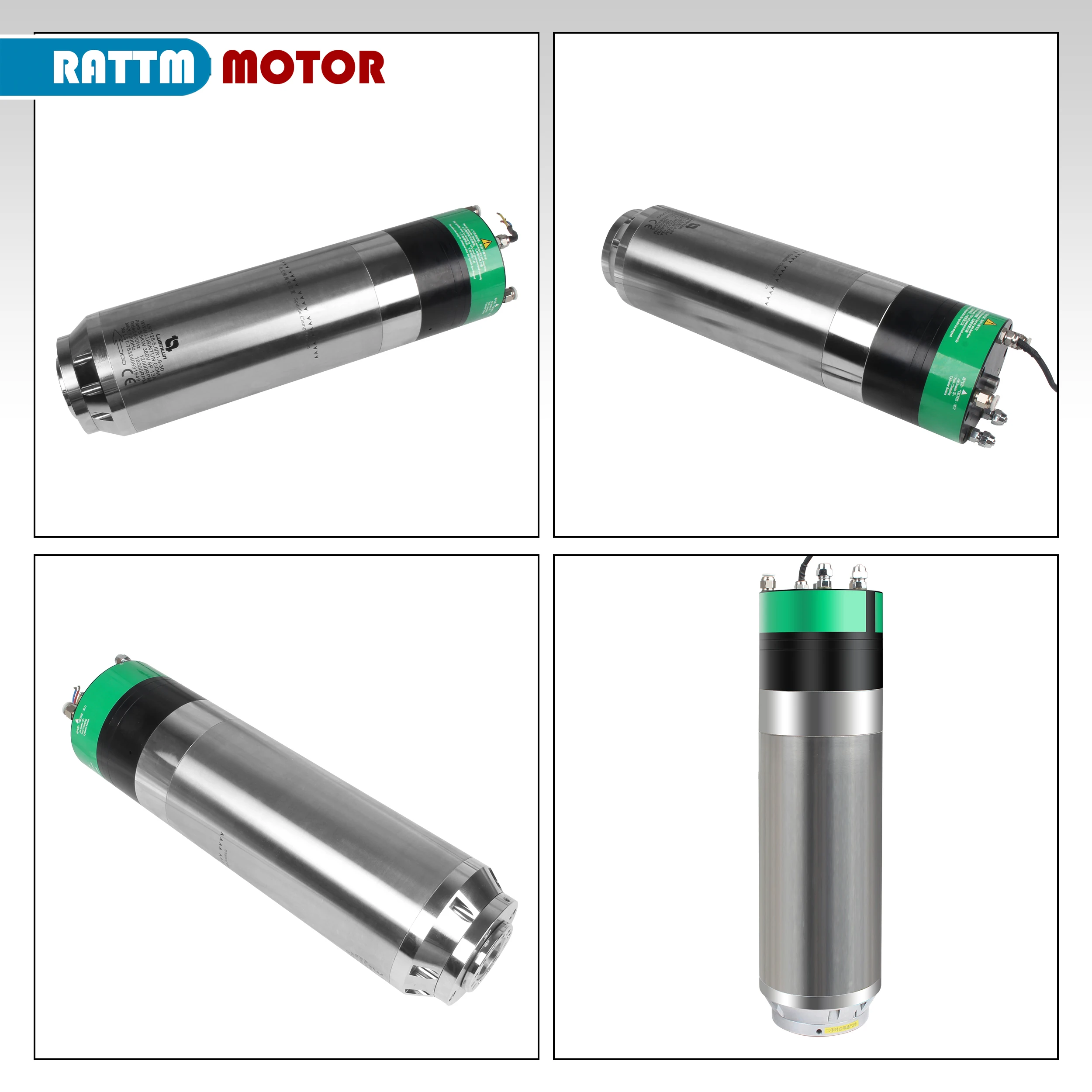

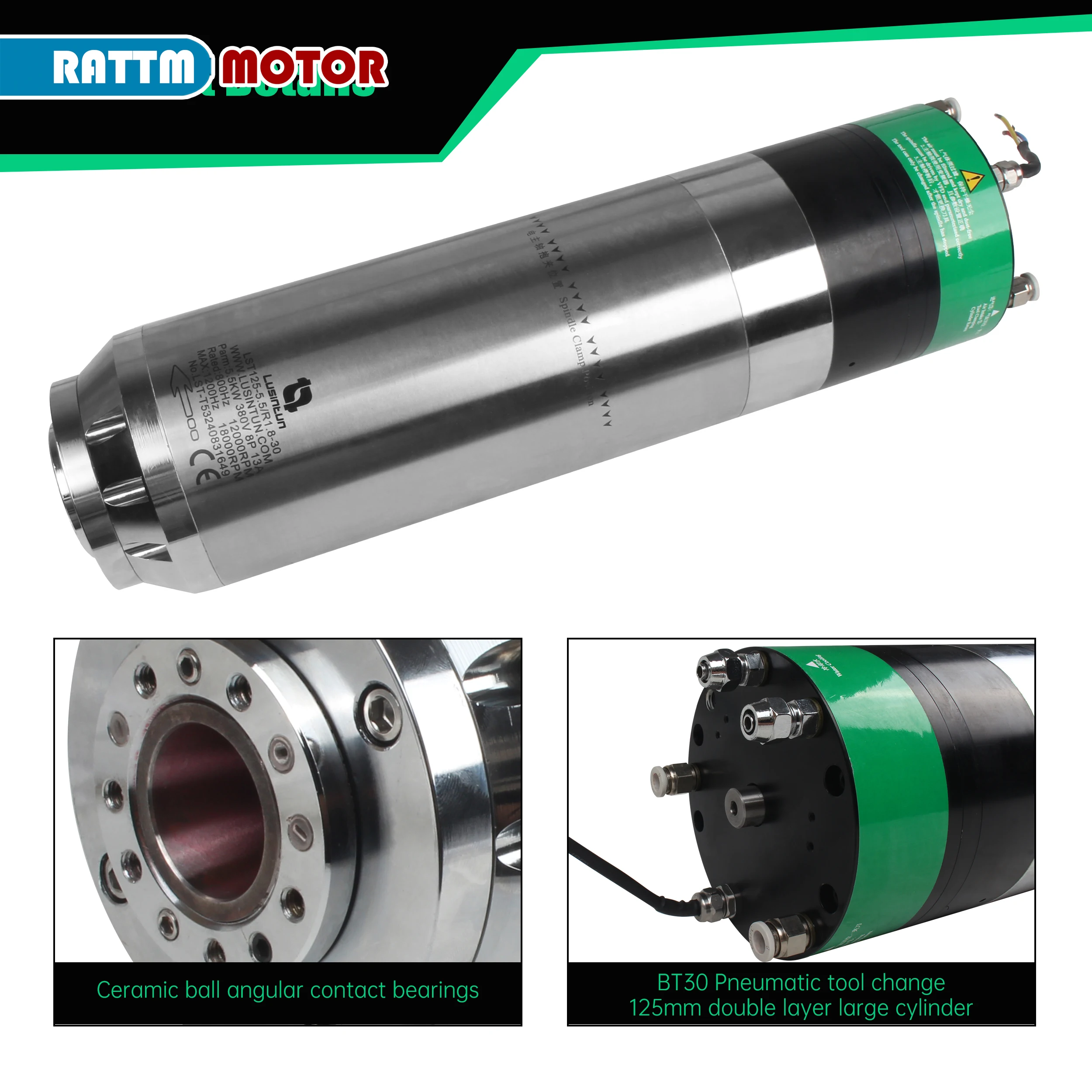

3KW 5.5KW 7.5KW ATC Automatic Tool Change Water Cooled Spindle Motor BT30+VFD
220V or 380V Version
Package included (220V or 380V optional)
- 1 Set 3KW/5.5KW/7.5KW ATC Water cooled spindle motor (4 pole 24000rpm or 8pole 18000rpm are optional)
- 1 x BT30-ER20 Tool Holder with pull stud
- 1 x 5.5KW/7.5KW Fuling Brand VFD Inverter 220V or 380V (Optional)
- 1 Set Accessories for spindle
- Pdf. English manual
Descriptions:
Pls note :
3KW spindle diameter is 100mm

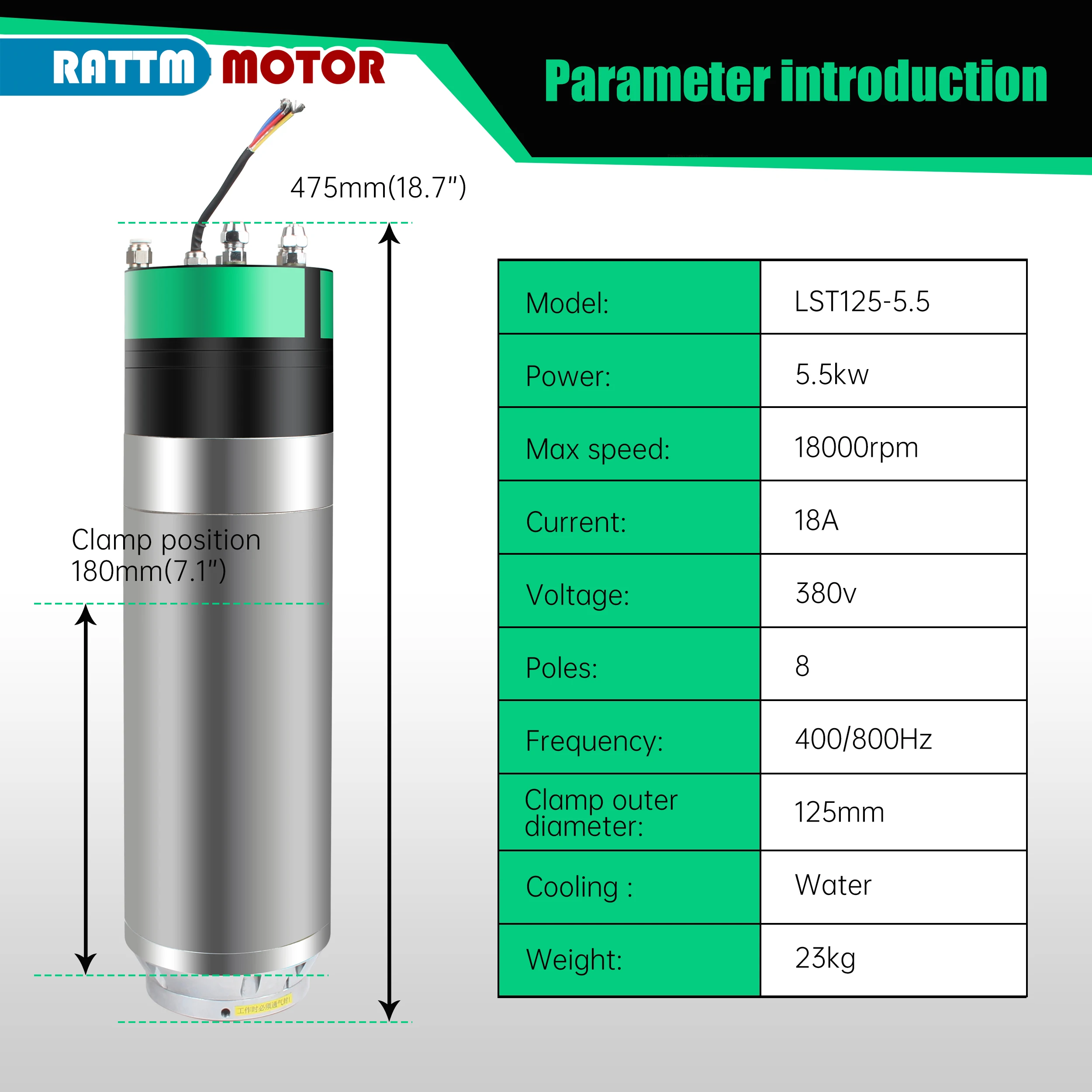

5.5KW / 7.5KW spindle diameter is 125mm
4 poles is 24000rpm
8 poles is 18000rpm

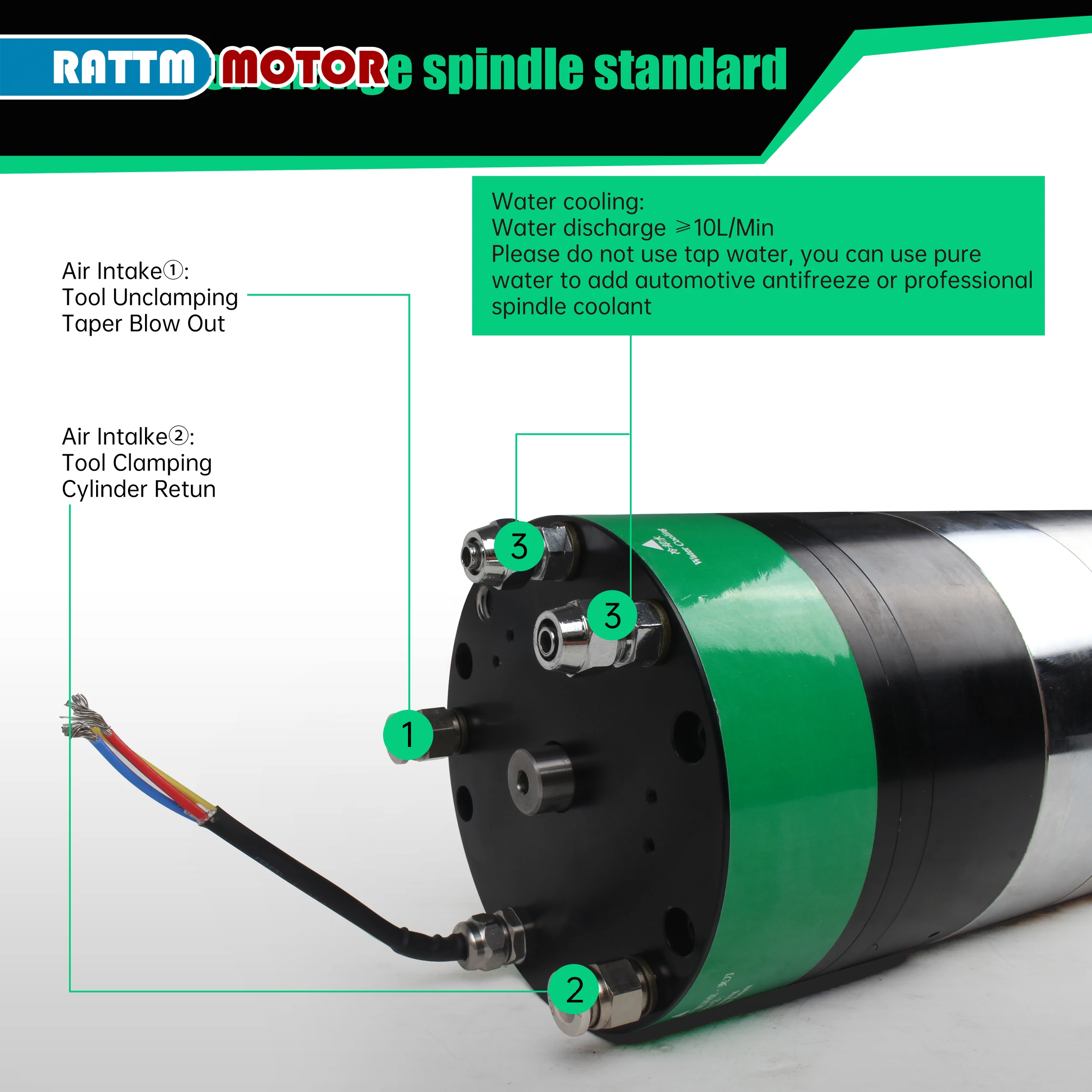

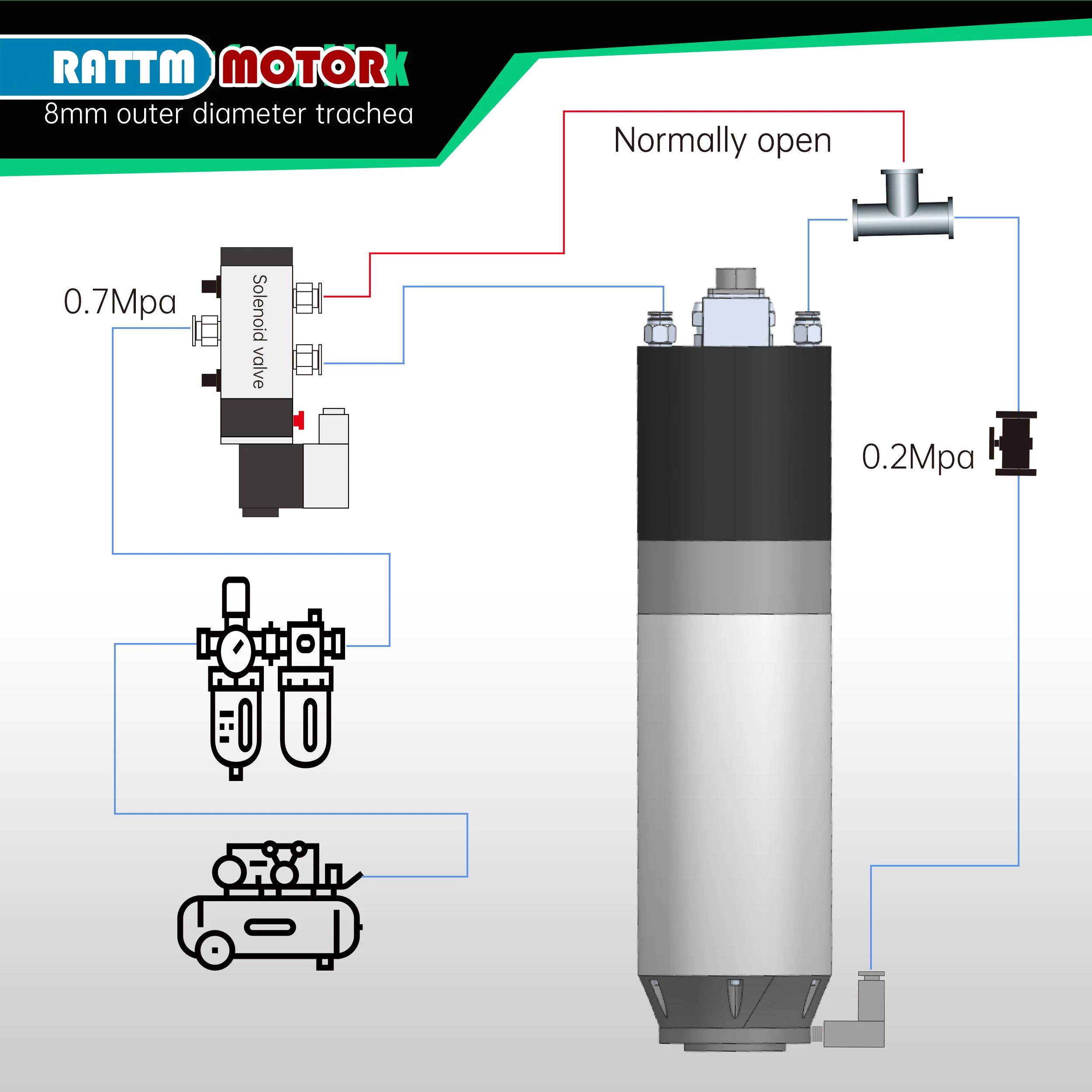

This spindle is a 2-in-1 tool used for loosening tools and dust removal, and of course, an air seal is also required.
Pls note :
3KW spindle diameter is 100mm
5.5KW / 7.5KW spindle diameter is 125mm
4 poles is 24000rpm
8 poles is 18000rpm
This spindle is a 2-in-1 tool used for loosening tools and dust removal, and of course, an air seal is also required.

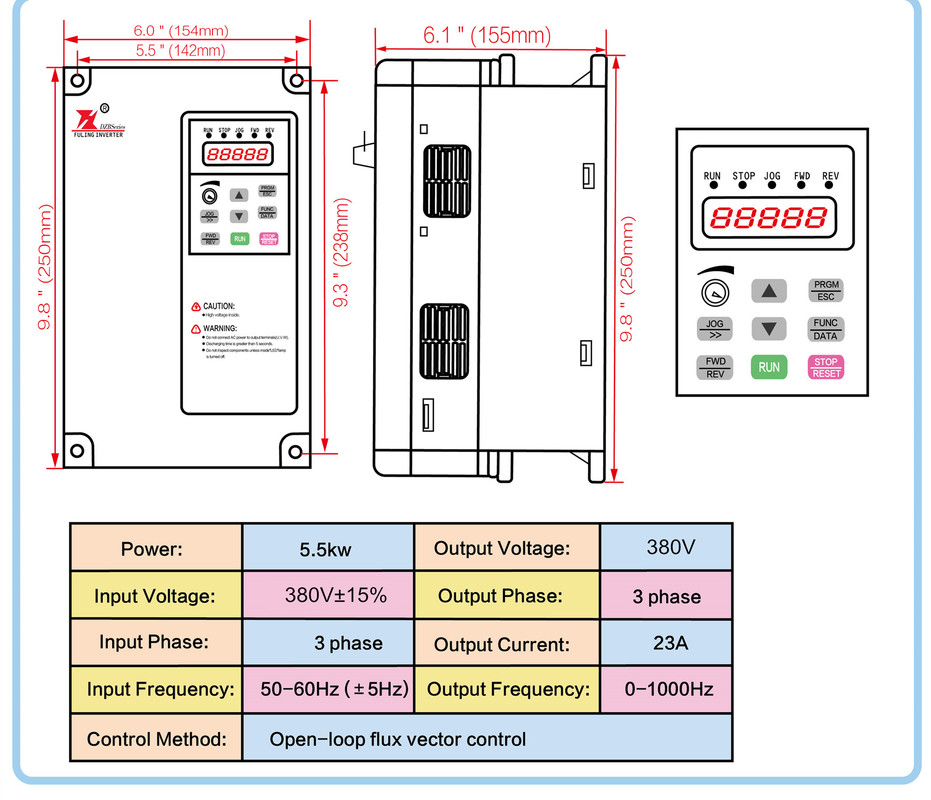

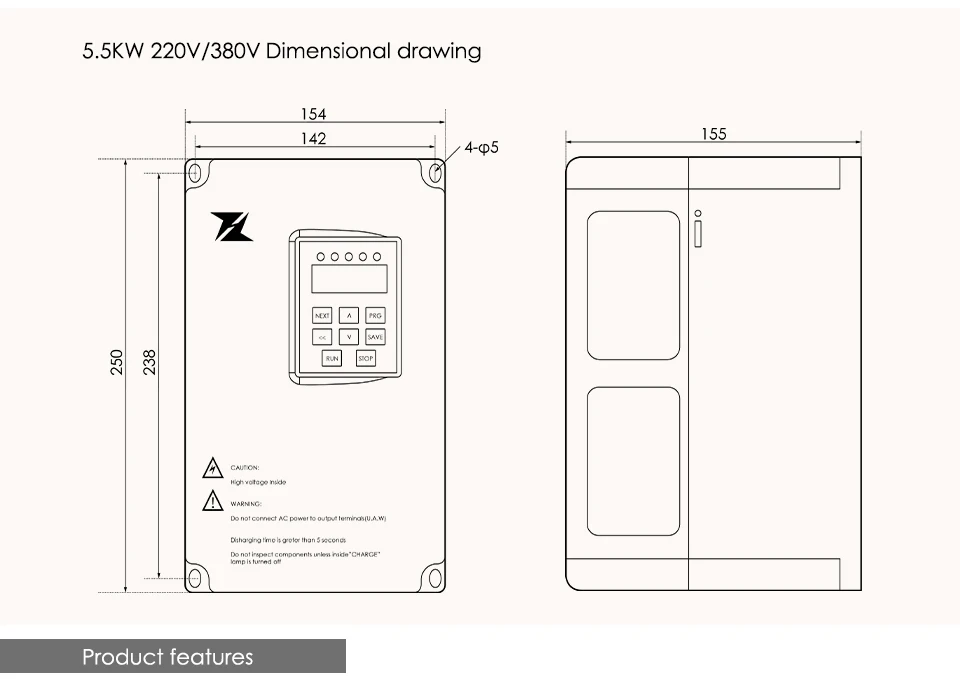

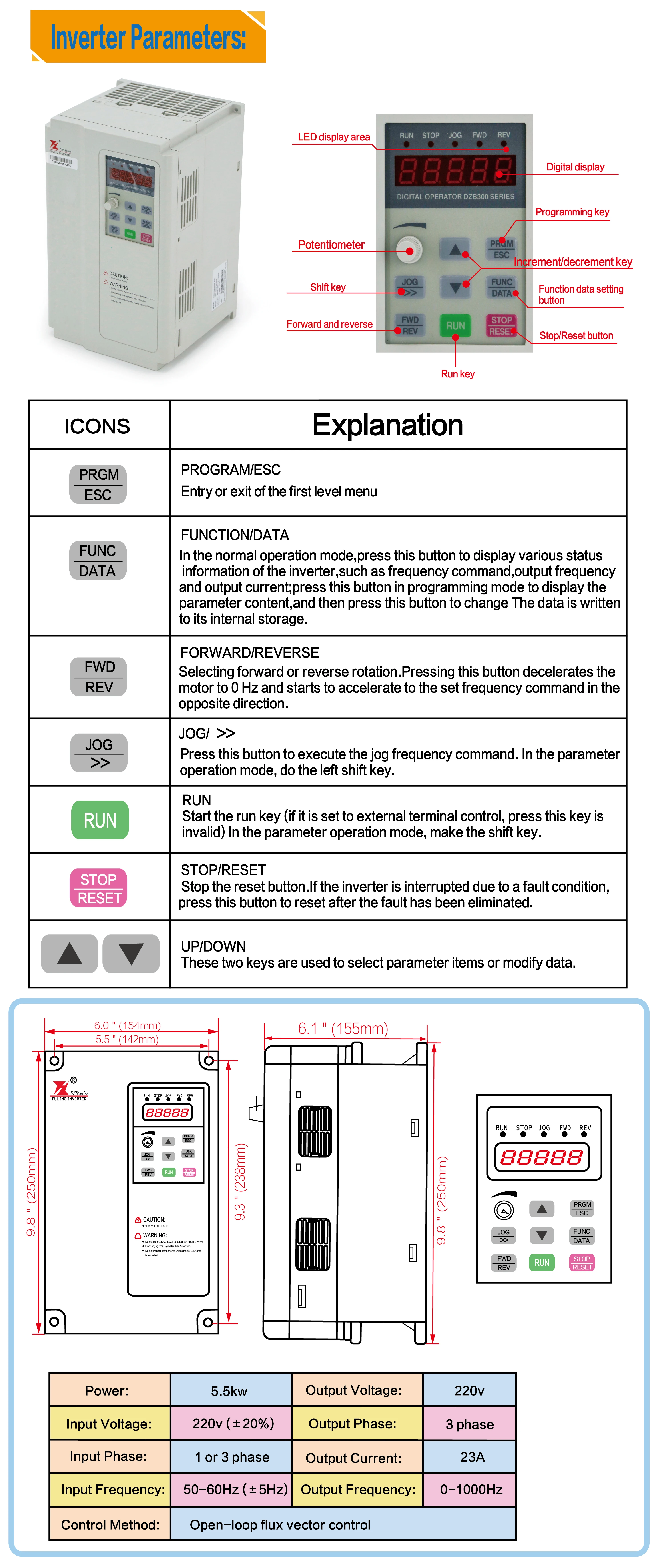

5.5KW Fuling Inverter VFD 220V or 380V
Feature:
It could adapt To the Dust working environment.
220V Configuration:
- Brand Name:Fuling
- Power:5.5kw
- Rated output current:23A
- Output voltage:3phase AC220V
- Input voltage:1phase AC220V or 3phase AC220V
- Frequency:0-1000HZ
380V Configuration:
- Brand Name:Fuling
- Power:5.5kw
- Rated output current:13A
- Output voltage:3phase AC380V
- Input voltage:3phase AC380V
- Frequency:0-1000HZ

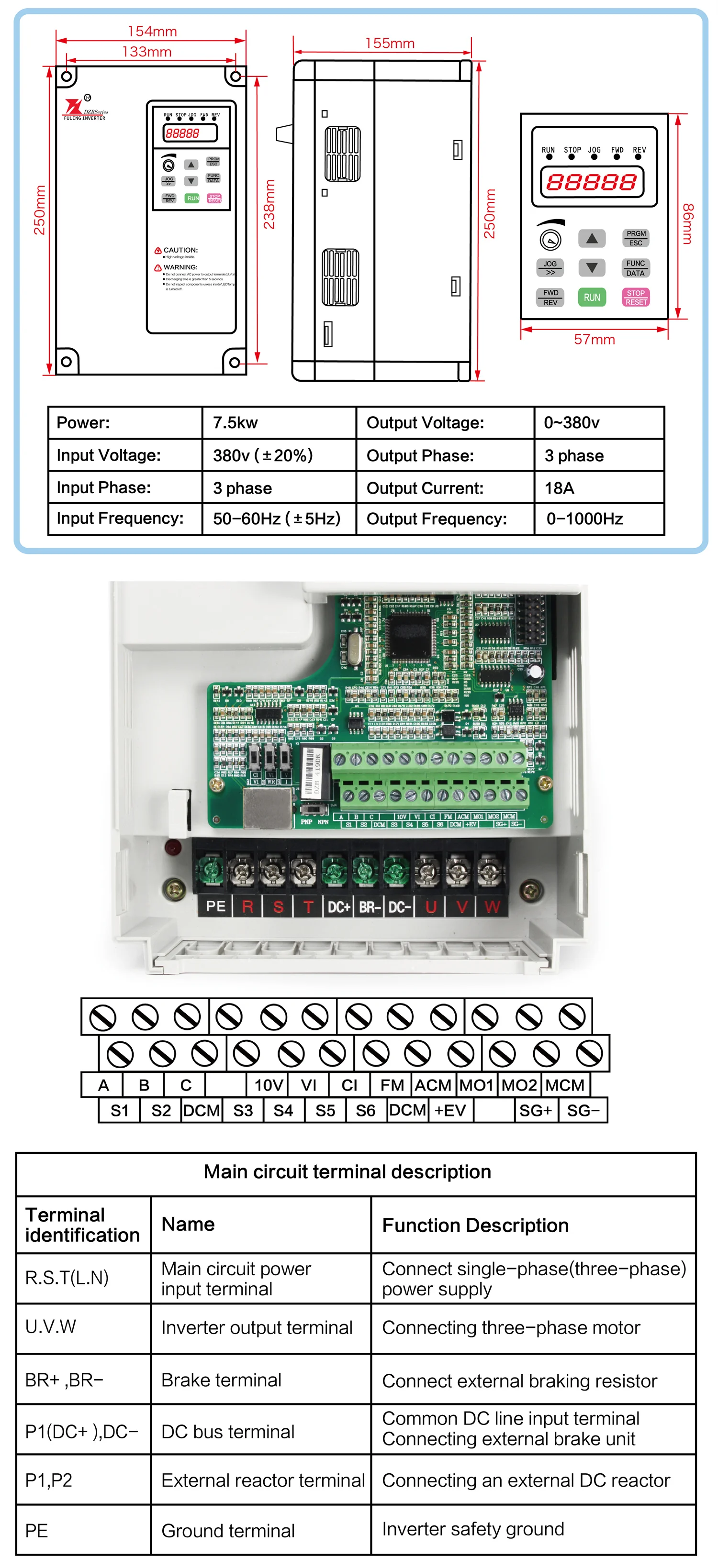

7.5KW Fuling Inverter VFD 220V or 380V
220V Configuration:
Brand Name:Fuling
Power:7.5kw
Rated output current:31A
Output voltage:3phase AC220V
Input voltage:1phase AC220V or 3phase AC220V
Frequency:0-1000HZ
380V Configuration:
Brand Name:Fuling
Power:7.5kw
Rated output current:18A
Output voltage:3phase AC380V
Input voltage:3phase AC380V
Frequency:0-1000HZ
It could adapt To the Dust working environment.
220V Configuration:
- Brand Name:Fuling
- Power:5.5kw
- Rated output current:23A
- Output voltage:3phase AC220V
- Input voltage:1phase AC220V or 3phase AC220V
- Frequency:0-1000HZ
380V Configuration:
- Brand Name:Fuling
- Power:5.5kw
- Rated output current:13A
- Output voltage:3phase AC380V
- Input voltage:3phase AC380V
- Frequency:0-1000HZ

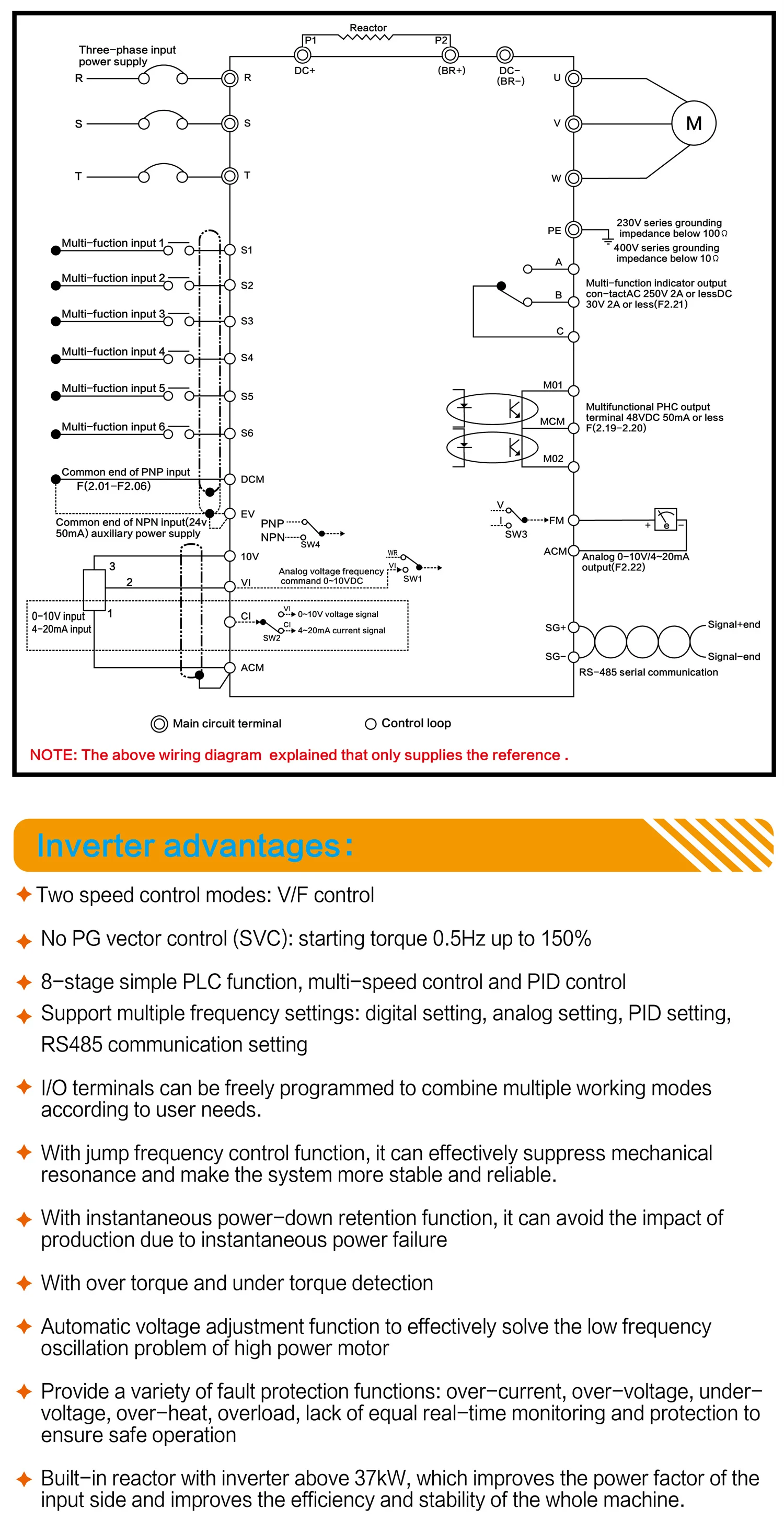

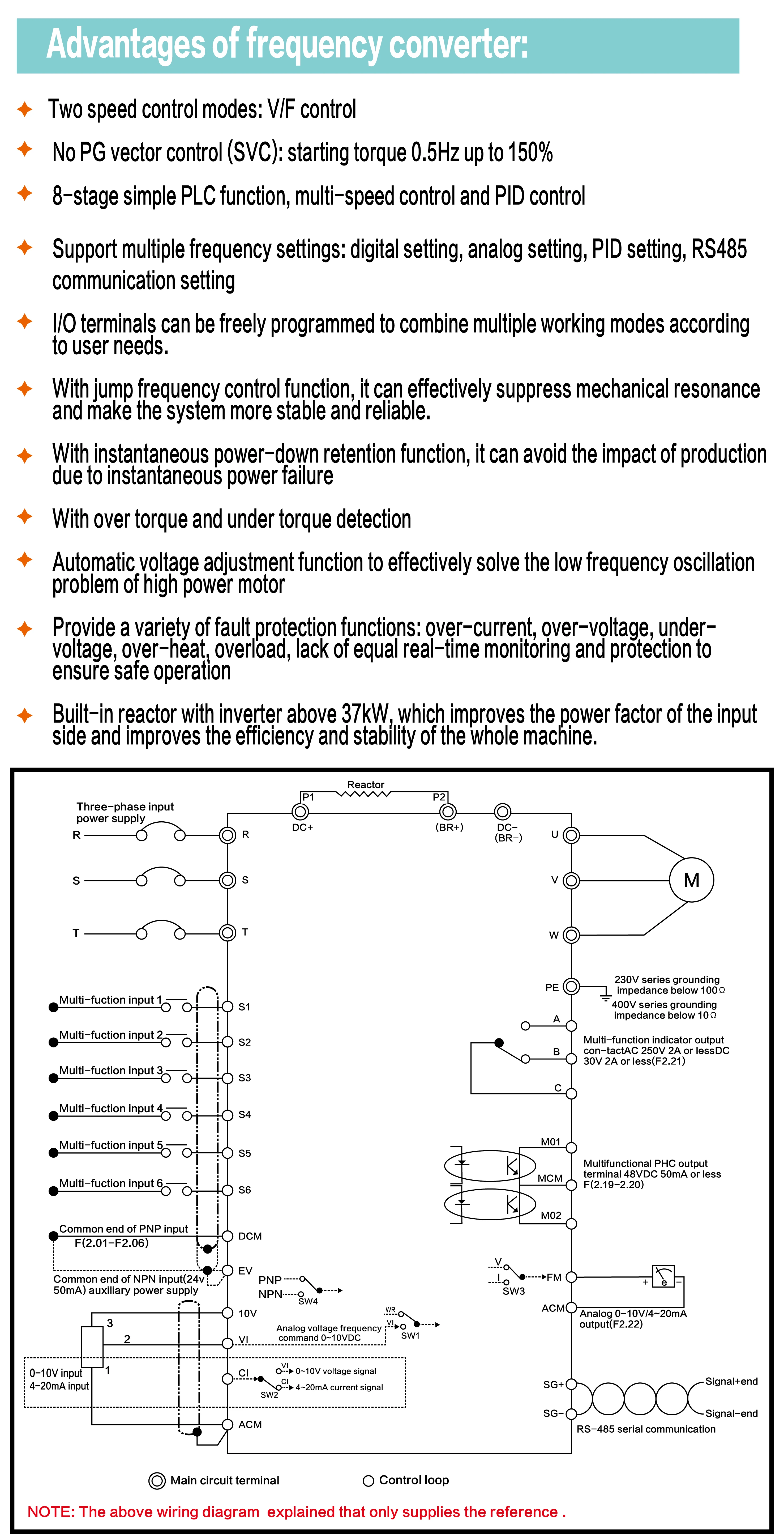

Product features
◆ It can realize 8 segment speed running for convenient macro card control
◆ Adopt 32-bit microprocessor and sine PWM control
◆ Unique core algorithm and low interference
◆ Adopt independent air duct for many dust occasions
◆ Automatic torque promotion and automatic slip compensation function
◆ Built-in standard 485 communication function
◆ Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging
The 220V version of the VFD does not support brake resistors,380V VFD support brake resistors.
◆ It can realize 8 segment speed running for convenient macro card control
◆ Adopt 32-bit microprocessor and sine PWM control
◆ Unique core algorithm and low interference
◆ Adopt independent air duct for many dust occasions
◆ Automatic torque promotion and automatic slip compensation function
◆ Built-in standard 485 communication function
◆ Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging
The 220V version of the VFD does not support brake resistors,380V VFD support brake resistors.
