HoldPeak Clamp Meter Clamp Multimeter DC Clamp Meter Digital AC DC Current Clamp Meter

Description:

⚡⚡⚡HoldPeak  HP-7200-APP TRMS Clamp Meter 6000 Counts  AC DC Amp Volt Ohm Tester TRMS 6000 Counts NCV
➤【Multifunction Clamp Meter】 6000 Counts Auto-range AC/DC amps clamp multimeter with the DC Voltage range:600mV~600V, AC Voltage range:6V~600V, AC/DC Current: 60A~400A; Resistance:600Ω~60MΩ; Ideal Non-contact ampere multimeter to troubleshoot electrical problems in automotive, household, HVAC, vehicle boat motor diagnosis.

➤【Remotely Monitoring on Your Phone】 Built-in wireless connectivity can auto connect to your Android / Apple phones or tablet with ease, allows you viewing logging the data out of the arc flash zone 15m (50 ft) away, and save the measurement for detailed analysis, sharing later.
➤【True-RMS Clamp Meter】 This multimeter can accurately measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, Capacitance and also provides Diode, Continuity and Temperature tests in ℃. True RMS for accurate measurements on non-linear loads. Easy to use for labs factories and household.

➤ 【Continuous Data Logging Clamp DMM】This clamp-on meter can displays AC DC amps, volts, ohms, Cap, Hz Temp in Max/Min/Avg on the same interface with real-time reading. The curve graph w/ timing will show you the changes of amp volt flow more visually. Also supports adjustable data logging rates for continuous testing/ recording unless the battery is dead or the memory is full.

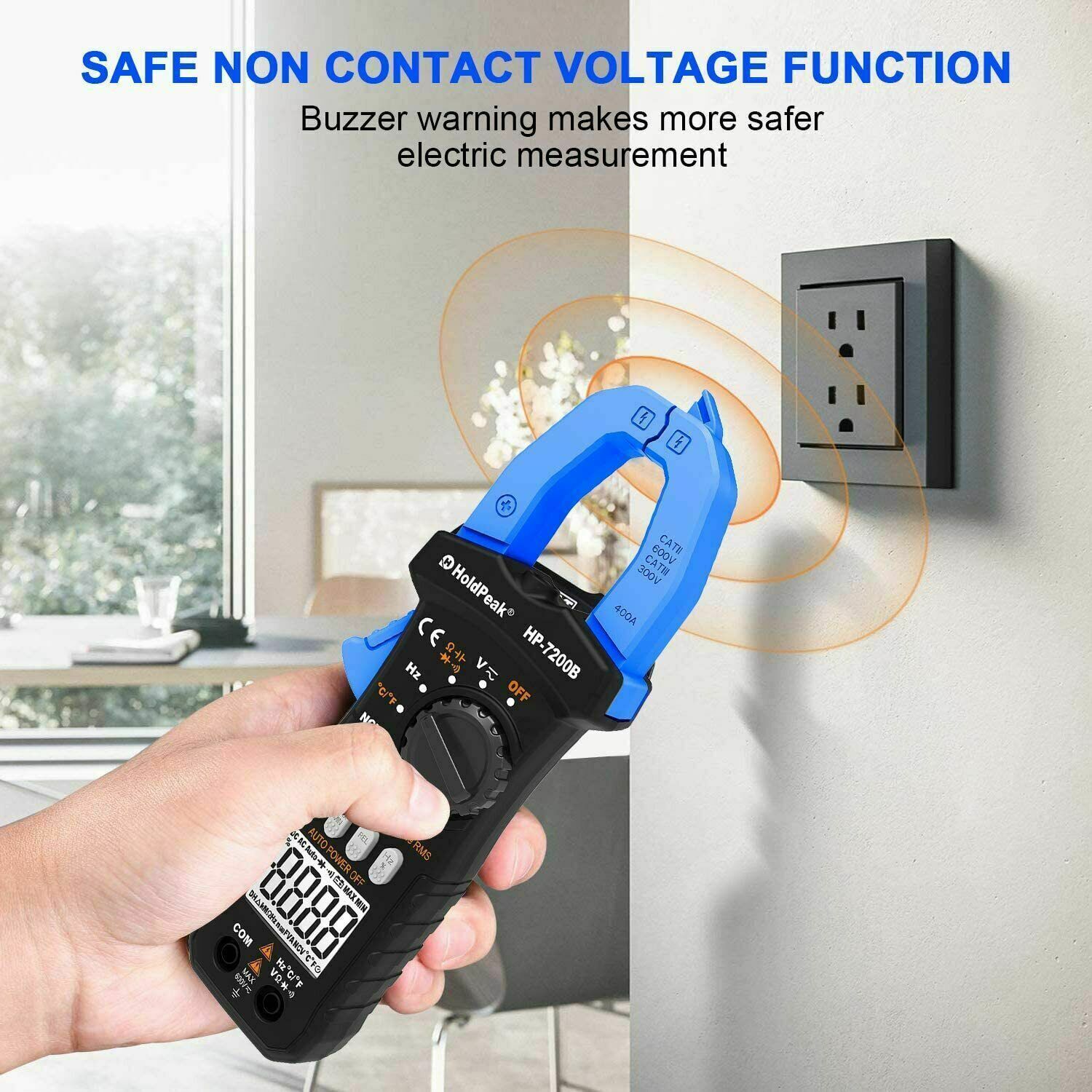

➤【NCV Detection Function】Non-contact voltage detection effectively check electrical status through measuring EM field intensity without touching any wires; The NCV button lies on the left side of the rotary switch. Simply place your thumb on it and push.
➤【Accuracy AC DC AMP Meter】 This clamp meter with the AC/DC Current Range : 60A~400A; and it provides meaning full measurements at 0.1A or above. So you no need to worry to measure the low current readings; Note that for low-current measurements one can loop the wire around the jaw multiple times, multiplying the reading by the number of turns.
➤【Safety Guarantee】 Safety standard IEC 61010-1, CAT III 600V. Double insulation. 48 Months product warranty provided. 7/24 Customer Service. If you have any problems with our product, just contact us, and we will solve the problems for you ASAP.

Digital Clamp Meter-5Digital Clamp Meter-6  amp volt ohm clamp meter



Technical Specifications:

Brand: HoldPeak

DC Voltage600mV/6V/60V ± (0.5%+ 2) 600V ± (0.8%+ 2)
AC Voltage6V/60V ± (1.0%+ 3) 600V ± (1.5%+ 3)
DC Current60A ± (2.0%+ 10) 400A ± (3.0%+ 10)
AC Current60A ± (2.0%+ 10) 400A ± (3.0%+ 10)
Resistance600Ω ±(1.0%+3) 6kΩ/60kΩ/600kΩ/6mΩ ±(1.0%+2) 60mΩ ±(1.5%+3)
Capacitance6nF/60uF ± (5.0%+ 10) 60nF/600nF/6uF ± (3.0%+ 10) 600uF/6mF/60mF ±(10%+20)
Frequency9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1%+5)

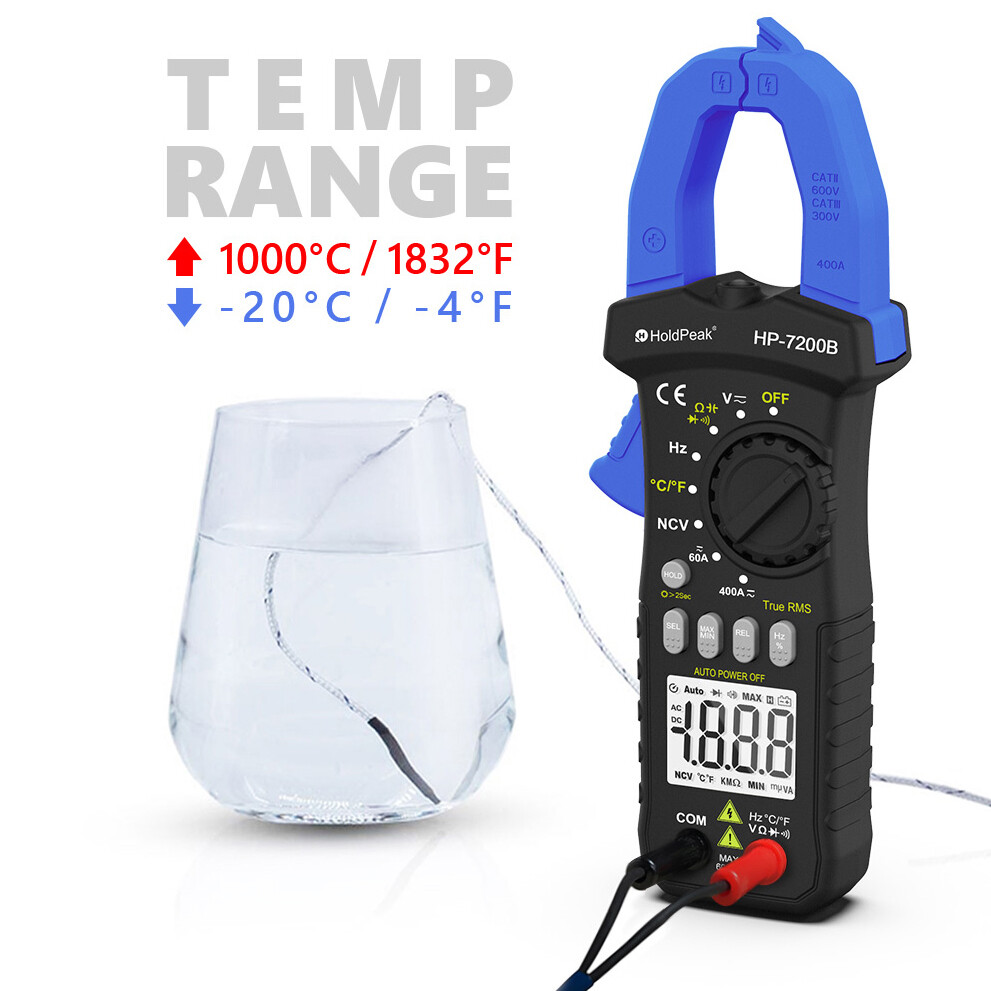

Temperature-20℃~1000℃ / -4℉~1832℉
Duty Cycle0.1%~99.9% ± (2.0%+ 2)

Product Feature:

Diode
Data Hold
Continuity
Backlight
AC DC Current
AC DC Voltage
Relative Value
Auto Power Off
Temperature ℃
Non Contact AC Voltage detection


✅Why Choose HoldPeak 7200-APP True-RMS 6000 Counts Auto-Ranging Ideal Clamp Meter Electrical Meter?

  • Multi-function Amp Meter: It can meets all your needs for measuring AC/DC voltage, AC/DC current, resistance, capacitance, diode test, frequency, duty-cycle, temperature, which is more versatile than others.
  • Safety Protection: Certified safety standard CATII 600V or CAT III 300V. To make sure usage safety, our voltage tester is designed with double ceramic fuses and thermistor protection circuit to provide overload protection on all range.

Digital Clamp Meter-7    Digital Clamp Meter-8



Digital Clamp Meter-9





Correct Measurement

To measure AC current by clamping the meter around one line or one kind of wire; you should make sure not the whole power cord, otherwise the clamp multimeter displays 0 A.











Package Contents:(HP-7200-APP)
2 x Test Lead
1 x User Manual
1 x Temperature Probe
1 x HoldPeak 7200-APP Digital Multimeter
