Package included:

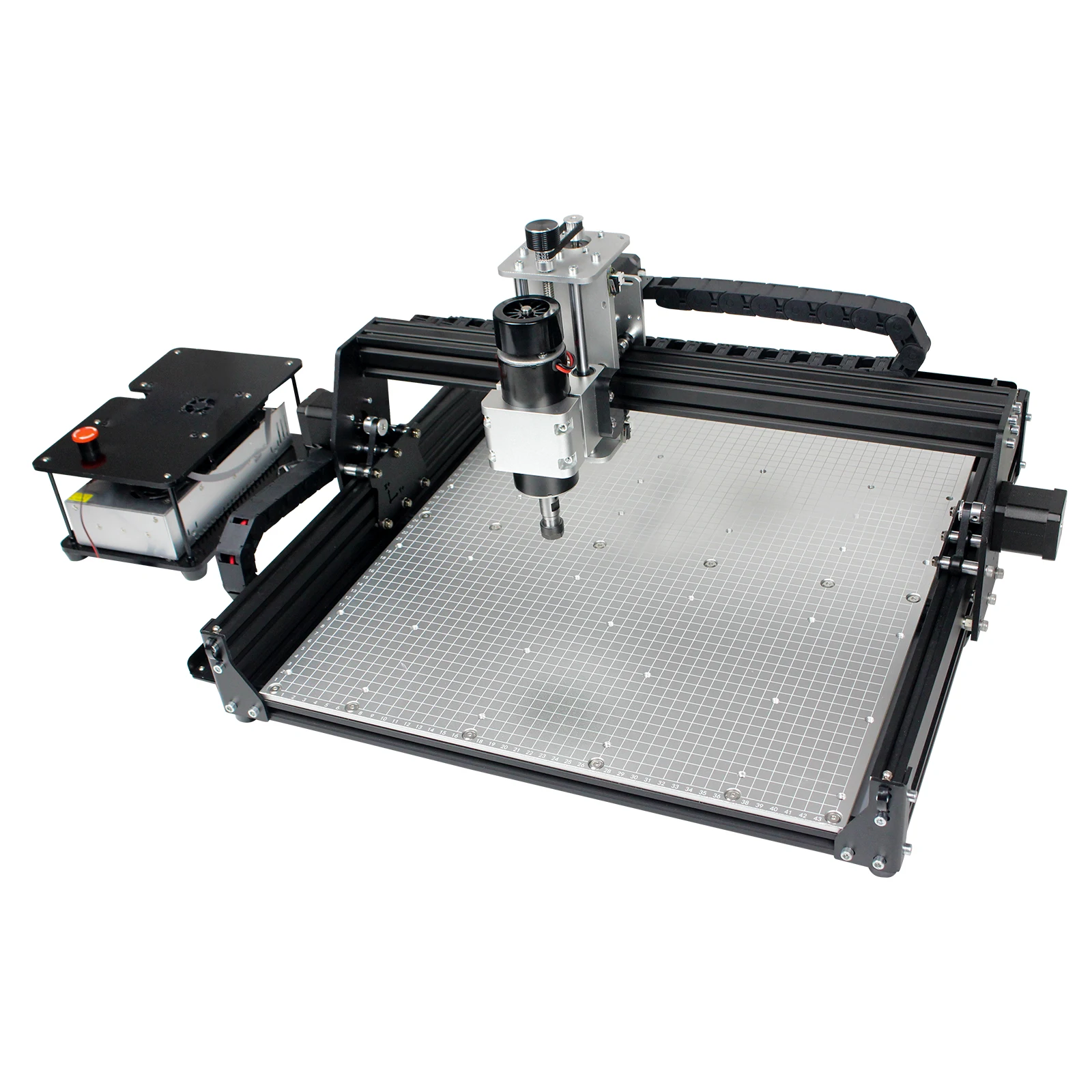

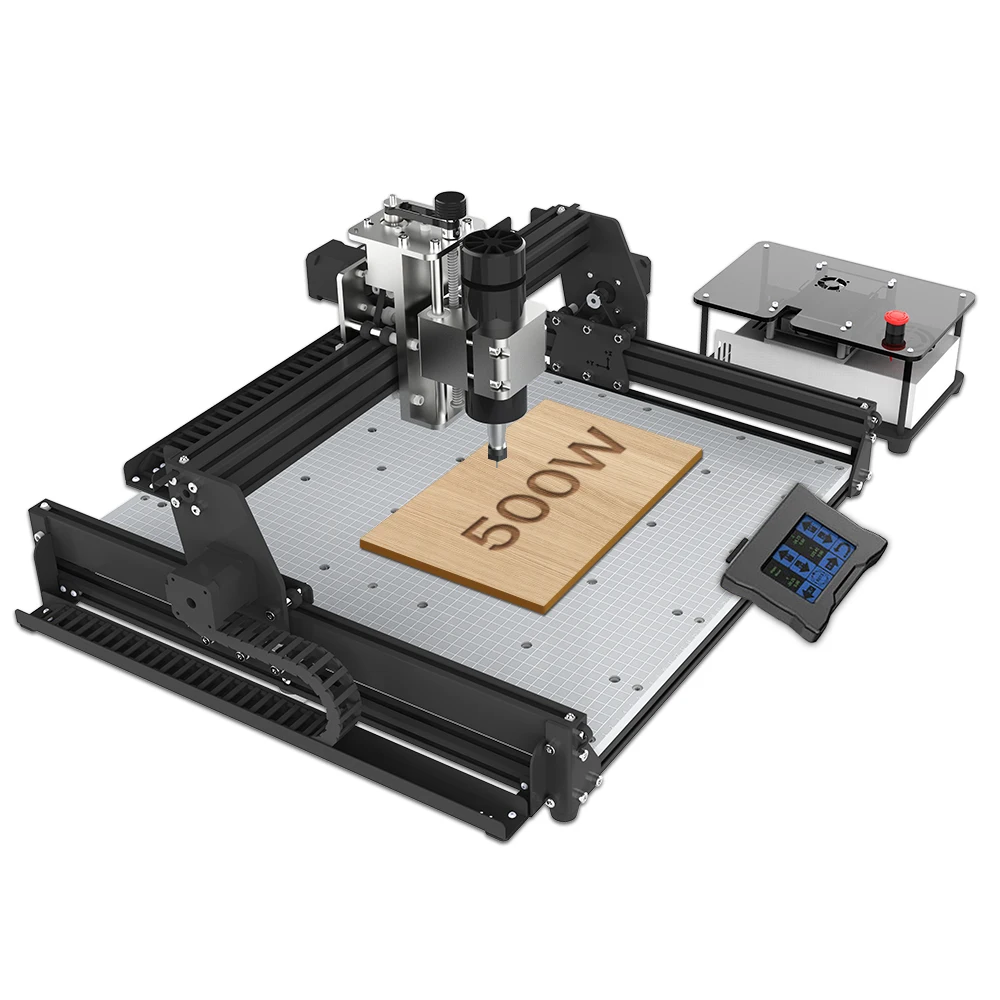

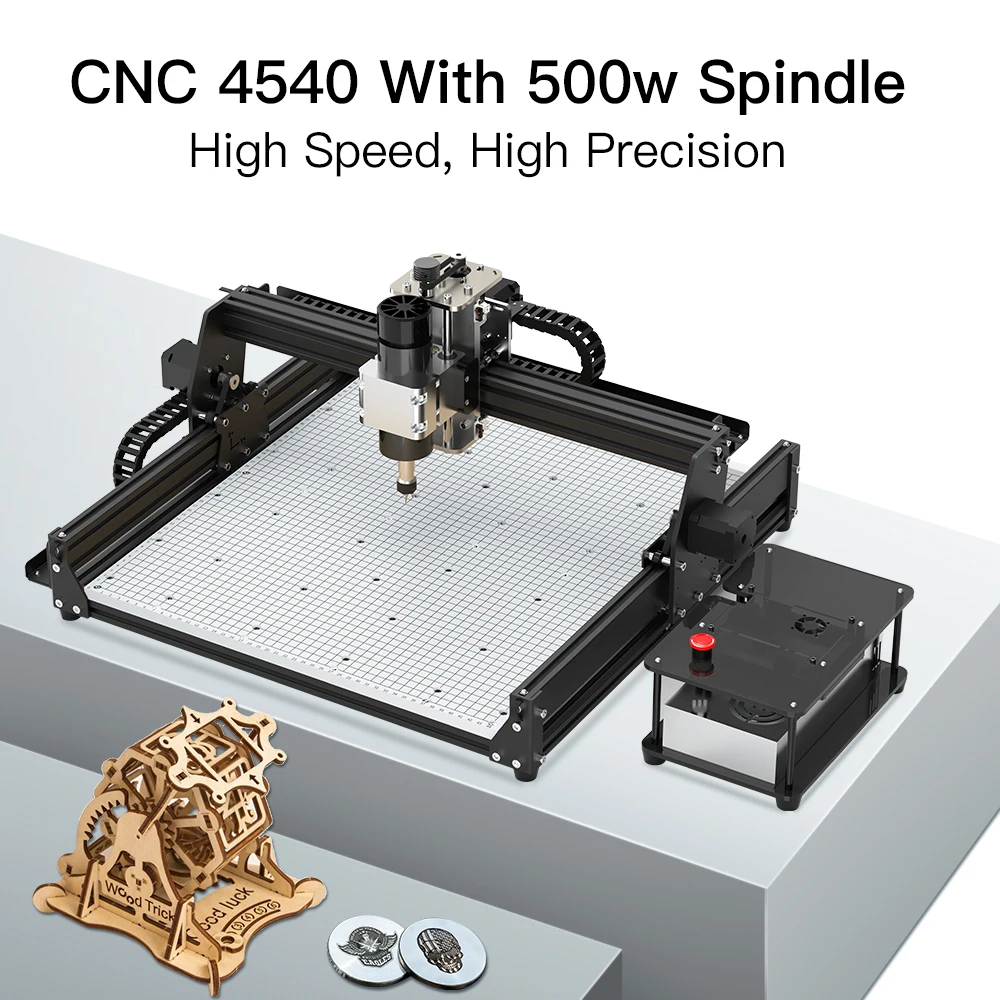

• 1x 3 Axis 4540 cnc router engraving milling machine 220V (with Aluminum table)

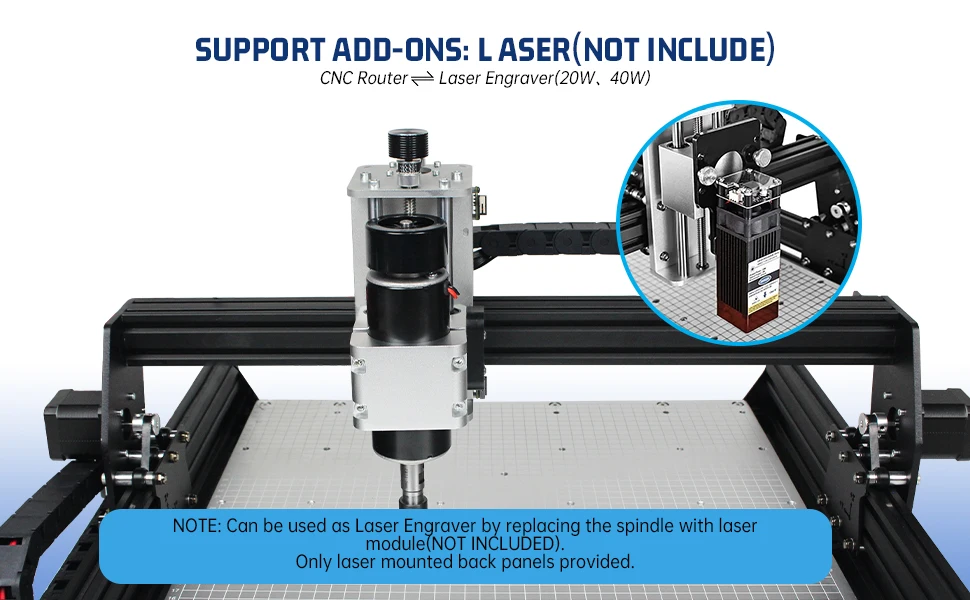

• 1x 20W or 40W Laser head (Options)
• 1x White offline controller or Touchscreen offline controller (Options)

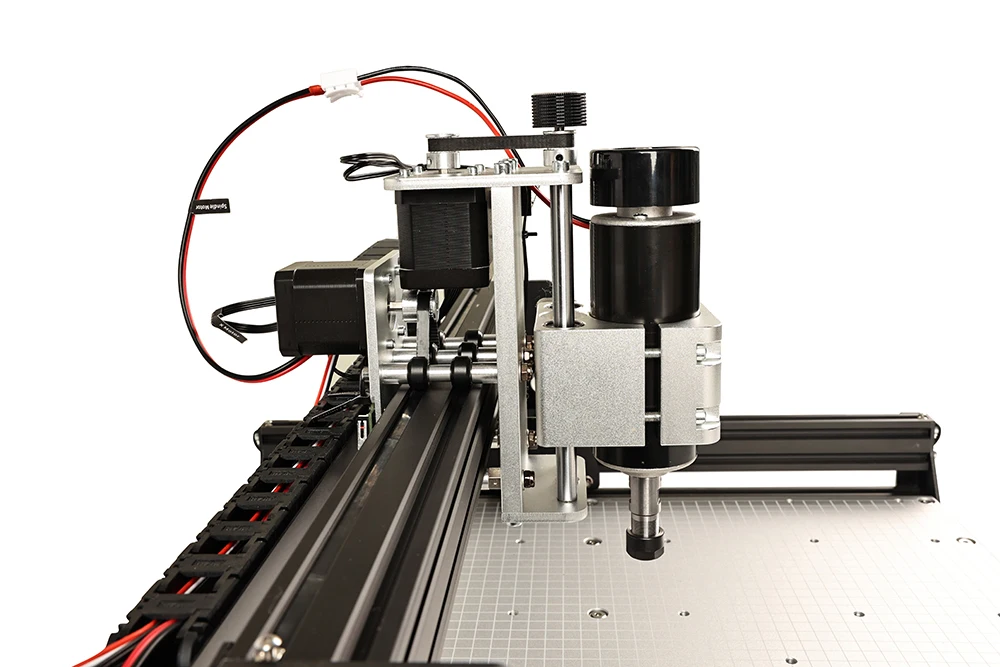

• 1x 500W DC spindle
• 6x Limit switches
• 1x Z Axis Probe tool
• 1x Control box with control board,power supply and Estop
• 1 x 10Pcs Engraving bits
• 1 x 2G U disk with GRBL software
• Other installation tools/screws/T nuts/cables
• 1 x English User Manual

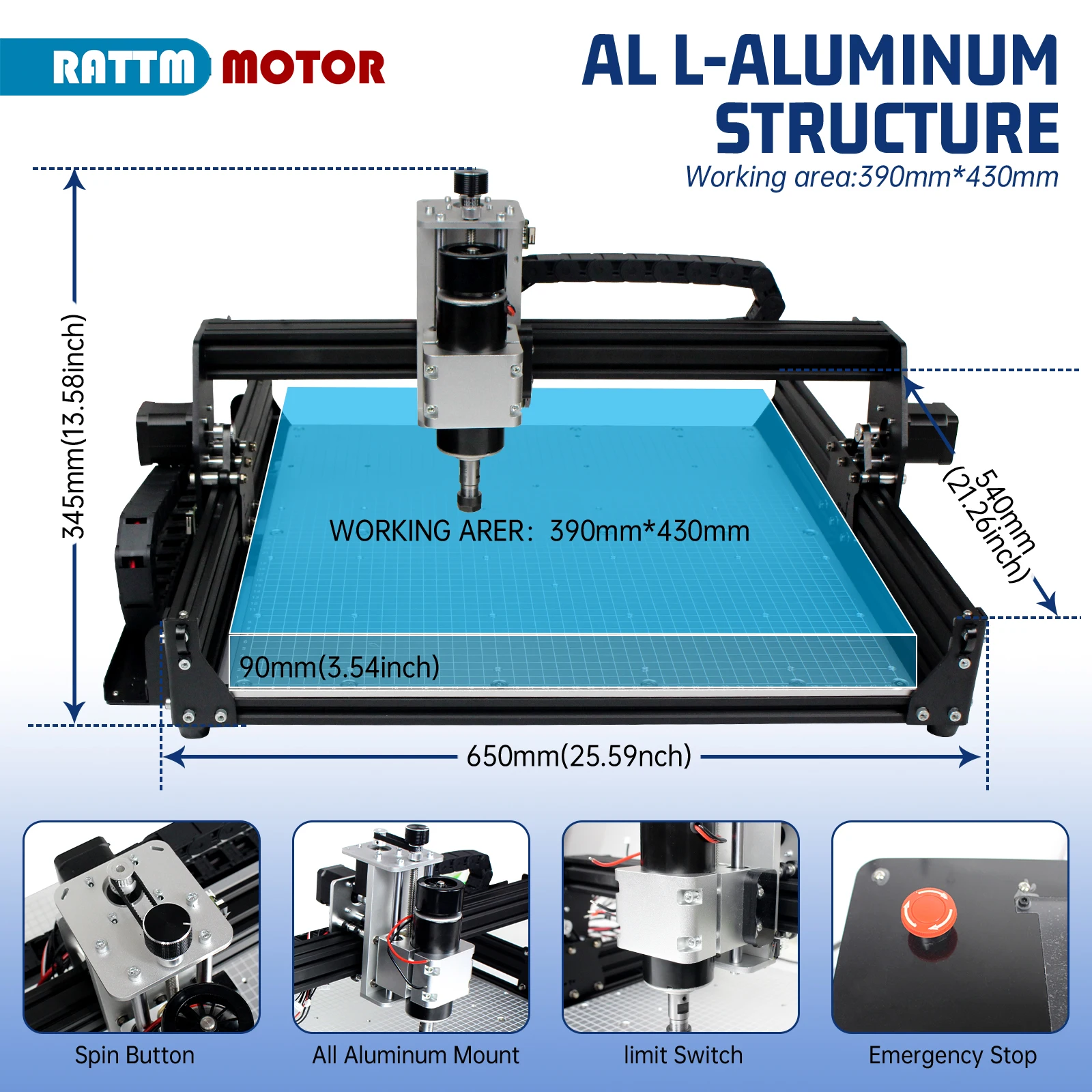

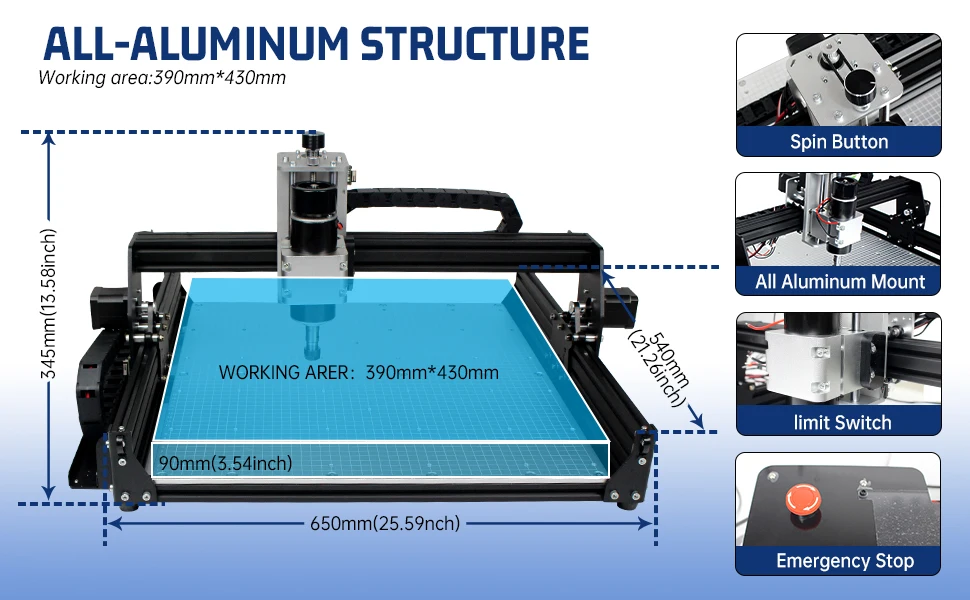

Product Size	650 x 532 x 320mm (25.59 x 20.94 x 12.60 inches)
Engraving Range	430 x 390 x 90 mm (16.9 x 15.4 x 3.54 inches)
Machine Weight	about 17.8kg / 39.2 pounds
Control Software	GRBL Control / Candle
Compatible Systems	Windows XP/Win7/8/10/11 (32/64 can be) and Mac OS
DC Power Supply	DC 48V,10.4A (Input 110VAC or 220VAC)
Accuracy	0.01mm
Stepper Motor	Nema17 Stepper Motor 48mm
Control Method	Computer or Offline Controller
Limit Switches	Included X,Y, Z limit switches (both ends)
Emergency Stop Switch	Included
Z Axis Probe	Included
Engraving Objects	Stainless steel,Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Resin, Ceramic products, Food, Bamboo, Plastic, Nylon, Plywood, Brass, Plexiglass, Aluminum and so on.
Max.Movement Speed	5000mm/min

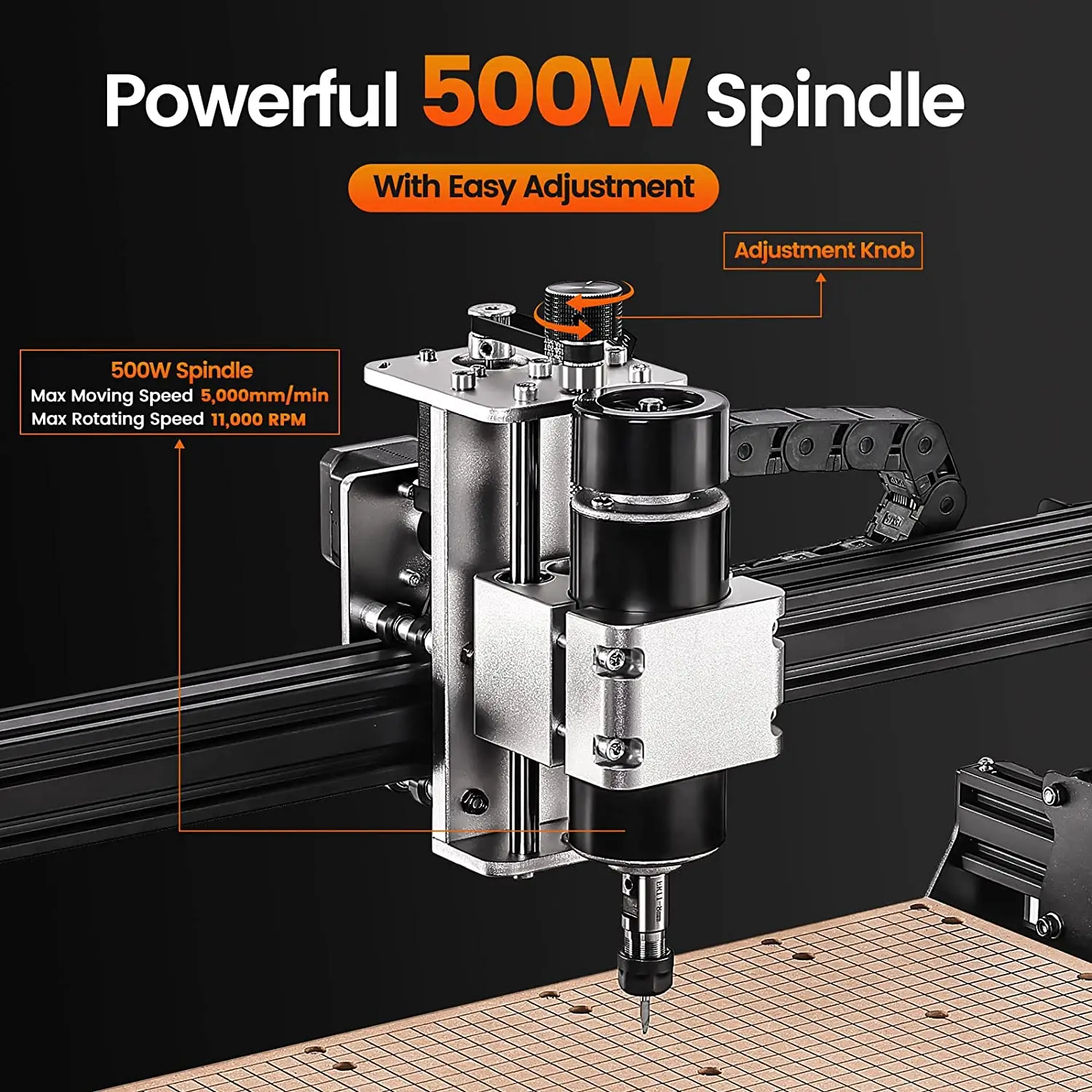

500W DC Spindle	500W Power; Load Speed 0-11000rpm/min
Offline controller(Optional)	2.8 inch LCD touch screen offline controller or white offline controller

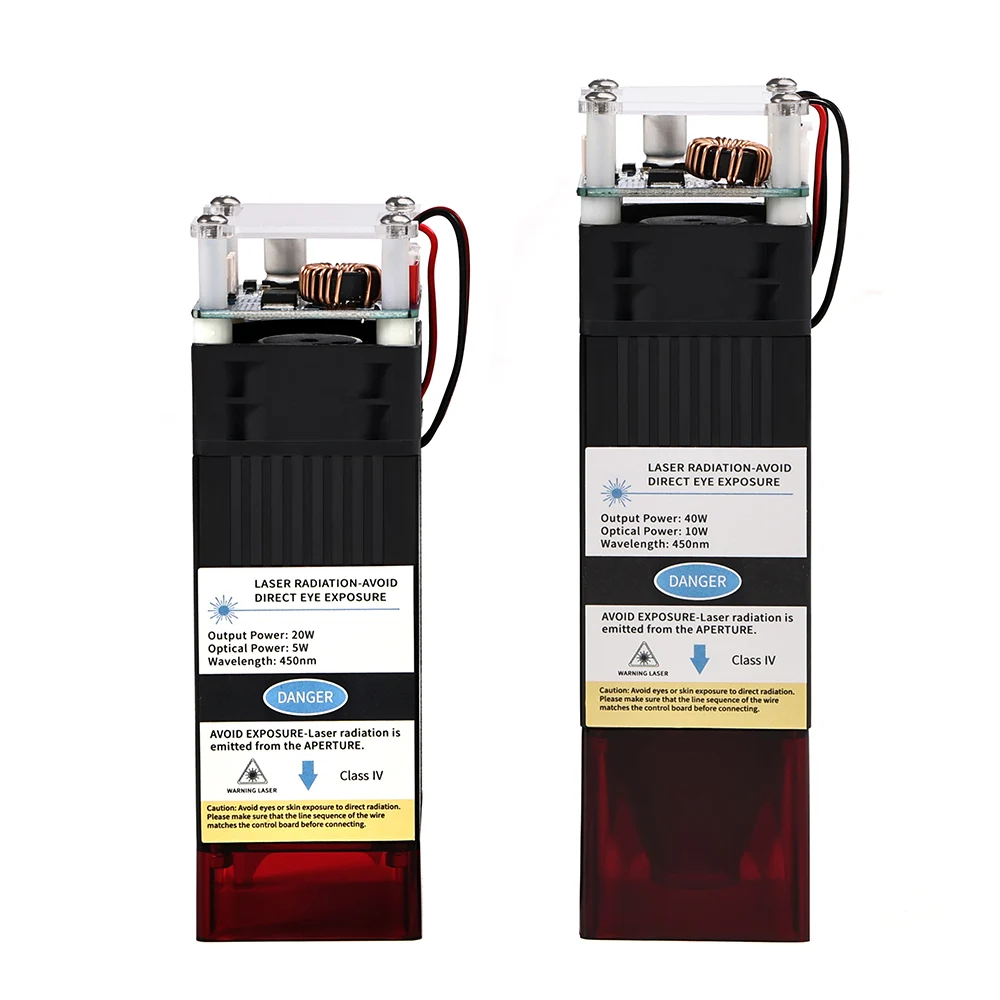

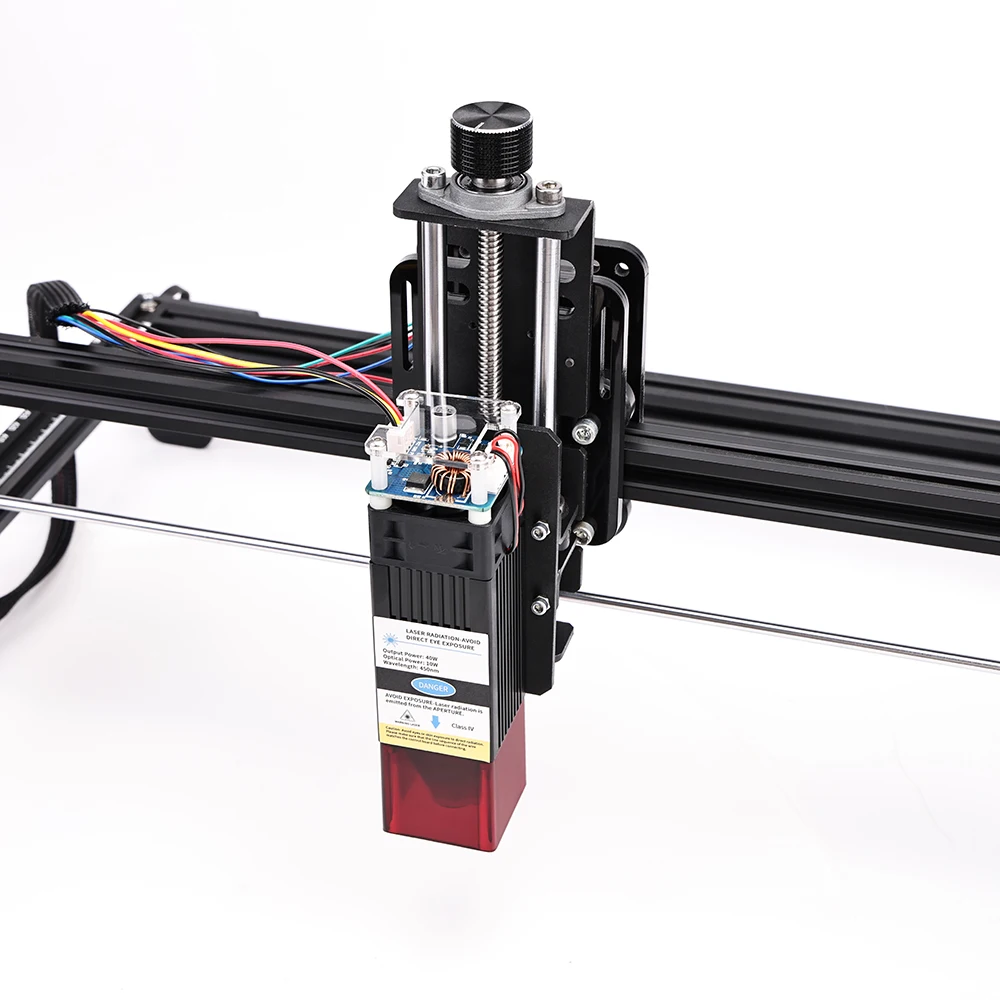

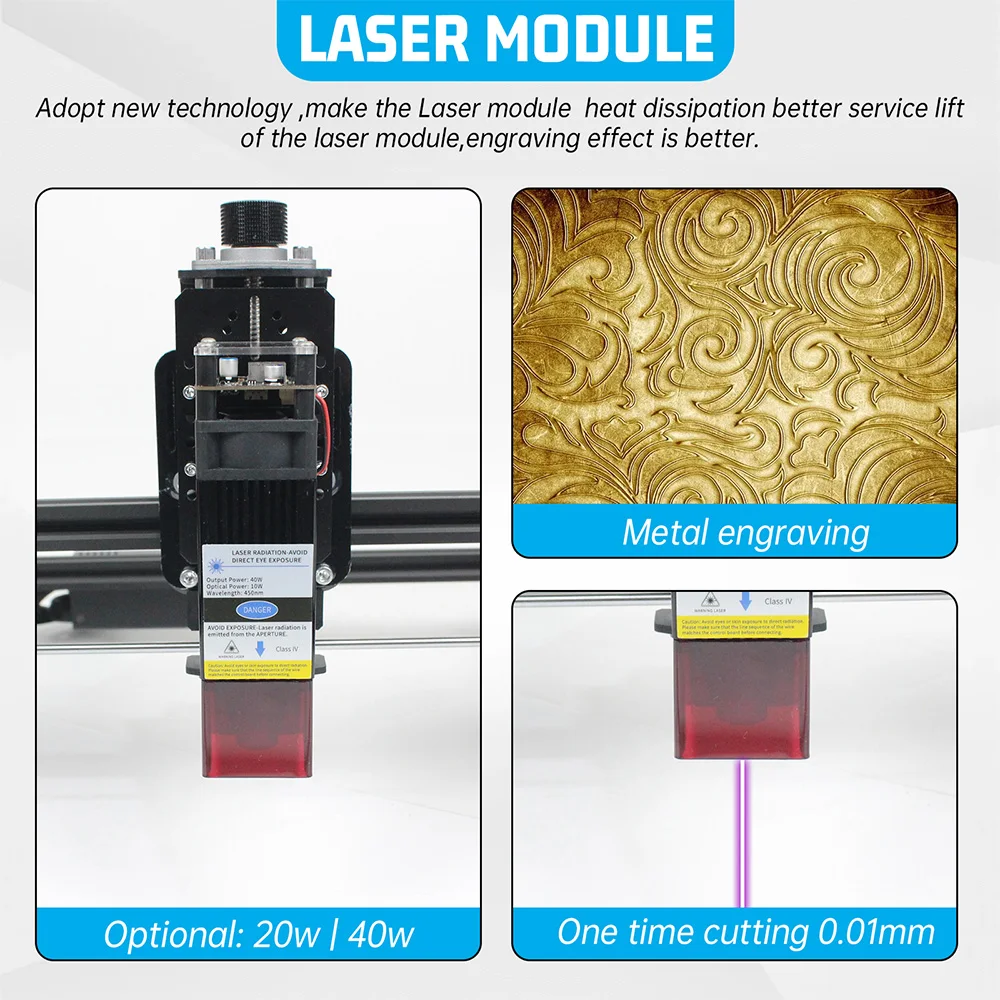

Laser Power

20w/40w Laser module

Feature：

Specification (20W)

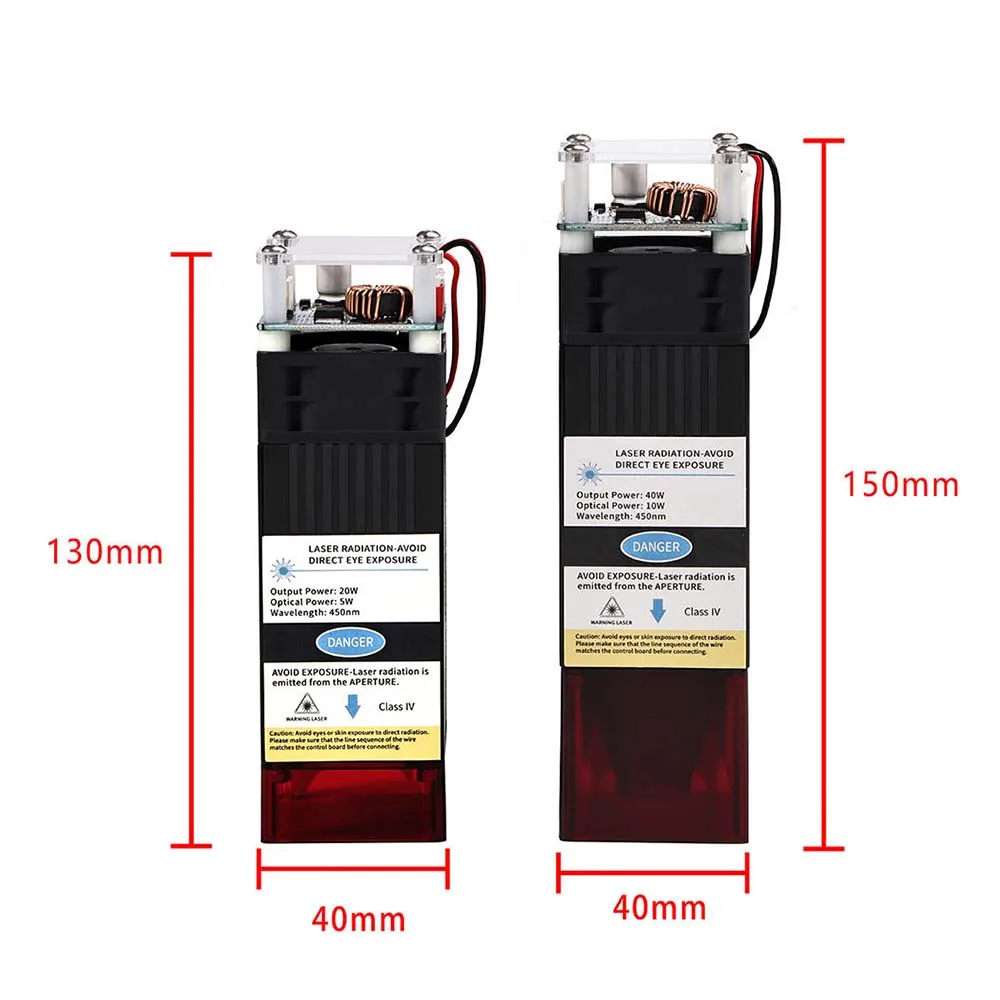

Size of Laser Module: 40*40*130mm

Input Voltage & Current: 12V 3A

Laser Wavelength: 450±5nm

Output Power: 20W

Optical Powe: 5000mW

Precision: 0.08mm

Interface: pin (12V, GND, PWM)

Weight: 231g

Cutting Depth: 3-5mm

Features: High speed engraving (Max. 1.5mm)

Deep cutting (Max.5mm, speed: 100mm/min, power: 1000)

Application : Other Laser engraving machine

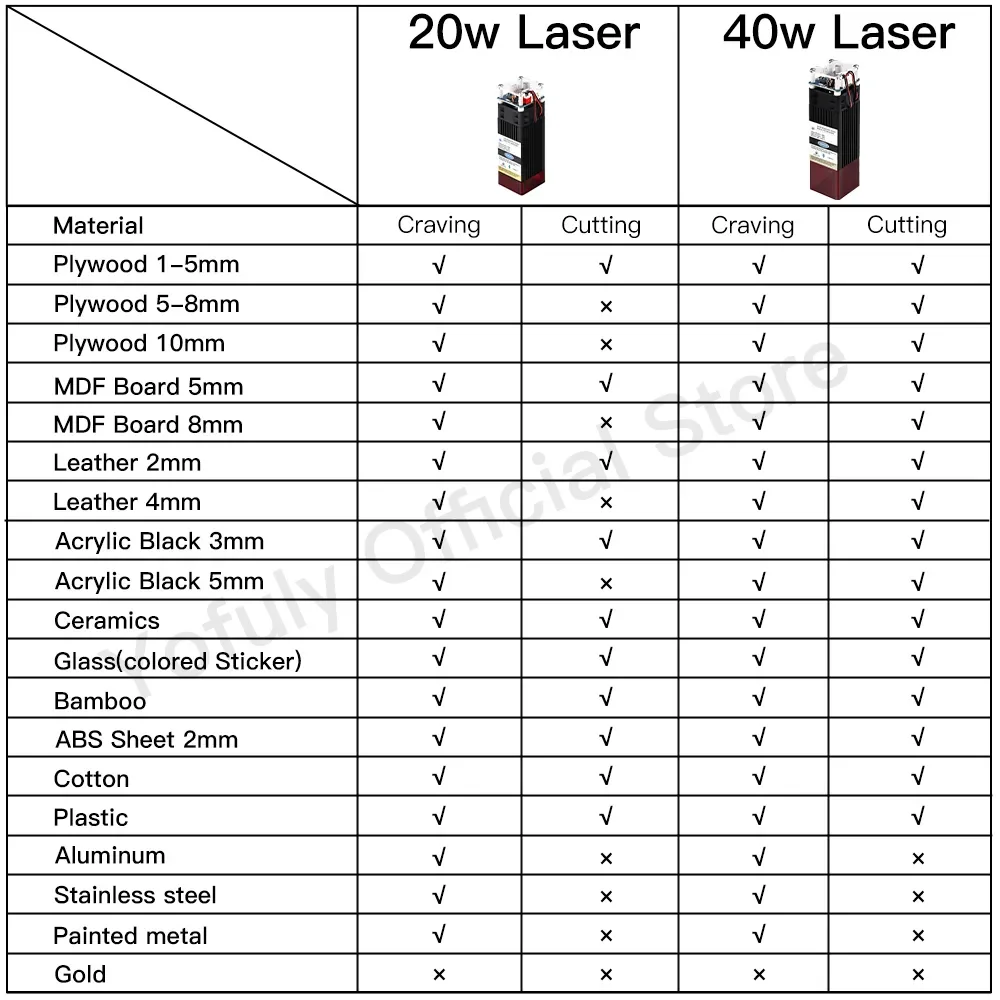

Applicable Materials: Plywood、Fabric、Slid wood、Plastic、Bamboo、Paper、Acrylic、Food、

Ceramics、Stainless steel、Leather、Cardboard、Coated Metal、Kraft Paper、Glass

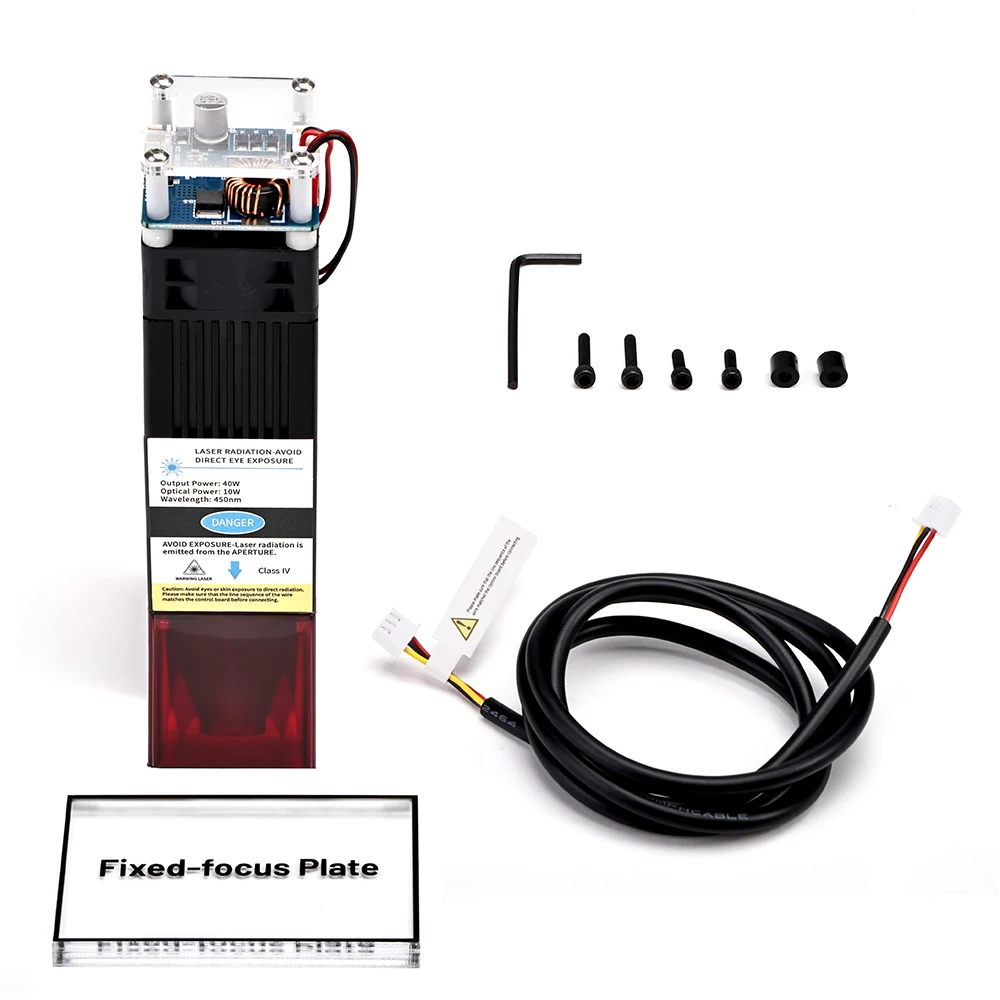

Specification (40W)

Size of Laser Module: 40*40*150mm

Input Voltage & Current: 12V 3A

Laser Wavelength: 450±5nm

Output Power: 40W

Optical Powe: 1000mW

Precision: 0.08mm

Interface: pin (12V, GND, PWM)

Weight: 277g

Cutting Depth: 3-5mm

Features: High speed engraving (Max. 1.5mm)

Deep cutting (Max.5mm, speed: 100mm/min, power: 1000)

Applicable Materials: Plywood、Fabric、Slid wood、Plastic、Bamboo、Paper、Acrylic、Food、

Ceramics、Stainless steel、Leather、Cardboard、Coated Metal、Kraft Paper、Glass.

Noted：If you want to engrave glass, please stick glass colored paper first and then engrave.

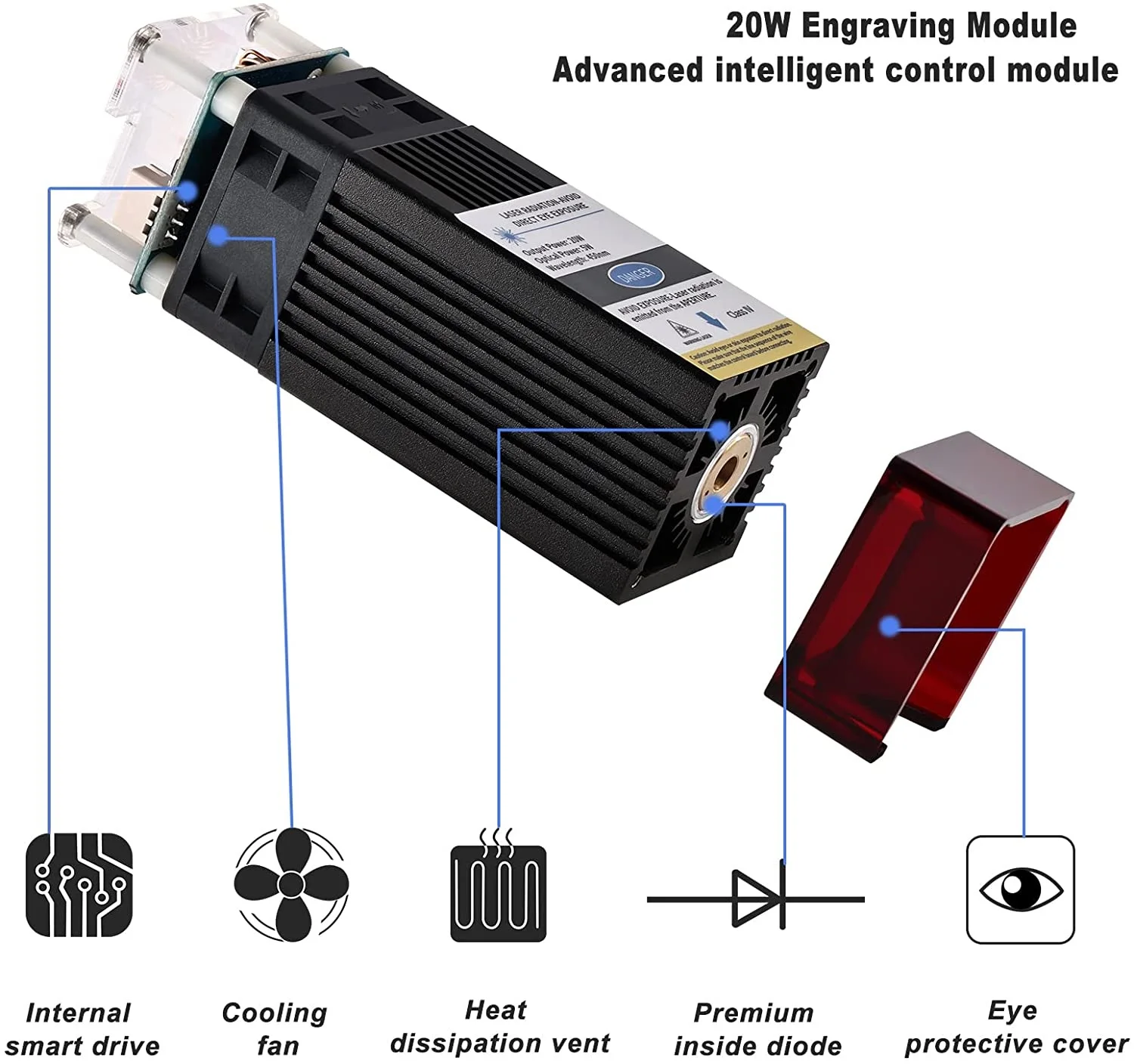

Advantage：

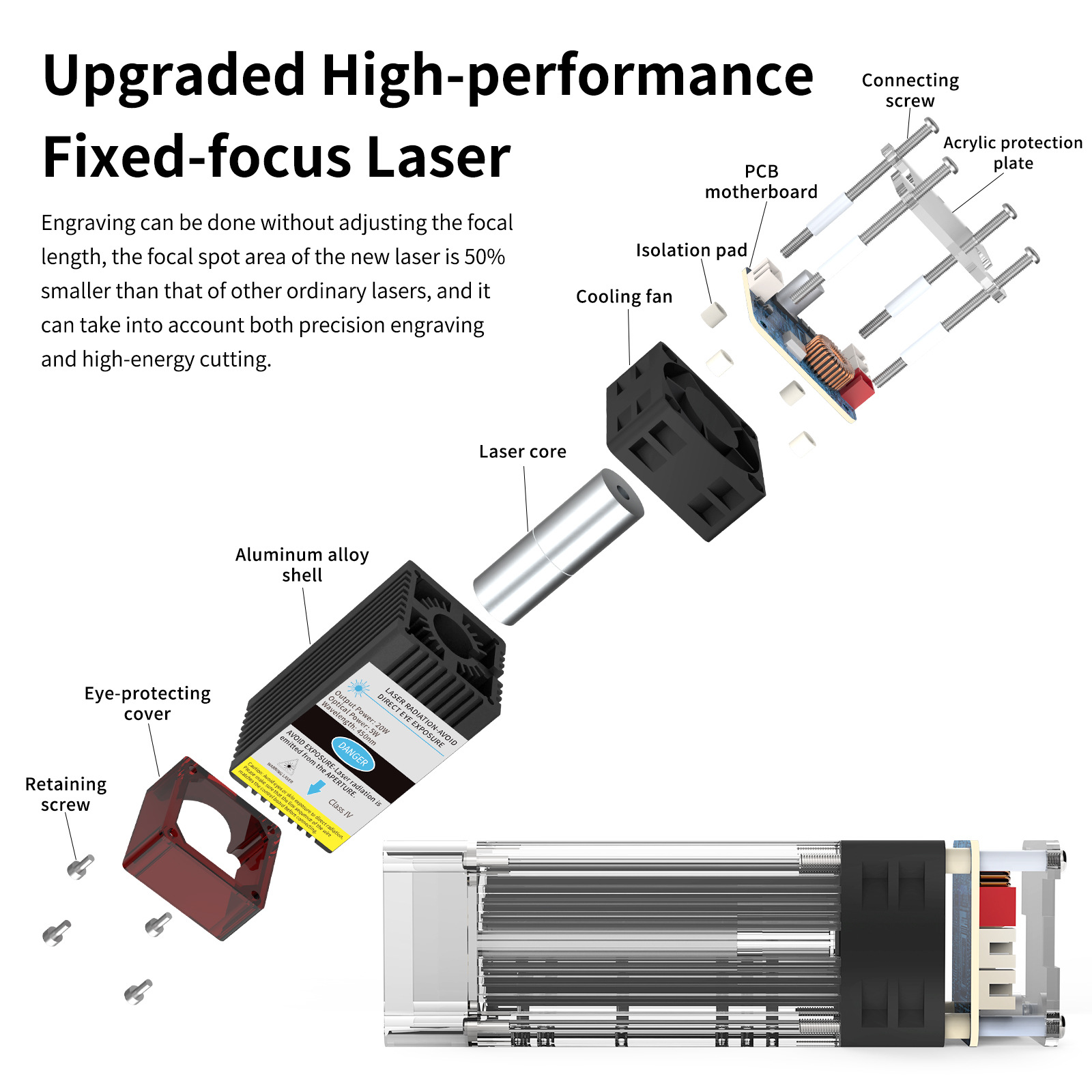

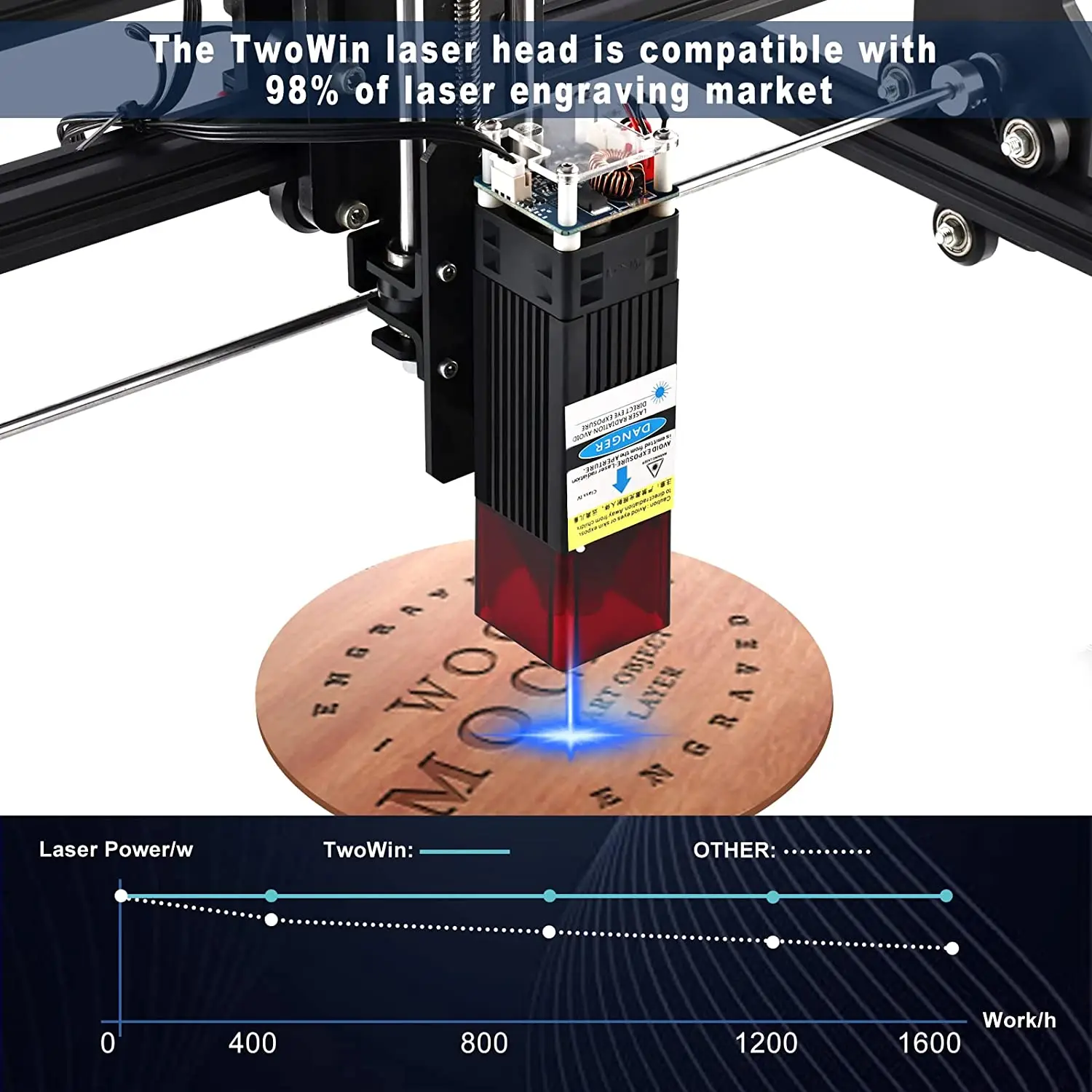

【Compressed Spot Technology】Premium LD-C lens allow the engraver module to form compressed beam spot, mini focus spot size: 0.08* 0.08mm, which is with high accuracy, high efficiency and penetration. Cutting up to 4mm thickness plywood in one pass.

【Safe and Effective】With eye-protection cover, no need to wear goggle, convenient to use. All aluminum alloy shell with cooling fan for heat dissipation, light weight and good performance. Cutting speed: cutting 4mm plywood in one pass at a speed of 100mm/min; engraving speed: 304 stainless steel, up to 100mm/min, fast and efficient.

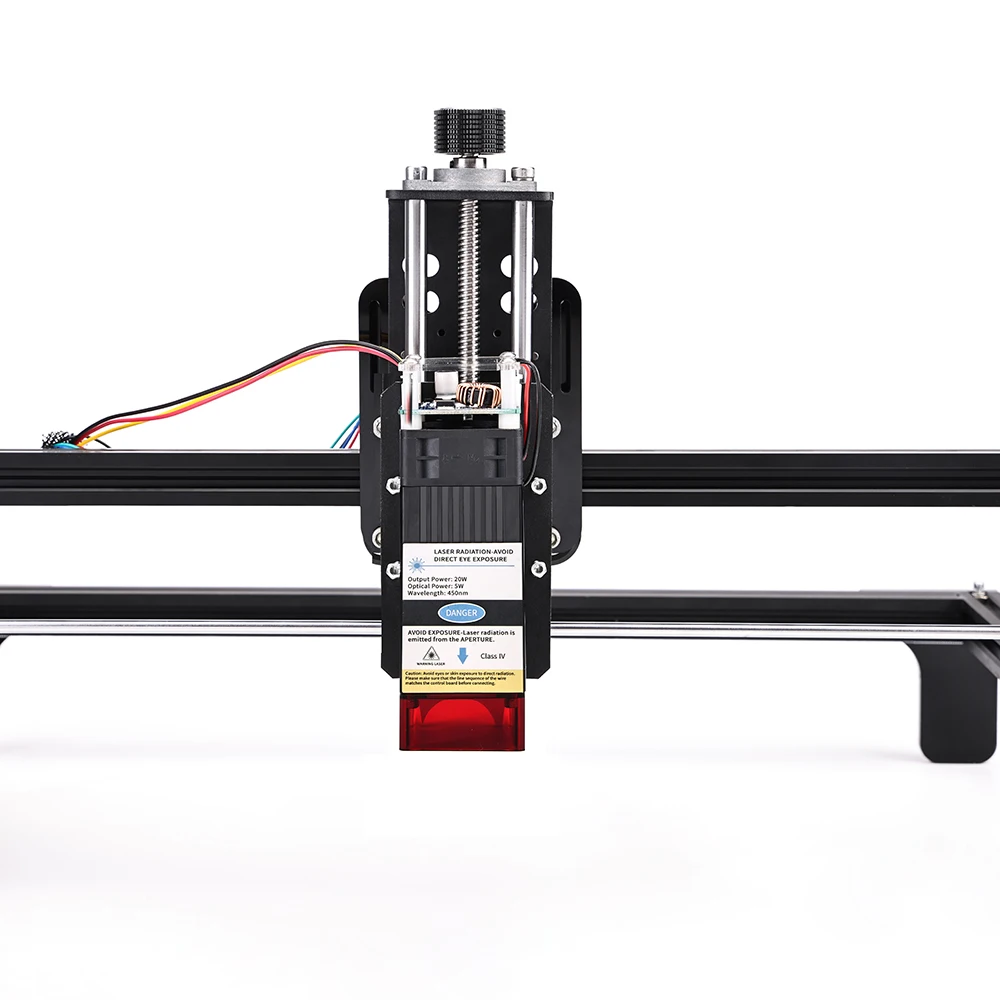

【Excellent Compatibility】Just need to simply connect to the CNC machine with screws and wire to the motherboard then the installation is finished. Compatible with most of the cnc router machine in the market, including cutting machine, cnc engraving machine, DIY engraver, milling machine.

【Guaranteed Assurance】We offer intimate after-sale service with 3 year warranty. If there is any problem or using inquire related to our engraving module head, just feel free to contact us, we will response within 24 hours.

Application Material:

Carving Objects: All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, stainless steel, non-reflective plating and lacquered metal, glass

Cutting Objects: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.

Touchscreen offline controller

Feature:

• This offline controller is equipped with a 2.8 inch LCD touch screen,the touch screen control design of the offline machine can make controlling the engraving machine more simple and convenient;
• The SD card contains some files for testing, and you can also put the desired files into the SD card.The functions of the touch screen offline controller are the same as the computer's control software,and you can also control every movement of the engraving machine as if you were operating on top of the engraving machine.
• You can successfully and easily operate the engraving machine without connecting to a computer,greatly improving work efficiency;Just put the project you need inside that SD card,and you can operate the engraving machine via this offline controller.

Touch Screen	2.8” Touchscreen LCD Display
Product size	3.74*3.17*0.7inch (95*80*18mm)
Product weight	350g (0.77 pound)
Connector Port	8 Pin
Software Type	GRBL Offline Controller

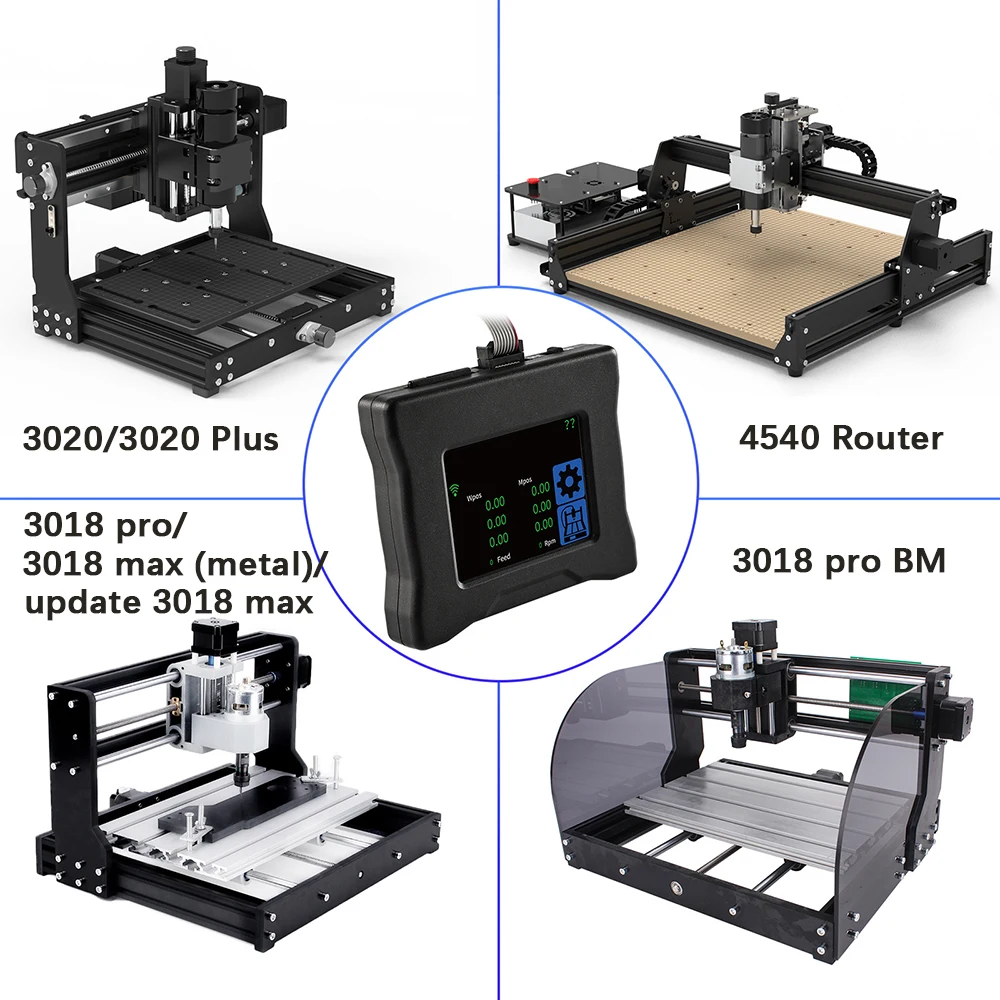

Compatibility	Compatible with 3018,3018 pro,3018 pro max,upgraded 3018 pro,3020 plus,4540 CNC Router

Size:

• Display Size: 2.8 inch (56.9*42.7mm)
• Product Size: 3.74*3.15*0.7 inch(95*80*18mm)

Suitable for:

• CNC 4540
• 3020 Plus
• 3018 Pro max
• 3018
• Updated 3018 Pro
• 3018 Pro
• 1610 Pro

Precautions for use

• When connecting to an offline controller for operation, please do not connect the control panel to the PC through a USB cable at the same time, otherwise the following interface will be displayed, resulting in offline unavailability;
• When the status display bar displays "??", it means that the offline machine tool cannot recognize the status of the control panel at this time. You need to press the reset button on the CNC machine tool control panel and then restart the offline machine tool;
• This offline controller is compatible with the GRBL 1.1 controller.

Wide Application

• This touchscreen grbl offline controller is suitable for 3018,3018 pro,3018 pro max,upgraded 3018 pro,3020 plus,4540 series etc cnc router,grbl

White offline controller:

GRBL Offline Remote Controller

• Support SD card and TF card at the same time, standard capacity 1G.
• With this offline controller module, you can directly control the CNC router without connecting it to your computer.
• After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.
• Easy to use: All you have to do is connect the offline module to the GRBL controller board, which you can use it to control the CNC rounter.
• Manually control: manually adjust X,Y,Z axis location as engraving starting point,manually open or close spindle,manully open or close cooling fan
• File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving,no need to connect PC computer
• Save file: after the off-line controller connect PC,it will be recognized as USB,large capacity storage device, can access engraving file directly.
• SD shows it is SD card condition,turn on power supply after insert SD card,otherwise,it won't work.SD card capacity 4G could be recognized.

Main Page

• Ctrl: Machine Control;
• File: Use the Gcode file;
• Press [Y+] [Y-] to select; Press[Ok] to Enter

Control Page

• X± Y± Z±: Moving Axis
• OK/Spindle: Spindle ON/OFF
• Exit/Step: Change Step/Exit (long press)
• How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.
• How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.

File Page

• Common supported formats include nc. tex. tap.
• Press [Y+] [Y-] to select file
• Press [Ok] to Enter
• Press [Ok] to begin if you are ready
• Note:Long press [Exit] to stop machining

Features

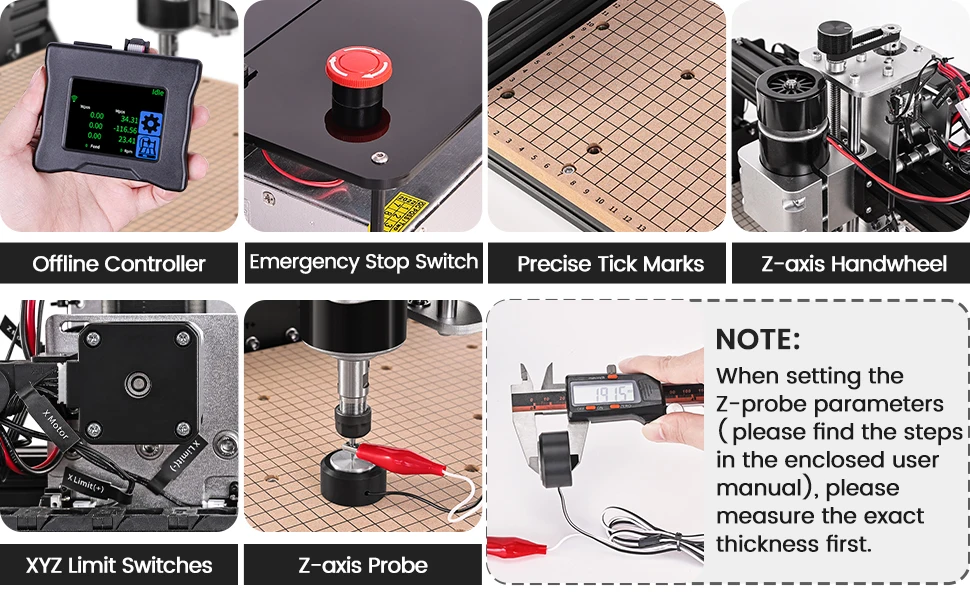

Equipped with limit switches/emergency stop/tool setting

• The control board is equipped with a limit switch device, which can effectively prevent engraving faults caused by exceeding the engraving range during engraving machine operation;
• Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient;
• The tool setting device is mainly composed of a tool setting block and a feeler gauge to determine the relative position of the clamp to the cutter.High precision,accurate tool setting and high accuracy of output signal position;Alligator clips are smooth and flat,clamped on the spindle cutter head,and the clamping force is read well.

Wide applicationsCan engrave on Stainless steel,Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Resin, Ceramic products, Food, Bamboo, Plastic, Nylon, Plywood, Brass, Plexiglass, Aluminum and so on.If you change the spindle to a 5.5W-40W module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.This machine can both engraving and cutting.It can cut 8mm wood products at one time,more easy to create DIY handmade.The recommended thickness for each layer of wood is 1mm, and the feed speed is 300mm/minCutting 8-12mm MDF (Wooden Class) ; Feed rate: 300mm/min;Cutting rate: 100mm/minCutting the 2-3mm Acrylic: (Acrylic Type); Feed rate: 200mm/min;Cutting rate: 80mm/minThis machine can also carve metal, and the depth and feeding speed required for each pass need to be adjusted according to different metal types,the lower the speed, the more stable the work will be.The recommended depth for each pass of stainless steel is 0.1mm, and the feed rate is 120mm/minRecommended cutting depth for aluminum and brass is ≤ 0.5mm, and feed speed is ≤ 300mm/minCutting 1-5mm Aluminum Plate: (Metal Type) ; Feed rate: 250mm/min;Cutting rate: 100mm/minAttention:Due to the huge friction between the milling cutter and the metal, the temperature of the metal will be very high. Therefore, please constantly add lubricating oil during the carving process.

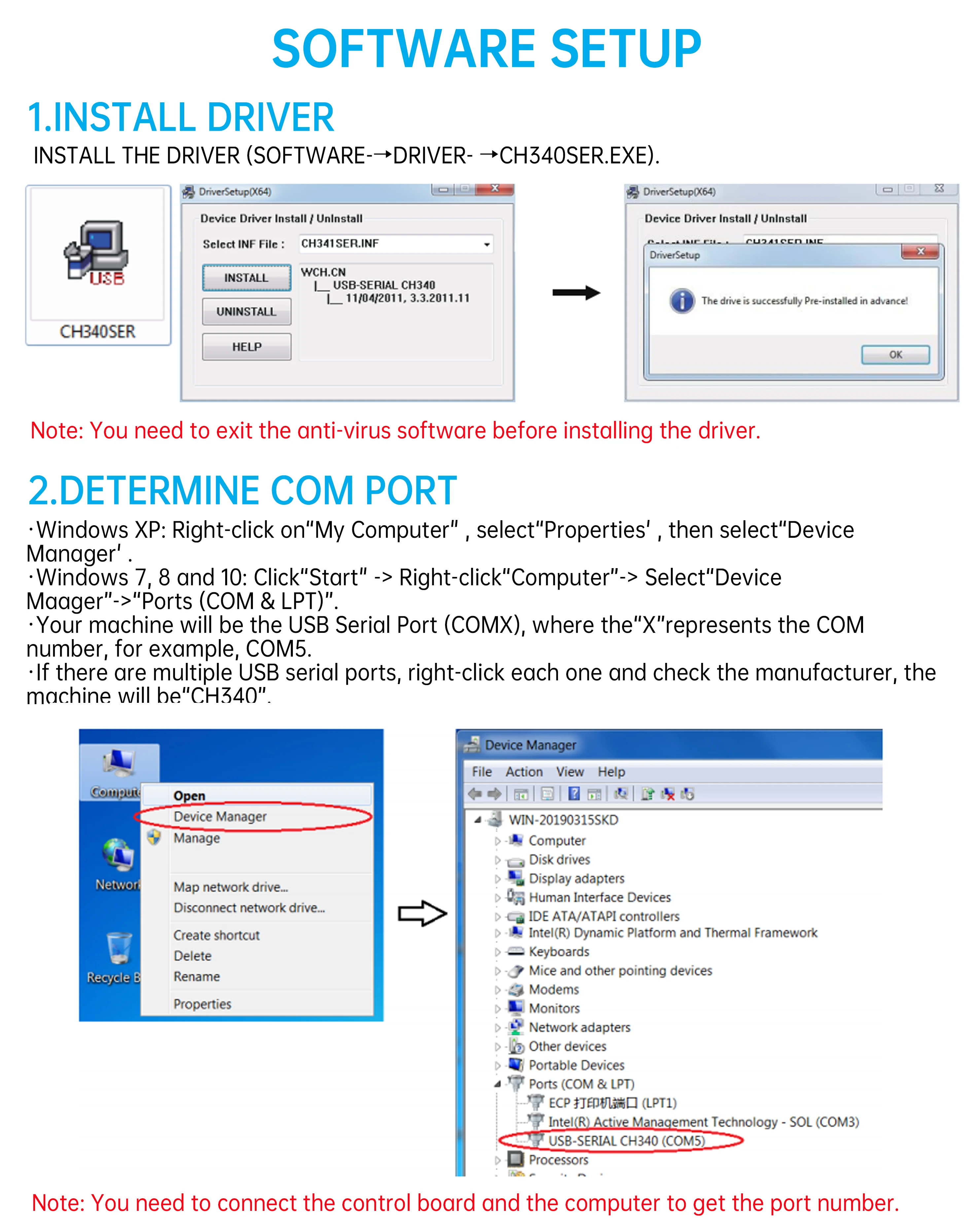

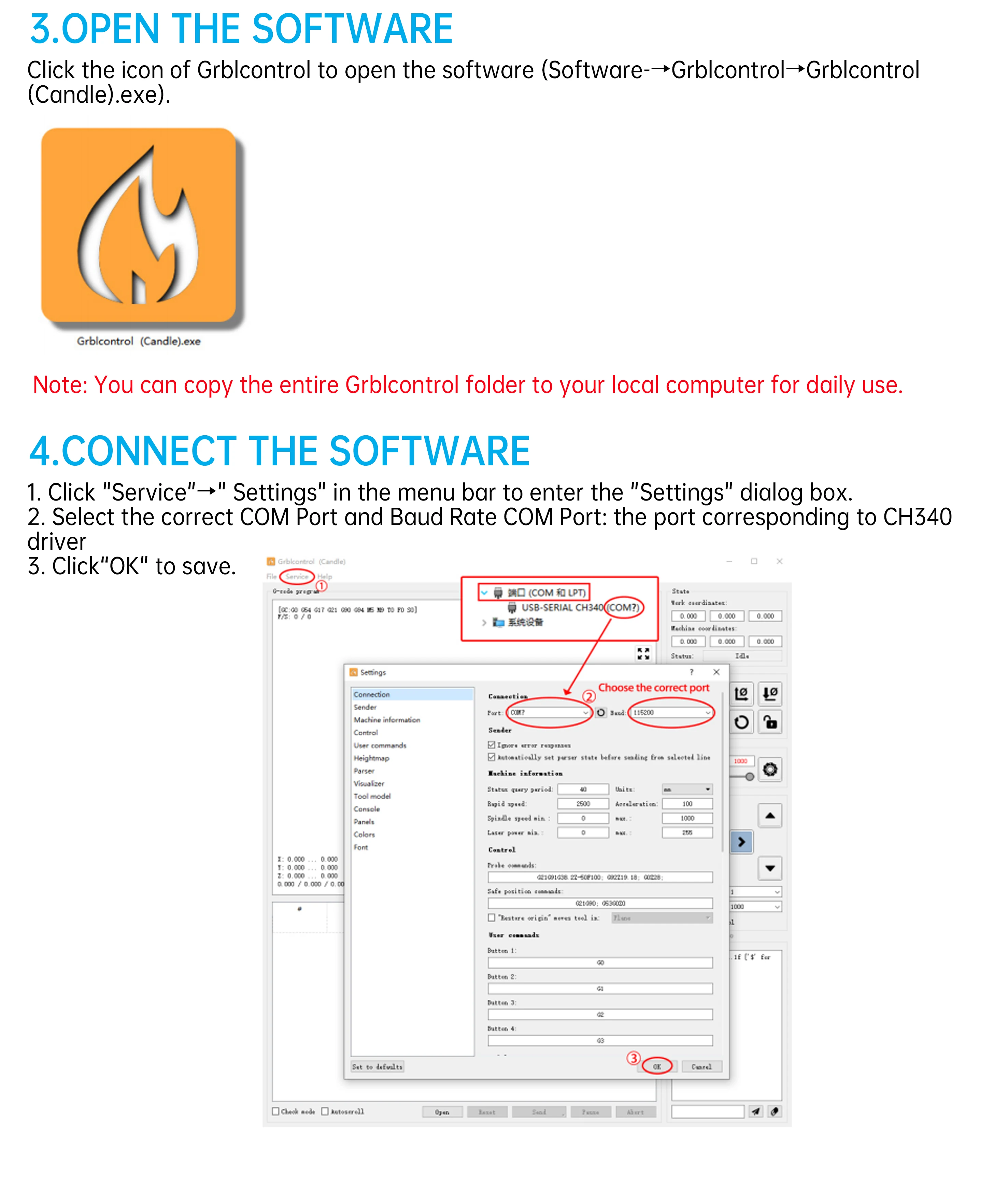

GRBL Software

• Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.
• File Format (gcode): *.nc, *.ncc, *.ngc, *.tap, *.cnc.
• Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
