1. Closed loop servo motor

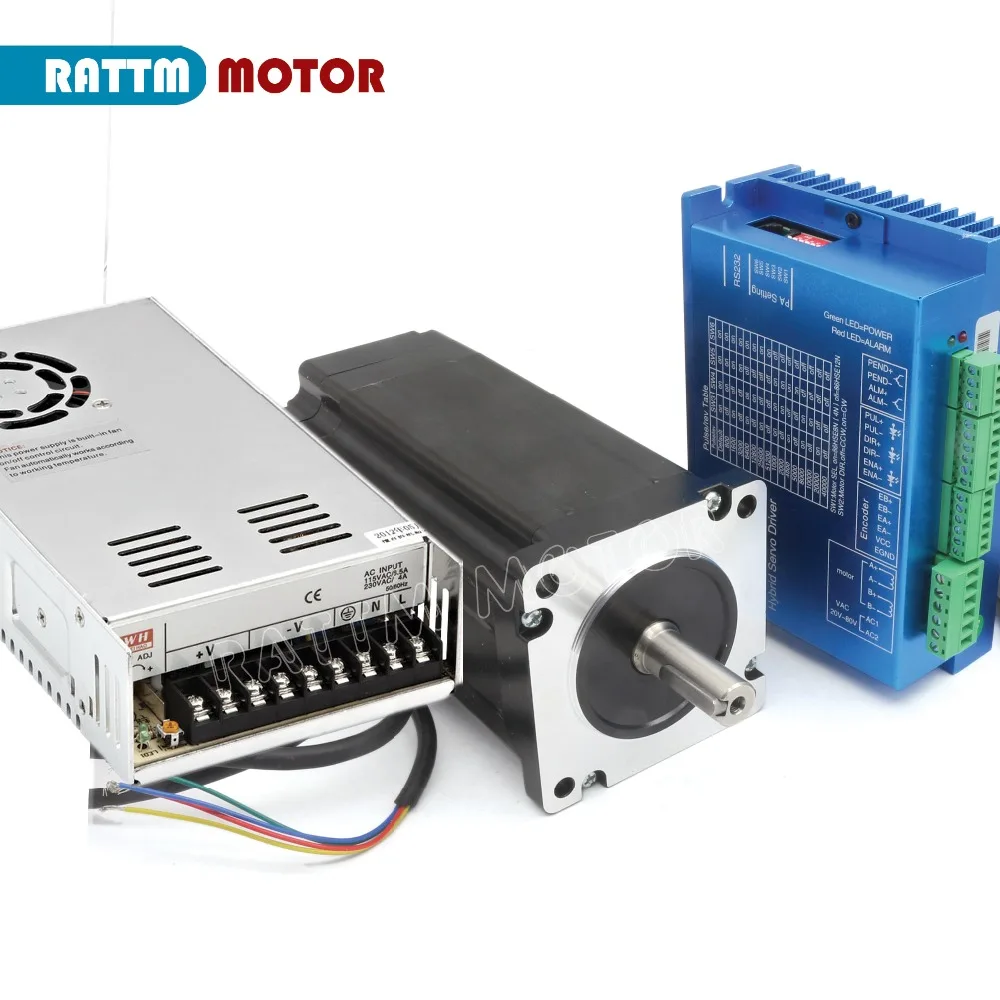

Nema34 12N.m Closed Loop Servo Stepper Motor & 2HSS86 Servo Driver CNC Kit

Nema34 Closed loop servo motor 12N.m 86x86x156mm

Specifications

• Size:86x86x156mm
• Current :6.0A
• Phase:2
• Step Angle(degrees):1.8 degree
• Lead wire:4pcs
• Holding Torque:12N.m (1700oz-in)
• Resistance:0.44±10%Ω
• Inductance:3.7±20%mH
• Insulation resistance:100MOhm(500V DC)
• Insulation Class:B

Overview

• This is the nema 34 series hybrid stepper servo kit. The 2HSS86 driver adopts new generation 32 bit DSP and vector control technology, which can avoid the stepper motor losing steps and ensure the accuracy of the motor.
• The torque reducing is much lower than open loop stepper motor when it is at higher speed. The high speed performance and torque are enhanced in a great extent. Meanwhile the current control is based on the load, that can reduce the motor temperature rising effectively, then can extend the using life of the motor.
• The build-in place in position and alarm output signal can help the upper monitor to monitor and control. The function of position ultra difference alarm can ensure the machine work safely. The closed loop system is an ideal improvement and a good replacement of open loop system,besides that,it also have some function of AC servo motors.

2HSS86 Driver

Voltage range: AC24-70V or DC30-100V Peak current :Peak 8.0A Logic input current:7-20mA Frequency:0-200KHz Suitable motor: 86HSE156, 86HSE118, 86HSE82 Encoder lines:1000 Insulation resistance:>=500MΩ Operating temprature:0~50℃ Operating humidit:40~90%RH Virbration:5.9m/s2Max	1.2.1 Stepper motor closed loop system, never lose step. 1.2.2 Improve motor output torque and working speed. 1.2.3 Automatic current adjustment based on load 1.2.4 Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter. 1.2.5 Drive nema 34 series closed loop stepper motor. 1.2.6 Pulses response frequency can reach 200KHZ 1.2.7 16 kinds microsteps choice, highest 51200microsteps/rev.	Over-current,over-voltage and position ultra difference protection function. Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on

Wiring diagram

Connection instruction

L: Live wire

N: Negative wire

+V: DC power output “+”

-V: DC power output “-“

+V ADJ: output voltage regulation

Note:

Please must be selected by switch to choose 115V/230V input before using to avoid damaging.

Descriptions:

• Output voltage: 70V DC
• Output Frequency:85%
• Output Current:5.7A
• Inlet/Load stability:±0.5%
• DC voltage of Adjustable range:±10%
• AC input voltage range: 110V/220V ±15% (Switch Selection) (95-120V or 220V-240V)
• Overload protection:105%-135% hiccup mode,auto-recovery
• Over-voltage protection:115%-150% rated output voltage
• Working temperature-10℃～+50℃
• Output Power:400W
• Product Weight: 1kg

Details determaine quality	Enough widing coils ensure pure copper,reliable performance,sufficient power,and stable work.	Adopting high-quality shell,with better heat dissipation performance of the radiator,the power supply lasts for a long time and has a long service life.

Applications

Application in industrial automation control, LCD,LED lighting, medical equipment, CCTV,computer chassis, security, mechanical and electrical equipment,instruments, solar photovoltaic power supply,Servo Motor,Stepper Motor,Foaming Mill Cut Laser Engraver Plasma etc and other fields.

Size
