110-220V 24 Ports Fiber Curing Oven Optical Fiber Curing Oven 24 Holes Curing Oven

INTSUPERMAI^®

	ITEM DESCRIPTION
	Capable of simultaneously heating and curing up to 24 fiber optic connectors.
	Uniform heating ensures minimal insertion loss.
	Equipped with a precision temperature control system (adjustable range: 60-150℃, accuracy: ±1℃).
	Features timer control and heating indicators for precise curing duration management.
	Interchangeable curing fixtures reduce setup time, offering simple and reliable operation.
	Customizable fixtures and heating plates available to meet specific connector types and core counts.

This portable compact fiber curing oven is designed for easy field installation, compatible with SC/FC/ST/LC connectors and capable of simultaneously heating and curing up to 24 fiber optic connectors to significantly improve work efficiency. Equipped with time control and heating indicators, it precisely regulates heating duration to ensure uniform curing. The unit offers customizable curing fixtures and heating plates with various core counts and specifications to meet specific customer requirements.

ITEM PARAMETERS

Voltage:	AC110-220V
Curing Model:	FC, SC, ST, LC
Power:	200W
Maximum heating temperature:	200℃
Normal curing temperature:	80~120℃
Normal curing period:	30~45min
Curing connector numbers:	1~24pcs
Housing material:	Iron
Middle 24-hole module material:	Aluminum

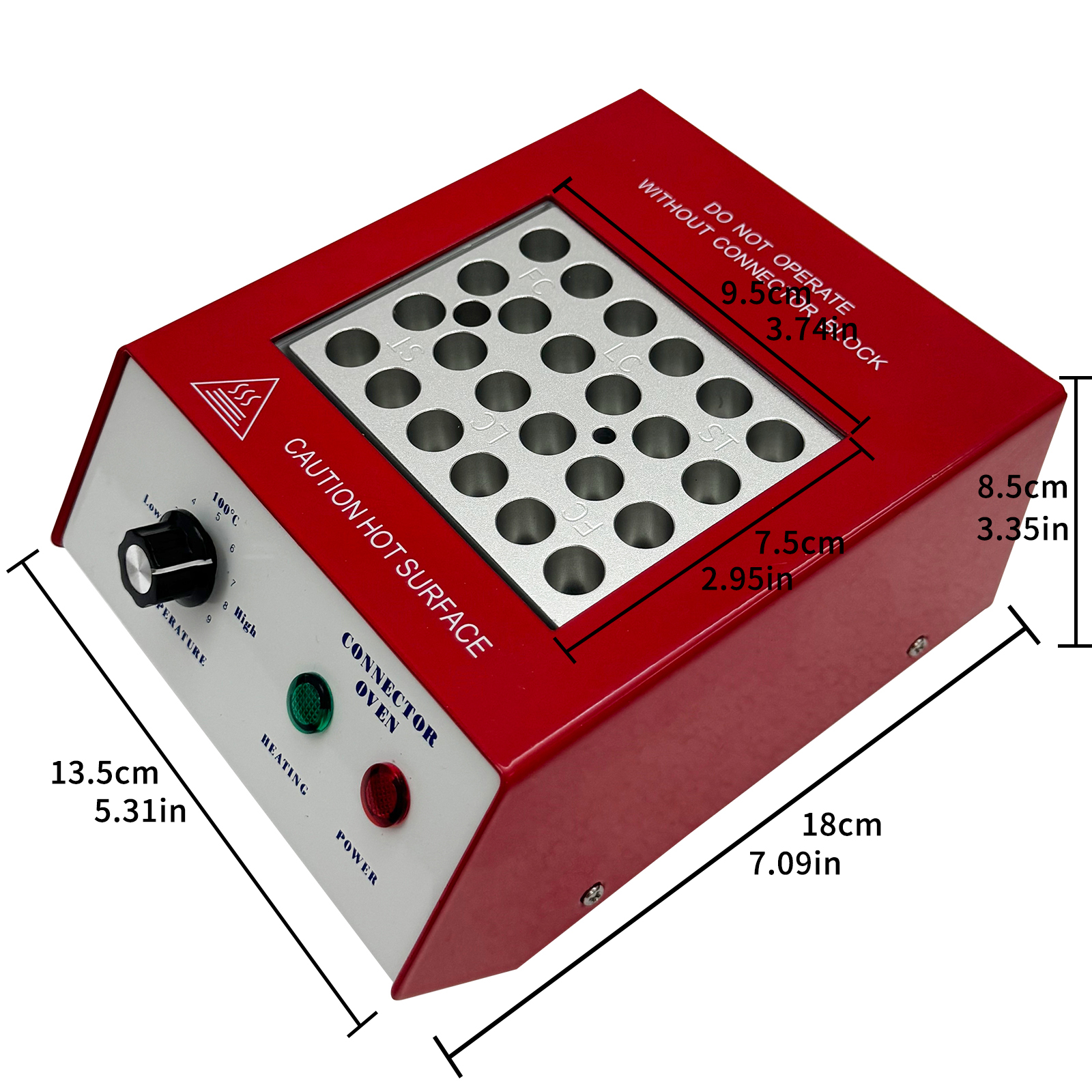

Package size:	11.8"9.8"6.3" (30cm25cm16cm)
Net weight / Gross weight:	4.4lbs(2.0kg) / 5.3lbs(2.4kg)

ITEM PRECAUTIONS

Connect the power supply and turn on the switch.
Adjust to the required curing temperature.
The heating indicator lights up, indicating heating has started.
The heating indicator turns off when the actual temperature reaches the set value.
Insert the glued ferrules into corresponding sleeves and place them in the heating cavities. A maximum of 24 ferrules can be cured at one time.
After curing is complete, remove the ferrules and sleeves, then load the next batch for curing.

ITEM DETAILS

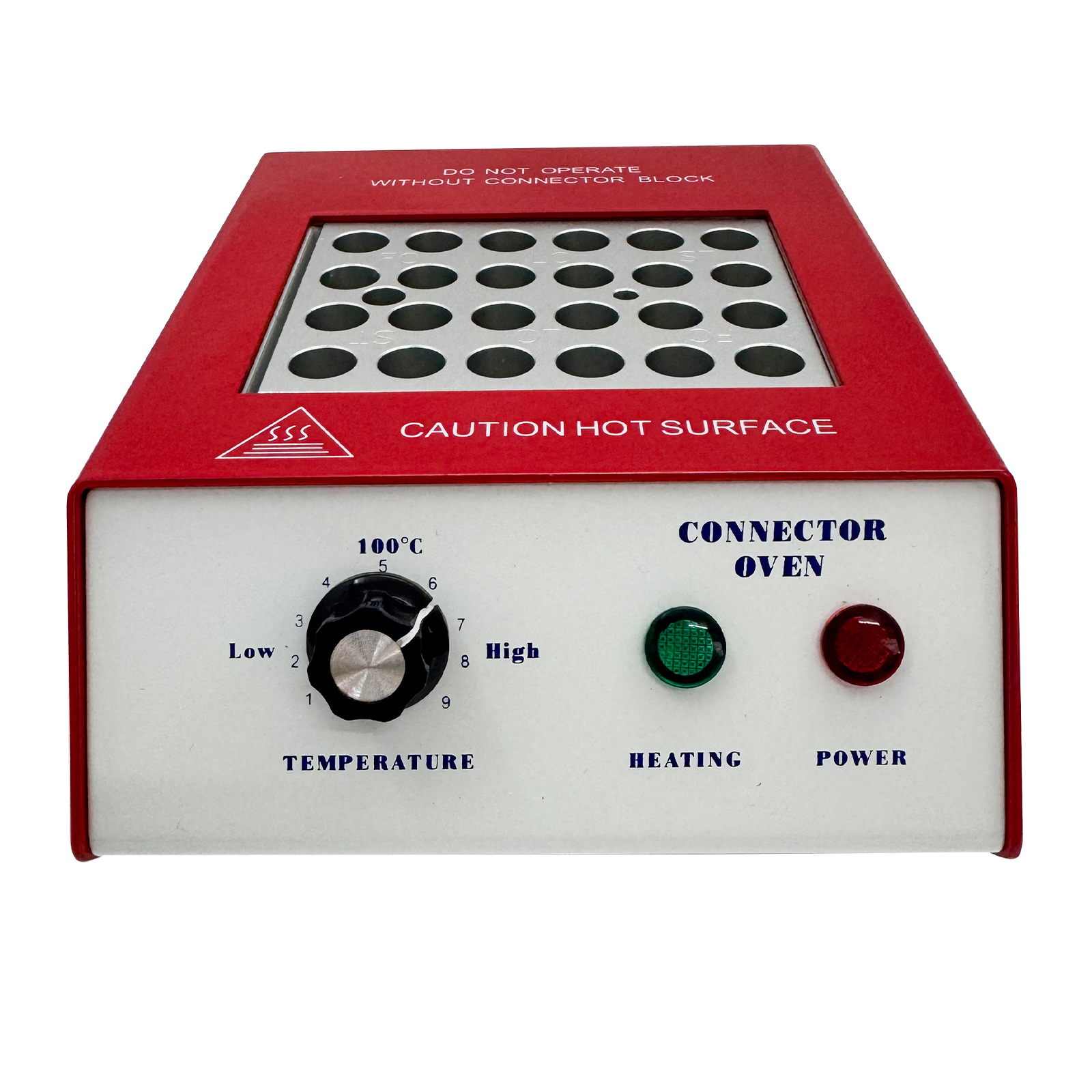

Control Panel The control panel features a simple and practical design, primarily consisting of three functional modules: a temperature adjustment knob, a heating indicator light, and a power indicator light. Users can adjust the temperature within a range of 60-150℃ to meet the curing requirements of different materials.	Support Bracket Made of high-temperature-resistant material, the bracket is designed to securely hold and position fiber cables during the curing process, ensuring connector stability, preventing displacement/tilting, and enabling uniform heating for efficient batch processing.	Heating Oven The fiber optic curing oven is used for heating and curing various fiber optic connectors, including FC, SC, ST, LC, etc., and is particularly suitable for processing MT, MPO, and SMA-type fiber optic connectors. It can simultaneously cure up to 24 fiber optic connectors at once.

Thermometer The thermometer features precise monitoring temperature with analog needle display, enabling operators to instantly verify if the current temperature matches preset values, thus preventing material curing defects caused by temperature deviations.	Vent Hole & Support Leg The base is equipped with heat dissipation vents to effectively exhaust excess heat generated during operation, preventing overheating and protecting the machine. It also features four anti-slip and wear-resistant support legs to ensure stable performance.	High-Quality Spray Painting‌ The fiber curing oven's housing utilizes high-quality spray painting technology, combining aesthetic appeal with practical functionality. Its smooth surface allows for easy cleaning, while offering excellent corrosion and oxidation resistance.

ITEM OPERATING INSTRUCTION

Connect the power supply and turn on the switch.
Adjust to the required curing temperature.
The heating indicator lights up, indicating heating has started.
The heating indicator turns off when the actual temperature reaches the set value.
Insert the glued ferrules into corresponding sleeves and place them in the heating cavities. A maximum of 24 ferrules can be cured at one time.
After curing is complete, remove the ferrules and sleeves, then load the next batch for curing.

ITEM INCLUDED(057187)

24 Ports Fiber Curing Oven *1

Accessory Kit *1

You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
