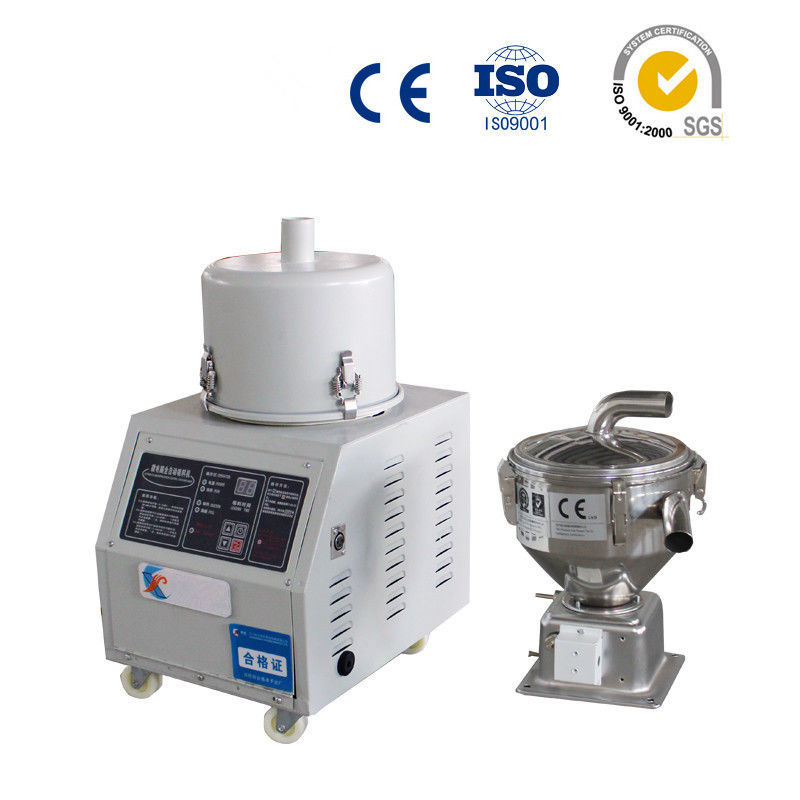

700G Automatic Material Feeding Machine,Vacuum Feeder,Auto Loader
Description:
It conveys plastic granules to the injection moulding machine with ease. It is easy to operate and its filter system makes it possible to be used for a long time. An independent filter device facilitates dust removal and noise reducing installations for silent operations. The machines are available in conveying capacity ranges of 310Kg/hr. Vacuum Auto-Loader, has found a large number of users swear by the qualitative parameters of this product.
Feature:
1. Main machine separated from the hopper, easy and safe to operate
2. Independent filter for easy cleaning
3. Stainless hopper
4. Microcomputer control
5. Alarm for overload and shortage of material.
6. 700G equipped with high-speed rectifier motor with delicate size and strong suction force—suitable for new material.
Parameter:
Power:220v 50hz (for 110v system,you can prepare a 110 to 220 voltage converter)
|
|
|
|
Motor
|
Type
|
Carbon brush
|
|
Specification
|
1kw/1.3hp
|
|
Conveying capacity(kg/hr)
|
310
|
|
Loading distance(m)
|
4
|
|
Static wind pressure(mm/H2O)
|
1550
|
|
Reservoir volume(L)
|
7.5
|
|
Conveying tube inner dim(mm)
|
Φ38
|
|
Specification of the attached hoses
|
Φ38×4
|
|
Dimensions(cm)of main frame
|
37*30*56
|
|
Dimensions(cm)of hopper
|
28*34*43
|
|
Net weight(kg)
|
30
|
Package weight(kg): 50
