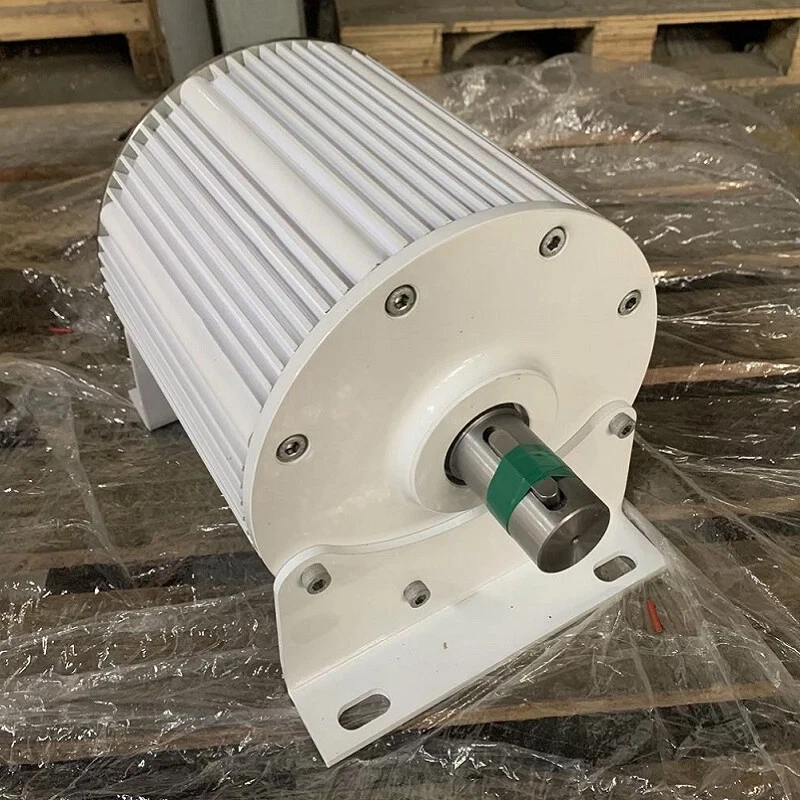

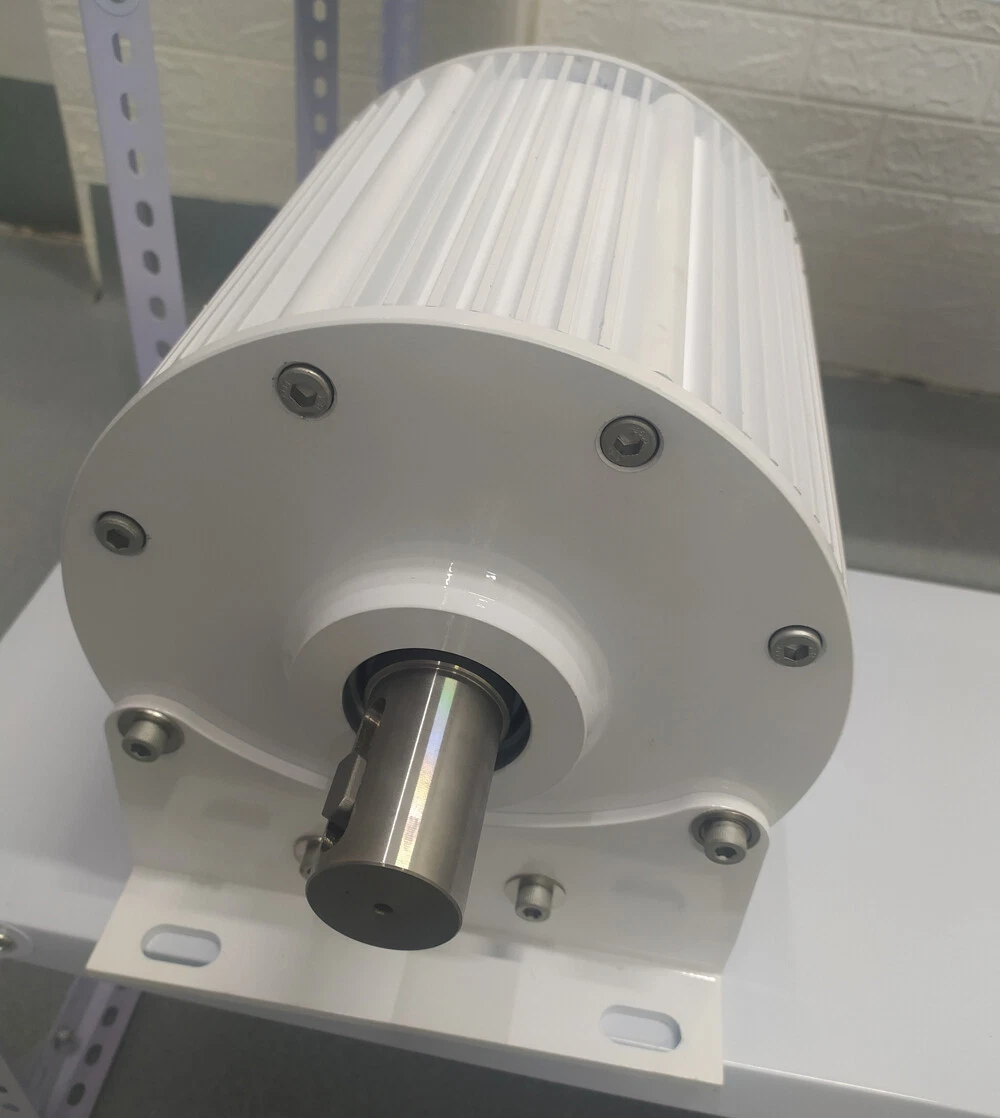

5000W Permanent Magnet Generator 3 Phase Synchronous 220V 380V DIY Wind Turbine
1. Rare earth permanent magnet generator
2.low start-up torque, wind energy utilization high;
3.small size, beautiful appearance, low vibration
4. human friendly design, easy installation, maintenance and repair.
5.permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque, while allowing more wind turbines and generator has good matching characteristics, the unit runs reliability
2.low start-up torque, wind energy utilization high;
3.small size, beautiful appearance, low vibration
4. human friendly design, easy installation, maintenance and repair.
5.permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque, while allowing more wind turbines and generator has good matching characteristics, the unit runs reliability
Feature:
Model: WT-2L-5KW-300
Rated power: 5000W
Max power:5200W
Rated speed：300rpm
Rated voltage: 48V 96V 120V 220V 380V
Start torque :2.5Nm
Rated torque :38.2Nm
Output current : AC
Efficiency :>75%
Service life: more than 20 Years
Insulation class : F
Generator: 3 Phase Permanent synchronous Generator.
Shaft material: Stainless steel
Shell material: Aluminum alloy
Permanent Magnet material: Rare Earth NdFeB
Frequency:50Hz
Control system:electromagnetism
Lubrication:add grease
Working temperature:-40℃~80℃
Main motor weight:27kg
-Motor:3 phase current PMSG.
-It can effectively reduce the load torque of motor,working more stable.
-Easy to intsall and fix.
-High efficiency.
Packing List：
1 PC Generator (charge controller is not included)
