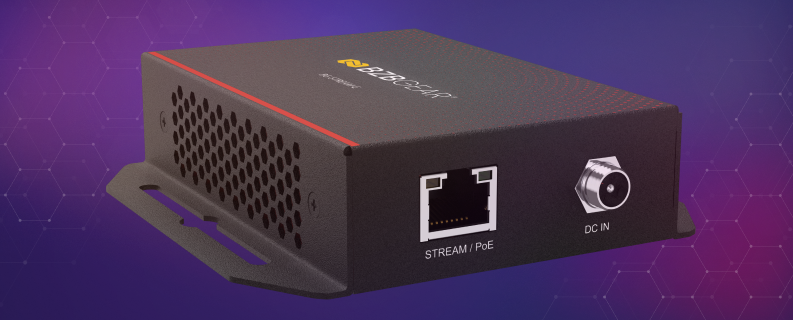

The BG-STREAM-E HDMI to IP/UVC is a compact and efficient video converter that provides a seamless connection between HDMI inputs and IP or USB 3.0 UVC outputs. This device is ideal for high-definition video streaming and recording, offering robust features such as hardware compression, real-time recording, and support for multiple streaming protocols.

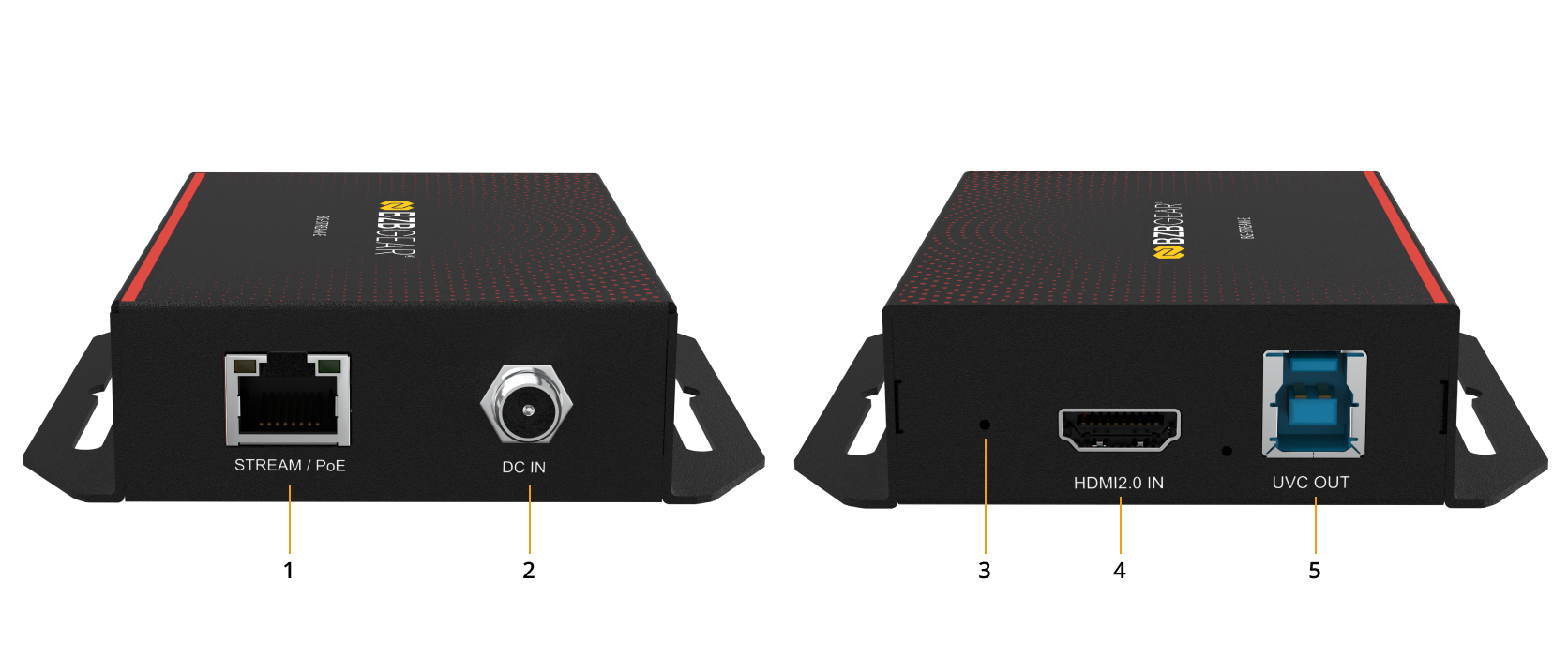

The BG-STREAM-E HDMI to IP/UVC is designed to facilitate high-quality video conversion from HDMI sources to IP streams or USB 3.0 UVC outputs. Equipped with a single HDMI input and versatile output options including 1 x RJ45 for IP streaming and 1 x USB 3.0 Type-B for UVC output, this converter ensures broad compatibility with various streaming protocols such as RTSP, RTMP, HLS, TS, SRT, and Dante AV-H.

Supporting resolutions up to 1920x1080p at 60/50fps, the BG-STREAM-E delivers exceptional video quality. The device features advanced video processing with H.265/H.264/AVC encoding, enabling efficient compression without compromising performance. Audio support includes AAC-LC with a configurable bit rate range from 32Kbps to 384Kbps and a sample rate of 48KHz, ensuring clear and synchronized audio.

Network features such as DHCP client support, POE input, and a user-friendly web UI for system configuration enhance the device"s usability. The compact size and secure locking DC jack power input make it suitable for various professional AV setups.

Dante stands for digital audio network through ethernet. Dante AV-H by Audinate is one of the leading network based production standards in the AV over IP space. Dante AV-H technology will enable users to stream their camera footage over a local area network with a single ethernet cable. Dante AV-H uses H.26x compression to compress the bandwidth of a camera"s video feed to allow it to stream over a local area network with near zero latency. The H.26x compression standard also provides a high image quality up to YUV 4:4:4 and low latency with 100% audio/visual synchronization. For protection of the user"s content, Dante AV-H is HDCP compliant.

With Dante AV-H, users will also be able to transmit and receive audio and video over their network. Furthermore, with the Dante controller, control for both audio and video will be unified. Users will then be able to control all sources from one screen.

The integration of Dante AV-H technology in the BG-STREAM-E offers a range of remarkable advantages. Developed by Audinate, Dante AV-H facilitates seamless video streaming over a single Ethernet cable, ensuring high-quality, low-latency transmission with H.26x compression for exceptional image quality and synchronized audiovisual experience. Its capability to transmit and receive both audio and video over the network simplifies workflows, further enhanced by the unified control provided by the Dante controller. With HDCP compliance for content protection, the BG-STREAM-E maximizes the potential of Dante AV-H, delivering unparalleled user convenience, top-notch image quality, and streamlined control in a cutting-edge AV solution.

This device is Dante AV-H ready, meaning it includes the necessary integration to support Audinate’s Dante AV-H software-based video-over-IP protocol.

Activation is completed via a license purchased through the Audinate website, after which Dante AV-H functionality becomes fully available. Once enabled, the unit can transmit and receive H.264/H.265 video streams with precise Dante clock synchronization, ensuring audio and video remain perfectly aligned across the network. This allows the product to operate as part of a standard Dante environment, delivering scalable, low-latency AV-over-IP without requiring dedicated hardware codecs.
