Overview

EssentialGear Product Line

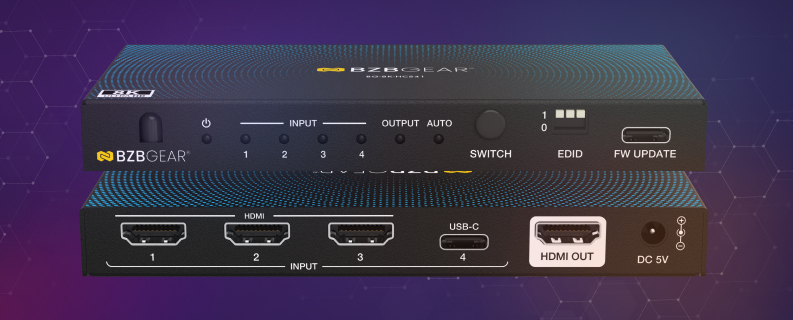

The BG-8K-HCS41 is an ultra-thin 4x1 switcher designed for high-performance AV applications. It features three HDMI 2.1 inputs, one USB-C input, and one HDMI output, supporting resolutions up to 8K@60Hz 4:2:0 12-bit (HDMI) and 8K@30Hz 4:2:2 10-bit (USB-C). This switcher is fully compliant with DP 1.4 and HDCP 2.3, and supports advanced video technologies including HDR10, HDR10+, Dolby Vision, and HLG pass-through. With support for HDMI 2.1 features such as VRR, ALLM, QMS, QFT, and SBTM, along with multichannel audio pass-through for Dolby Atmos, DTS:X, and LPCM 7.1CH, it delivers an immersive audio-visual experience.

The BG-8K-HCS41 offers easy control via front-panel buttons, IR remote, and supports both manual and auto-switching between active inputs. Built-in EDID management can be configured using a 3-pin DIP switch on the front panel, with EDID status displayed on the connected monitor. Additional features include CEC control for simplified TV-to-source communication and firmware updates through the service port, making this switcher a versatile solution for home theater, gaming, and professional AV installations.

U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty

Features

  • UHD USB-C Quality
    Supports resolutions up to 8K@30Hz (4:2:2, 10-bit) and 4K@120Hz (4:2:2, 10-bit) via USB-C
  • UHD HDMI Quality
    Supports resolutions up to 8K@60Hz (4:2:0, 12-bit), 8K@30Hz (4:4:4, 12-bit), and 4K@120Hz (4:4:4, 12-bit)
  • Input Switching Options
    Supports automatic and manual input switching, controllable via front panel buttons and IR remote
  • CEC Control Functionality
    Enables CEC pass-through control from the display (output) to the source device (input)
  • Audio Pass-Through
    Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X audio formats
  • HDR Pass-Through
    Passes through HDR formats, including HDR, HDR10, HDR10+, Dolby Vision, and HLG

Specification

Technical
HDMI ComplianceHDMI 2.1
HDCP ComplianceHDCP 2.3
Video BandwidthHDMI: Up to 48Gbps FRL and 18Gbps TMDSUSB-C: Up to 32Gbps
Video ResolutionHDMI: Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bitUSB-C: Up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit
Color Depth8-bit,10-bit,12-bit
Color SpaceRGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDMI Audio FormatsLPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
ESD ProtectionIEC 61000-4-2: 8kV (Air-gap discharge) & 4kV (Contact discharge)
Connection
Input3 x IN [HDMI Type A, 19-pin female]1 x IN [USB Type C, 24-pin female]
Output1 x OUT [HDMI Type A, 19-pin female]
Control1 x SERVICE [USB Type C, update port]1 x IR Receive Window
Mechanical
HousingMetal
ColorBlack
Dimensions (WxDxH)5.7in x 2.7in x 0.71in [145mm x 68mm x 18mm]
Weight0.57 lbs [258g]
Power SupplyInput: AC 100~240V 50/60Hz, Output: DC 5V/1A(US/EU standards, CE/FCC/UL certified)
Power Consumption2.25W (Max)
Operation Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity20~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution8K4K604K241080P
HDMI Cable Length(HDMI IN / OUT)2m/6.6ft(Ultra HDMI 2.1)8m/26ft12m/39ft15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.

Interfaces

1. IR Window:
IR signal receiving window.
2. Power LED:
When the device is powered on, the red power LED is on.
3. IN 1/2/3/4 LED:
When the IN 1/2/3/4 port is selected as an input channel of the signal source, the corresponding green LED will be on.
4. OUT LED:
When a TV or displayer is connected to the OUT port, the green LED will be on.
5. AUTO LED:
When the auto switching mode is enabled, the green LED will be on.
6. SWITCH Button:
nput signals switching button.
Short press to switch to the next input port.
Long press for 3 seconds to disable the auto switching mode.
7. EDID DIP Switch:
Used for EDID setting.
8. SERVICE:
Used to update MCU firmware.
9. IN 1/2/3:
HDMI signal input ports, connected to HDMI source devices such as DVD or PS5 with HDMI cable.
10. IN 4:
USB signal input port, connected to an USB-C source device.
11. OUT Port:
HDMI signal output port, connected to an HDMI display device such as TV or Monitor with HDMI cable.
12. DC 5V:
DC 5V/1A power input port.

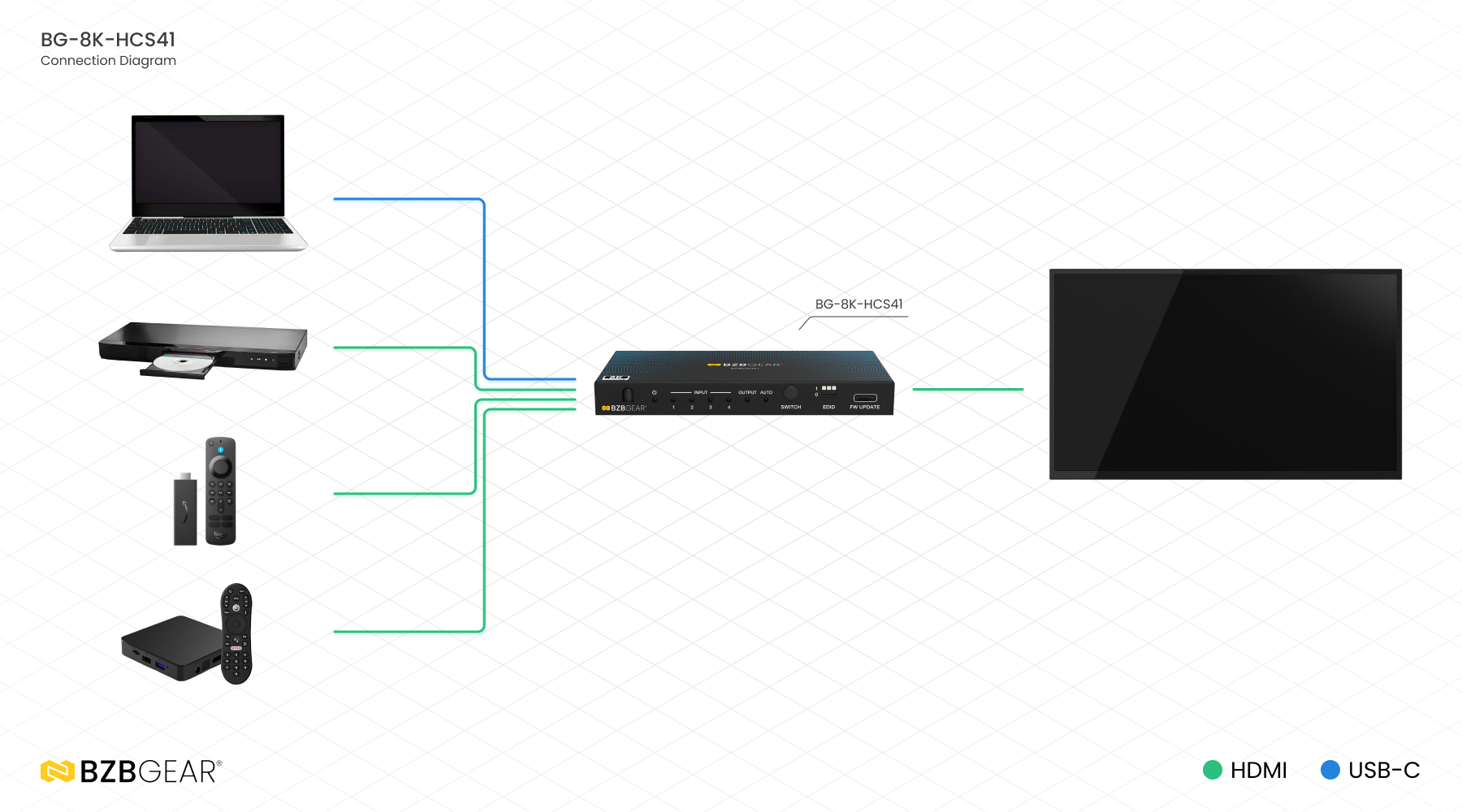

Connection Diagram

Package Contents

  • 1x 48Gbps 4x1 Switcher
  • 1x IR Remote
  • 1x 5V/1A Power Supply
  • 1x User Manual
