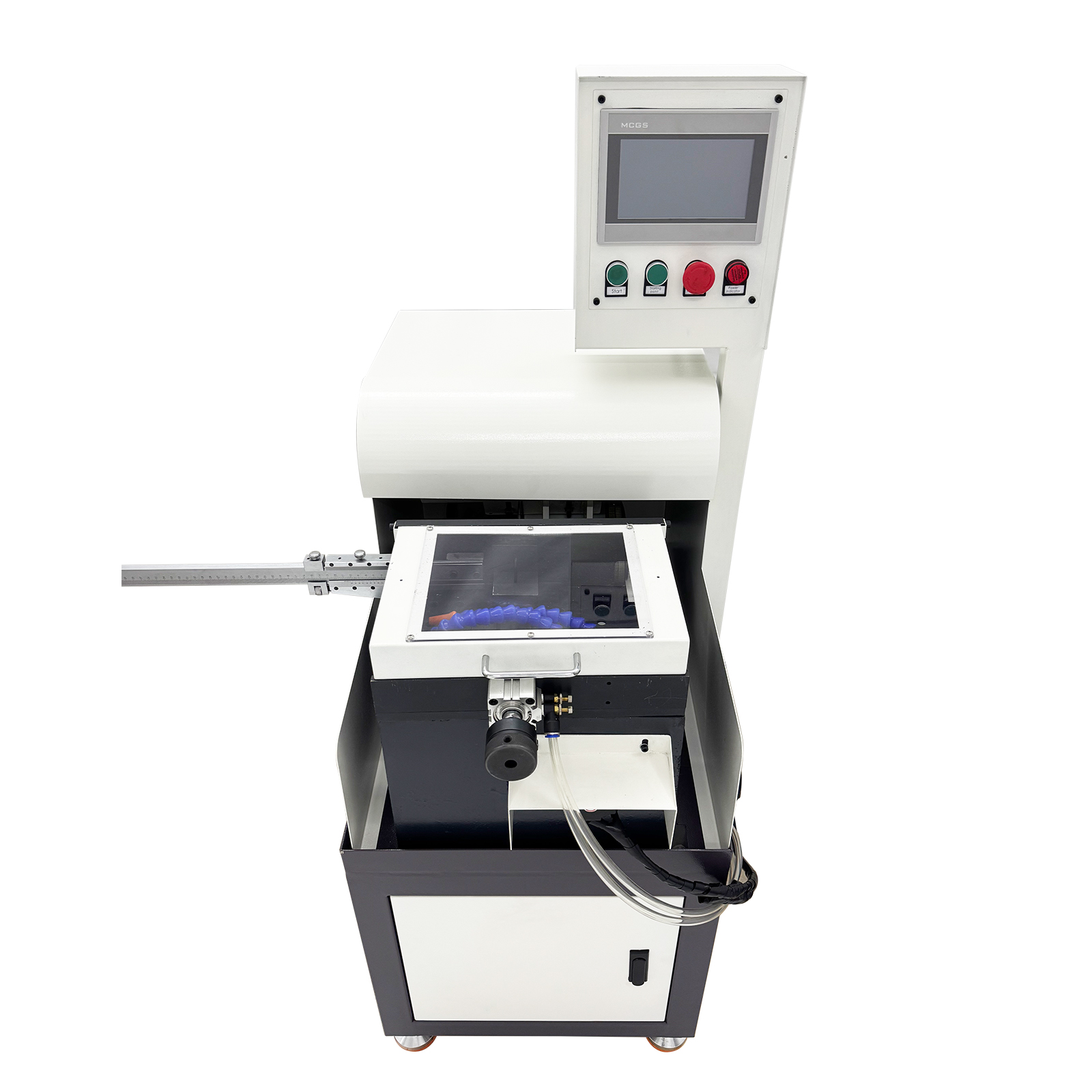

110V Automatic CNC Rotary Cutting-off Machine Pin Cutting Machine

TECHTONGDA^®

	ITEM DESCRIPTION
	Easy operation with precision and safety, significantly reducing mold-making time.
	Smooth and even ejector pin cutting surface for aesthetically pleasing mold products.
	Rational mechanism design with easy mobility, equipped with safety lock buttons.
	High reliability with minimal vibration, low noise, and reduced dust emission.
	Energy-efficient operation with low running costs; uses standard cutting discs for easy replacement.
	Pneumatic workpiece clamping system saves time and labor.
	CNC controlled cutting with user-friendly human-machine interface for simplified operation.

This machine features a 1500W high power motor, combined with a CNC system for intelligent cutting speed adjustment, enabling efficient and precise cutting. Equipped with a pneumatic automatic clamping function, it ensures workpiece stability, while its anti-burning mode effectively reduces thermal damage caused by excessive heat during cutting. When overload torque is detected, the device automatically activates a protection mechanism to prevent cutting disc damage. Suitable for cutting tungsten steel, high-speed steel, iron, copper, aluminum, and other materials. It is widely used in high-precision machining applications, including automotive mold manufacturing, hardware production, and structural steel processing.

ITEM PARAMETERS

Voltage:	AC110V
Power:	1.5kW
Speed:	3600rpm
Widest clamping range:	1.57"(40mm)
Measuring stick:	Standard configuration: 23.6"(600mm) (15.7"/400mm available as option)
Grinding wheel:	7.87"1.25"0.03" (200321mm)
Suitable materials:	Tungsten Steel, High-Speed Steel (HSS), Iron, Copper, Aluminum, etc.

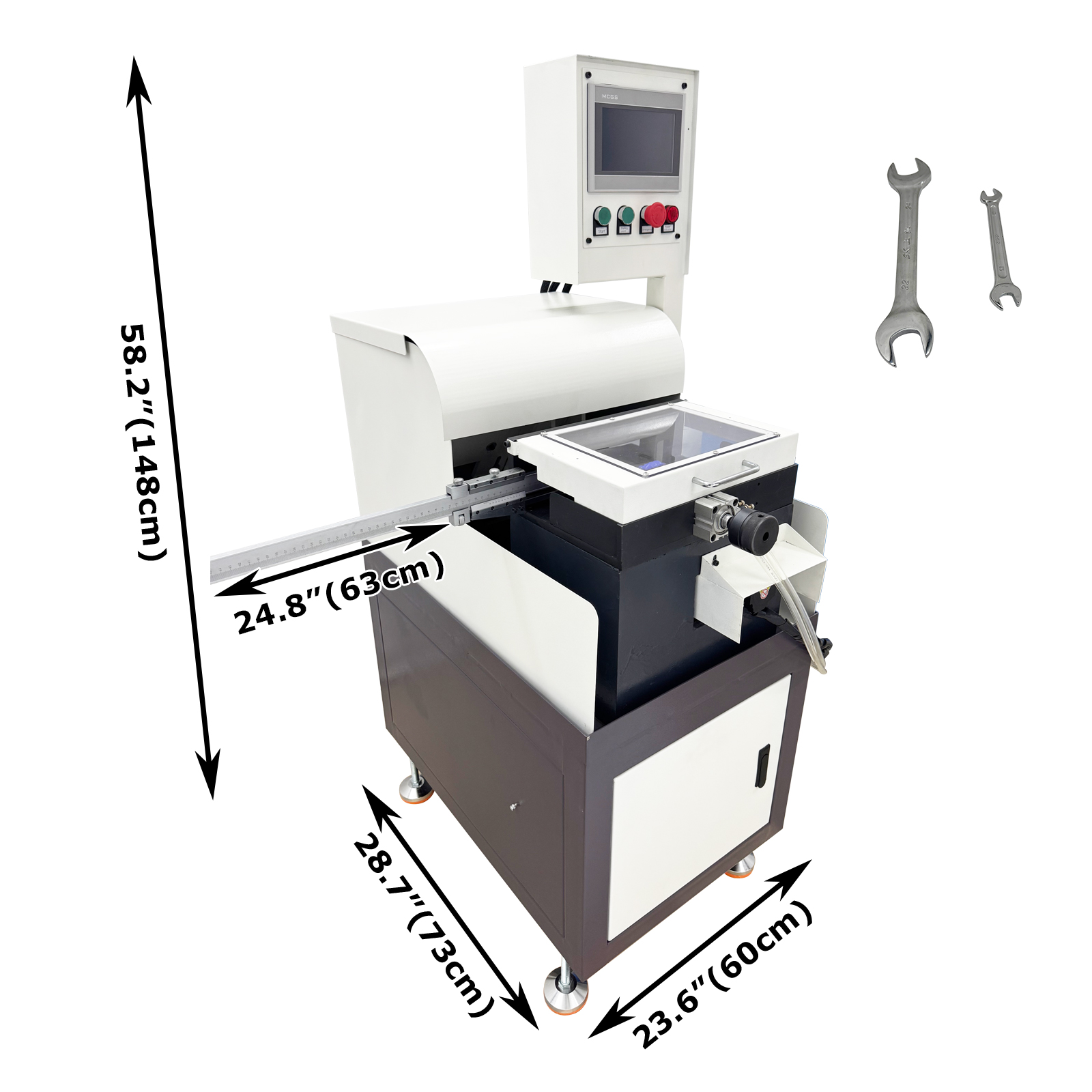

Package size:	35.4"26.7"64.5" (90cm68cm164cm)
Net weight / Gross weight:	440.9lbs(200kg) / 533.5lbs(242kg)
Caution: In addition to the power supply, this product also needs to be connected to the air pump or air compressor.

ITEM DETAILS


Caliper The caliper features quick-measurement locking functionality, enabling precise length adjustment and cutting reference, which significantly enhances operational efficiency.	Electronic Oil Pump The lubrication system enhances guide rail durability. Simply preset the oiling interval and duration, and the pump will operate automatically.	Fixed Clamp The clamp securely holds workpieces in place during operations to prevent vibration, ensuring stable cutting and producing flat finished products.

Control Panel The control panel integrates multiple functions, including set the starting point, cutting speed, cutting depth, protective torque, start, stop, and other functions. It features a fully intelligent LCD display with clear data visualization and user-friendly operation.	Cylinder The cylinder functions to clamp the material, maintaining constant-pressure holding to prevent displacement during cutting, while synchronizing precisely with the CNC system to achieve accurate coordination between clamping force and cutting sequence.	Belt Drive The belt drive system delivers smooth power transmission with minimal noise, offering exceptional reliability, enhanced wear resistance, and extended durability. Its maintenance-friendly design ensures effortless operation.

https://topseller365.com/data/prd/057/137/27.jpg

https://topseller365.com/data/prd/057/137/29.jpg

https://topseller365.com/data/prd/057/137/25.jpg

Servo Motor

The servo motor drives the cutting process, ensuring enhanced stability and precision while enabling real-time cutting force monitoring.

High Pressure Pump

The high pressure pump flushes away debris to ensure cutting accuracy, while rapidly cooling tools and workpieces to reduce deformation and extend tool life by 50%.

Support Leg

Height-adjustable support legs provide stable machine fixation and enable precise leveling of the working plane through threaded elevation mechanisms.

ITEM INCLUDED(057137)

Precision Cutting Machine *1

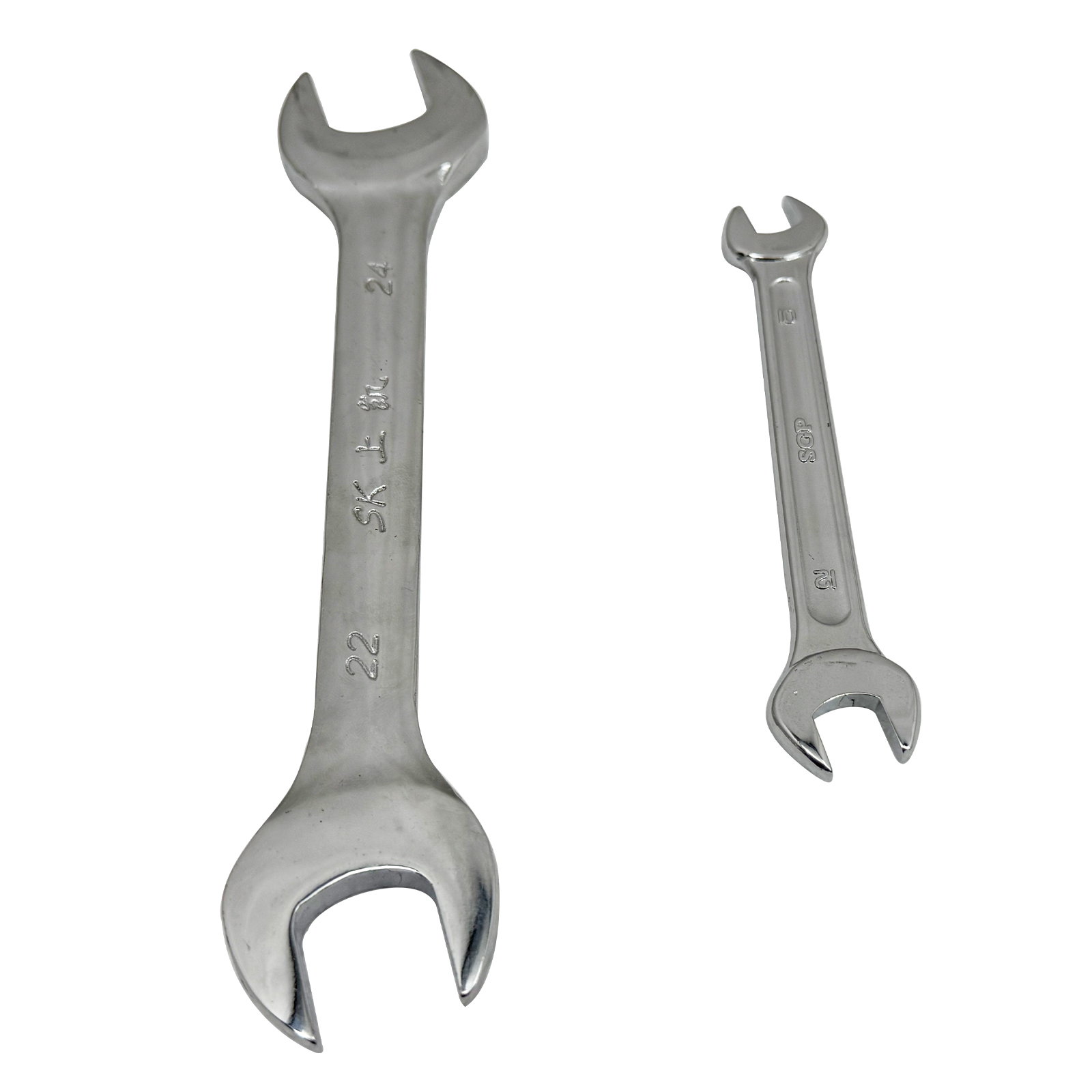

Wrench *2
