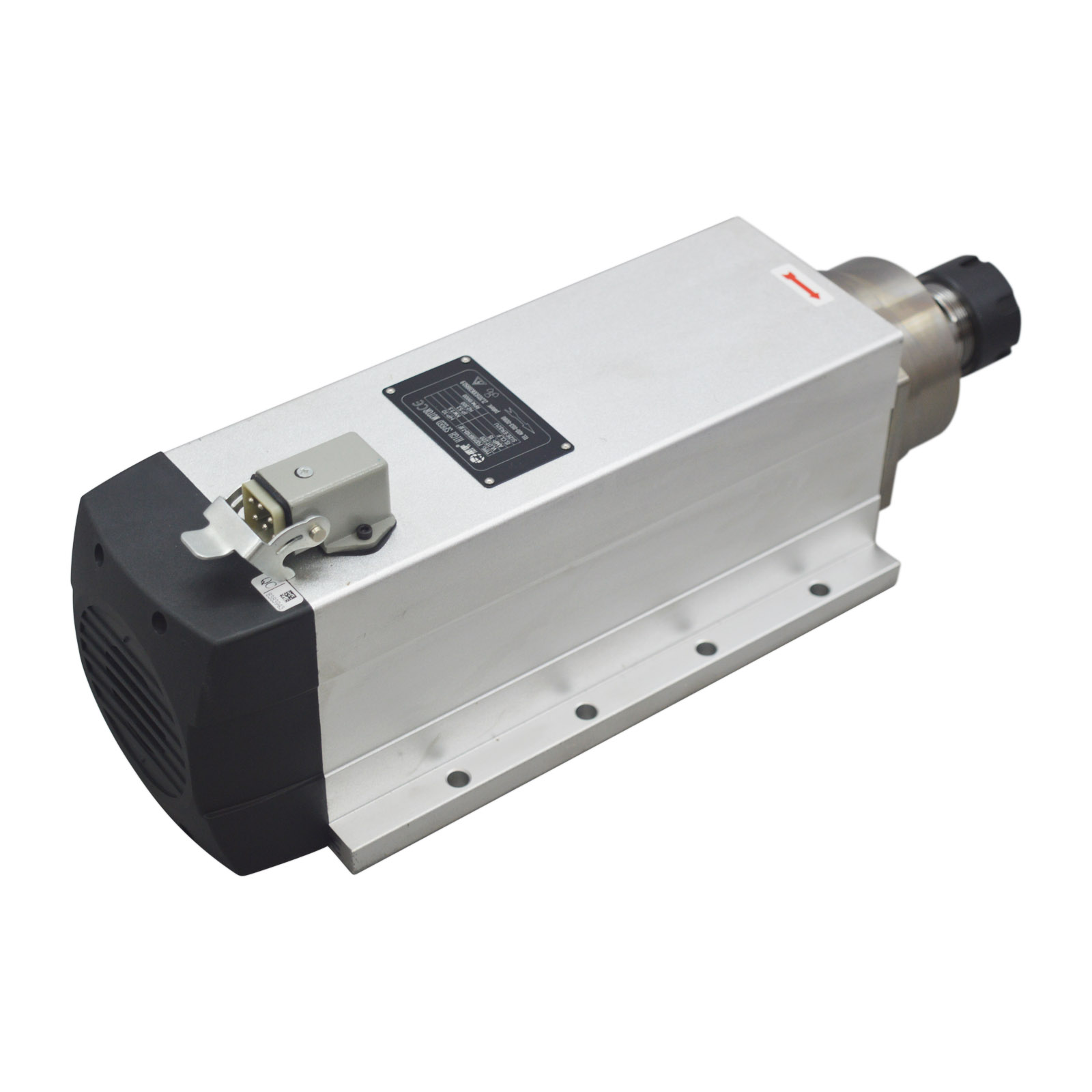

Spindle Motor 220V 7.5KW(Flanged)

TECHTONGDA®
         ITEM DESCRIPTION
  • Strong gloss green powder coated finish. Paint surface stability is not easy to fall off, outdoor long-term use is not easy to rust.
  • High precision bearing and pure copper coil, high machining accuracy, long service life.
  • Pure aluminum body, anti-oxidation and anti-corrosion, lighter weight.
  • Adopt precision steel ball holder to ensure spindle rotation accuracy in high speed grinding.
  • Suitable for the vast majority of tractors on the market, can be a good match！！！
Spindle motor has the advantages of fast speed, small volume, lightweight, low material consumption, low noise, low vibration.It is widely used in wood, aluminum, metal, stone, metal, plastic and other materials carving processing, widely used in many industries, can greatly improve the processing quality and accuracy.
ITEM PARAMETER
Voltage:
220V
Power:
7.5KW(10HP)
Current:
30.09A
Operating Frequency:
300Hz
Collet Nut:
ER32
Clamping Range:
0.118"-0.787"(3mm-20mm)[Standard with 6mm collet, if you need other sizes please contact us]
Clamping Diameter of Collet:
0.236"(6mm)
Motor Speed:
18000rpm
Cone Hole Beat:
2UM
Cooling Mode:
Fan Cooling
Lubrication Mode:
Grease Lubrication
Fuselage Material:
Pure Aluminium
Packing size:
20.1"*9.1"*8.7"(51cm*23cm*22cm)
Net weight/Gross weight:
37.5LB(17kg)/39.0LB(17.7kg)
NOTE: Spindle motor must be equipped with frequency converter.Set up frequency converter correctly according to machine requirement. The item is not included frequency converter.
OPTIONAL SPECIFICATIONS
Product Number
Voltage
Power
Nut Type
Clamping Range
053290
220V
2.2kw
ER25
1mm-16mm
053289
220V
3.5kw
ER20
1mm-13mm
053288
220V
4.5kw
ER32
3mm-20mm
053149
220V
6.0kw
ER32
3mm-20mm
056291
220V
7.5kw
ER32
3mm-20mm
ITEM DETAILS
Aviation Plug Cooling Fan Pure Alum Clamping Mouth

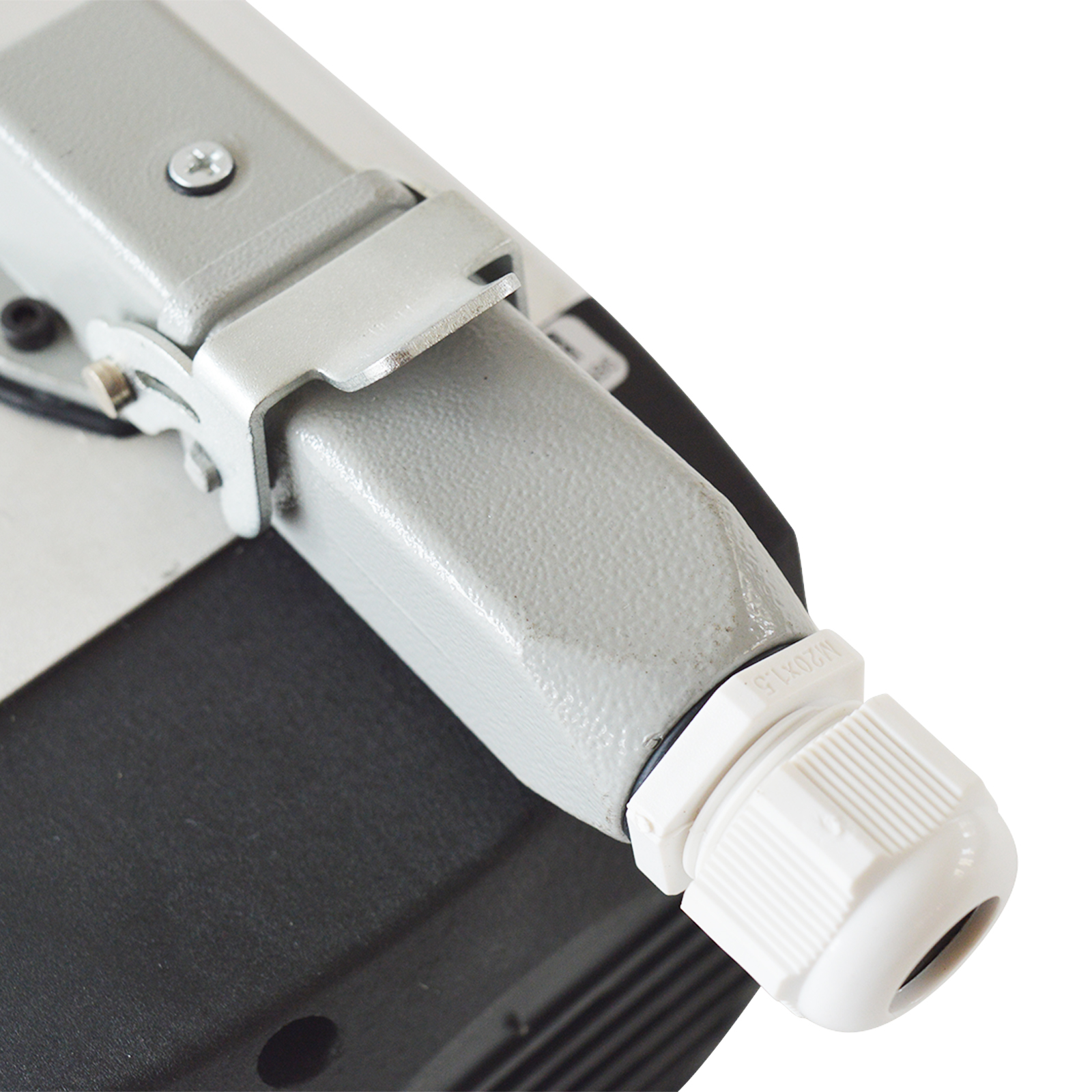

High quality dust-proof aviation plug line 1, 2, 3 respectively connected with U, V, W, 4 and 5 for thermal protection, scientific design, simple wiring, not easy to loose off.

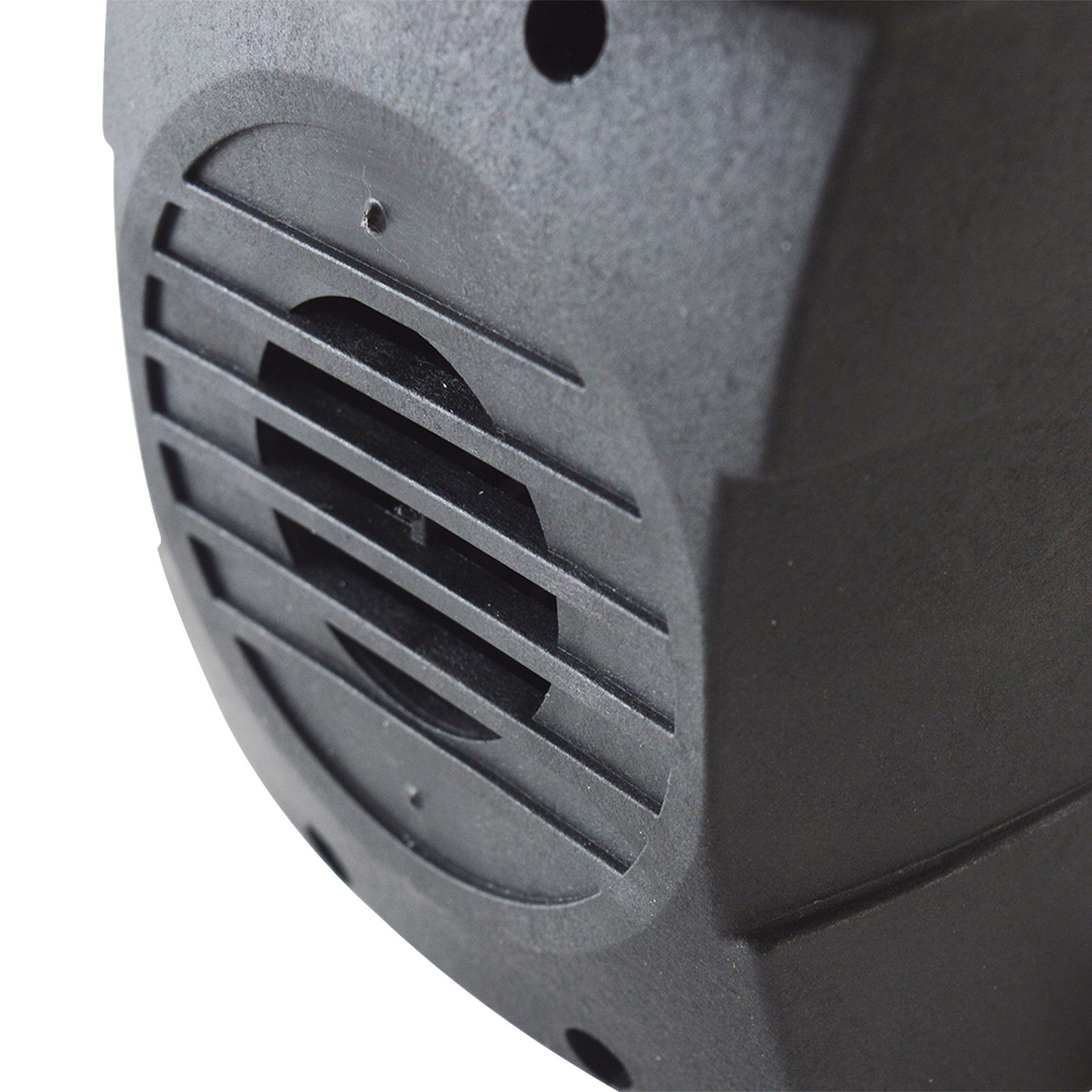

Using fan cooling mode, comparedwith water cooling is more simpleand convenient, can quickly discharge a lot of heat generated by the work.greatly extend the service life.

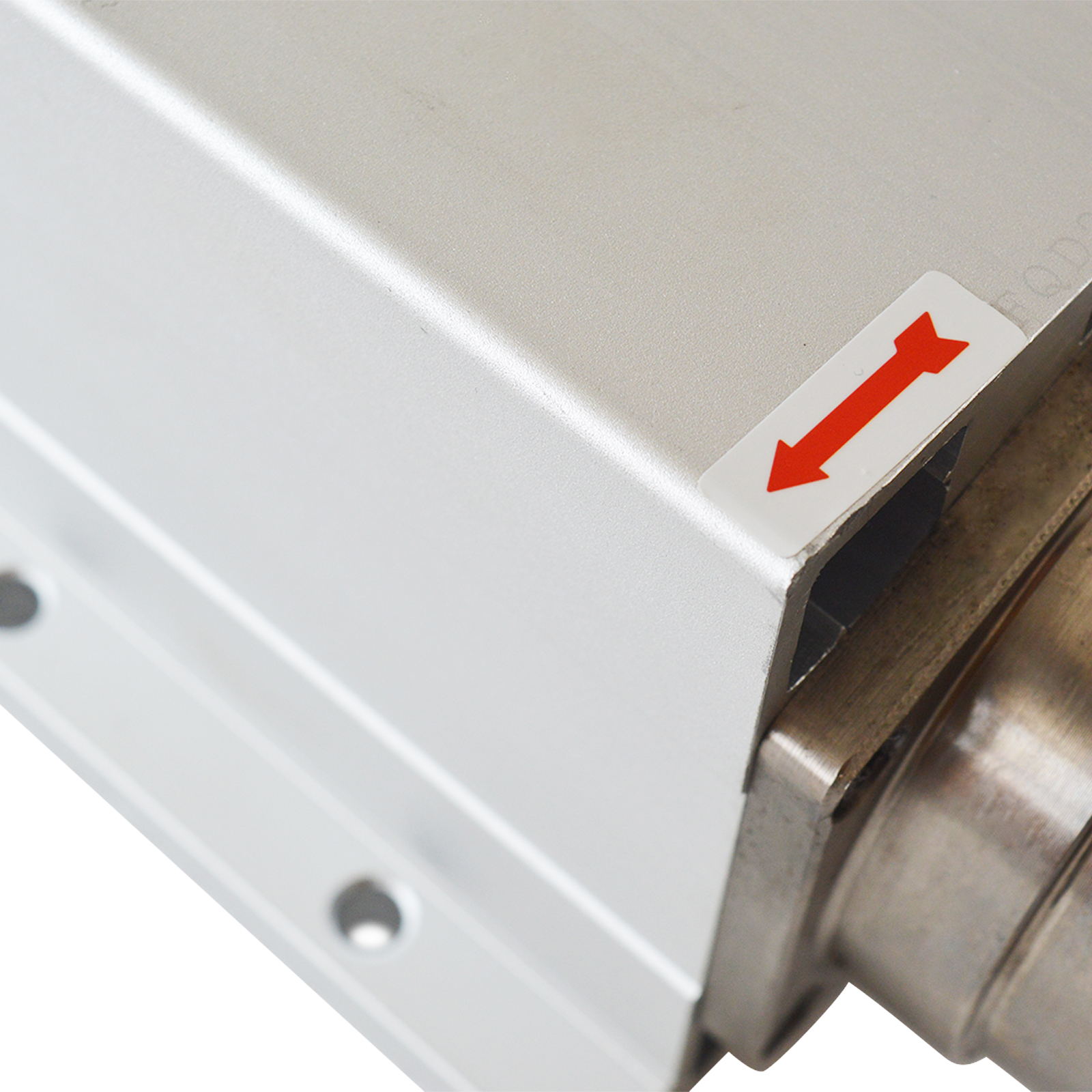

The body is made of pure aluminum, beautiful and generous, anti-corrosion and rust-proof, lighter weight;Flangeon both sides for easy installation.

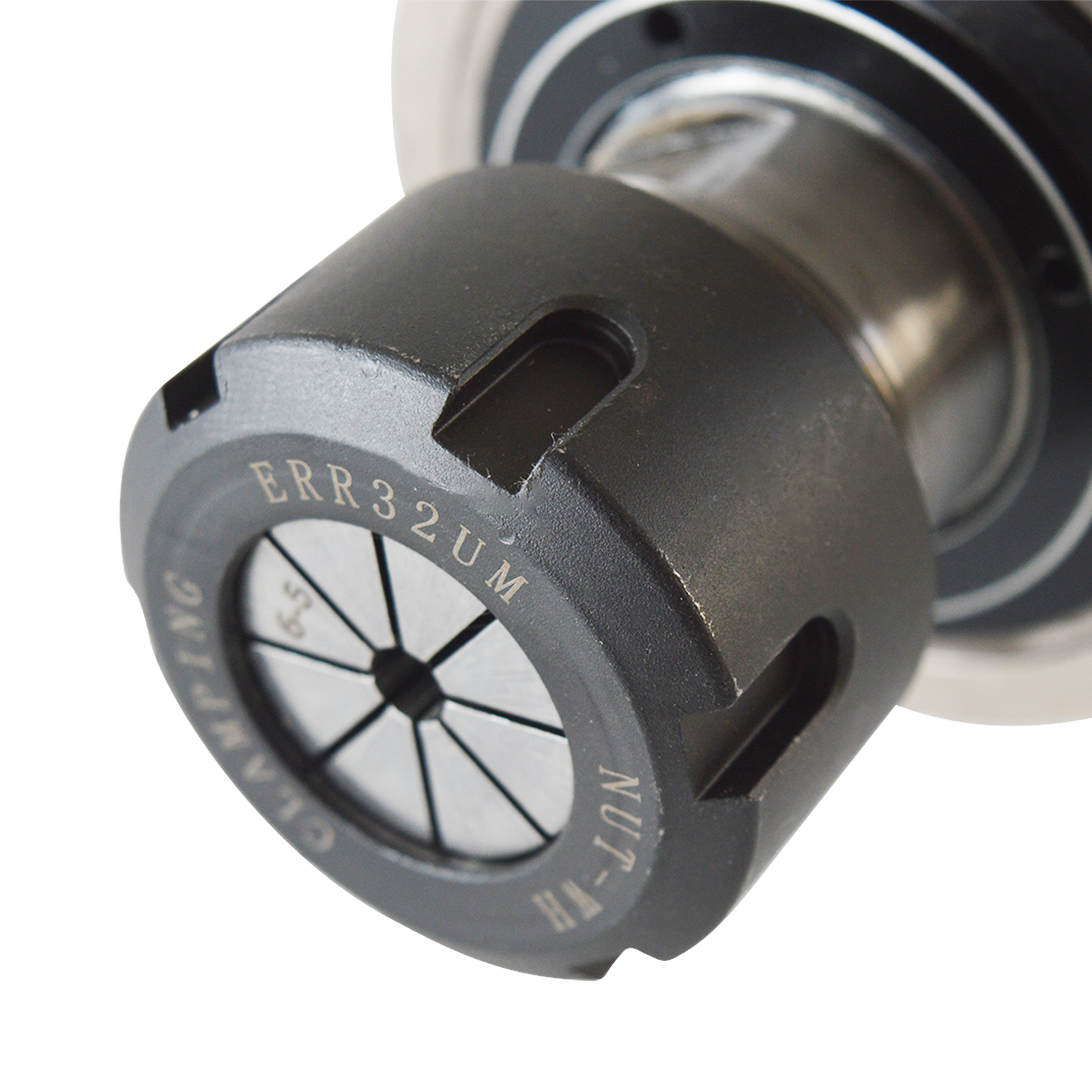

High precision ER32 nut, standardwith 6mm collet, another clampingrange of 3-20mm collet optional;With high precision bearing, themachining accuracy is higher.
MATTERS NEED ATTENTION
- must match the drive spindle chosen correctly according to the electric spindle nameplate good debugging power, voltage and frequency.
- Set the frequency converter should be set command channel, and then set the display channel, and finally set the parameters. When setting parameters, be sure that the reference frequency, the frequency of the three highest rated frequency and consistency.
- The spindle is generally clockwise in the wrong direction, the drive can change settings or swap any two rotating wire the inverter output UVW terminal on.
- In general, water-cooled spindle surface temperature and ambient temperature greater than 20 degrees, the heat can be considered a spindle; when air-cooled spindle surface temperature greater than ambient temperature of 30 degrees, can be identified as the main heat seriously, immediately shut down cooling, a check.
ITEM INCLUDED(056291)
Spindle Motor *1 Fork Wrench *1 Collet Wrench *1

You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
