CTG20 Car Paint Thickness Gauge 01400um Coating Gauge Fe nFe Fe Zn Measurement
DESCRIPTION


Features:

CTG-20 Car Paint Thickness Gauge is a coating thickness gauge used to measure the thickness of metal for surface coating or galvanized layer.

It can measure the thickness of non-magnetic coating (such as paint) on magnetic materials such as steel/iron, and can also measure the thickness of coating (such as paint) on non-magnetic materials such as aluminum.

Built-in for precision probe, lithium battery charging. Automatically detect substrate properties and coating thickness through electromagnetic induction and eddy current effect.

This instrument can measure coating thickness non-destructively with fast speed and high accuracy.

Widely used in manufacturing, industry, automotive industry and other testing fields.

Please note:

·The curvature of the substrate to be tested is too large.

·The area of the substrate to be tested is too small.

·The for surface of the substrate to be tested is rough.

·There is a strong magnetic field nearby.

·The ambient temperature/humidity changes greatly.

·The battery is low, please charge in time.


Specifications:

Part name: CTG-20 Car Paint Thickness Gauge

Material: abs

Color: black and blue

1 .Product model: CTG-20

2. Measuring range: 0-1400μm

3. Accuracy: ±3%+2μm

4. Resolution: 0.1μm

5. Calibration: for zero point calibration; multi-point calibration

6. Unit: μm, mil

7. Minimum convex curvature radius: 5mm

8. Minimum concave curvature radius: 25mm

9. Minimum measuring area diameter: 20mm

10. Working environment: no strong magnetic field

11. Working temperature: -10℃-+50℃

12. Humidity: 20%-90%RH

13. Battery: 600mAh lithium battery

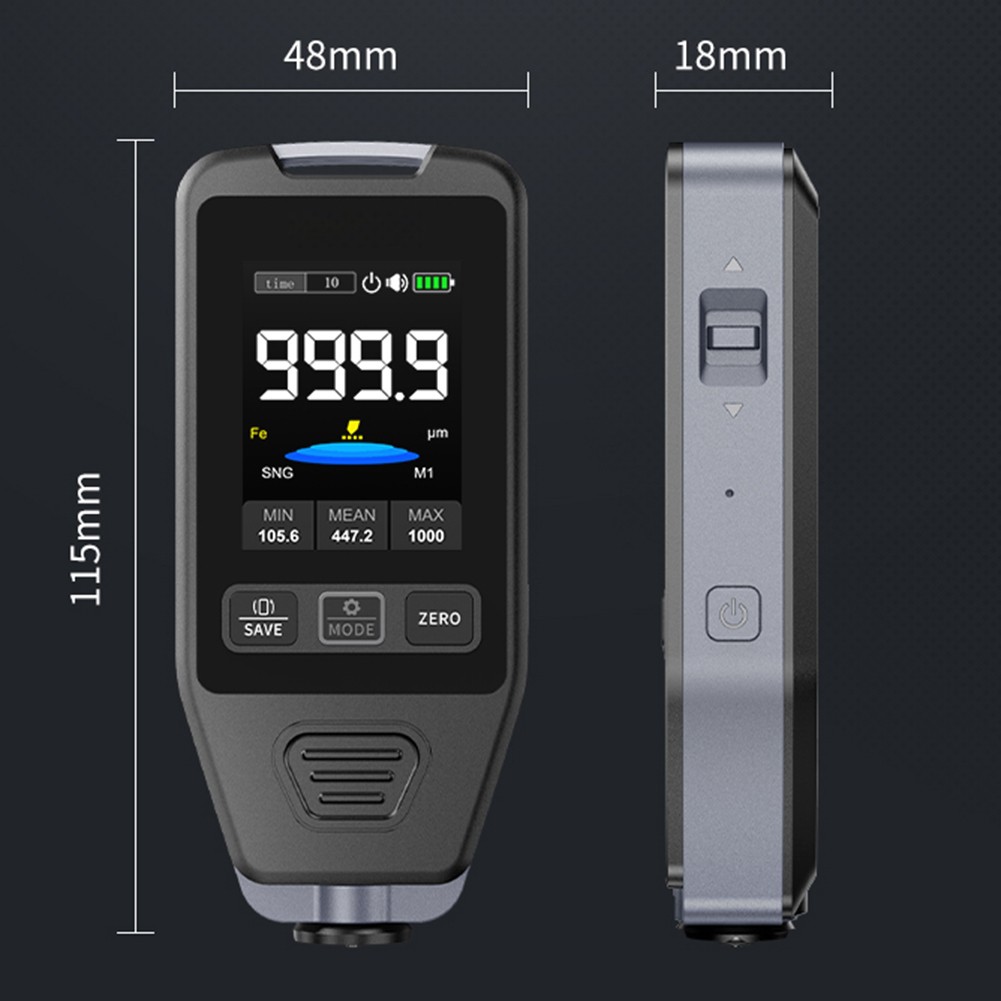

14. size: 115x48x18mm

15. Weight: about 83 grams

16. Data storage: support

17. Powdered putty test: support

18. Rotating screen: support

19. Automatic shutdown: support


Package content:

1*CTG-20 coating thickness gauge

1* Iron-based calibration substrate

1*Non-ferrous metal calibration substrate

1*50/100/250/500/1000 μm calibration sheet

1*USB data cable


Note:

1: Due to manual measurement, please allow 1-2 cm error, please confirm that you do not mind before placing an order.

2: Due to differences between different monitors, the picture may not reflect the actual color of the product
