Description :

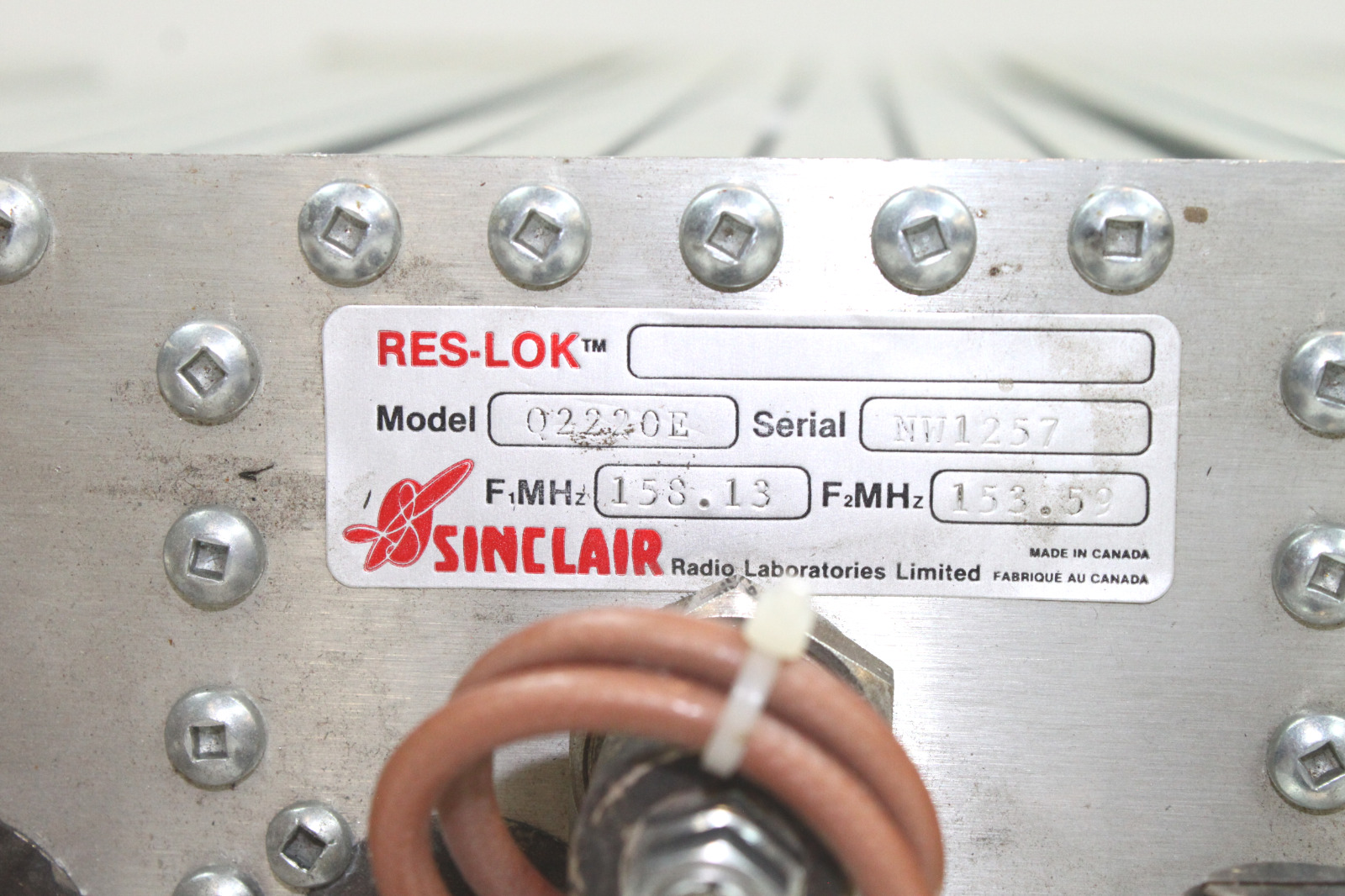

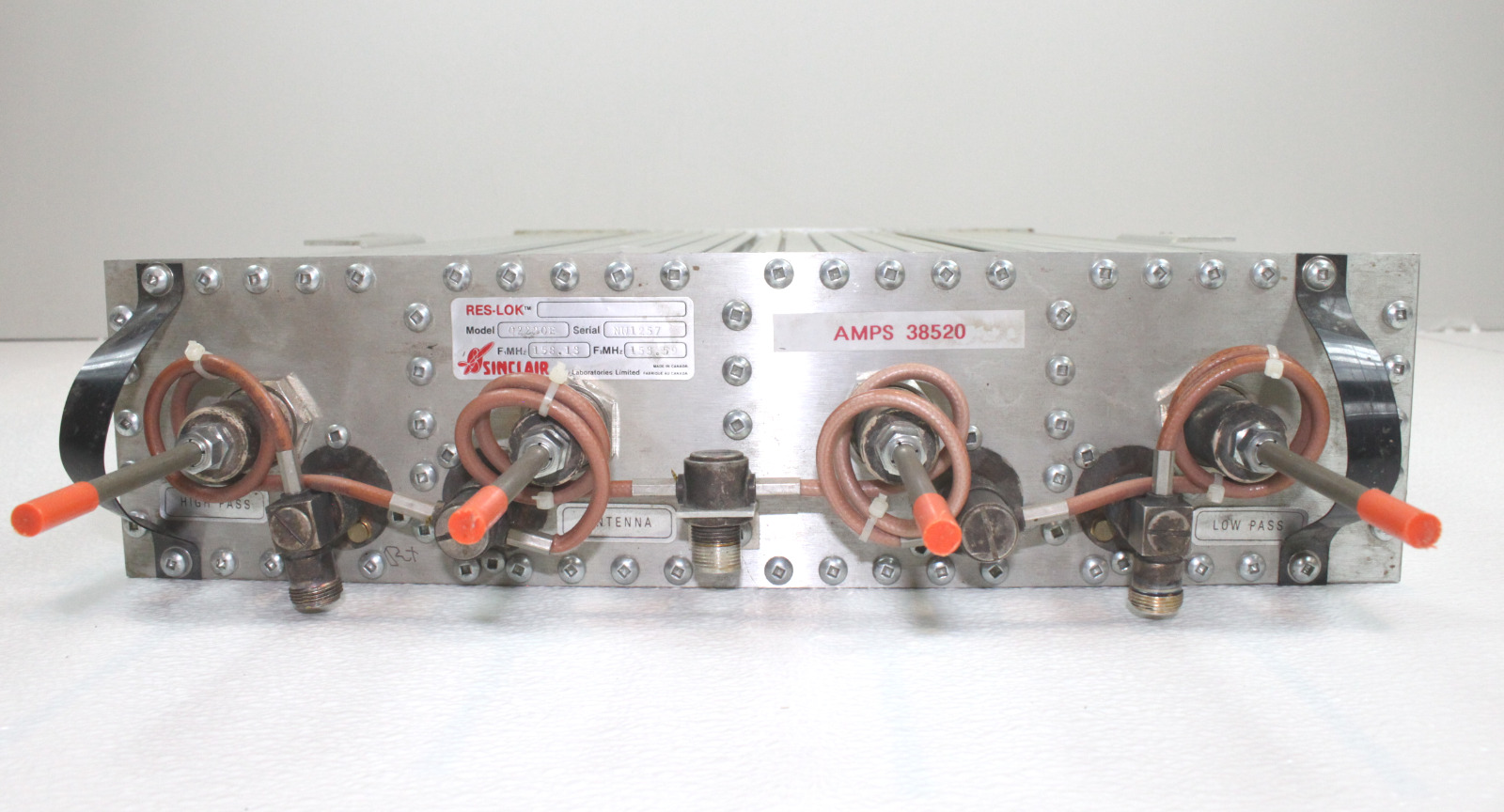

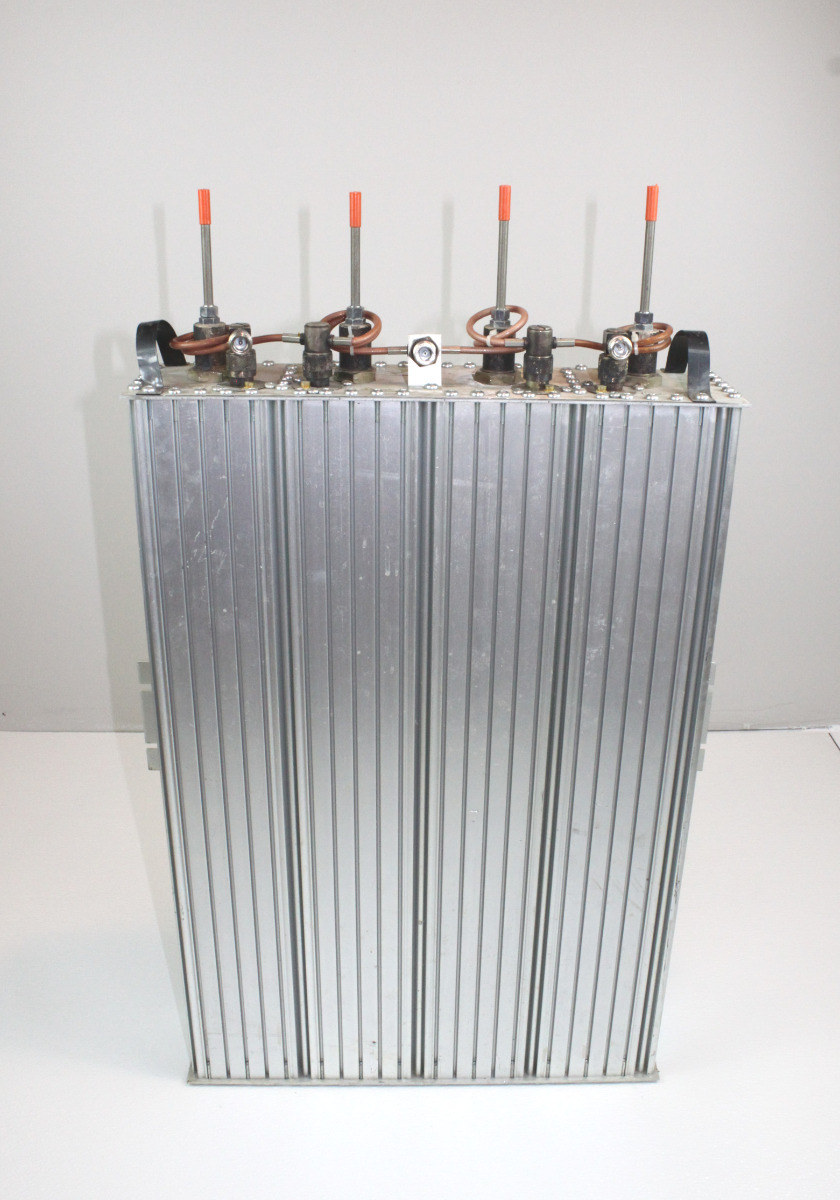

Sinclair VHF RES-LOK duplexer, model number
Q2220E. This is a 350 watt rated duplexer that can be tuned to
frequencies between 132-174 Mhz. This duplexer can be tuned to ham

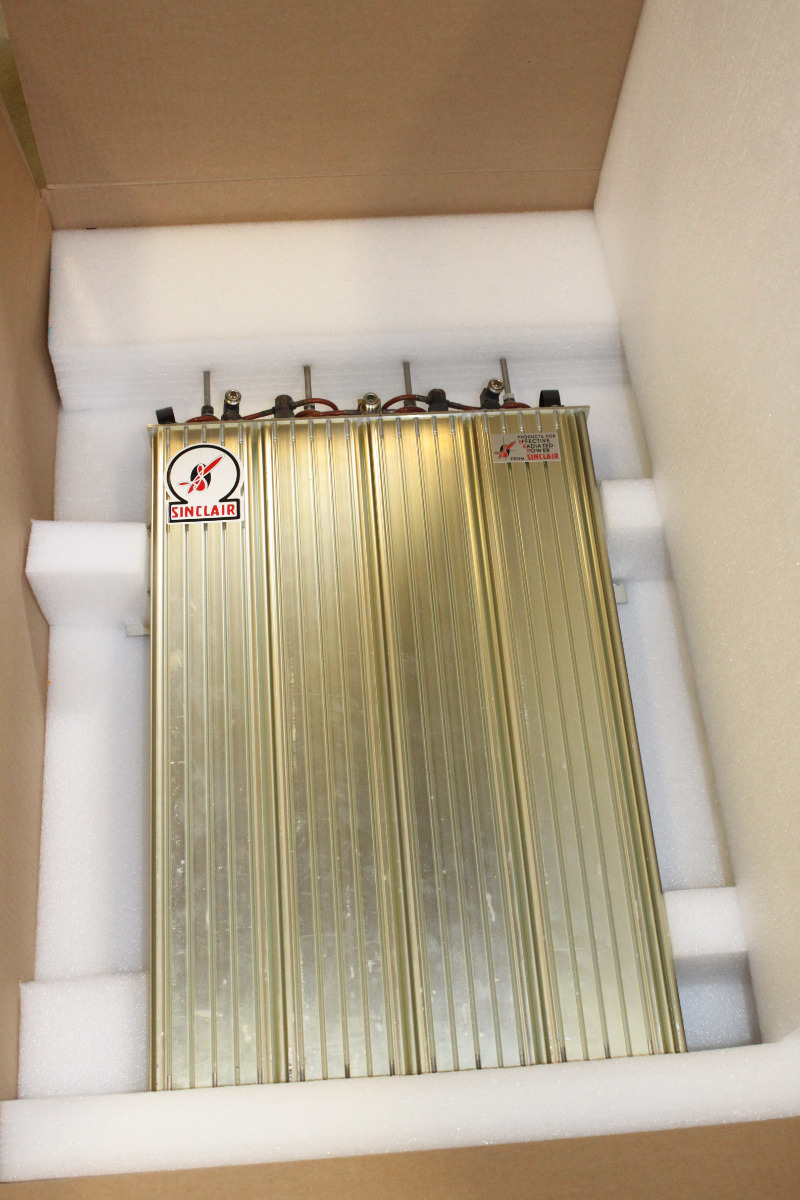

frequencies with a 600 khz spacing. In great condition and professionally packaged. Free tuning of the duplexer is available prior to shipping If you have any questions, please contact us - Office Hours M-F (8-4 pm) Mountain Time
DUPLEXER SPECIFICATIONS:
·
Minimum Isolation: 85 dB
·
RF Connectors: N Female
·
Operating Temperature Range: -40-60 deg C
·
Item Width: 19 in
·
Item Length: 30-3/10 in
·
Item Height: 8.37 in
·
Finish: Alodined Aluminum
·
Frequency Range: 138-174 MHz
·
Minimum Separation: 500K
·
Number of Cavities: 4
·
Cavity Size: 4 in
·
Maximum Power Input: 350 W
·
Maximum VSWR: 1.5:1
·
Insertion Loss (Tx/Ant-dB): 1.4
· Insertion
Loss (Rx/Ant-dB): 1.4
