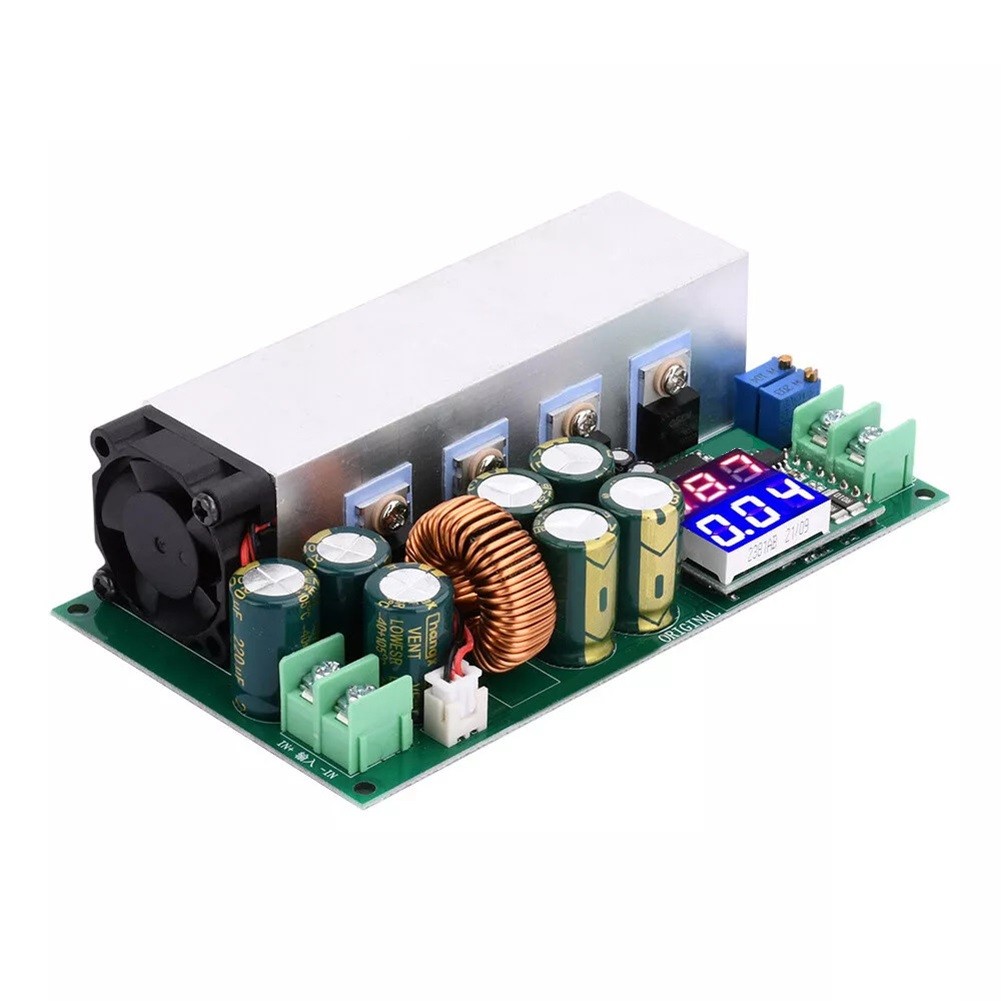

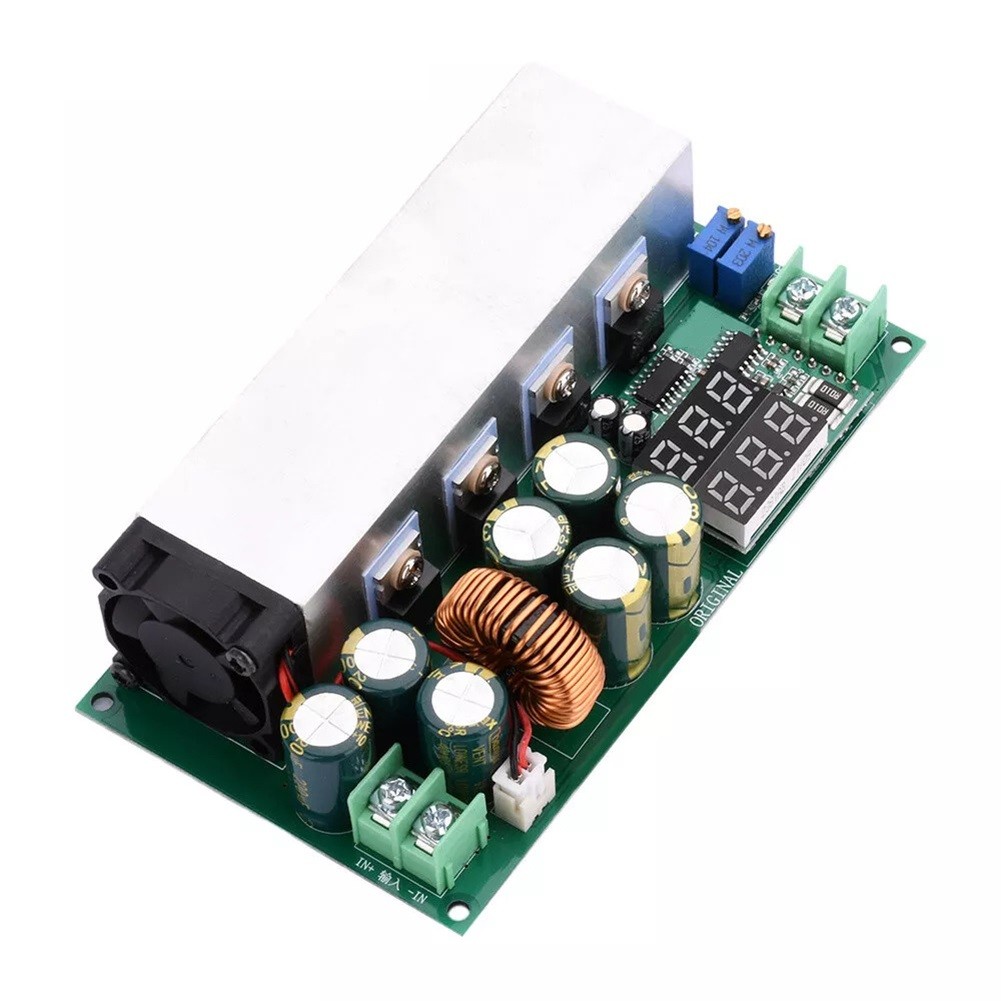

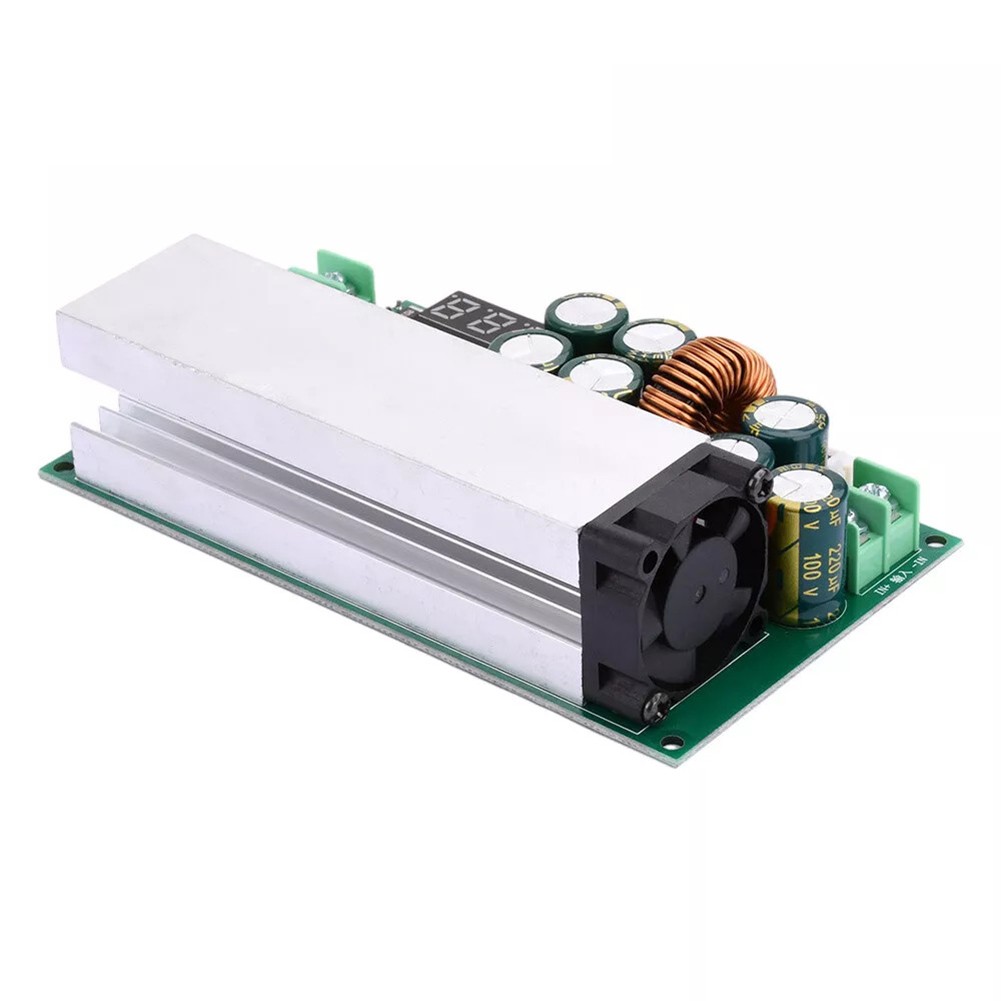

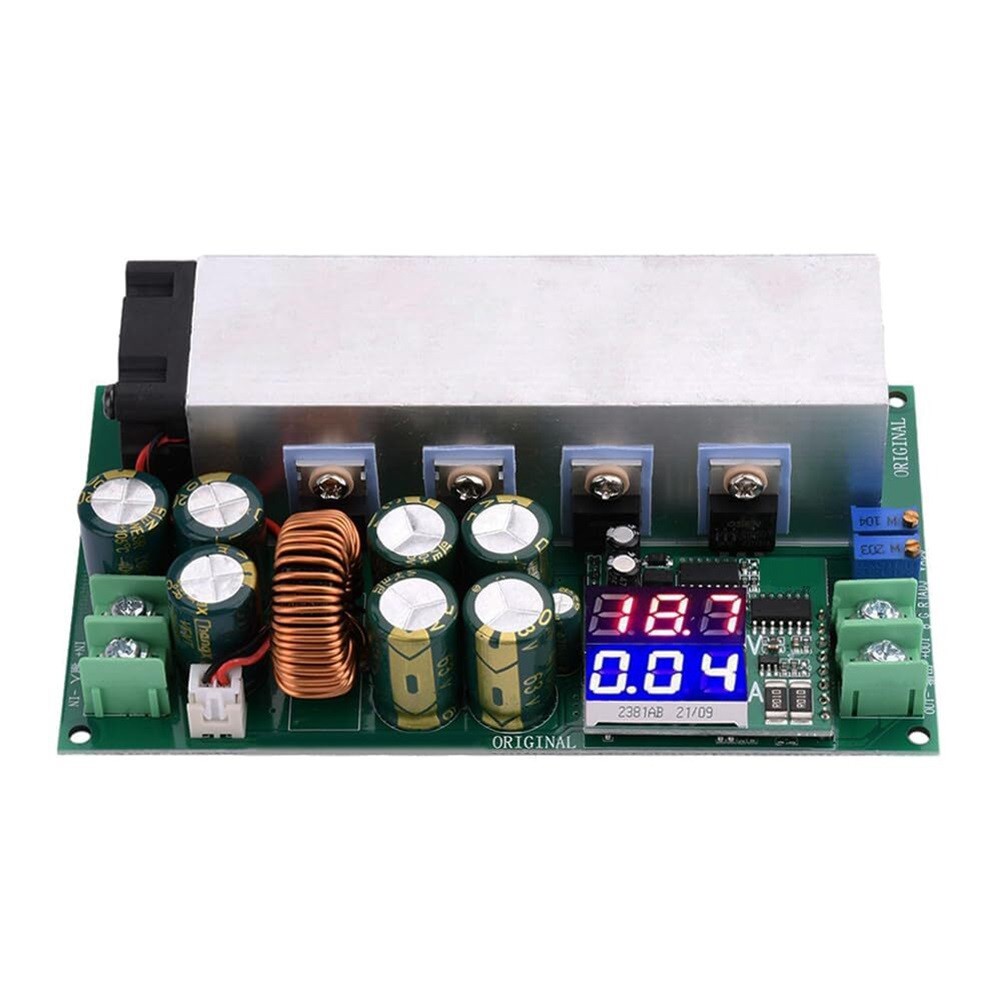

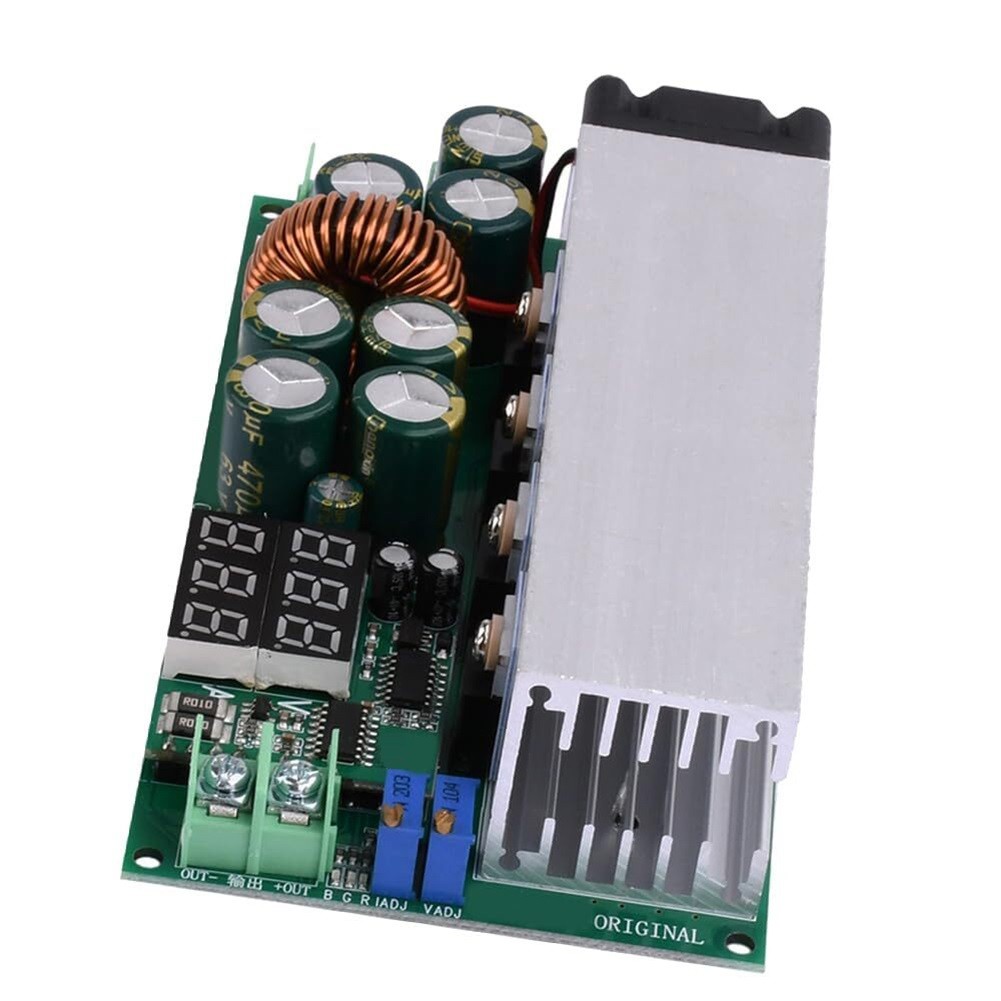

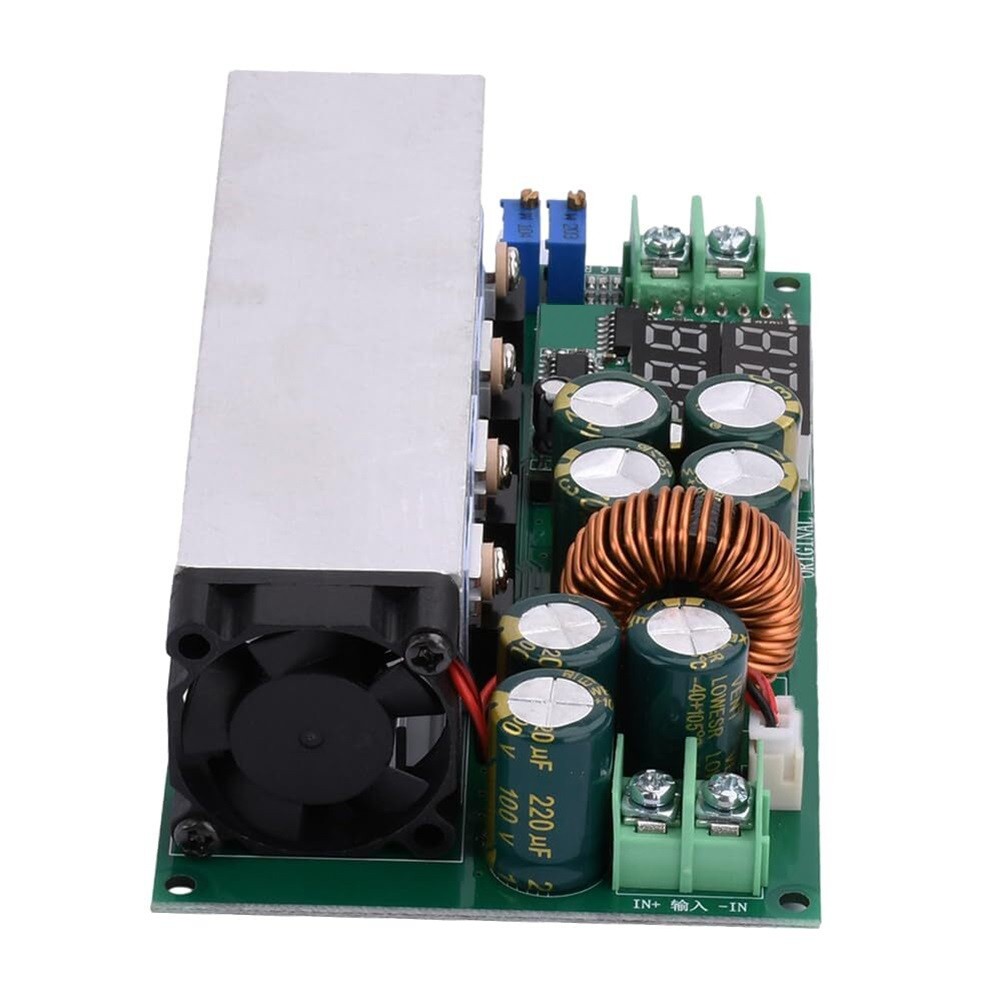

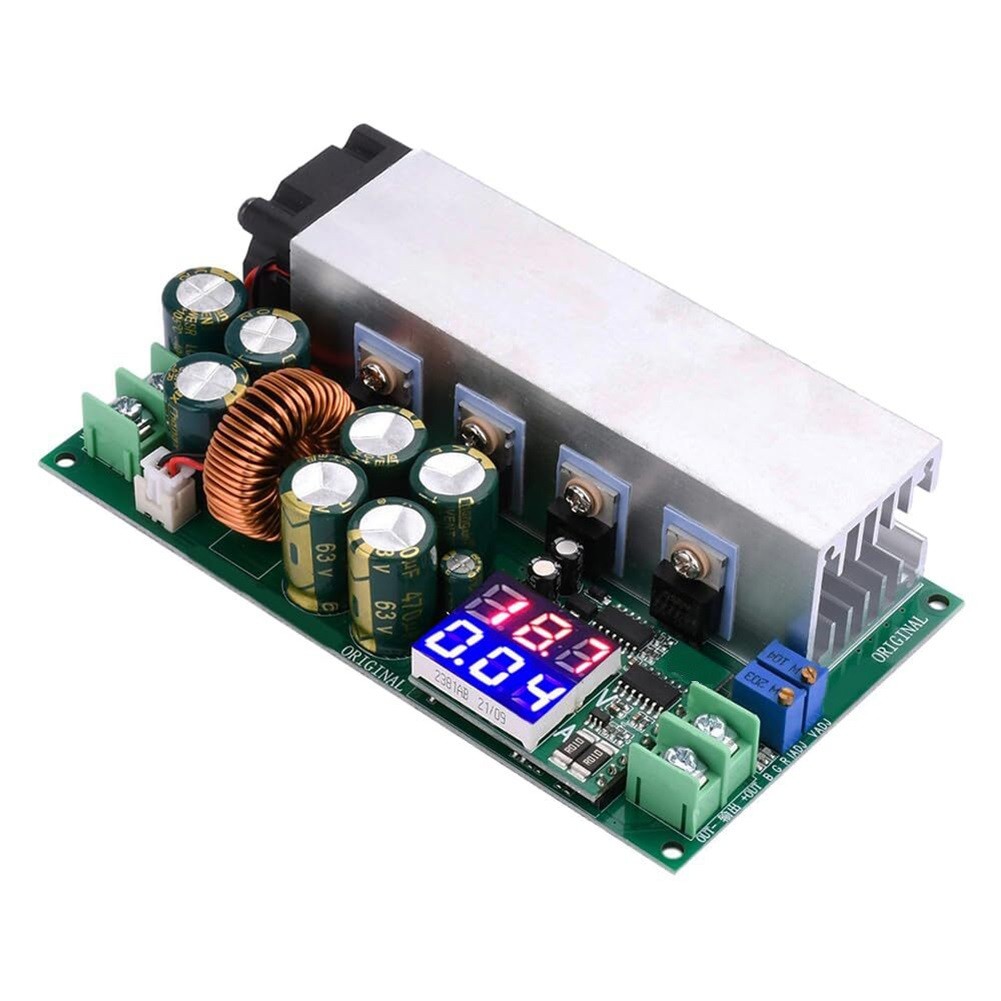

DC1280V Adjustable Voltage Regulator Module with User Friendly Operation
DESCRIPTION


Features:

*High Performance: The output voltage and current are continuously adjustable.

*Digital Display: The output voltage is displayed for easier usage.

*User-Friendly Operation: Simply connect the wires to use it effortlessly.

*Premium Materials: The input voltage can reach up to 80V.

*High Efficiency: The efficiency can reach up to 93%.


Specifications:

Part Name: DC Step Down Module

Material: Metal,Plastic

Size: As shown in the picture

Color: Silver,Green

Input voltage: DC12-80V (cannot be used for 72V battery)

Output voltage: 2.5V-50V adjustable (can only step down) (maximum output voltage = input voltage*0.8)

Output current: 20A ( for MAX) 25A overcurrent

Maximum power: 600W

Conversion efficiency: ≥93%

Protection: overcurrent protection, anti-reverse injection

Dimensions: 125*70*32mm (L*W*H)

Operating temperature: -40-85℃

Storage environment: -20C-+50C

Relative humidity: 65±20%


Package Content:

1 x DC Step Down Module


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
