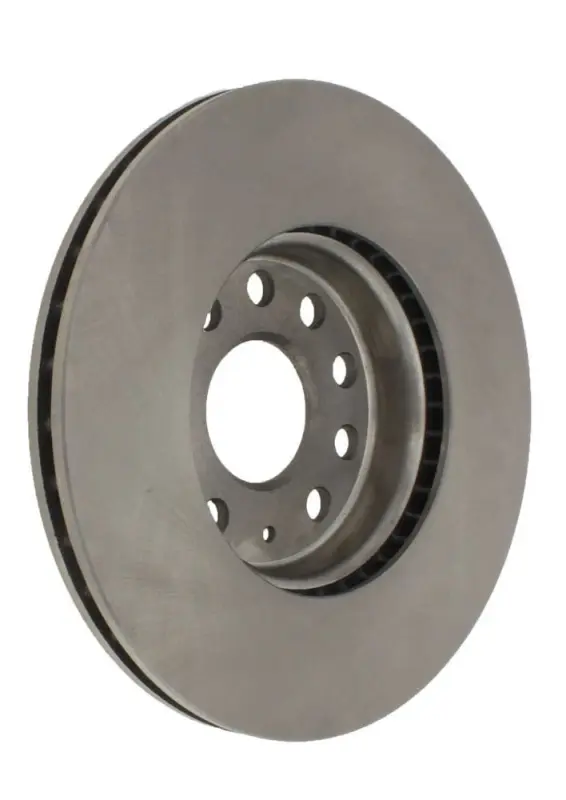

FVP 120-33110 Painted Disc Brake Rotor

OE-Grade Rotor with Fully Machined Finish & Rust-Resistant E-Coat

📌 Specifications (Per Rotor):

• Outside Diameter: 288 mm (11.339 in)
• Nominal Thickness: 24.9 mm (0.980 in)
• Discard Thickness: 22 mm (0.866 in)
• Overall Height: 49.7 mm (1.957 in)
• Hat ID: 144 mm (5.669 in)
• Center Hole Diameter: 65 mm (2.559 in)
• Bolt Circle: 112 mm (4.409 in) – 5 Lug Holes
• Lug Hole Diameter: 15.3 mm (0.602 in)
• Disc Mounting: Floating
• Rotor Type: Vented
• Surface: Smooth
• Vane Style: Straight
• Hat Finish: Painted
• ABS Tone Ring: Not Included
• Bearings: Not Included

✅ Features & Benefits:

• Double disc ground finish eliminates taper and runout, ensuring quiet and smooth braking.
• 100% fully machined finish including rotor hats for optimal balance and clean appearance.
• Symmetric vane casting delivers superior heat dissipation and braking performance.
• OE vane structure for factory-level performance and safety.
• Mill-balanced to minimize vibration and deliver confident pedal feel.
• Electrostatic E-Coat finish resists corrosion – tested for 400 hours in salt spray conditions.

🛠 Installation Tips:

• Always replace brake pads when installing new rotors.
• Suspend the caliper to avoid stressing the brake hose.
• Clean hub face with a wire brush and apply copper anti-seize.
• Apply brake lube to pins, clips, and backing plates (NOT friction surface).
• Compress caliper pistons fully using a proper tool.
• Open the master cylinder during compression and monitor fluid level.
• Pump the brake pedal after installation to seat the pads against the new rotors.

⚠ California Prop 65 Warning:

WARNING: This product may contain materials known to the State of California to cause cancer or reproductive harm. For more information, visit www.P65Warnings.ca.gov.

🔄 Warranty:

FVP offers a Limited Lifetime Warranty against defects in materials and workmanship.
