DoradoTM air allows for internal travel adjustments with no added parts . Incremental Volume Adjust (IVA) modifies the volume in the positive air chamber with self contained spacers dictating the position of the IVA piston . A single external compression adjuster that simultaneously adjusts HS and LS damping characteristicsExtended ride height versions fit up to 26×5.15” / 27.5×4.5” tires. All-weather performance down to 0 degrees Fahrenheit. E-MTB Certified. Clearance for 26" or 27.5" fat bike tires. Item Specifications: Steerer Type, Tapered, Lockout Switch, Crown, Brake Type, Post Mount 180, Negative Spring, Air, Travel (mm), 120, Offset, 44, Axle to Crown Length, 551, Front Axle, 15mm Thru x 150mm, Maximum Tire Width, 131, S.H.I.S. Stem Clamp Diameter, 28.6, Color, Matte Black, Crown

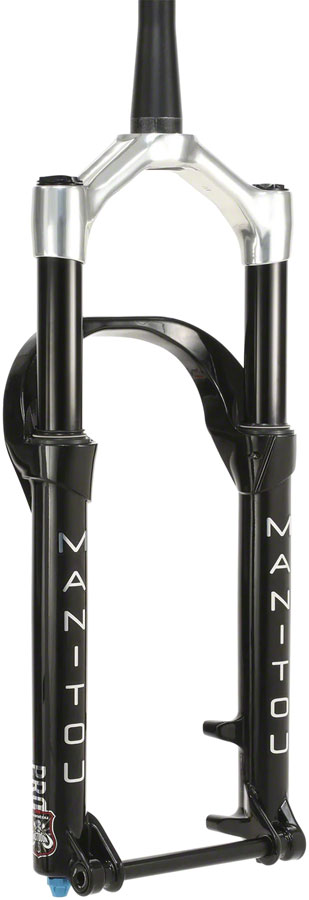

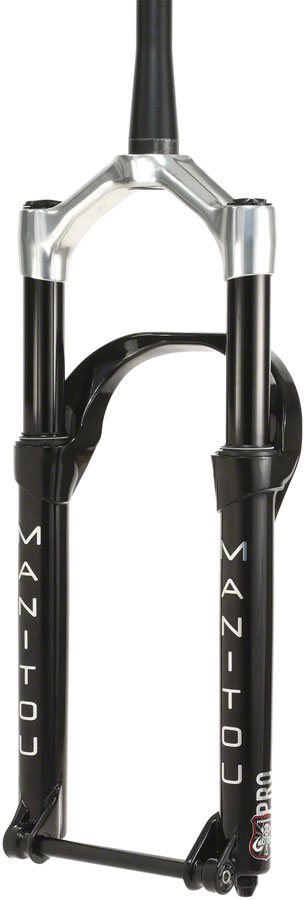

Manitou Mastodon Pro Suspension Fork - 26", 120 mm, 15 x 150 mm, 44 mm Offset, Matte Black, Extended, Gen 3

Reference Number: 5DV4DQ

DoradoTM air allows for internal travel adjustments with no added parts . Incremental Volume Adjust (IVA) modifies the volume in the positive air chamber with self contained spacers dictating the position of the IVA piston . A single external compression adjuster that simultaneously adjusts HS and LS damping characteristics

  • Extended ride height versions fit up to 26×5.15” / 27.5×4.5” tires
  • All-weather performance down to 0 degrees Fahrenheit
  • E-MTB Certified
  • Clearance for 26" or 27.5" fat bike tires
Item Specifications
Steerer TypeTapered
Lockout SwitchCrown
Brake TypePost Mount 180
Negative SpringAir
Travel (mm)120
Offset44
Axle to Crown Length551
Front Axle15mm Thru x 150mm
Maximum Tire Width131
S.H.I.S. Stem Clamp Diameter28.6
ColorMatte Black
Crown Race40
Wheel Size26" Fat
Wheel Size27.5" Fat
Designed for ebikeYes
External AdjustmentsHigh Speed Compression Damping
External AdjustmentsRebound Damping
Defined ColorBlack
Positive SpringAir
Stanchion Diameter34
Steerer Tube Length (mm)251
Travel120mm
Wheel Size26"/27.5"
Steerer (Stem/Race)Tapered (28.6/
ColorBlack
Model NameMastodon Pro
Spring TypeDorado Air IVA
Brake MountDisc-Only (OM-180mm)
Weight2104g
Offset44mm
Dropout15 x 150mm TA
