N7DDC Version 3 2 ATU100 Automatic Antenna Tuner for Robust Performance
DESCRIPTION


Features:
* Strict quality control standards to build and test.
* Stable performance and high reliability.
* ATU-100 Automatic Antenna Tuner 100W HF Automatic Antenna Tuner (Made in N7DDC V3.2).

Specifications:
Part Name: Automatic Antenna Tuner
Model: ATU-100
Material: Metal
Color: Black
Technical Features;
TYPE C USB Charger (5V)
Built-in 1800mah Lithium Battery
Maximum Operating Throughput: 100W
Maximum Possible Measurable Power: 120W
Minimum Power Required to Start Tuning: 5W**
Minimum Possible Measurable Power: 0.1W
Measurement Step for Powers up to 10W: 0.1W
Measurement Step for Powers above 10W: 1W
Power Measurement Accuracy: 10%
Maximum Installed Inductance: 8.53 µH
Minimum Installed Inductance Step: 0.05 μH
Maximum Installed Capacitance: 1869 pF
Minimum Installed Capacitance Step: 10 pF
Package Size: Approx. 18*10.5*7cm

Package Contents:

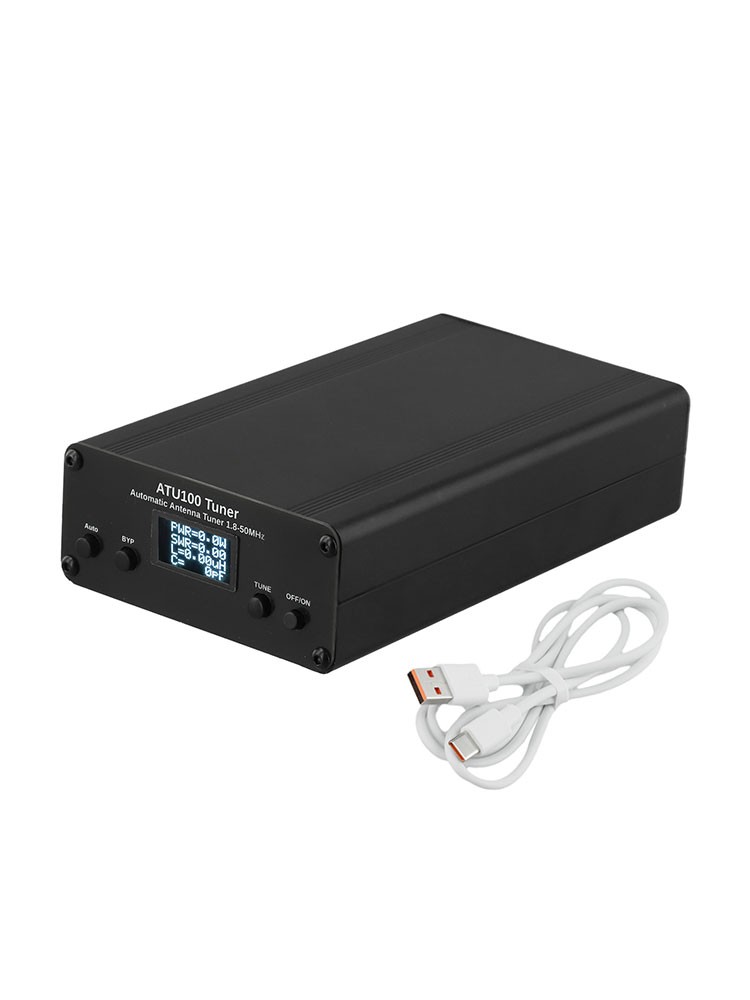

x ATU100 Tuner
x TYPE-C Cable

Note:
.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
