Y3/Y3C Tap Grinder Drill Sharpener Carbide Grinding Sharpening Machine SDC Milling Cutter CBN Angle Grinder Bit Sharpening Tool

Item Description

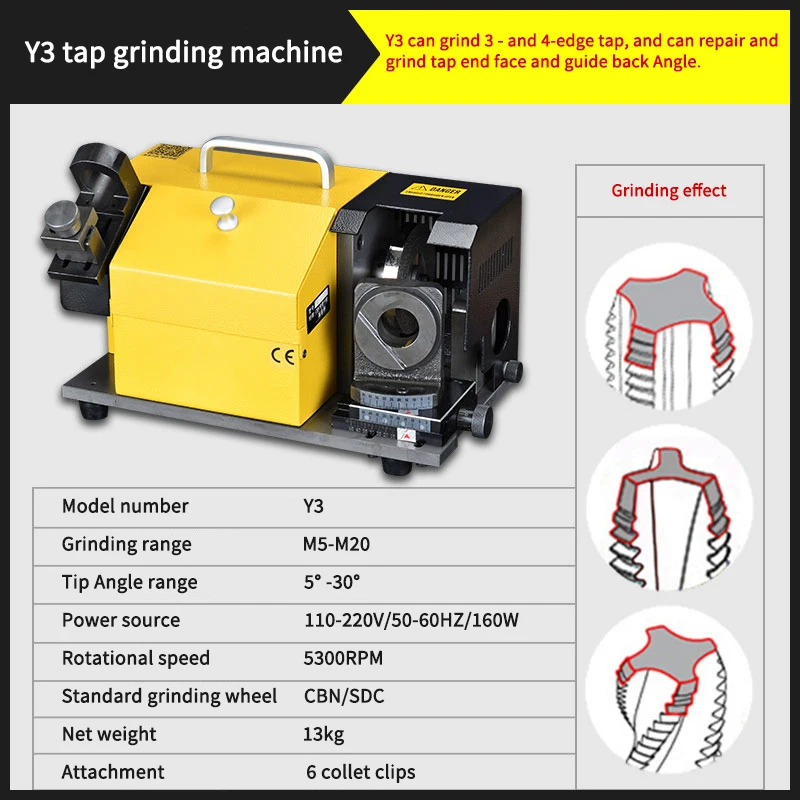

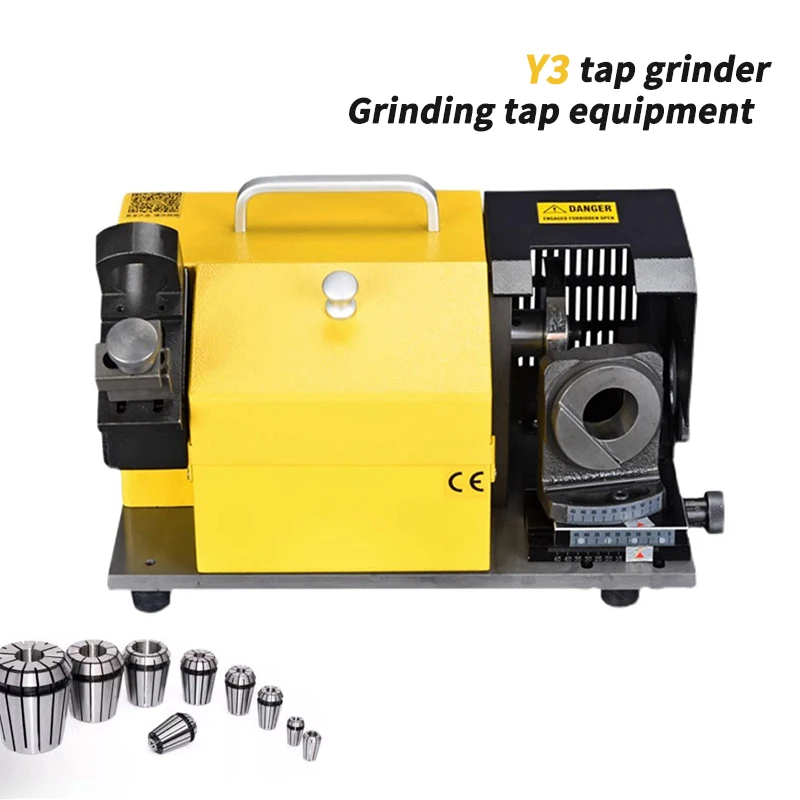

Y3 tap grinding machine
Y3 can grind 3 - and 4-edge tap, and can repair and grind tap end face and guide back Angle.

Model number:Y3
Grinding range:M5-M20
Tip Angle range:5° -30°
Power source:110-220V/50-60HZ/160W
Rotational speed:5300RPM

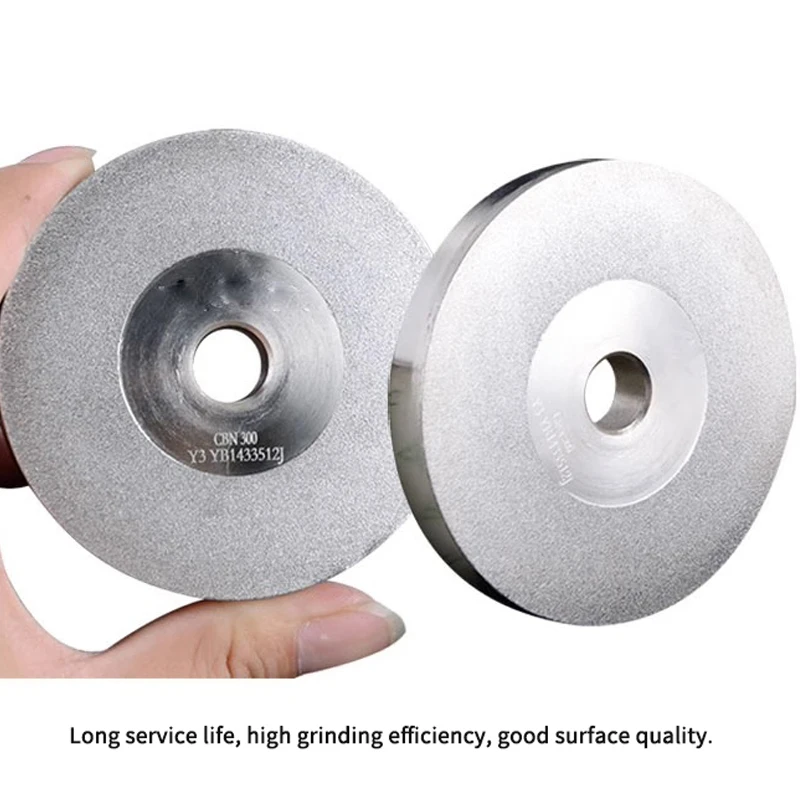

Standard grinding wheel:CBN/SDC
Net weight:13kg

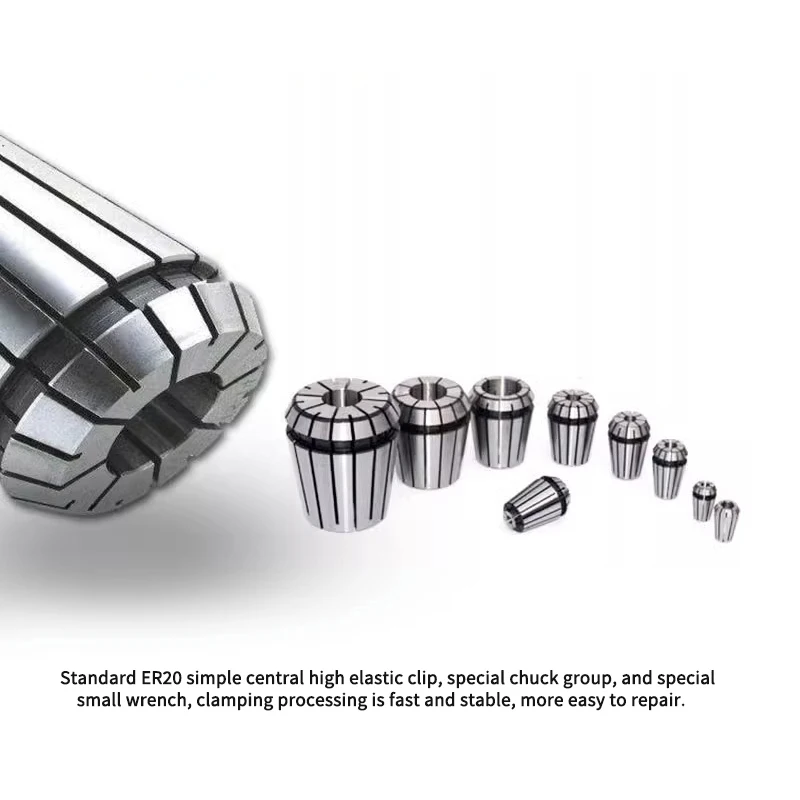

Attachment:6 collet clips

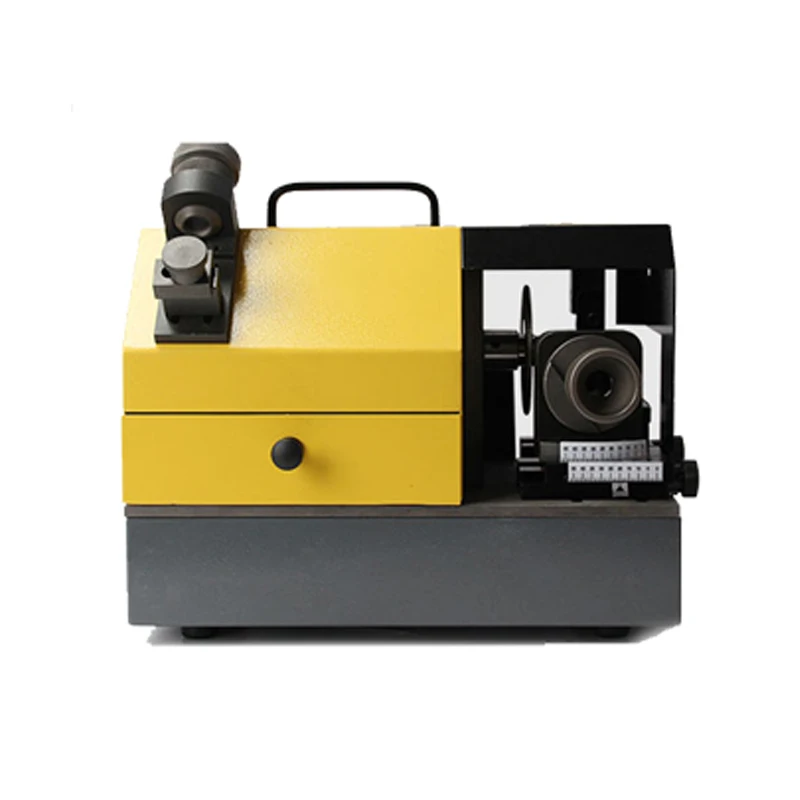

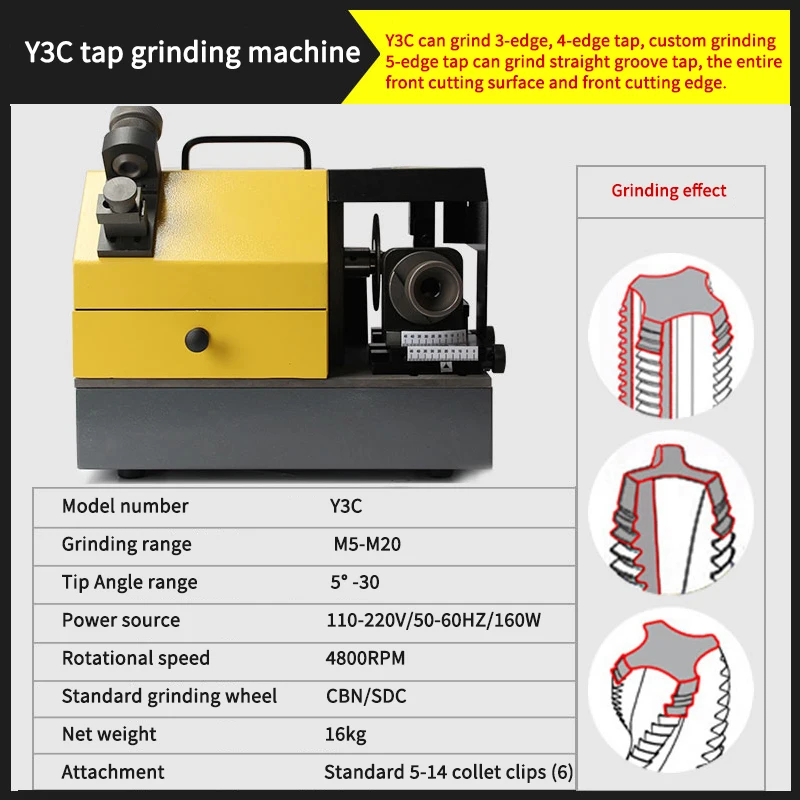

Y3C tap grinding machine
Y3C can grind 3-edge, 4-edge tap, custom grinding 5-edge tap can grind straight groove tap, the entire front cutting surface and front cutting edge.

Model number:Y3C
Grinding range:M5-M20
Tip Angle range:5° -30
Power source:110-220V/50-60HZ/160W
Rotational speed:4800RPM
Standard grinding wheel:CBN/SDC
Net weight:16kg
Attachment:Standard 5-14 collet clips (6)
