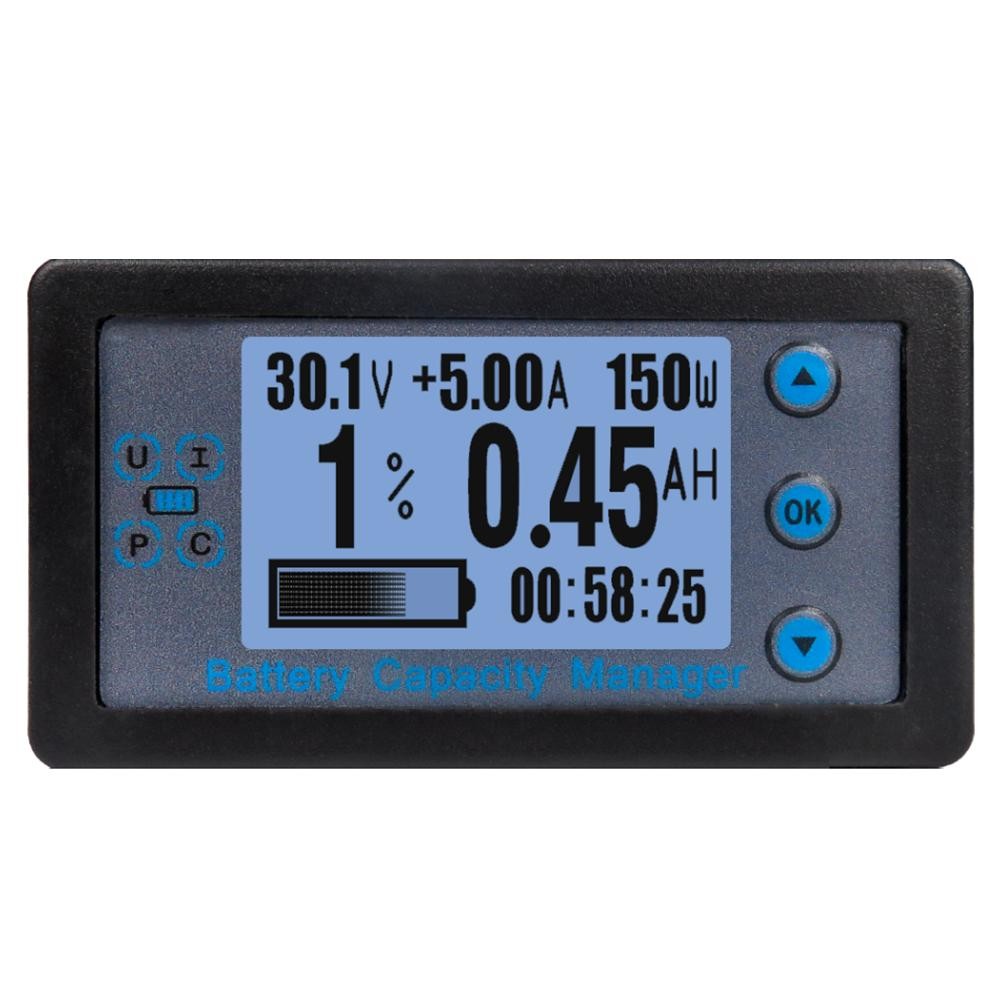

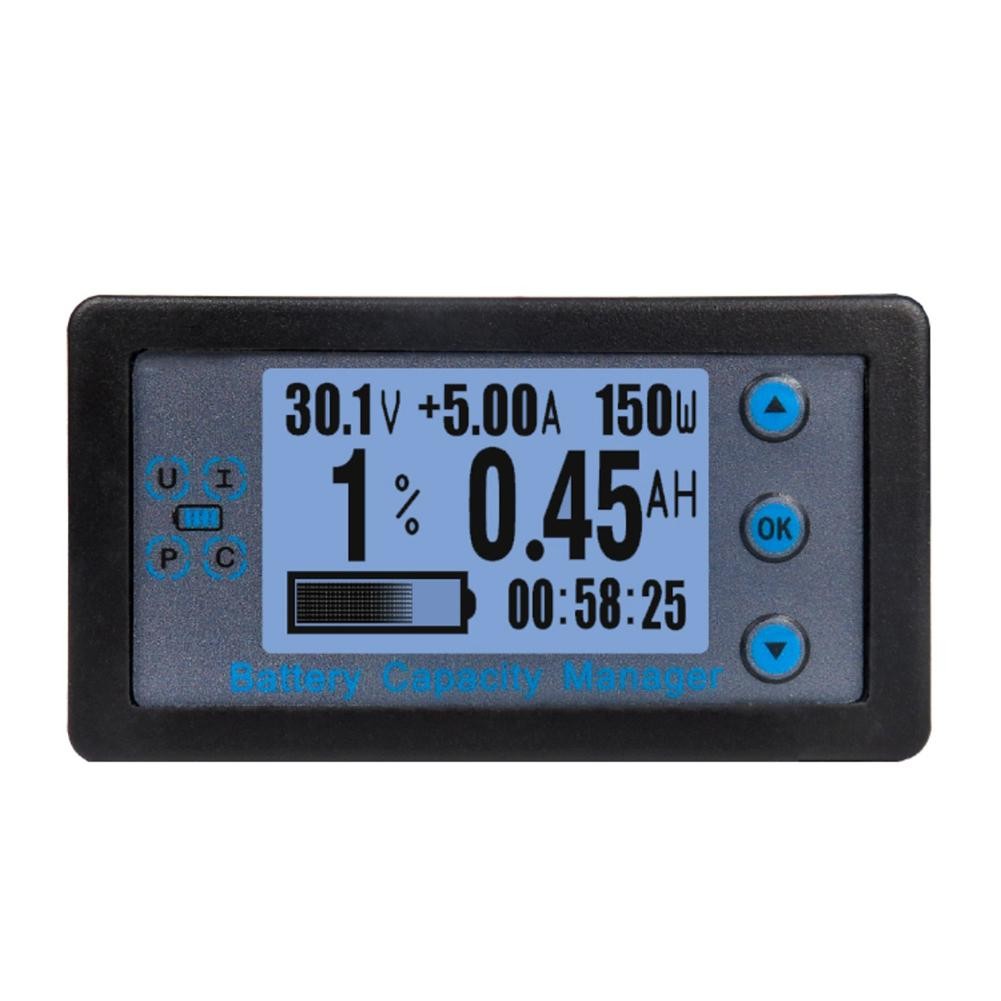

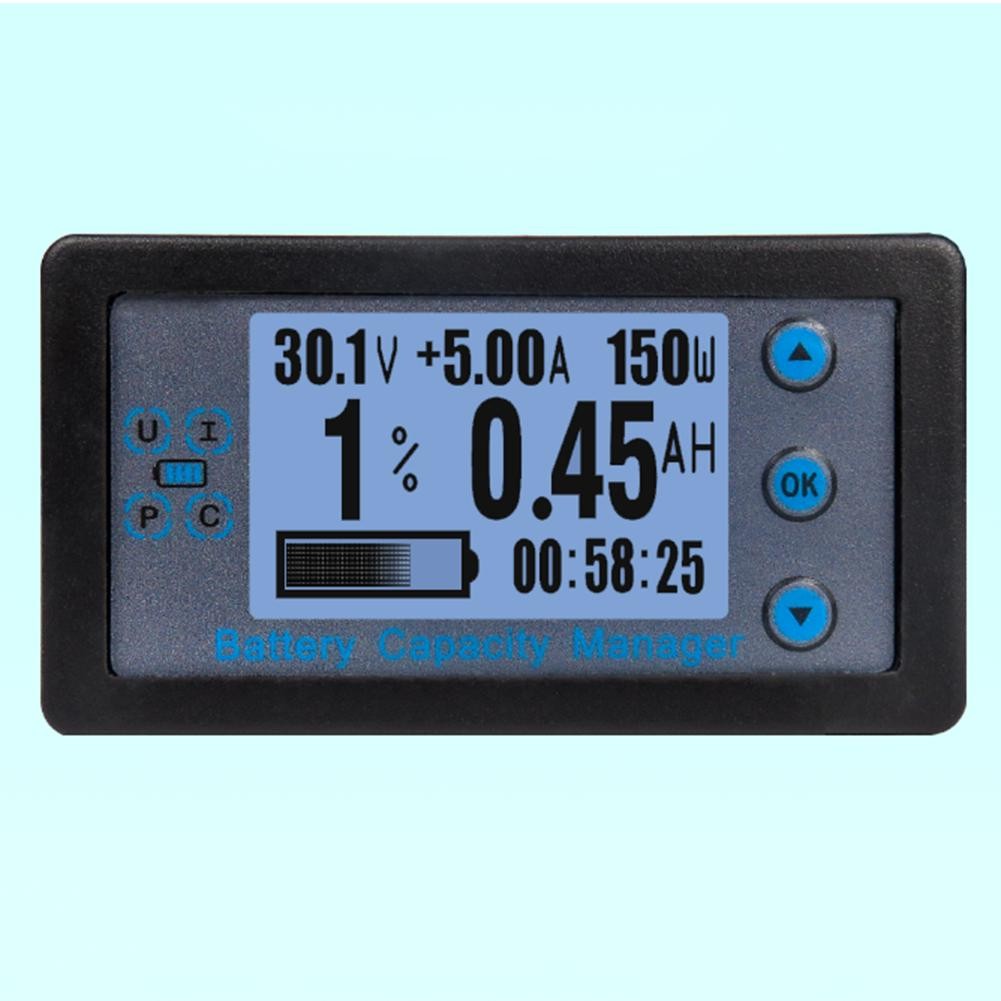

Digital Multimeter with 12864 LCD for Battery Charging and Discharging
DESCRIPTION


Features:

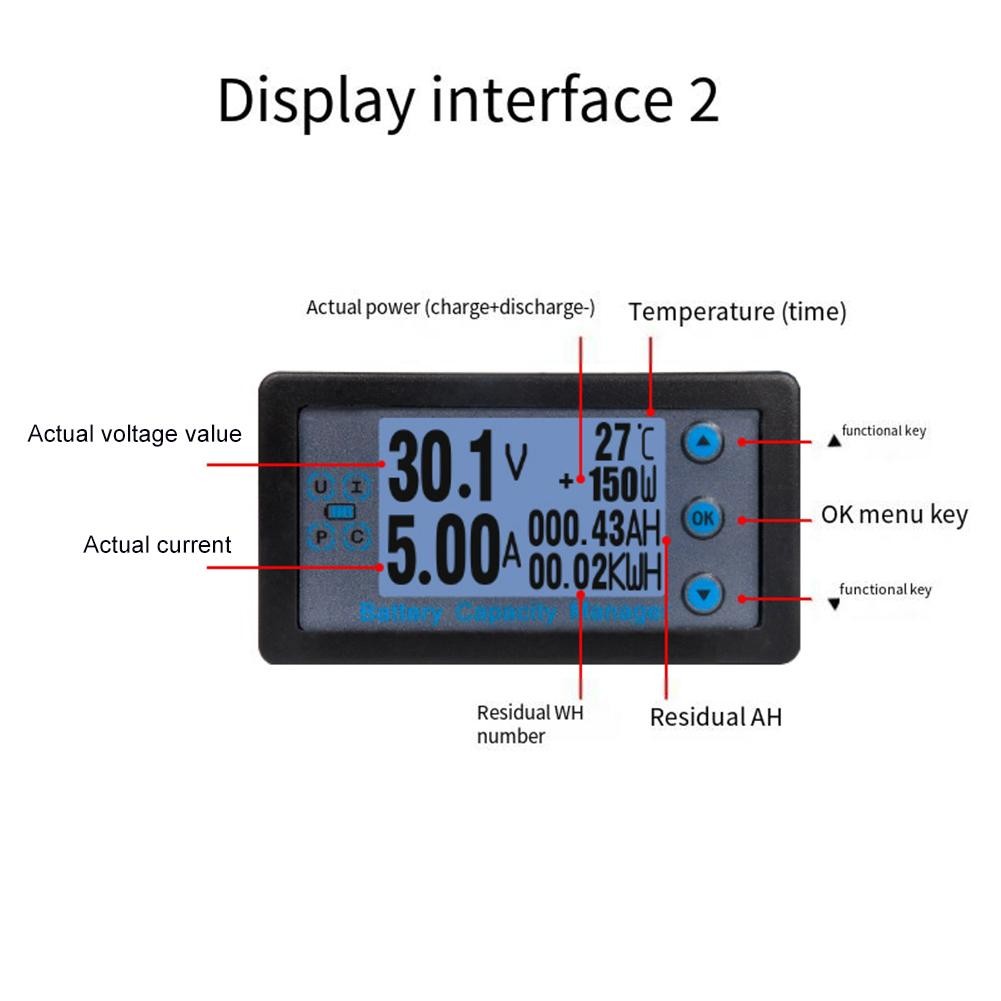

This is a multifunctional meter that can display voltage, real-time current, real-time power, remaining capacity, usage time and other physical parameters in real time. The meter uses a 12864 LCD display to display comprehensive and clear data. This meter is used in occasions where output voltage and current need to be monitored, as well as battery charging and discharging.

Precise bidirectional current detection, suitable for various battery applications.

The clear display provides clear data readings for easy observation.

Suitable for engineers, enthusiasts and individuals who need accurate current measurement.

Widely used, including testing equipment and analyzing batteries.

Made of ABS material, reliable in any environment.


Specifications:

Part name: 8-120V battery tester

Color: as shown

Material: ABS

Product size: about 79x26x43mm/3.11x1.02x1.69in

Current: 100A/200A/300A/500A

Voltage 8V~120V

Capacity 0.1AH~999AH

Power value 60KW

Voltage ±1%+2 characters

Current ±0.5%+2 characters

Temperature -20℃C-150°C

Display mode: 12864 LCD display

Power consumption: screen on: 0.2W, screen off: 0.05W

Communication baud rate: 9600bps

Measurement rate: 20 times/second

compatible-Bluetooth communication distance: 10 meters in open area

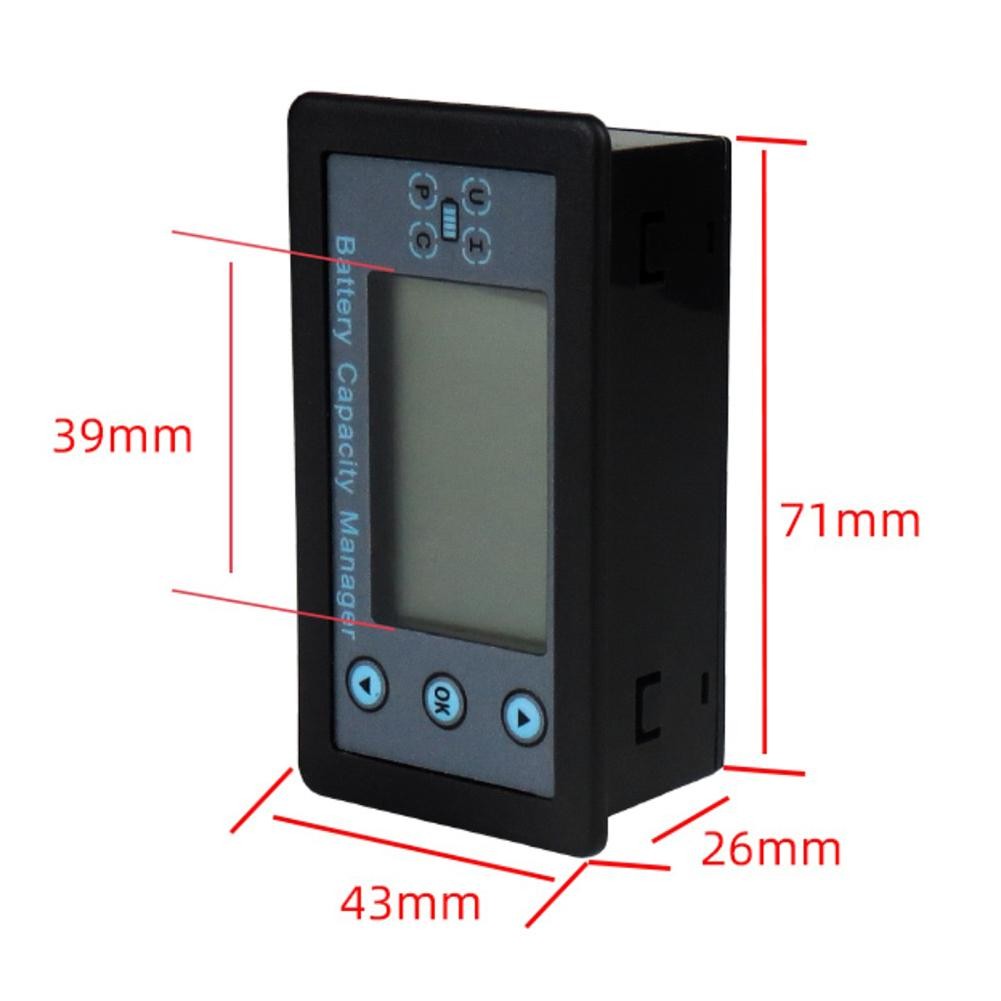

Dimensions: (length*width*height) 79*43*26(mm)


Package content:

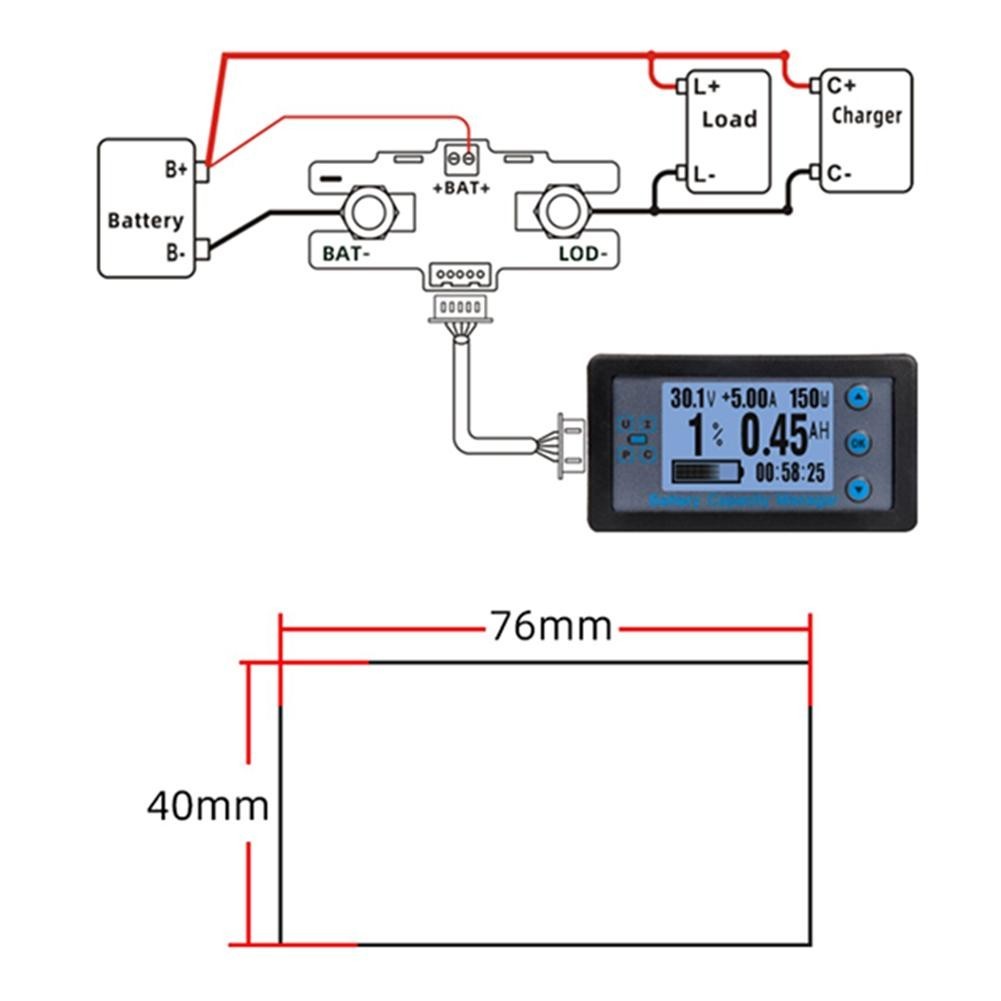

1x Battery Tester

1*Shunt

2*Test Leads


Note:

Please allow 1-2cm error due to manual measurement.

Due to the difference between different monitors, the picture may not reflect the actual color of the item.
