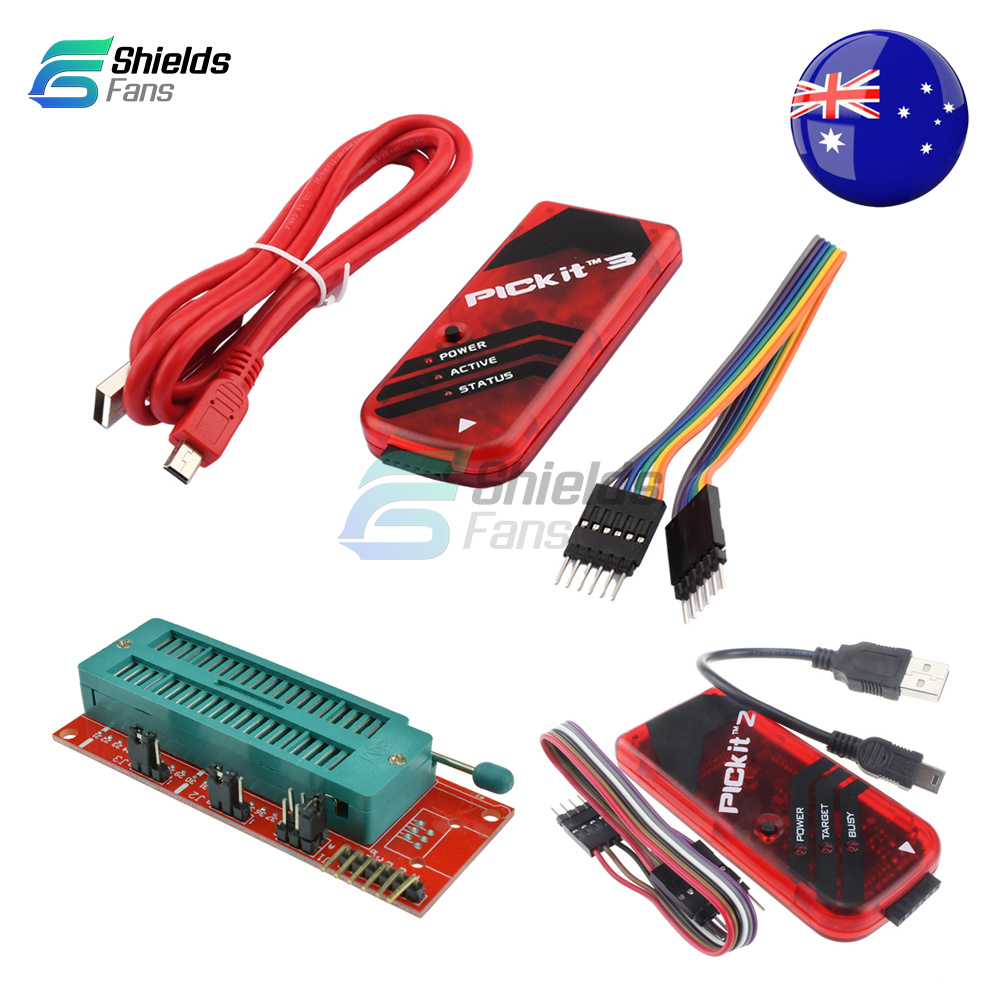

PICkit3 PIC KIT3 PICkit2 PIC KIT2 Debugger Programmer Emulator PIC Controller AU

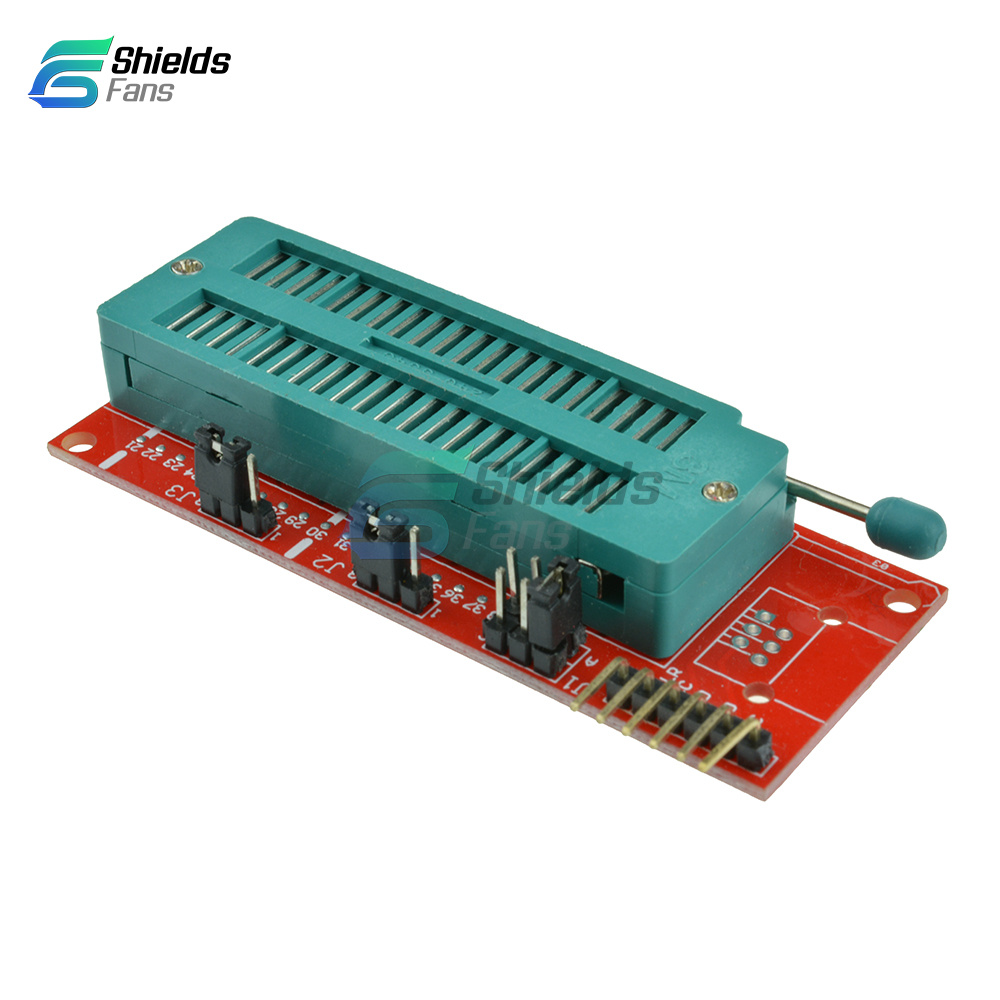

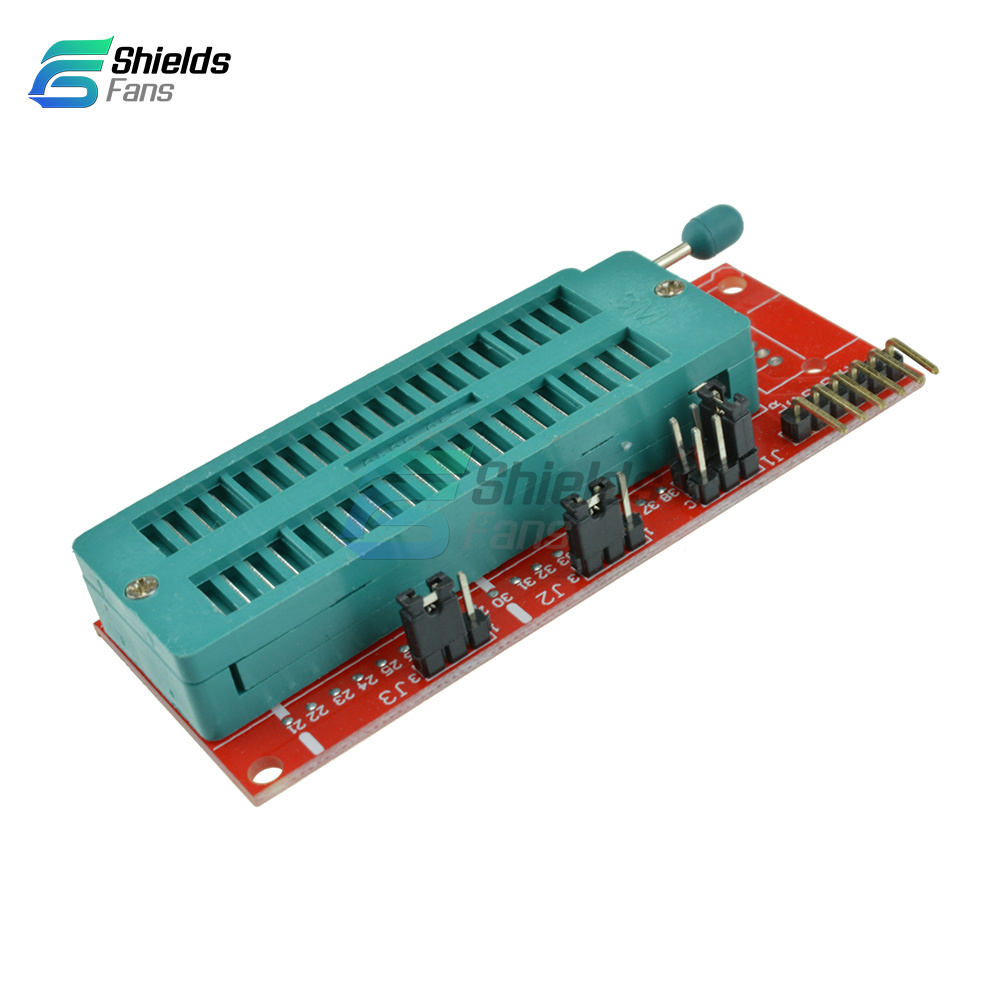

PIC Programming Adapter

Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position.
The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position.
The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions)
The seat supports the following programming microcontroller:
PIC16/18XX 40PIN Series devices (except 16F59)
PIC16/18XX 28PIN Series devices (except 16F57)
PIC16/18XX 18PIN Series devices
The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

Package Included:
1 x PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter Universal Programmer Seat board

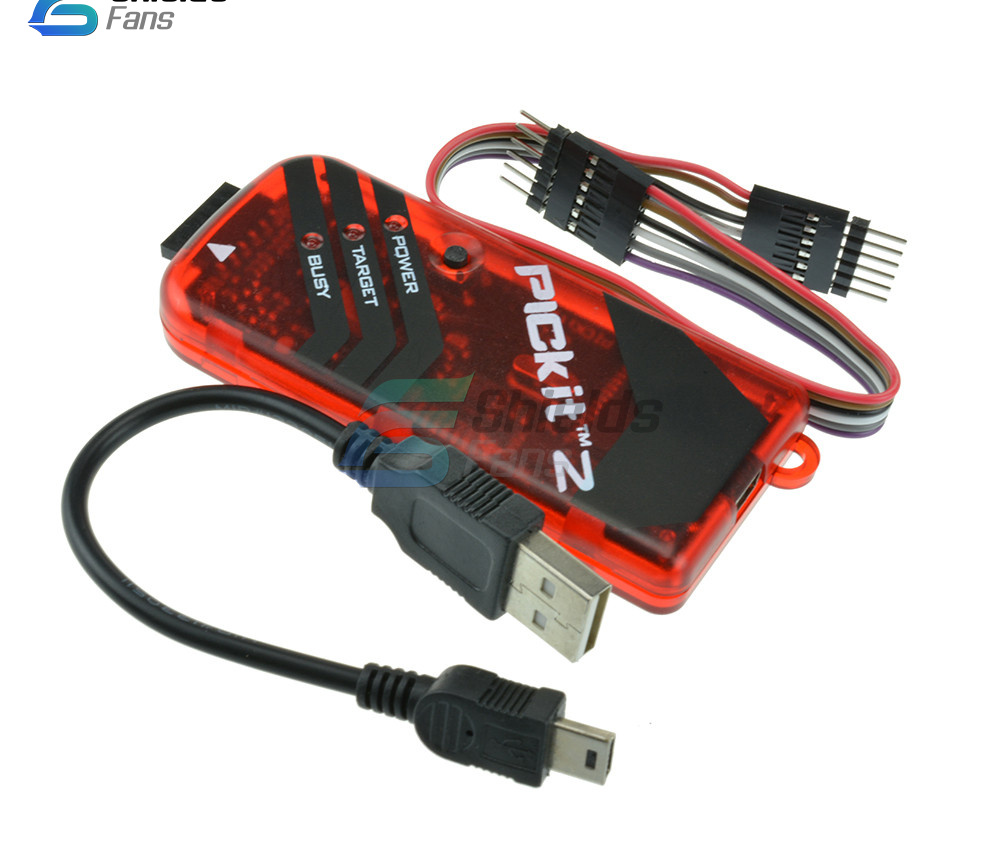

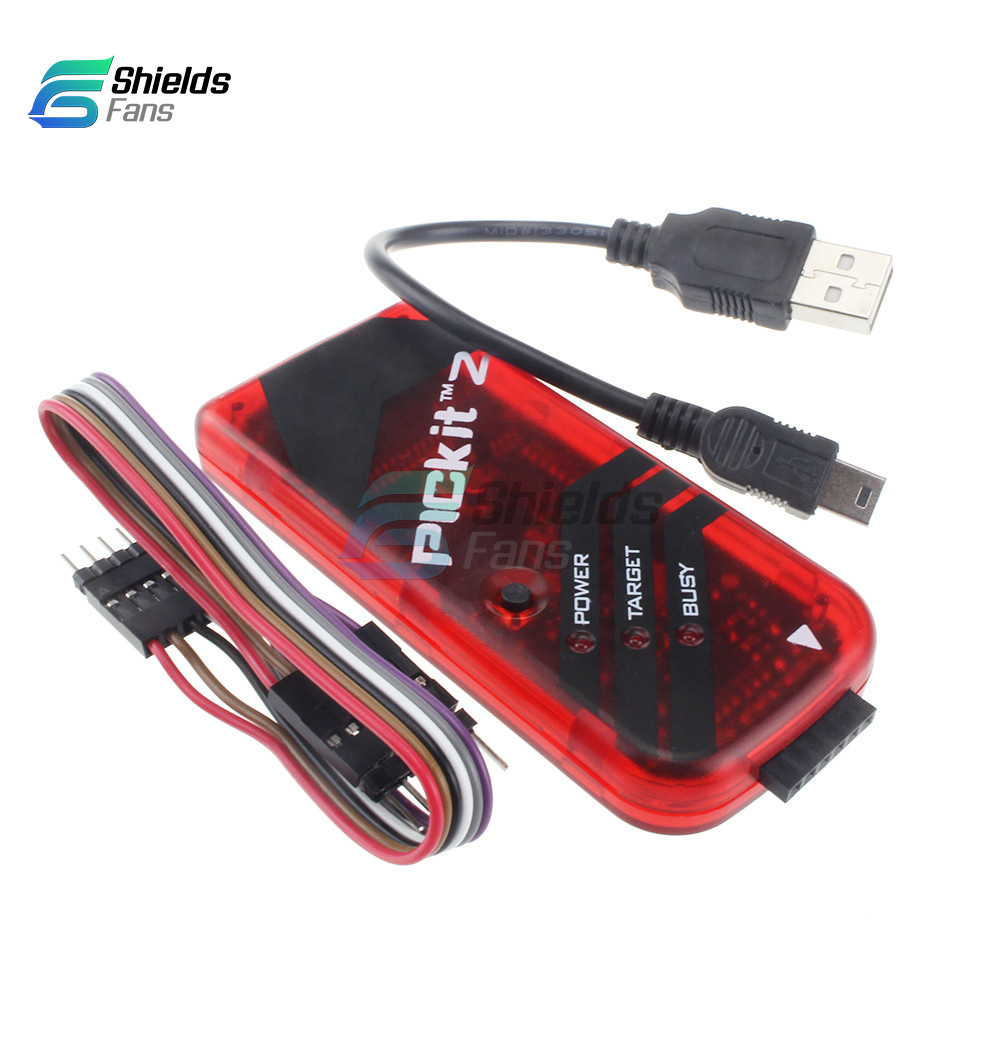

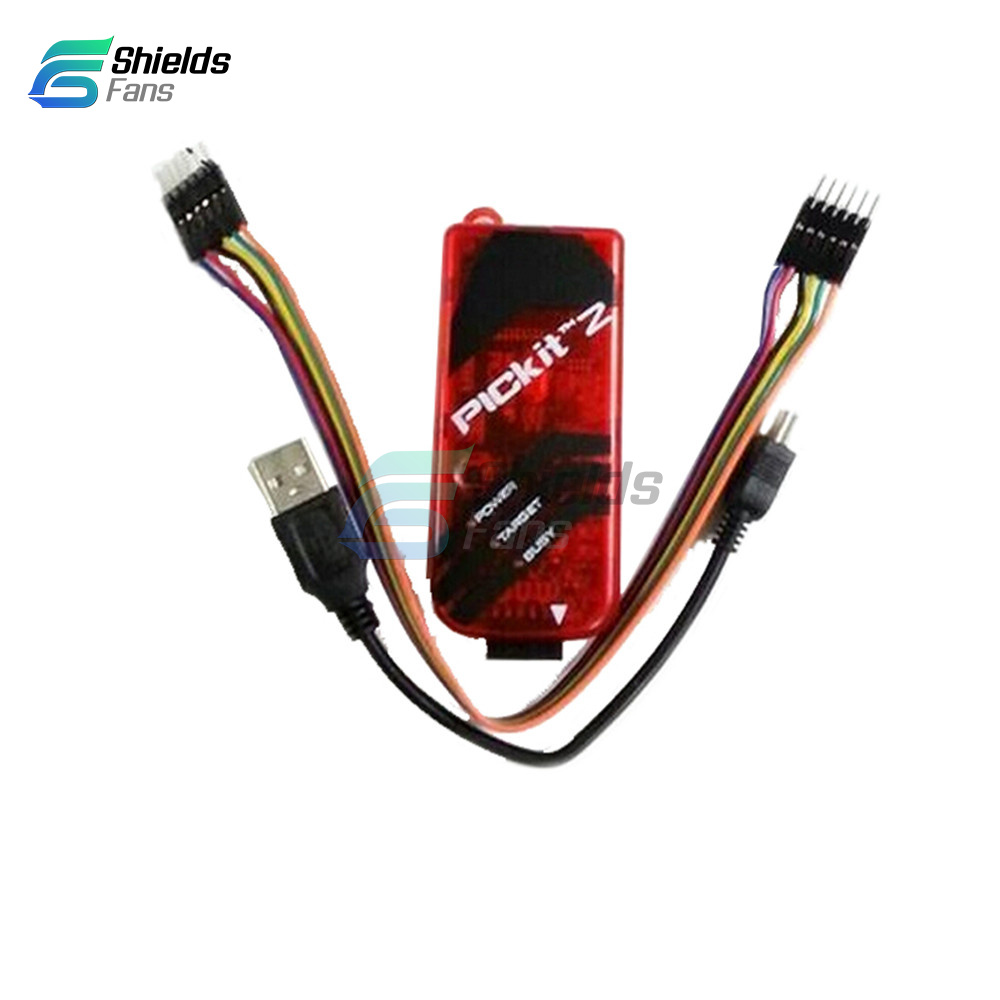

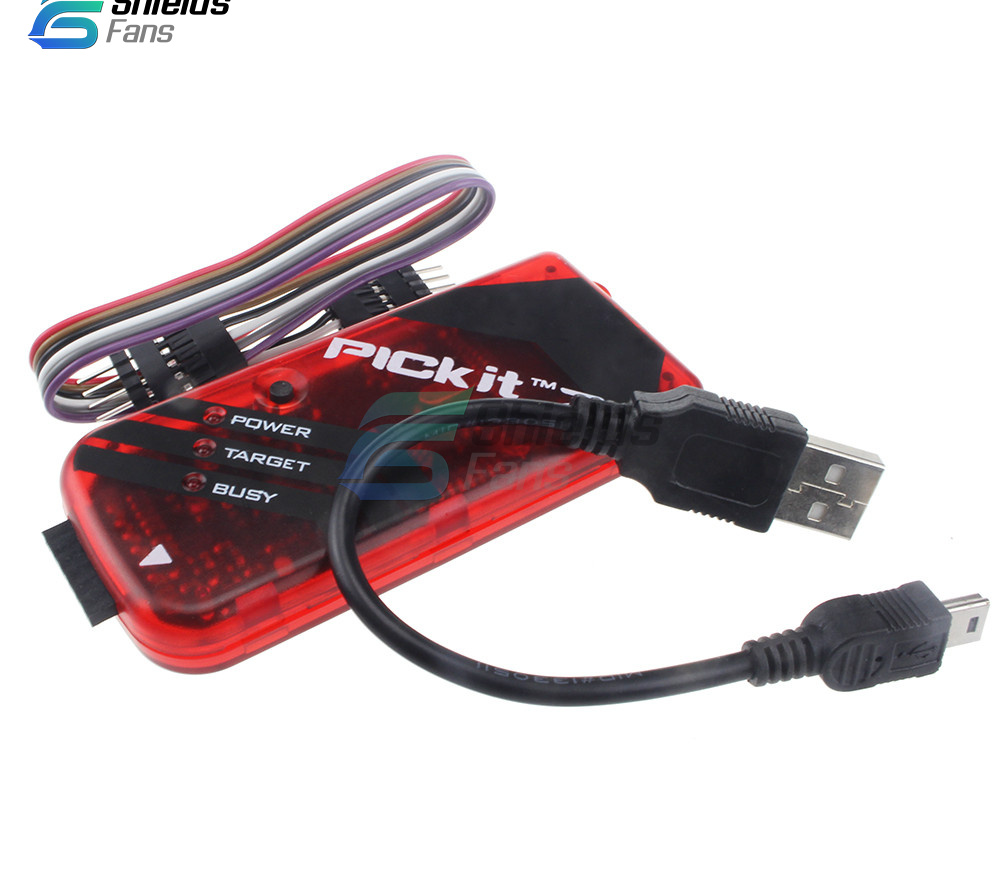

PICkit2

Features:
1. the electrical performance: 100% to the original; software features: 100% up to the original (2 shelves)
2. the original firmware , can be assured by the MPLAB IDE download the algorithm, upgrade FW
3. the original chip imports tantalum capacitor, import gold-plated connectors (amp or foxconn)
4. high-quality transparent new material injection, nice

Package Included:
1 x PIC kit2 the main body

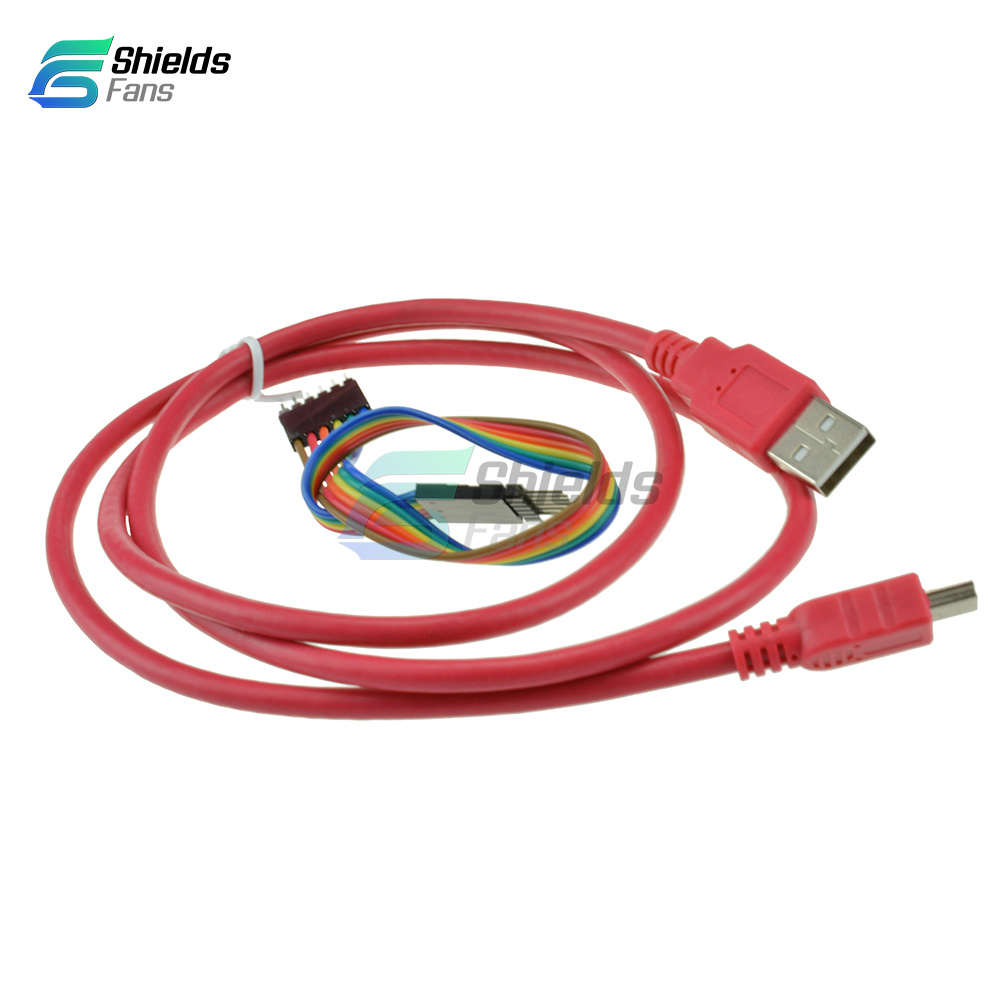

1 x USB Cable
1 x 6 Pin Cable

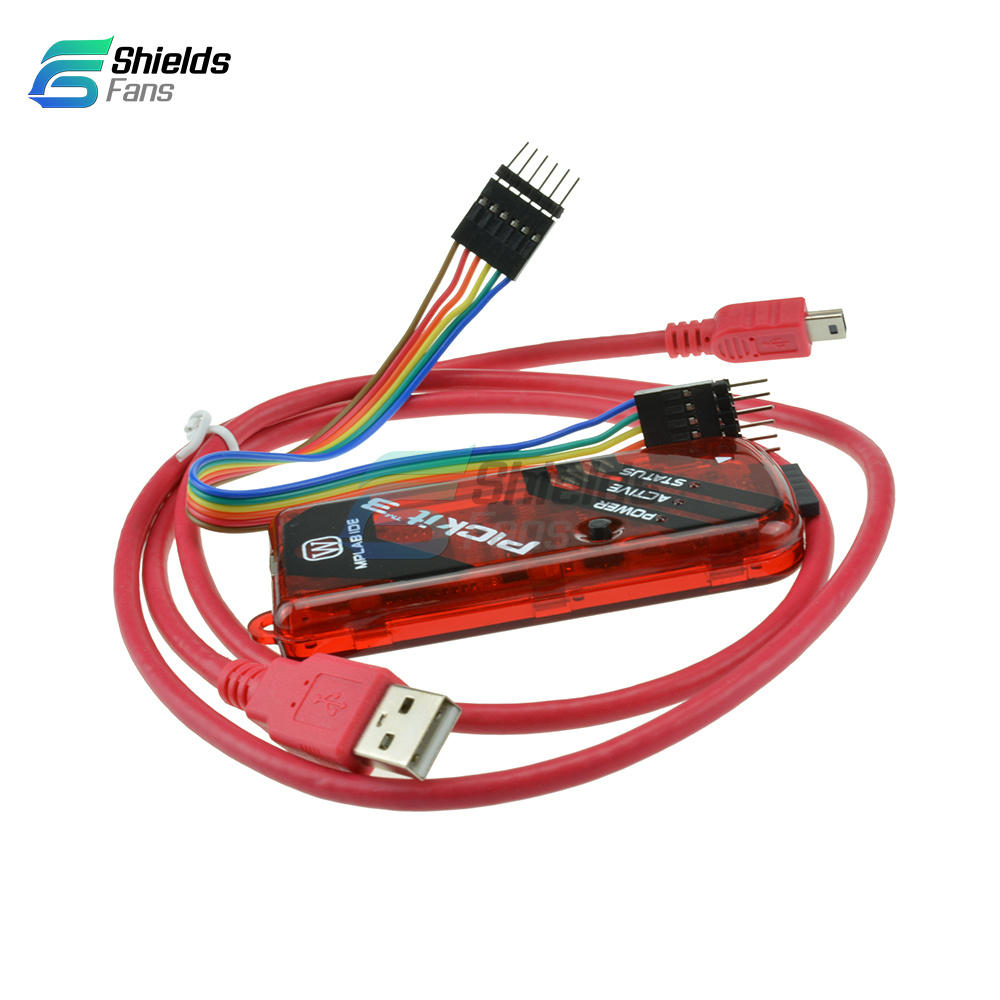

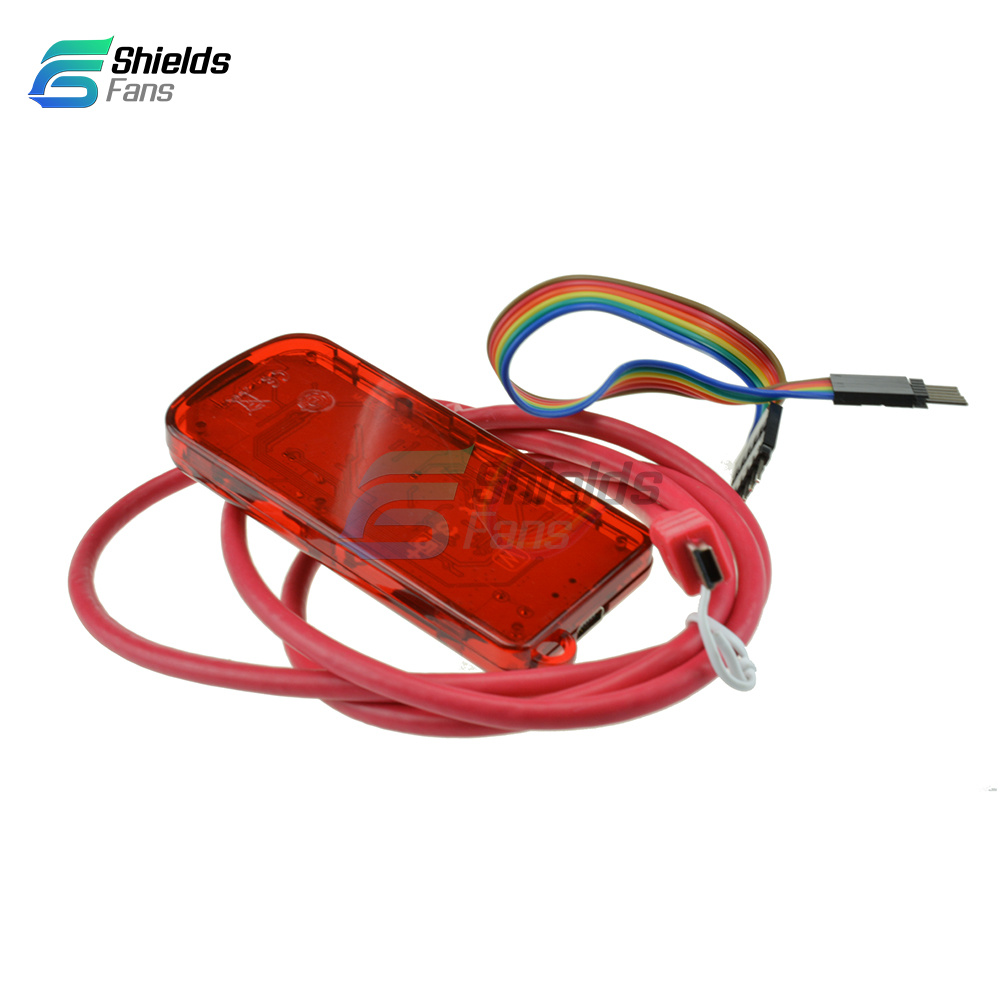

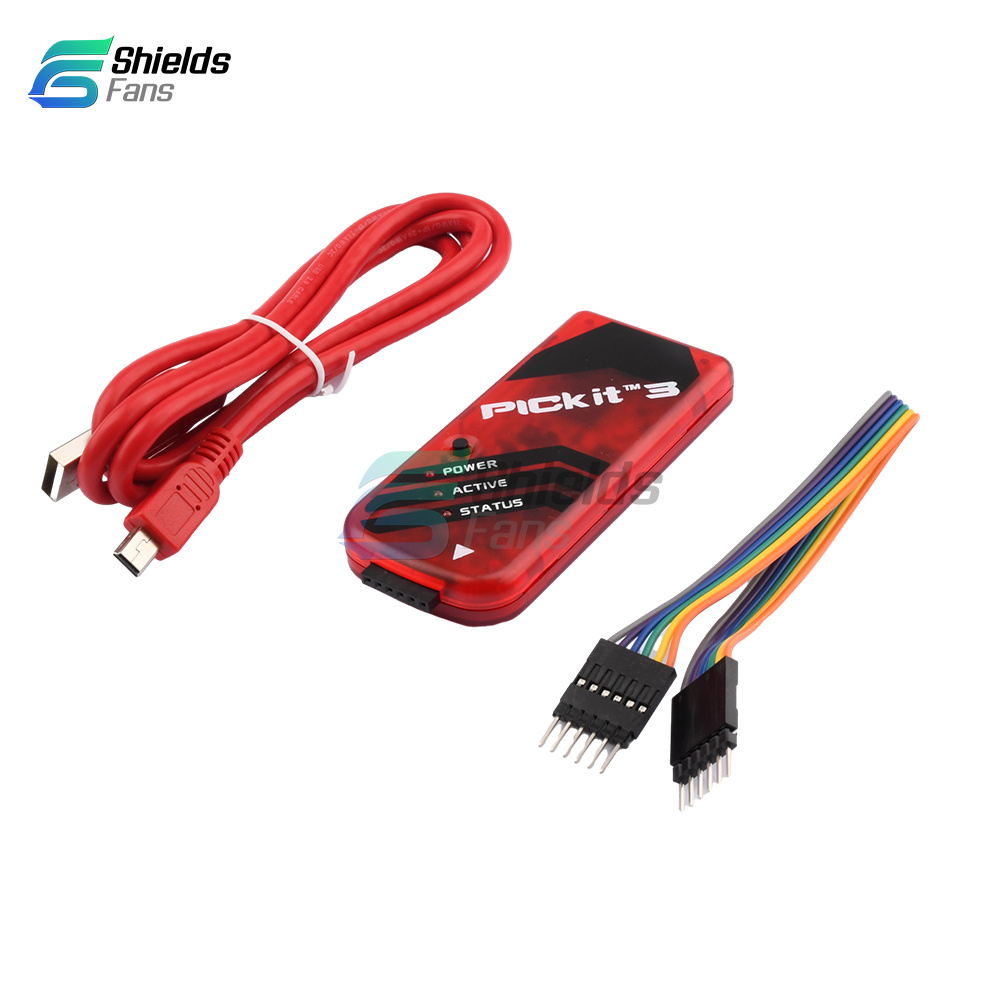

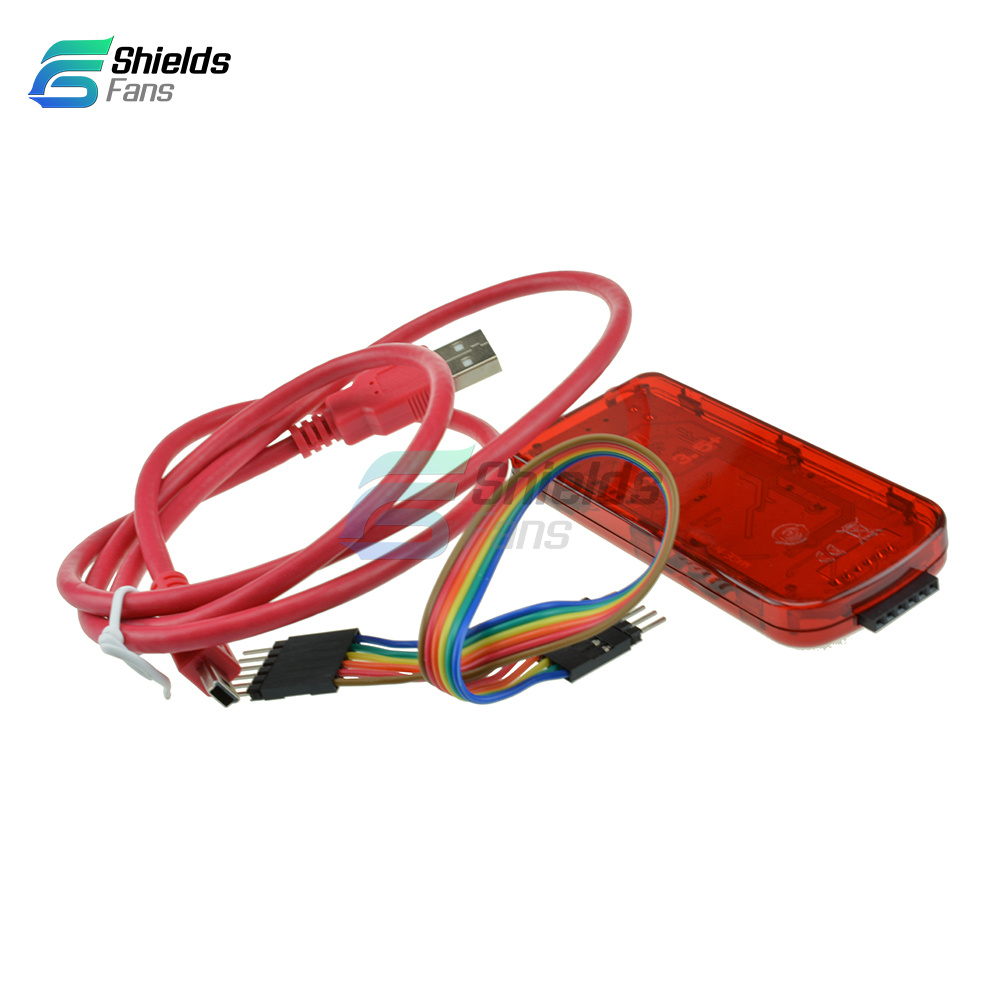

PICkit3

Features:
Full-speed USB support using Windows standard drivers
Real-time execution
Processors run at maximum speeds
MPLAB IDE compatible (free copy included)
Built-in over-voltage/short circuit monitor
Firmware upgradeable from PC/web download
Totally enclosed
Supports low voltage to 5 volts (1.8v to 5.0v range)
Diagnostic LEDs (power, active, status)
Read/write program and data memory of microcontroller
Erase of all memory types (EEPROM, ID, configuration and program) with verification
Freeze-peripherals at breakpoint
Program up to 512K byte flash with the Programmer-to-Go

Basic Debugger System:
The debugger system can be configured to use standard ICSP communication for both programming and debugging functions.

CAUTION: Do not change hardware connections while the PICkit3 or target is powered.


Supported Devices:
Refer to MPLAB IDE v8.76, the following devices are supported:
PIC10F
PIC12F
PIC16F
PIC18F
PIC24F
dsPIC30
dsPIC39
dsPIC33
dsPIC32
11 Series Serial EEPROM Devices
11LC/AA010,11LC/AA020,11LC/AA040,11LC/AA080,11LC/AA160
24 Series Serial EEPROM Devices
24LC/AA/C00,24LC/AA01B, 02B, 04B, 08B,24LC/AA16B, 32A,24LC/AA/FC64, 128, 256, 512,24LC/AA/FC1025
25 Series Serial EEPROM Devices
25LC/AA010A, 020A, 040A,25LC/AA080A, 080B, 160A, 160B,25LC/AA320A, 640A,25LC/AA128, 256, 512, 1024
93 Series Serial EEPROM Devices
25LC/AA/C46A, 46B, 46C,25LC/AA/C56A, 56B, 56C,25LC/AA/C66A, 66B, 66C,25LC/AA/C47A, 76B, 76C,25LC/AA/C48A, 86B, 86C
MCP250xx CAN Devices
MCP25020, 25025,MCP25050, 25055

Debugger To Target Communication:
Connecting the PICkit3 to the target board through standard ICSP interface using 6-pin connector. The programmer connector pinout is shown in the figure below:


PICkit3 Status LEDs:
The Status LEDs indicate the status of the PICkit3.
Power (green) – Power is supplied to the PICkit3 via the USB port.
Active (blue) – The PICkit3 has connection to the PC USB port and the communication link is active.
Status:
Busy (yellow) – The PICkit3 is busy with a function in progress, such as programming.
Error (red) – The PICkit3 has encountered an error.

Package Included:
1 x PICKit3 PIC KIT3 Debugger Programmer Emulator PIC Controller Development Board
