Features:

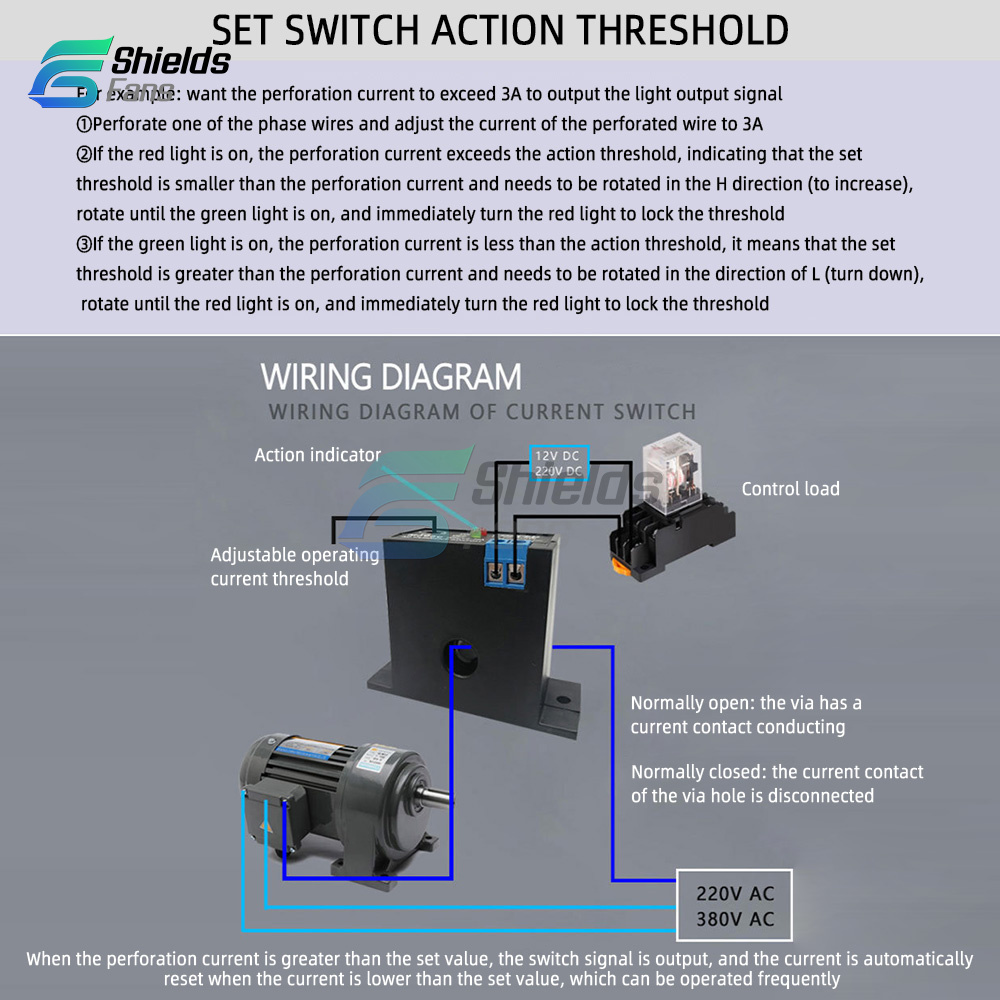

1. Basic function When the perforation current exceeds the set value, the output switch action will automatically reset when the perforation current is less than the set value
2. The maximum monitoring current range is 30A; the monitoring threshold is adjustable from 0.2 to 30A.
3. The lag is less than 1%. Can be used in strong magnetic environment.
4. Non-contact electronic switch, fast response, unlimited switching times.
5. Mutual inductance current monitoring, input and output safety isolation, self-powered
6. The shell is made of environmentally friendly flame retardant PC material.
1. Basic function When the perforation current exceeds the set value, the output switch action will automatically reset when the perforation current is less than the set value
2. The maximum monitoring current range is 30A; the monitoring threshold is adjustable from 0.2 to 30A.
3. The lag is less than 1%. Can be used in strong magnetic environment.
4. Non-contact electronic switch, fast response, unlimited switching times.
5. Mutual inductance current monitoring, input and output safety isolation, self-powered
6. The shell is made of environmentally friendly flame retardant PC material.
Product parameters:

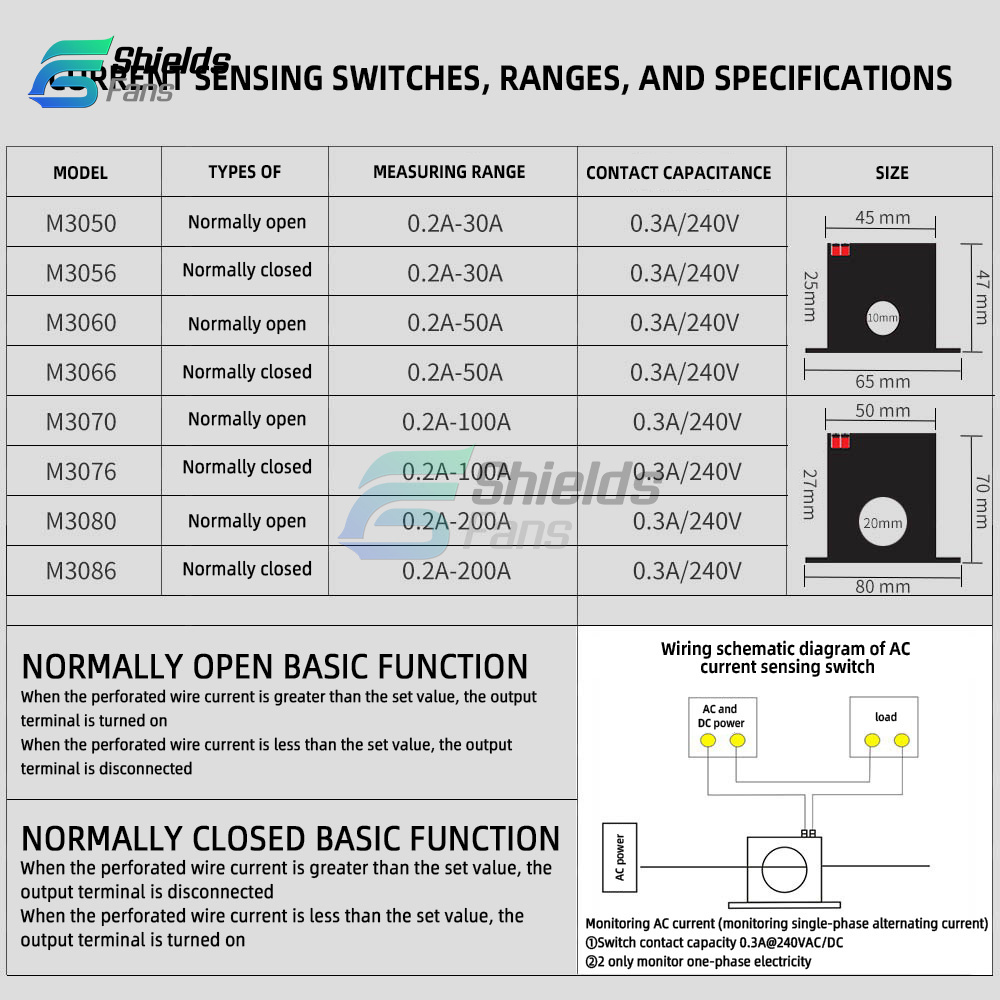

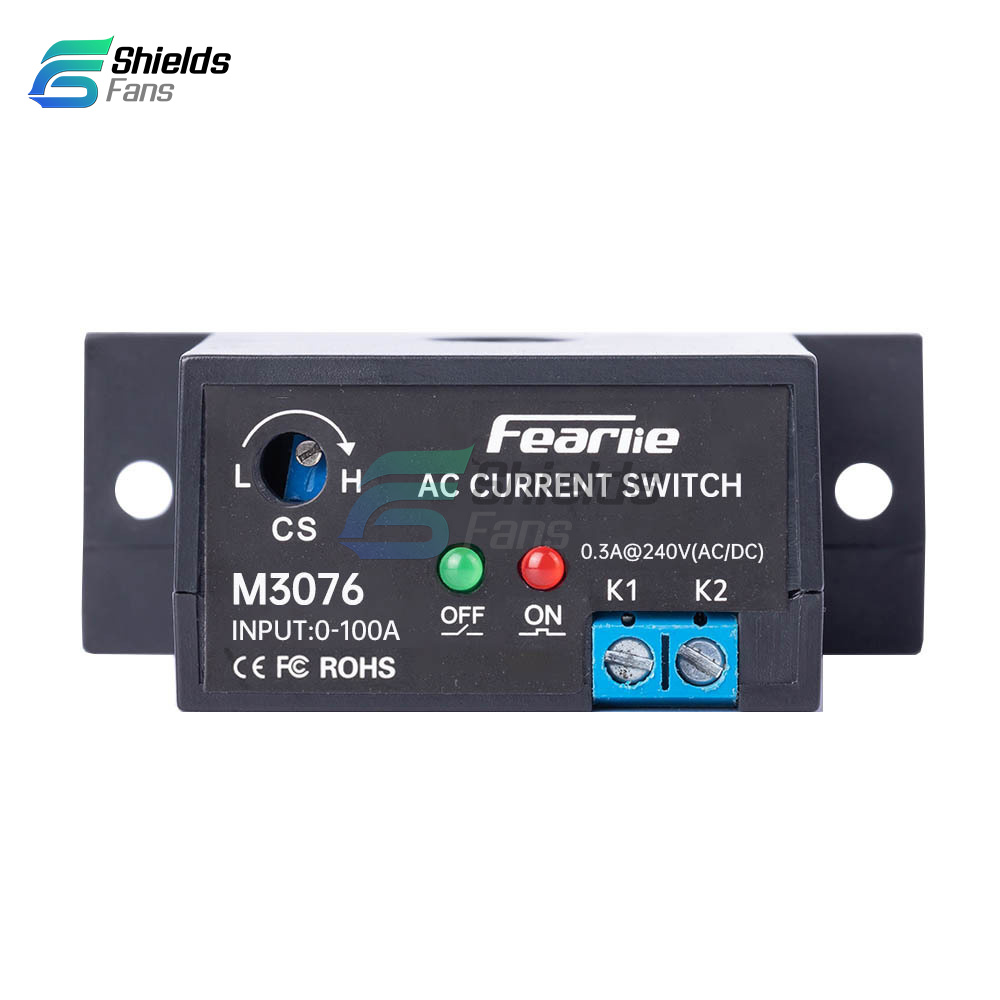

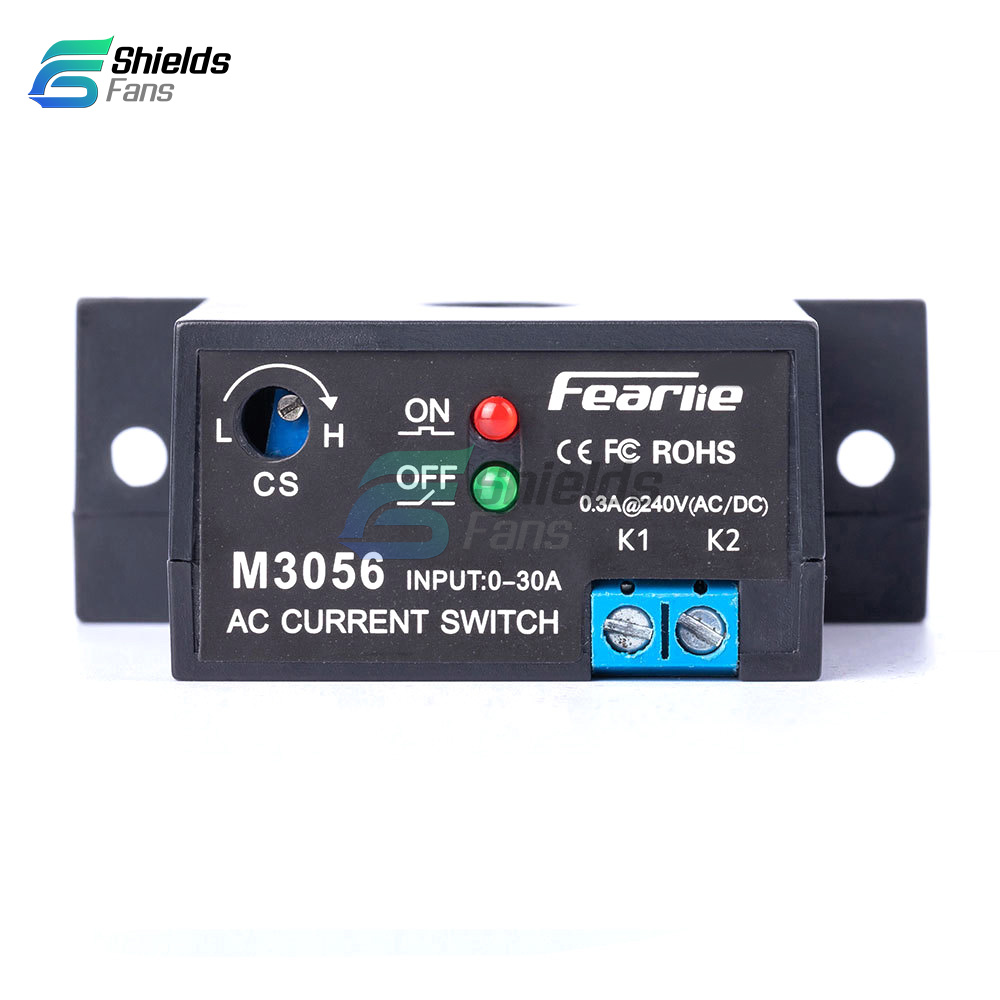

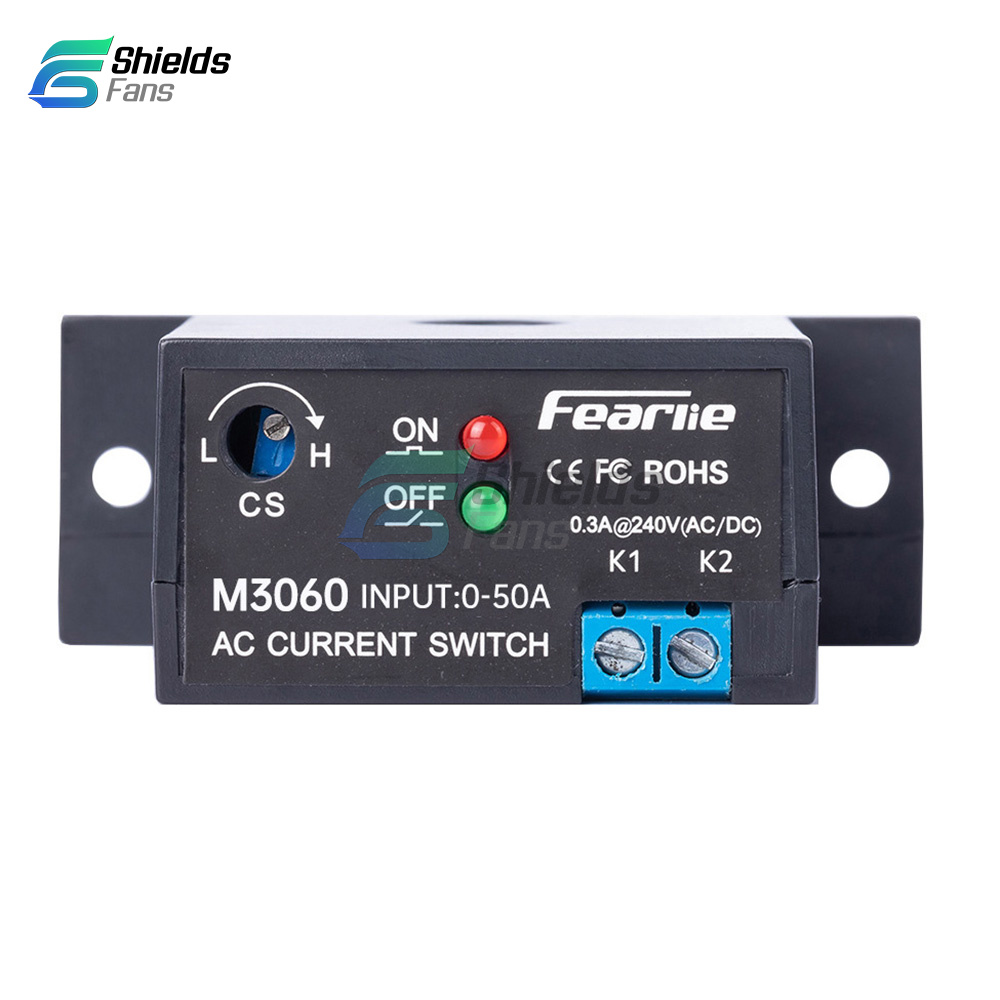

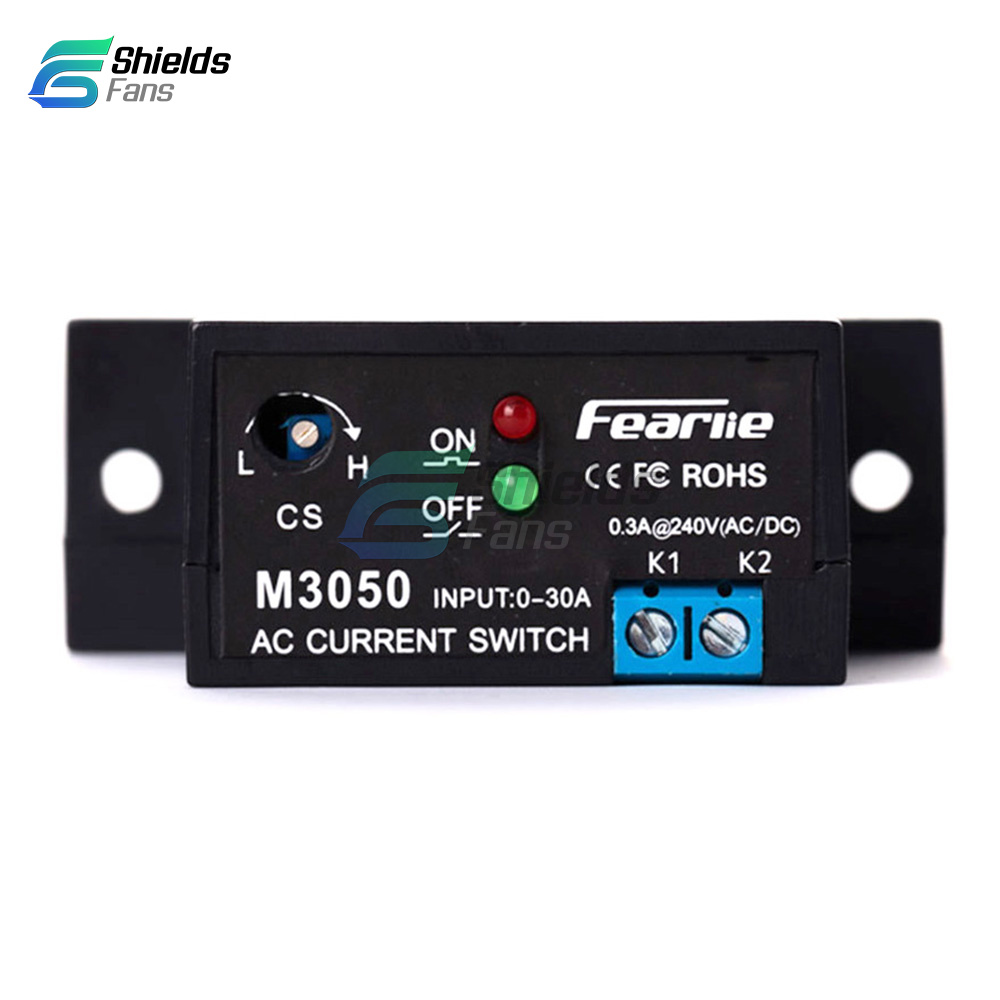

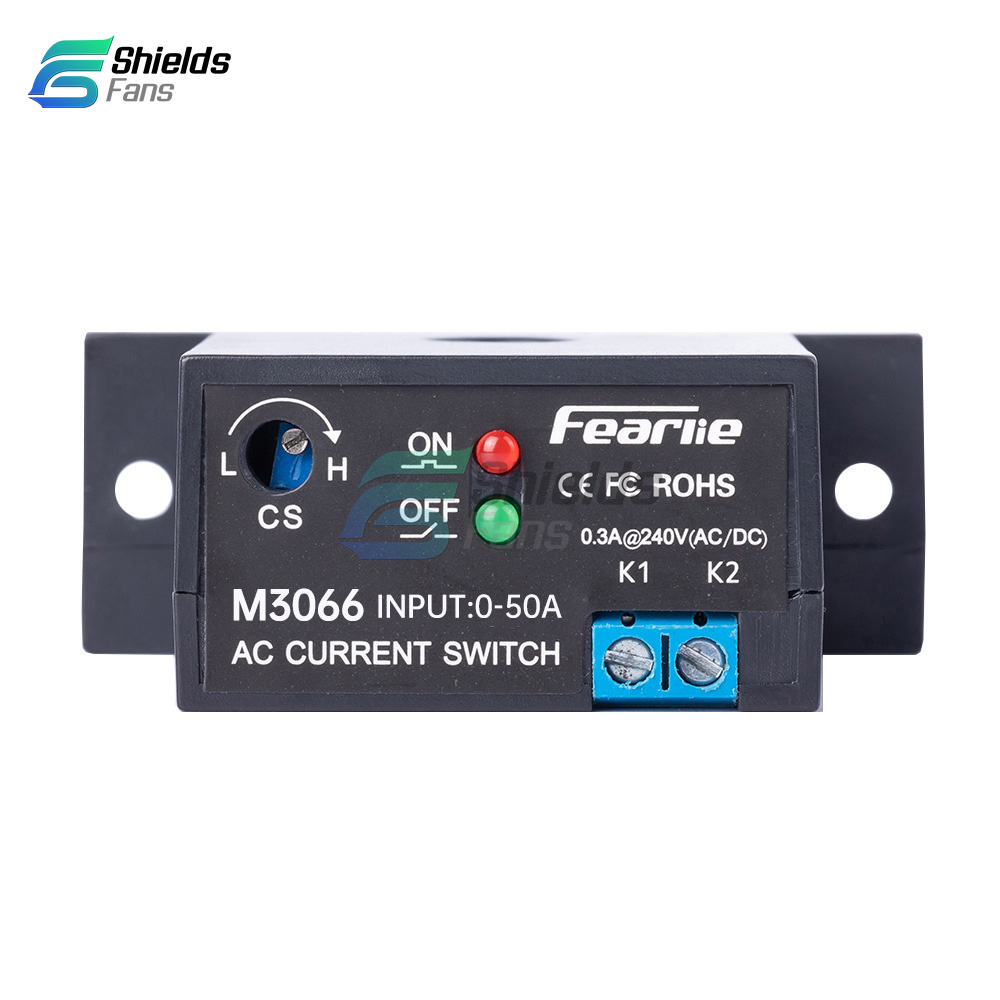

Optional models: M3050 normally open, M3056 normally closed (0.2A-30A), M3060 normally open, M3066 normally closed (0.2A-50A), M3070 normally open, M3076 normally closed (0.2A-100A), M3080 normally open, M3086 normally closed (0.2A-200A), M3005 normally closed(0.05~5A), M3010 normally closed(0.08~10A).
Range: AC 0.2-30A
Contact capacity: AC/DC 0.3A-240V
Diameter of perforation line: 10mm
Maximum leakage value: 0.1MA
Maximum overload capacity: 100%
Working temperature: -20-55℃
Lag: less than 1%
Optional models: M3050 normally open, M3056 normally closed (0.2A-30A), M3060 normally open, M3066 normally closed (0.2A-50A), M3070 normally open, M3076 normally closed (0.2A-100A), M3080 normally open, M3086 normally closed (0.2A-200A), M3005 normally closed(0.05~5A), M3010 normally closed(0.08~10A).
Range: AC 0.2-30A
Contact capacity: AC/DC 0.3A-240V
Diameter of perforation line: 10mm
Maximum leakage value: 0.1MA
Maximum overload capacity: 100%
Working temperature: -20-55℃
Lag: less than 1%

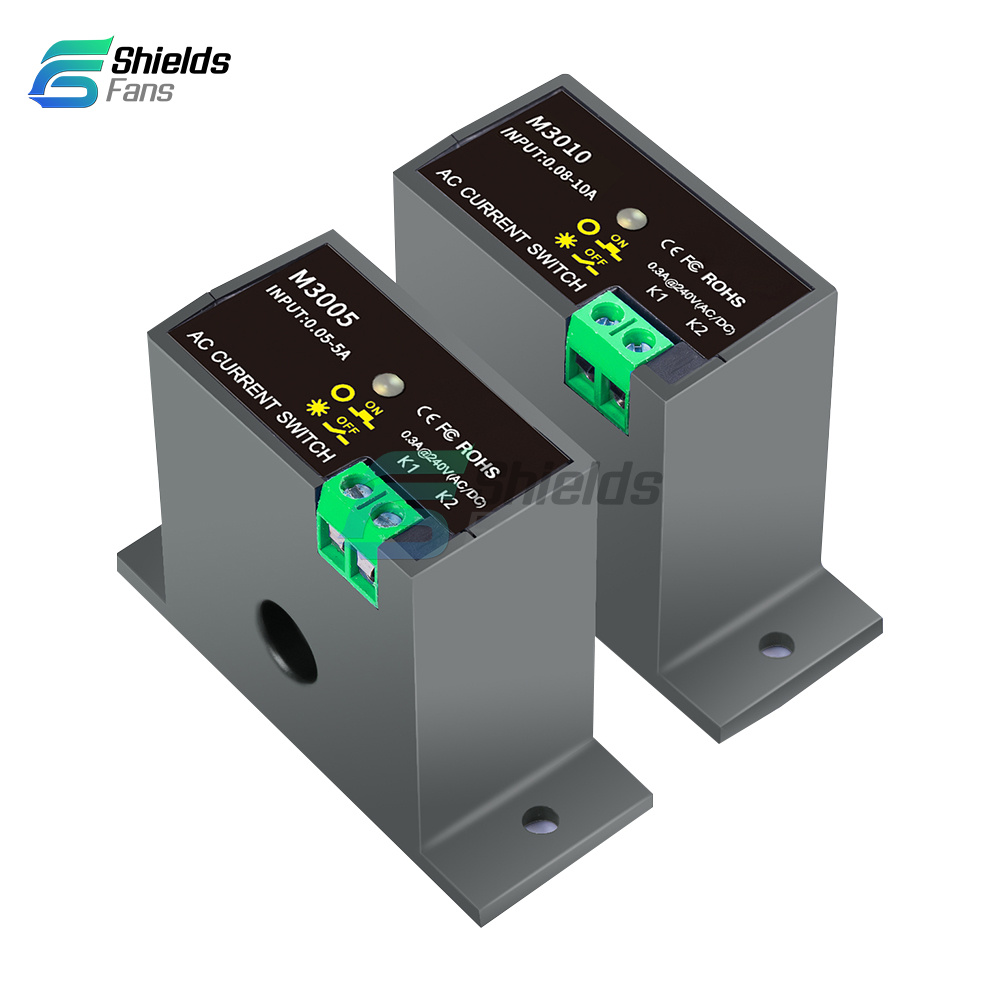

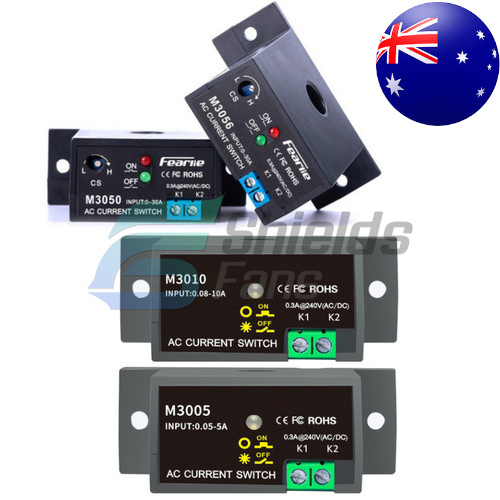

Normally open M3010/M3005
Features:
1. Shell environmentally friendly flame retardant PC raw materials or ABS flame retardant raw materials
2. Non-contact electronic switch, fast response speed, no on-off number of restrictions
3. Hysteresis <1%, can be used in strong magnetic environment.
4. Mutual inductive current monitoring, input and output safety isolation, self-powered monitoring threshold: M3005 (0.05A) M3010 (0.08A)
5. Compact product
1. Shell environmentally friendly flame retardant PC raw materials or ABS flame retardant raw materials
2. Non-contact electronic switch, fast response speed, no on-off number of restrictions
3. Hysteresis <1%, can be used in strong magnetic environment.
4. Mutual inductive current monitoring, input and output safety isolation, self-powered monitoring threshold: M3005 (0.05A) M3010 (0.08A)
5. Compact product
Product Parameters:
Monitoring current: M3005(0.05~5A) M3010(0.08~10A)
Contact capacity: 0.3A@240V AC/DC
Threading hole: 10MM

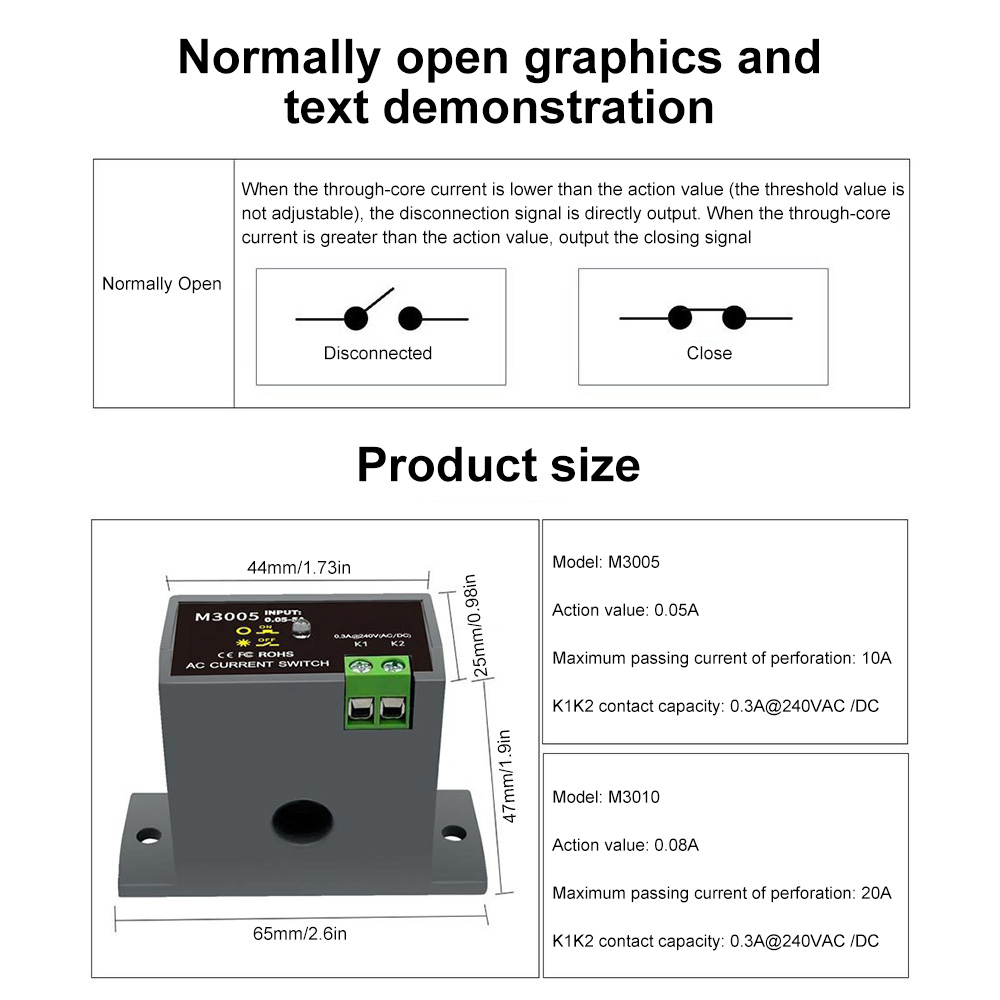

Dimension: 65*25*47MM
Maximum Leakage Value: 0.1MA
Maximum overload capacity: 100%
Operating temperature: -20~55C Hysteresis: ( 1%)
Case Color: Black Gray
Monitoring current: M3005(0.05~5A) M3010(0.08~10A)
Contact capacity: 0.3A@240V AC/DC
Threading hole: 10MM
Dimension: 65*25*47MM
Maximum Leakage Value: 0.1MA
Maximum overload capacity: 100%
Operating temperature: -20~55C Hysteresis: ( 1%)
Case Color: Black Gray

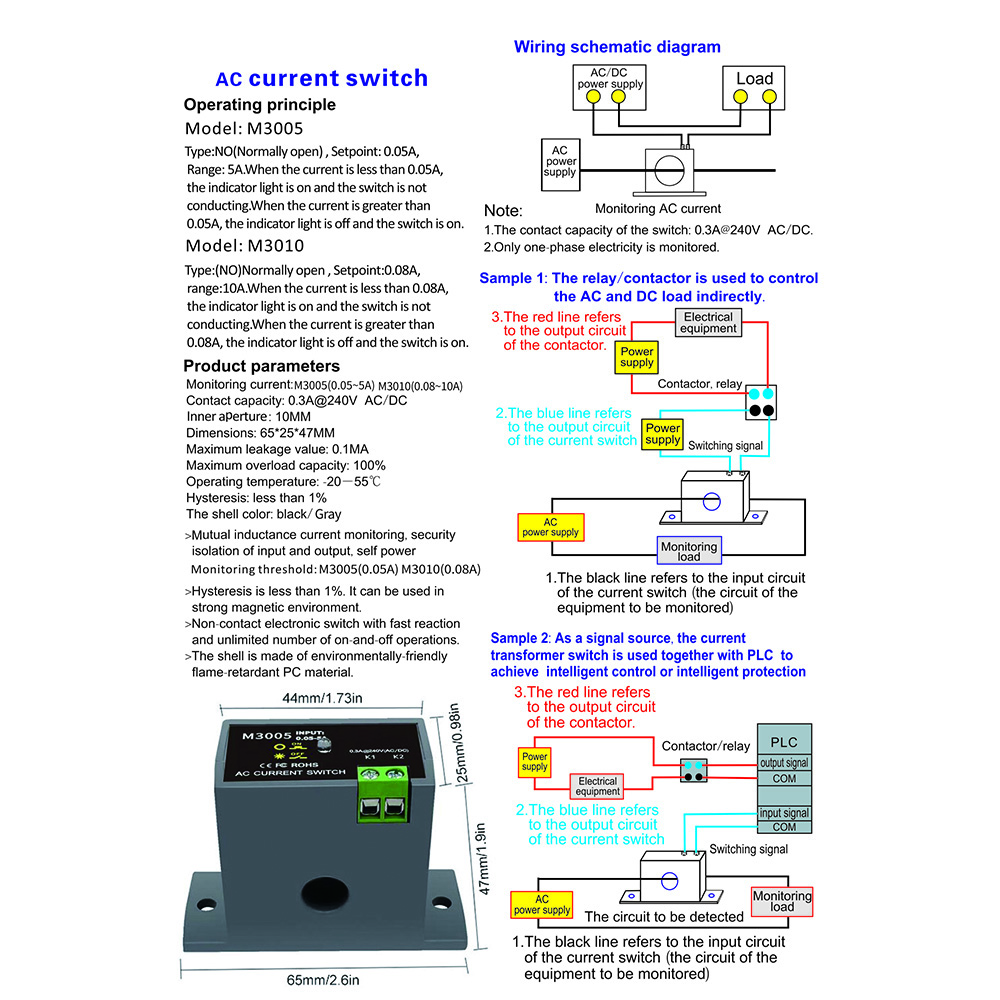

Working Principle:
Model:M3005
Normally open type, threshold 0.05A, range 5A When the current is less than 0.05A, the indicator light is on and the switch does not conduct When the current is more than 0.05A, the indicator light is off and the switch conducts.
Model:M3010
Normally open type, threshold 0.08A, range 10A.
When the current is less than 0.08A, the indicator light is on, the switch does not conduct.
When the current is more than 0.08A, the indicator light is off and the switch is on.
Model:M3005
Normally open type, threshold 0.05A, range 5A When the current is less than 0.05A, the indicator light is on and the switch does not conduct When the current is more than 0.05A, the indicator light is off and the switch conducts.
Model:M3010
Normally open type, threshold 0.08A, range 10A.
When the current is less than 0.08A, the indicator light is on, the switch does not conduct.
When the current is more than 0.08A, the indicator light is off and the switch is on.
Package List:
1x Sensing switch(Optional)
1x Sensing switch(Optional)
