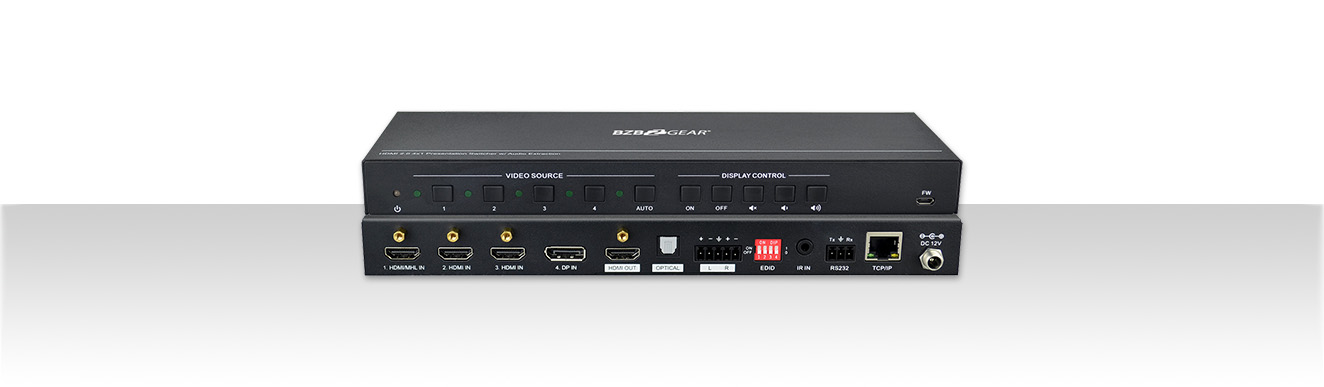

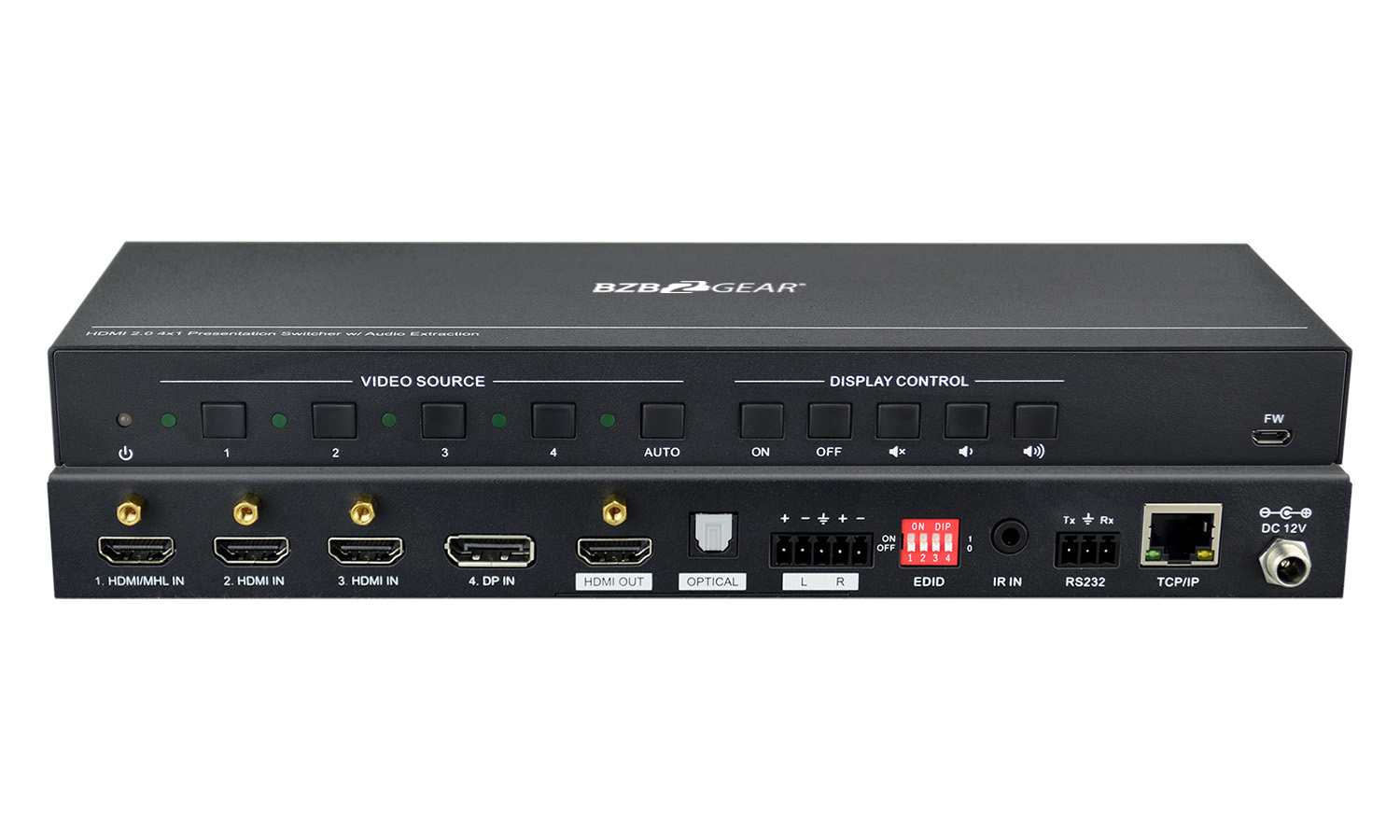

BZBGEAR BG-PHD4X1 4x1 4K UHD Presentation Switcher with HDMI and DisplayPort and Audio de-embedding

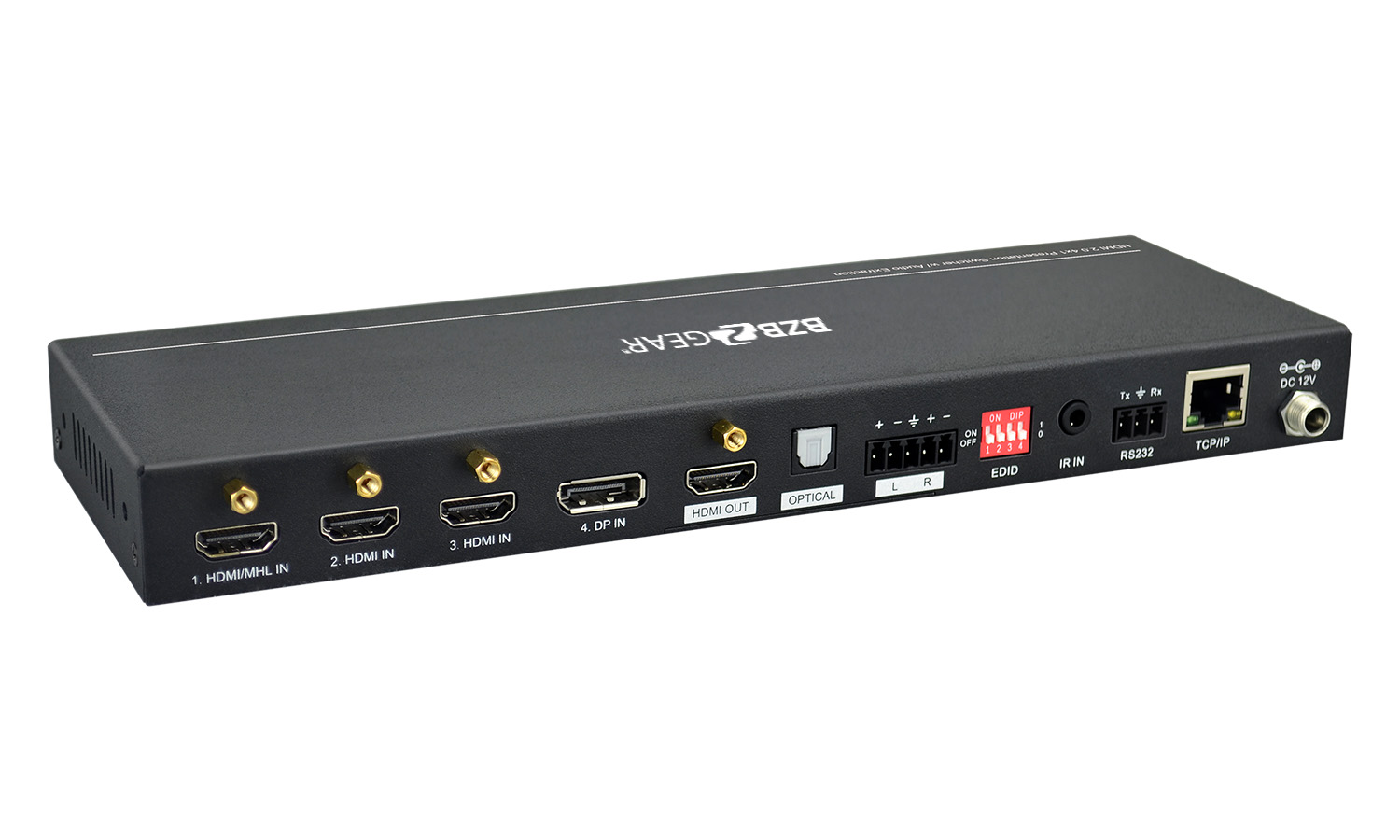

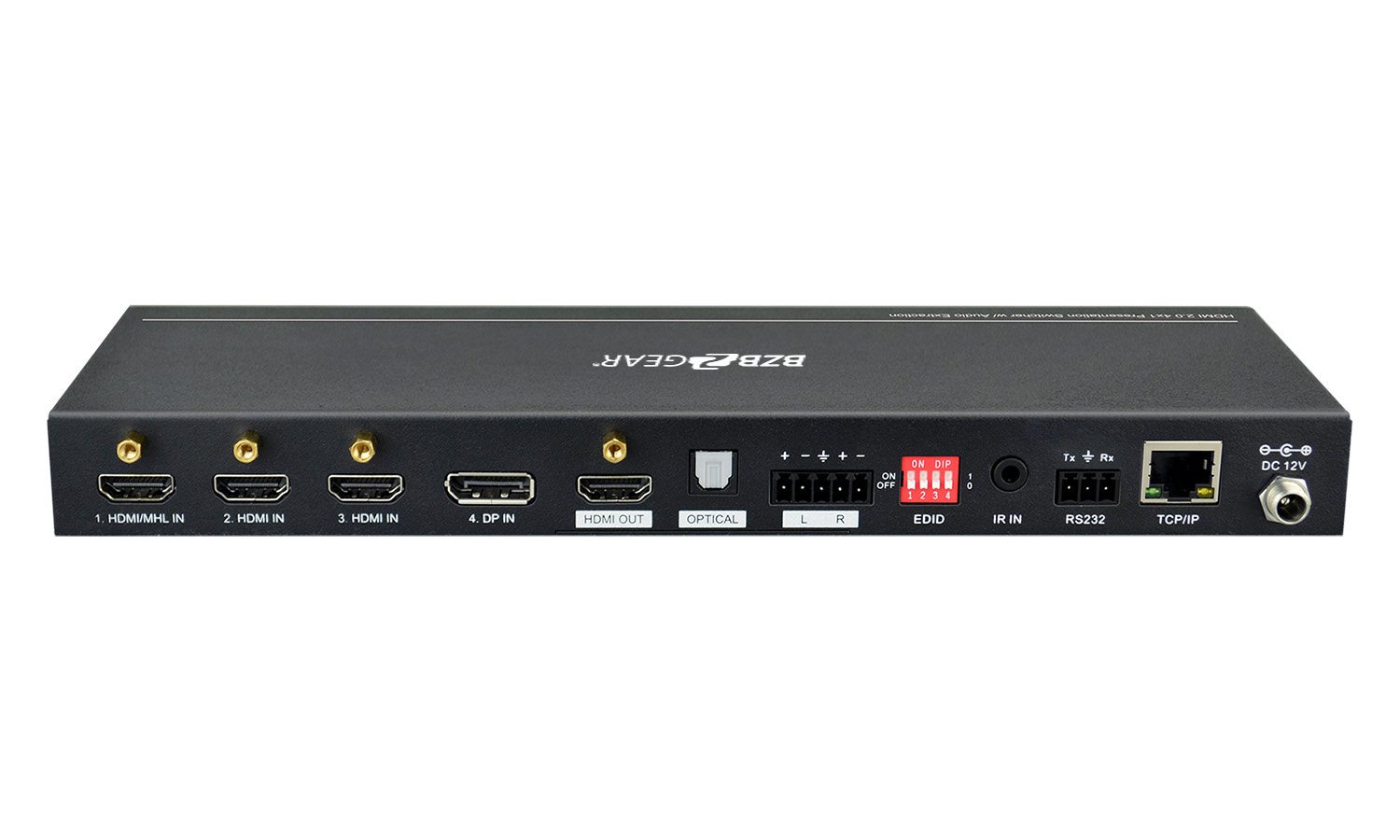

The BG-PHD4X1 allows selection of four different sources (three HDMI inputs and one DisplayPort input), and will simultaneously switch the selected video to HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D. In addition, there is the smart built-in EDID setting can be selected by the 4-pin DIP switch on the rear panel.

The BG-PHD4X1 supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to an optical digital audio output and a balanced analog audio output.

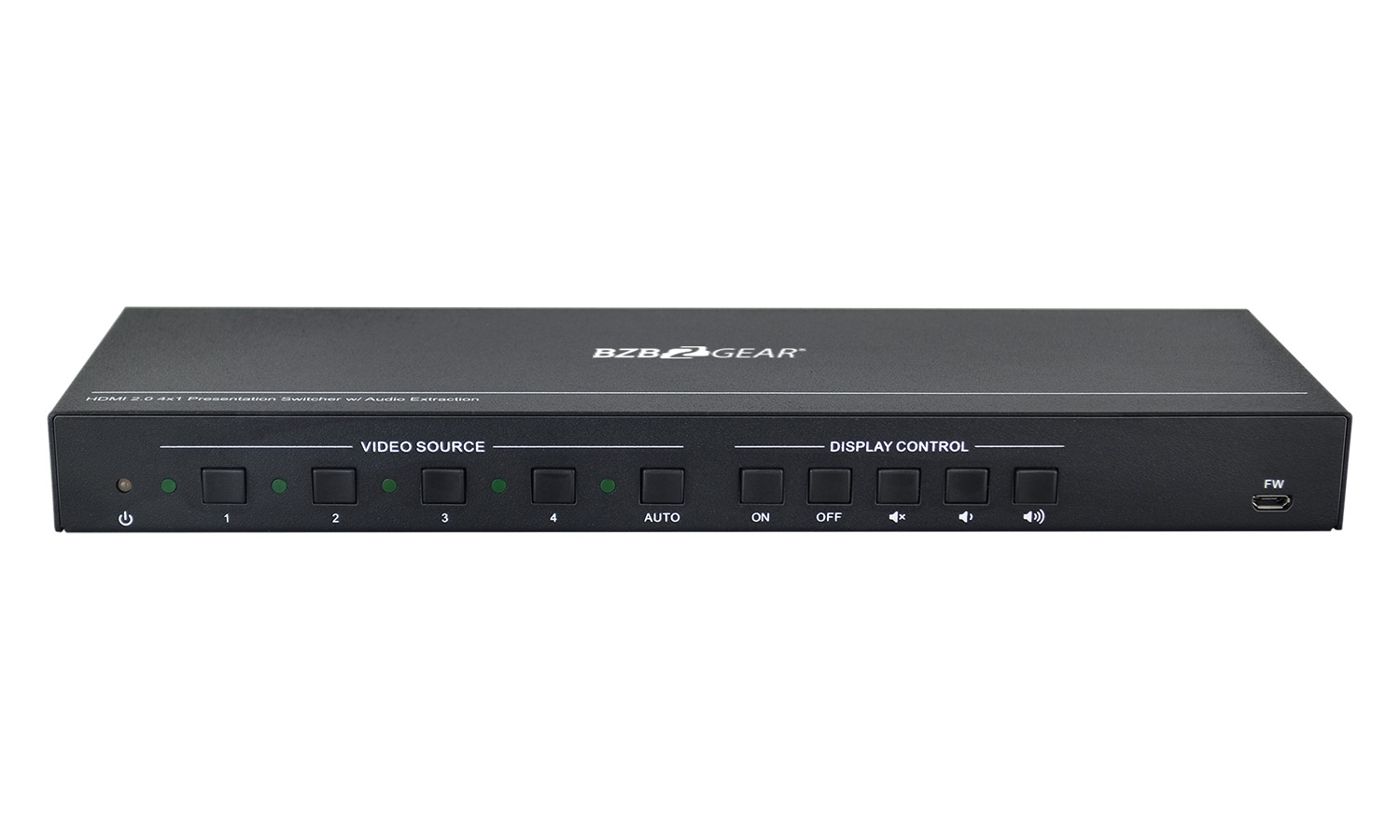

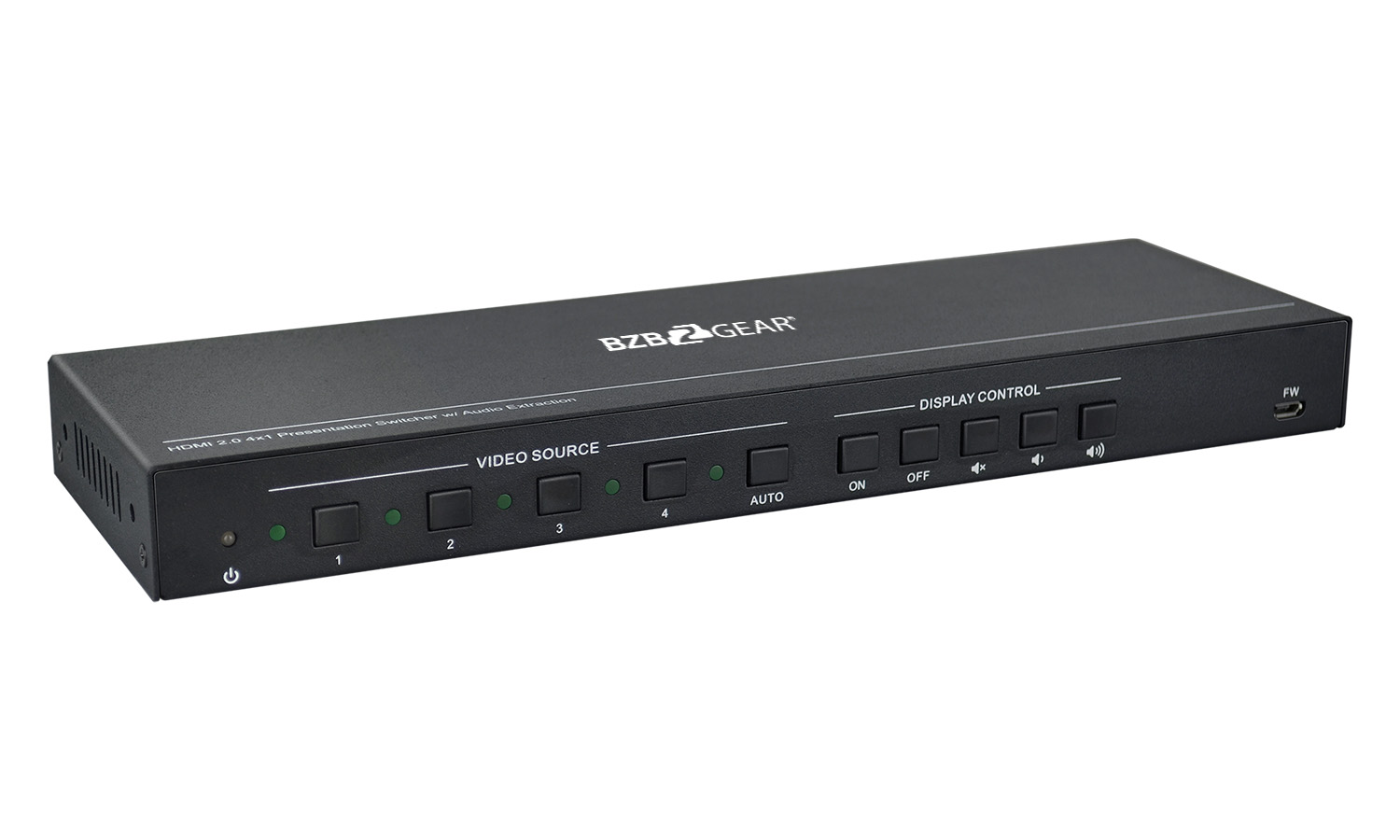

The BG-PHD4X1 features multiple methods of control. When in the AUTO mode, the switcher will automatically switch to the first detected source device. When the active source is removed, the switcher will switch from input 1 to 4. The switcher can be manually controlled by the front panel buttons, IR remote and RS232 command. CEC allows the display device can be controlled by the front panel buttons and RS232 CEC commands.

Manufacturer: BZBGEAR
SKU: BG-PHD4X1
Condition: New
Warranty: 3 Years

Features

  • HDMI - Supports HDMI 2.0 (18Gbps), HDCP 2.3, HDR10+, Dolby Vision
  • 4K - Supports resolutions up to 4K@60Hz 4:4:4
  • Auto-Switching - Automatically selects active inputs for easy operation
  • Third Party Control - Supports RS-232, IR, and HDMI-CEC control methods
  • Audio De-Embedding - Optical and balanced analog audio outputs
  • Smart EDID - Custom settings available for best compatibility

Specifications


Video
Video Input (1) HDMI/MHL, (2) HDMI, (1) DP
Video Input Connector (3) Type-A female HDMI, (1) DisplayPort
HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
MHL Input Resolution Up to 1080P@60Hz
DP Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
Video Output (1) HDMI
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Version 2.0
HDCP Version 2.3
MHL Version 2.2
DP Version 1.2
HDR 10 Supported
CEC Supported
HPD Supported
Audio
Audio Output (1) OPTICAL, (1) Stereo balanced L/R
Audio Output Connector (1) Toslink connector, (1) 5-pin terminal block
HDMI Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through.
Stereo analog L/R audio Format PCM
Toslink Digital Audio Format PCM, Dolby Digital, DTS, DTS-HD
Max Output Level 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
THD+N <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR >80dB, 20Hz ~ 20KHz bandwidth
Crosstalk Isolation >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation <± 0.5dB 20Hz ~ 20KHz
Output Load Capability 1KΩ and higher (supports 10x paralleled 10KΩ loads)
Stereo Channel Separation >70dB@1KHz
Control Part
Control (1) FW, (1) EDID, (1) IR IN, (1) RS232, (1) TCP/IP
Control Connector (1) Micro-USB, (1) 4-pin DIP switch, (1) 3.5mm mini jack, (1) 3-pin terminal block, (1) RJ45
General
HDMI 2.0 Cable Length 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 10m, 1080P ≤ 15m
Bandwidth 18Gbps
Operation Temperature -10°C ~ +55°C
Storage Temperature -25°C ~ +70°C
Relative Humility 10%-90%
External Power Supply Input: AC 100~240V, 50/60Hz, Output: 12V DC 1A
Power Consumption 5W (Max)
Dimension (W*H*D) 262mm x 26mm x 84mm
Net Weight 320g

Package contents

  • HDMI 2.0 4x1 Presentation Switcher
  • 2x Mounting Ears with 4 Screws
  • 4x Plastic Cushions
  • 1x IR Receiver
  • 1x IR Remote
  • 1x 3-pin Terminal Block
  • 1x 5-pin Terminal Block
  • 1x RS232 Cable (3-pin terminal block to DB9)
  • 1x Power Adapter (12V DC, 1A)
  • 1x User Manual
