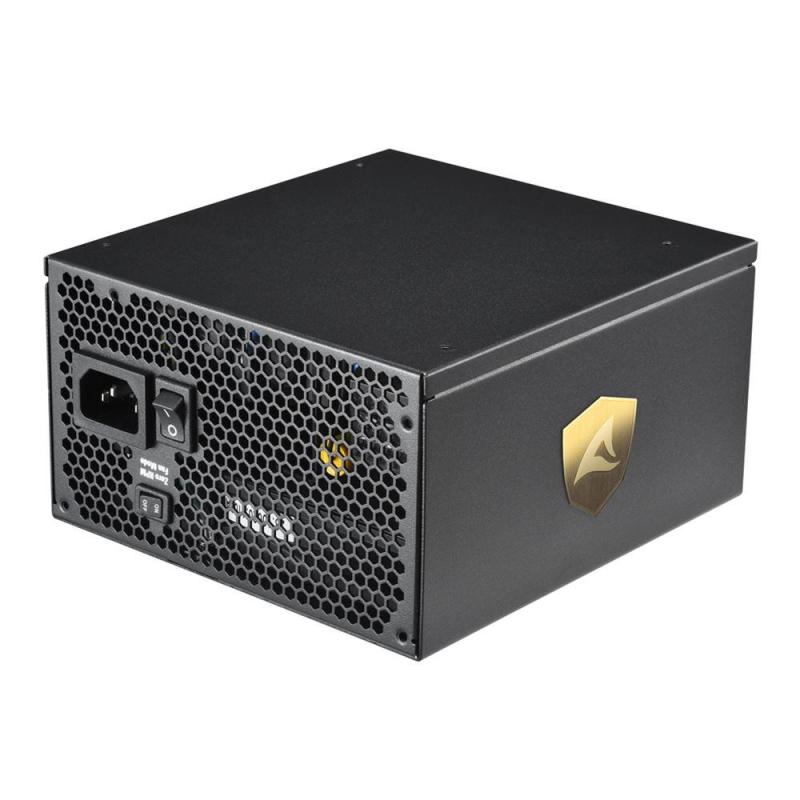

Sharkoon Rebel P30 Gold power supply unit 1300 W 20+4 pin ATX ATX Black
Full Support for High-End Graphics Cards
The Rebel P30 Gold supports the new ATX 3.0 standard and is equipped with a modern PCIe Gen5 12VHPWR connection that is required for current high-end graphics cards and the highest performance.
Certified Safety and Efficiency
As its name suggests, the Rebel P30 Gold is 80 PLUS Gold certified, providing at least 90 percent efficiency at 20 percent load, 92 percent efficiency at 50 percent load, and an efficiency of 89 percent at 100 percent load. In addition, both the PSU and the user are safeguarded by all the common protective technology. This encompasses over-current protection, over- and under-voltage protection, short-circuit protection, over-temperature protection and over-power protection.
Always Cool and Quiet
A quiet 135 mm fan with a fluid dynamic bearing is used in the Rebel P30 Gold. For silent operation, the PSU's Zero RPM mode can be selected, allowing the fan rotation to be completely deactivated at moderate loads. To ensure an effective cooling for the hardware, the fan delay mode lets the fan continue to run for up to 60 seconds after the PSU has been shut down.
High Quality in Focus
For high degrees of reliability and performance, quality all-Japanese capacitors, LLC resonant converters and DC/DC technology are used in the Rebel P30 Gold. Thanks to this, the Rebel P30 Gold always delivers a constant and stable voltage with optimized noise and heat levels.
Full-Modular Assembly
All the Rebel P30's cables are modular and can be used as and when they are needed. Apart from a PCIe Gen5 12VHPWR connector, the PSU comes with a total of twelve SATA connectors and four 6+2-pin PCIe connectors. The 1,300-watt model even has up to eight 6+2-pin PCIe connectors. Two IDE connectors and a floppy connector are also available using the included adapters.
Sharkoon Rebel P30 Gold. Total power: 1300 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 62 cm, Cabling type: Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC
| Gestione energetica | |
| Potenza totale | 1300 W |
| Tensione di ingresso AC | 100 - 240 V |
| Frequenza di ingresso AC | 50/60 Hz |
| Corrente di ingresso massima (@110V) | 15 A |
| Corrente di ingresso massima (@220V) | 8 A |
| Potenza combinata (+3.3V) | 120 W |
| Potenza combinata (+12V) | 1300 W |
| Potenza combinata (+5V) | 120 W |
| Corrente massima di uscita (+3.3V) | 24 A |
| Corrente massima di uscita (+12V) | 108,3 A |
| Corrente massima di uscita (+5V) | 24 A |
| Corrente massima di uscita (-12V) | 0,5 A |
| Corrente massima di uscita (+5Vsb) | 3 A |
| Funzionalità di protezione dell'alimentazione | Surriscaldamento, Sovraccarico, Sotto carico, Sovracorrente, Cortocircuito |
| Connettività | |
| Connettore scheda madre | 20+4 pin ATX |
| Lunghezza del cavo di alimentazione della scheda madre | 62 cm |
| Numero di connettori SATA | 12 |
| Connettori periferiche (Molex) (4-pin) | 2 |
| Connettore di potenza EPS (8-Pin) | Sì |
| Connettori PCI Express (6+2 pin) | 8 |
| Connettore di potenza CPU (4+4-Pin) | Sì |
| Connettore ATX (20+4-PIN) | Sì |
| Connettore floppy disc | Sì |
| Tipo di cablaggio | Modulare |
| Prestazione | |
| Utilizzo | PC |
| Fattore di forma dell'unità di alimentazione (PSU) | ATX |
| Certificazione 80 PLUS | 80 PLUS Gold |
| Versione ATX | 3.0 |
| Tempo medio tra guasti (MTBF) | 100000 h |
| Design | |
| Colore del prodotto | Nero |
| Tipo di raffreddamento | Attivo |
| Diametro del ventilatore | 13,5 cm |
| Numero di ventole | 1 ventola(e) |
| Collocazione ventole | Alto |
| Interrutore On/Off | Sì |
| Condizioni ambientali | |
| Intervallo temperatura di funzionamento | 0 - 50 °C |
| Dimensioni e peso | |
| Larghezza | 150 mm |
| Profondità | 160 mm |
| Altezza | 86 mm |
| Peso | 1,75 kg |
| Dettagli tecnici | |
| Certificati di sostenibilità | Federal Communications Commission (FCC), UKCA, CB, CE, ErP |
