Features

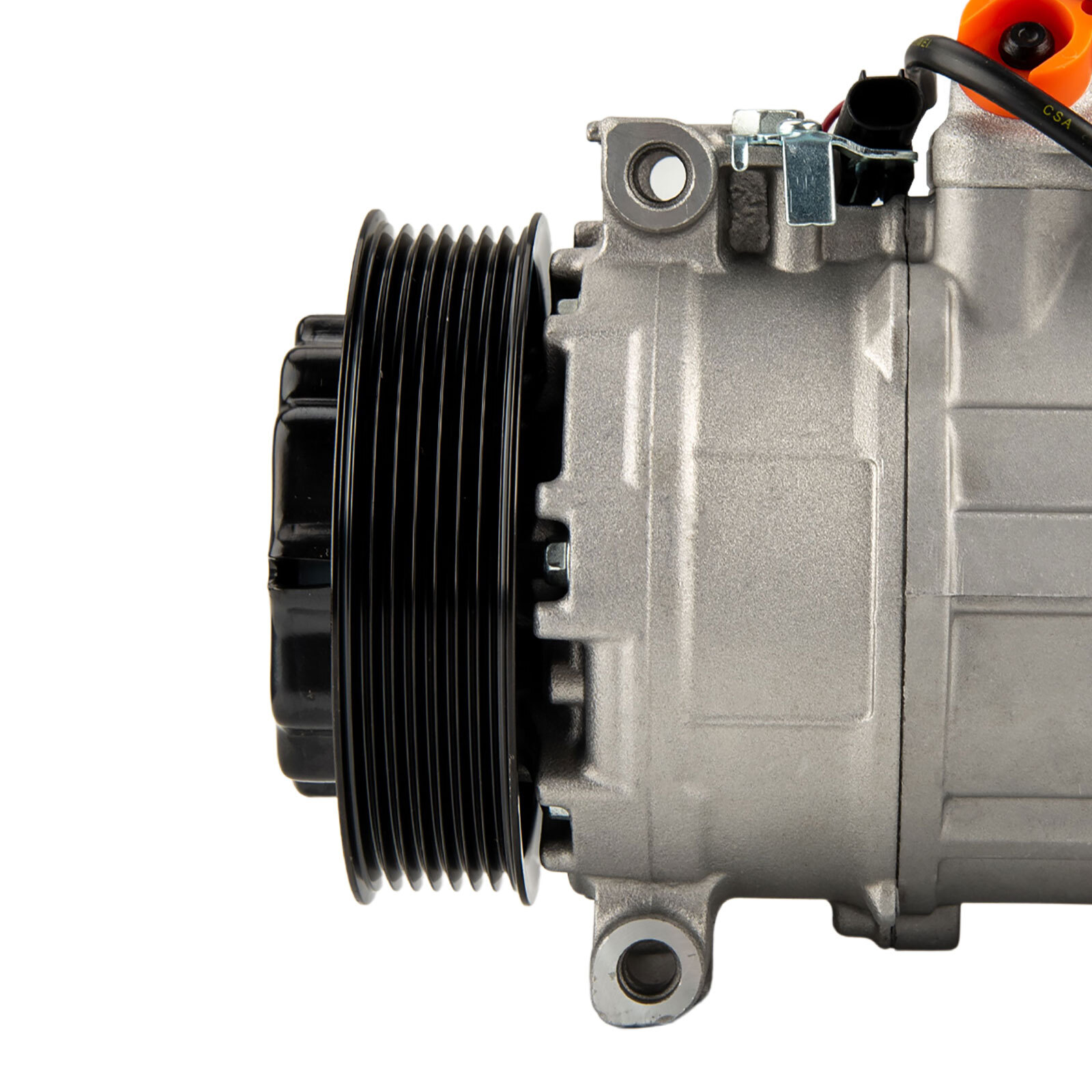

【PREMIUM ALUMINUM MATERIAL】- This ac air compressor main body is made of high-strength aluminum material, which is durable, rigid, and wearable. It will not crack, break, or leak. Such high-quality ensures a long-time use of each compressor kit.
【STRONG COOLING FUNCTION】- The auto ac compressor can provide sufficient pressure, which increases power force and decreases engine load. It greatly improves the cooling function. Features as high and stable efficiency, safety, and reliability. No worry of leaking. Adjust automatically.
【LOW NOISE & FUEL CONSUMPTION】- The AC compressor works steady and efficient under a low noise condition, provide you with a chill nice and cold ride. Under a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly
【FULLY TESTED & EASY INSTALLATION】- The ac compressor has been examined and tested carefully before its delivery, pre-installed with pulley . As the kit without refrigeration oil inside, be aware of it when starting your replacement, professional installation is highly recommended.

Fitment for

Package Included

As the picture show

Note

Please make sure the installation site is clean. Or it will cause operating obstruction, making the compressor's temperature very high, and the belt on the clutch may melt. But you need to add the refrigerant. Please add it to 70-80%. Try not to fill it up. There may be noise if the refrigerant is added too much.

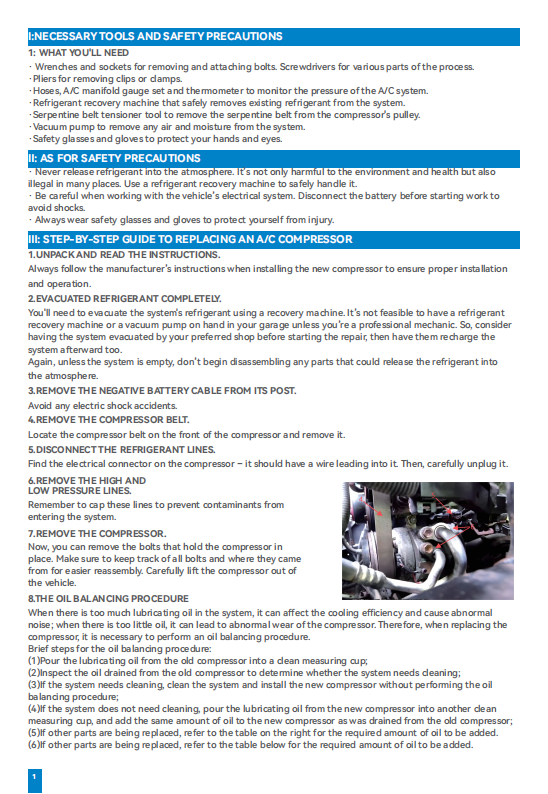

Installation

Be sure to clean the air conditioning system before installation, otherwise it will cause compression broken.

1.Remove compressor:
Remove the A/C belt from the A/C compressor pulley. May involve loosening the belt tensioner (if equipped).
2.receiver drier or accumulator, orifice tube or expansion valve.
3.Disconnect the negative battery cable.
4.Remove the bolt that secures refrigerant lines to the A/C compressor. Inspect A/C lines for any contamination such as metal or excessive dirt inside of them. If you find any contamination the system will need to be cleaned.Flush the condenser and evaporator using NON-OIL BASED A/C flush. On expansion valve systems. The valve must be removed before the  evaporator can be flushed. Flushed condensers from outlet to inlet and evaporators from inlet to outlet.
5.Drain all the oil from the new compressor ,if you compressor has a drain plug you will need to open it up and drain what oil is in there too.
6.Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to insure front seal and other internal parts are lubricated.
7.Install new receiver drier or accumulator and new orifice tube or expansion valve.
8.Evacuate the A/C system for a minimum of one hour.
9.After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout the system.
10.Turn on the A/C system with the engine running and check to see if cold air is now coming out of the air duct.
11.If the A/C system is functioning ,you may find that your electric radiator fan and compressor clutch will be cycling off and on depending on the outside air temperature.
