65L/min Hydraulic Air Cooler DC12V Fan Cooler Aluminum Hydraulic Radiator Oil Cooling

INTSUPERMAI^®

	ITEM DESCRIPTION
	This unit uses air as the cooling source, making it virtually unrestricted by location and environmentally friendly‌.
	Equipped with pure aluminum heat sinks for excellent heat dissipation‌.
	High-speed fan configuration with DC12V safe voltage ensures high safety standards and fan reliability‌.
	Suitable for non-corrosive fluids to aluminum, such as: hydraulic oil, antifreeze, compressed air, etc.‌
	Widely used in engineering mobile machinery, environmental engineering machinery, construction engineering machinery, railway engineering machinery, gearboxes, hydraulic machinery, electronic hydro turbines, electric wind power generation, CNC machine tools, metallurgical machinery, oil & gas equipment, port machinery, marine machinery, etc.
	Note: Coolant temperature should remain below 160°C!‌

The hydraulic air cooler is a type of heat exchanger that utilizes air as the cooling medium, forcibly dissipating heat from internal media through fans. This equipment emphasizes heat dissipation with stable performance. It can cool fluids non-corrosive to aluminum, such as hydraulic oil, antifreeze, compressed air, etc., and may also use treated soft water. It features a compact structure, lightweight design, high heat dissipation efficiency, and easy installation‌.

ITEM PARAMETERS

Fan voltage:	DC12V
Fan power:	84W
Current:	≤7A
Oil hole diameter:	Rc3/4"
Rate of flow:	65L/min(17.2GAL/min)
Working pressure:	≤2MPa
Exterior cooling area:	1.8m²
Cooling capacity:	1.8KW
Speed:	2700±200 r/min
Material:	Aluminum

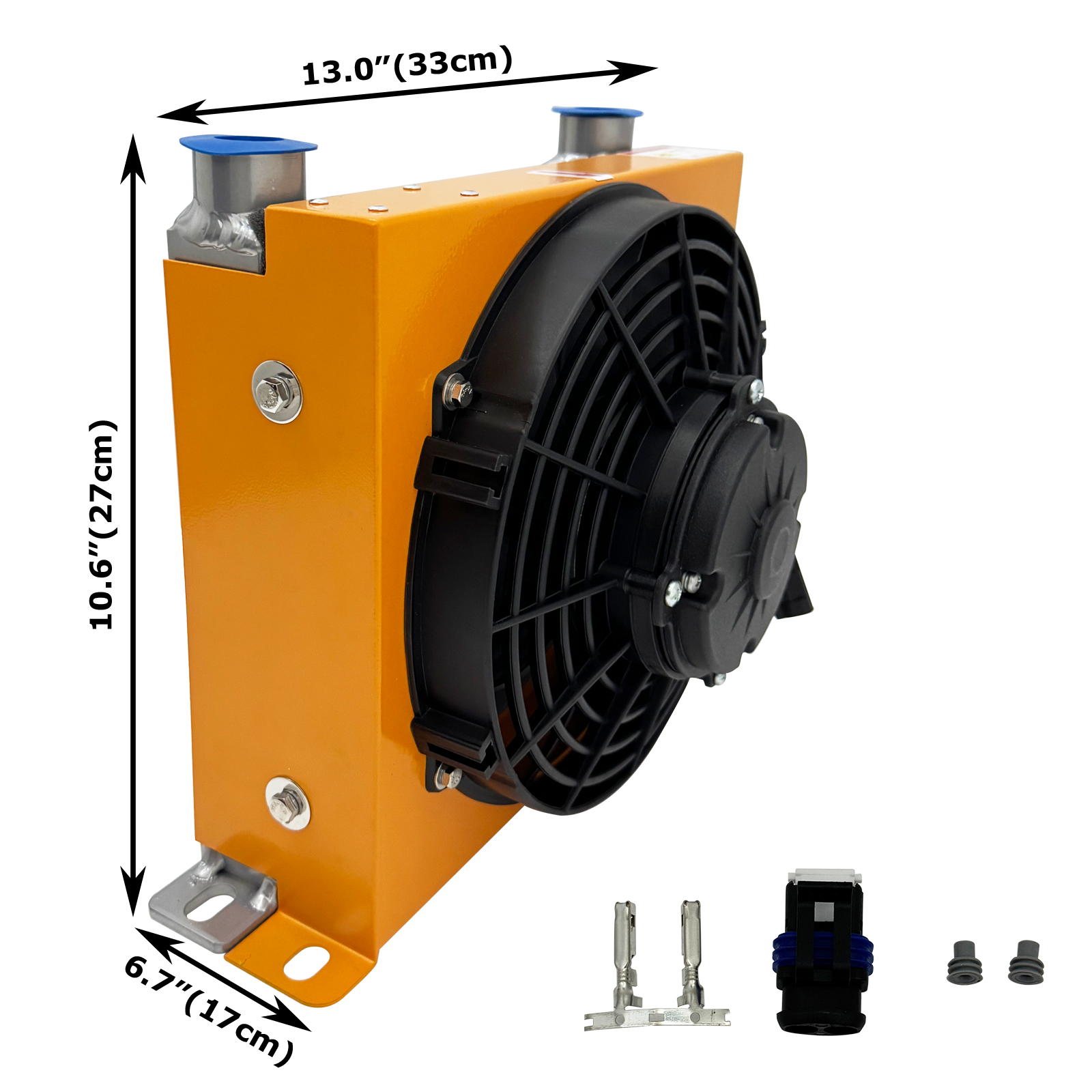

Package size:	15.0"13.0"9.0" (38cm33cm23cm)
Net weight/Gross weight:	12.1lbs(5.5kg)/13.7lbs(6.2kg)

ITEM DETAILS


Oil Inlet & Outlet Both left and right ports of this unit can serve as either oil inlet or outlet. The hydraulic oil inside the cooler is power-driven, enabling bidirectional flow (left-in/right-out or right-in/left-out)‌.	Aluminum Alloy Core The high-density aluminum alloy cooling plate features robust construction, excellent shock resistance, rapid heat dissipation, overheat prevention, and deformation resistance. Precision manufactured with guaranteed quality‌.	Mounting Hole The mounting holes on the base make it easy to secure the hydraulic air cooler to the tabletop, ensuring device stability and operational safety.

High Quality Fan The fan features stable performance, steel nuts, an overall leak-proof design, aesthetic durability, and enhanced heat dissipation, effectively supporting the long-term operation of the hydraulic air cooler‌.	Anti-Corrosive Baked Enamel Coating The surface features excellent paint coating, smooth and aesthetically pleasing, providing better protection for the cooler and extending equipment lifespan, while being easy to clean after use. The vibrant exterior color significantly enhances operational safety.	Wiring terminal of the fan This terminal is plugged into a DC12V storage battery to supply power to the cooler. Simply plug with any DV12V power supply for ultimate convenience‌.

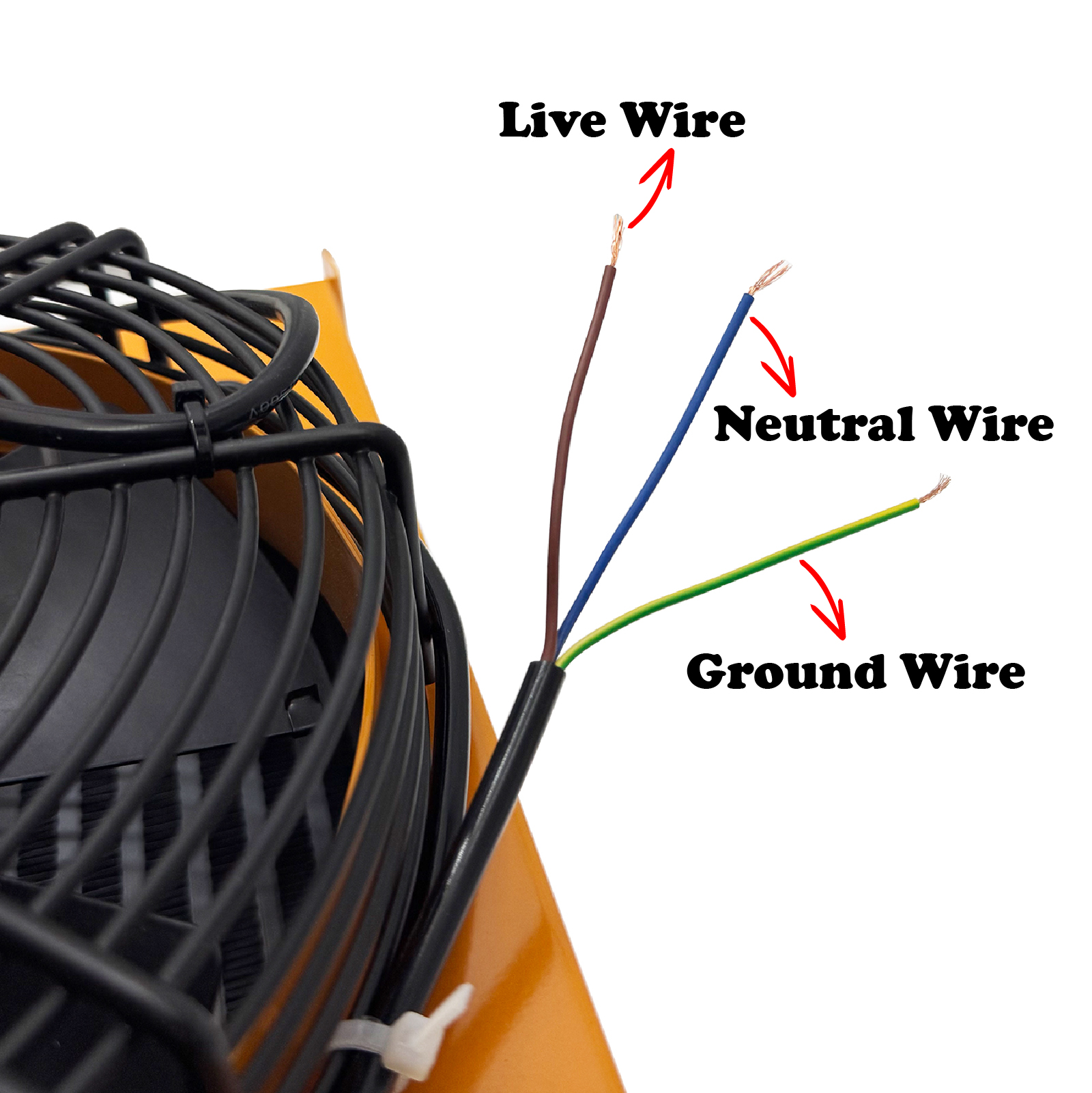

Wiring Diagram

ITEM INCLUDED(057079)

Hydraulic Air Cooler *1

Accessory Kit *1
