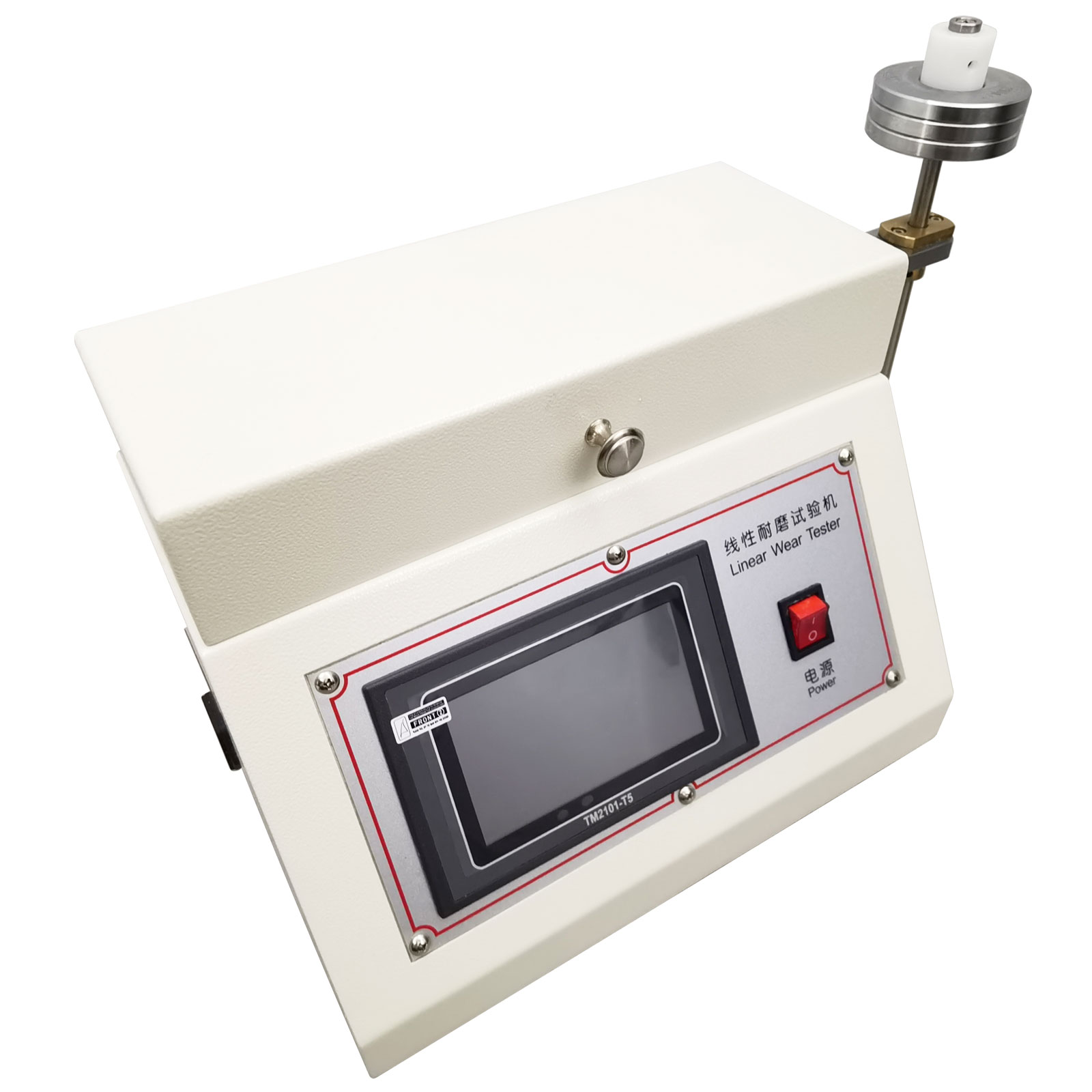

110V Linear Wear Tester Wear Testing Machine Linear Scratch Tester Abrasion Tester

TECHTONGDA®
         ITEM DESCRIPTION

  • Parameters such as moving distance, speed, revolution and load can be set.

  • A variety of different wear media and accessories can be selected. (Optional sample holder and other optional accessories for damage testing as well as alcohol testing, coin scratching, etc.)

  • Ensure the stability and accuracy of the test: The general grinding head is made of high-quality wear materials. Can ensure the stability of the test.

  • There are rubber support legs at the bottom, anti-slip and wear-resistant, with a certain cushioning, to ensure the smooth operation of the machine.

  • The bottom of the machine has a certain distance from the table, which is convenient for handling , and can prevent water from entering the machine from the bottom.
Our linear wear tester is suitable for testing the wear resistance of plastics, rubber, auto parts, leather and textile, electroplating, paint, printing and other products. It can be used to evaluate the wear-resisting property of the products, and also can be used for the single or multiple scratches and color transference of the affordable products. LCD touch screen control, adjustable distance, speed, dry grinding test and wet grinding test can be carried out. Using high quality materials, stable operation and accurate test results. Suitable for testing any size or shape of the product, the abrasion test of the product with contour surface and polishing surface characteristics is ideal.
ITEM PARAMETER
Voltage: 110V
Size of probe: 0.79"*0.79"(20*20mm)
5 optional travel distances:  0.5",1",2",3" and 4"(Special travel distances can be customized)
Friction frequency: 2-60 times/min, adjustable speed
Compliance with relevant standards: ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799
Complies with CE standards, with CE safety mark
Package size: 19.29"*12.20"*12.99" (49cm*31cm*33cm)
Net weight/Gross weight: 30.42lbs(13.8kg)/32.63lbs(14.8kg)
ITEM DETAILS

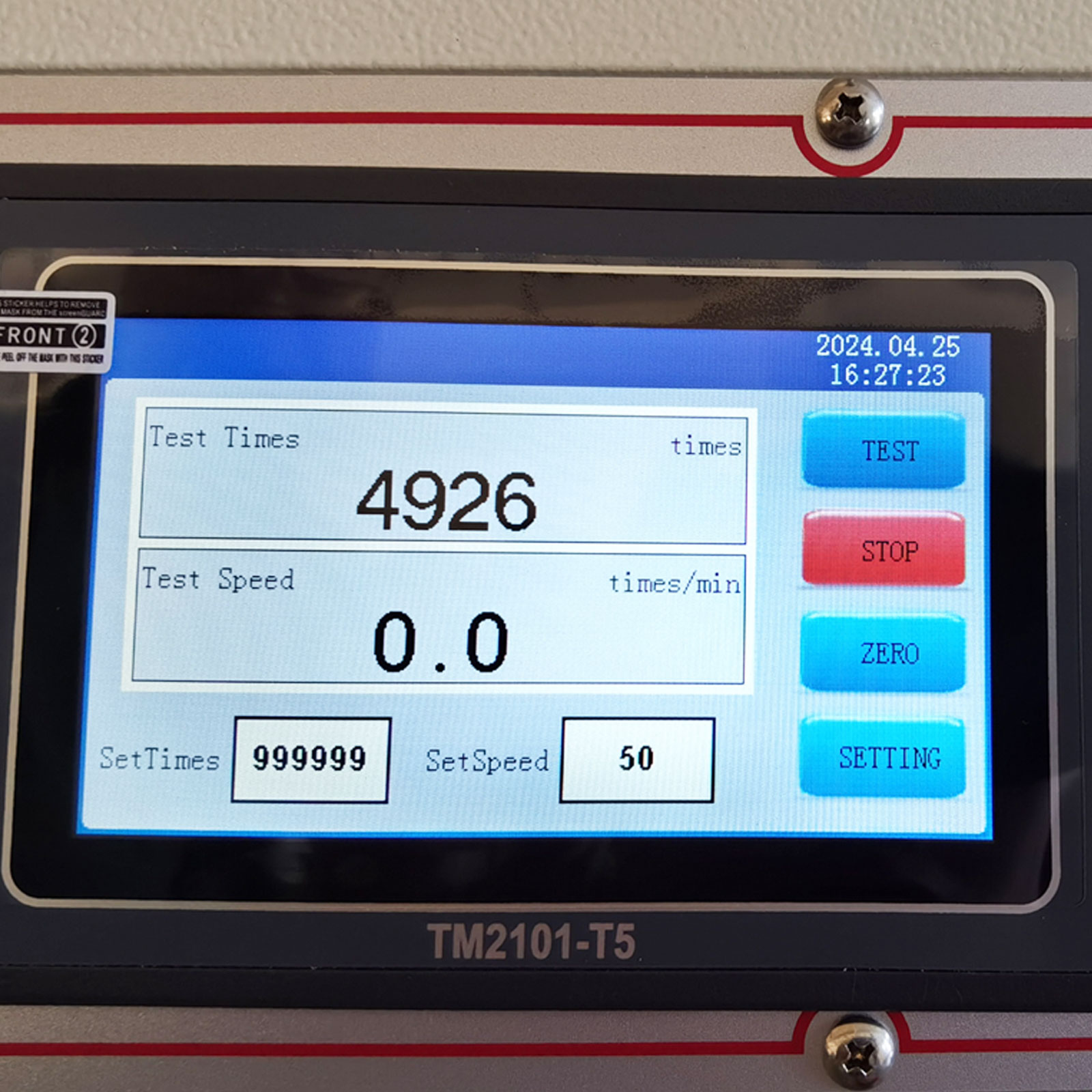

LCD Touch Screen

Premium Quality

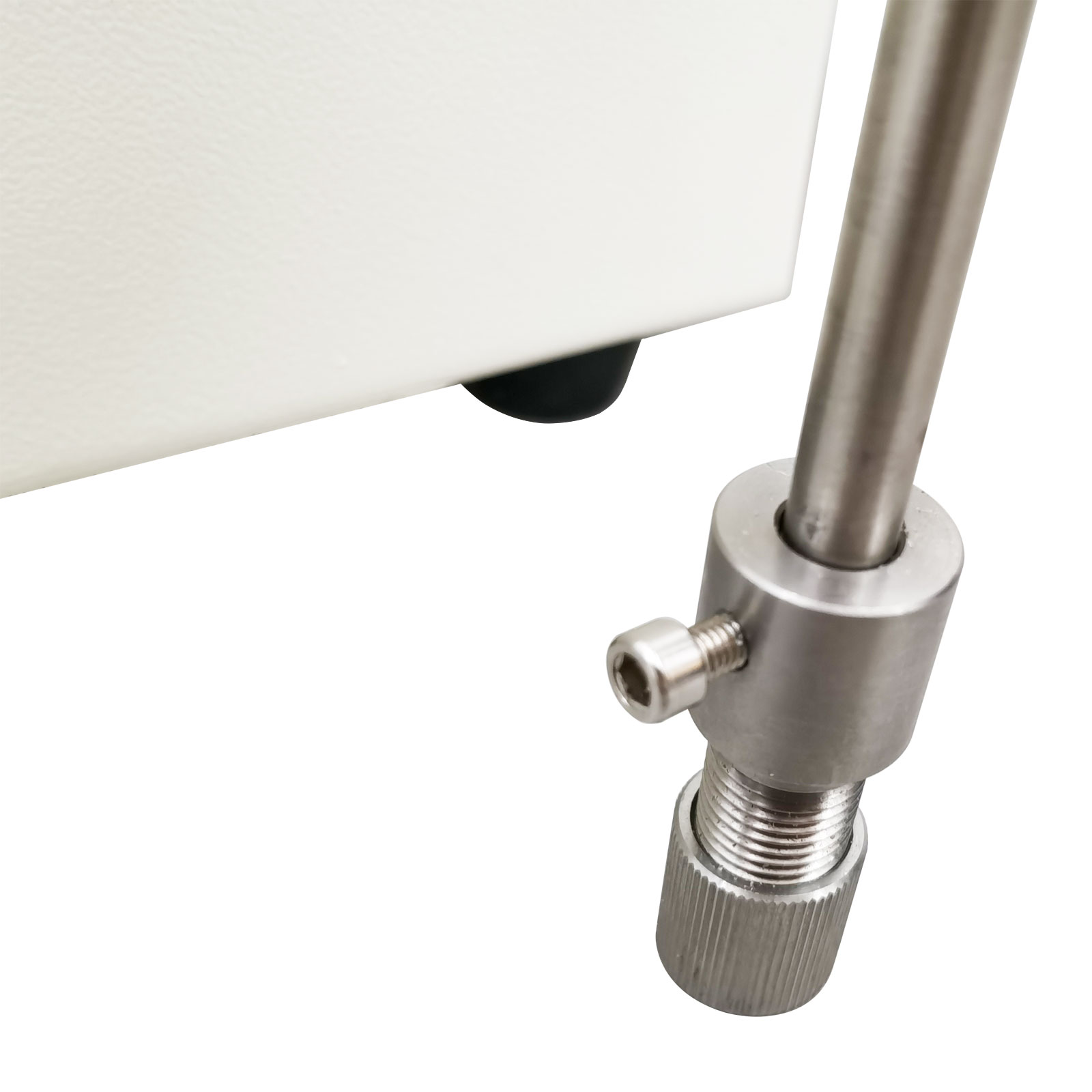

Height adjustable

The control panel is intuitive and simple, you can set the test times and test speed, data display at a glance, simple and convenient operation.

Can set back and forth times, maximum 999,999 times (note, that the grinding head rubber during this period may need to change); Can be set up test program.

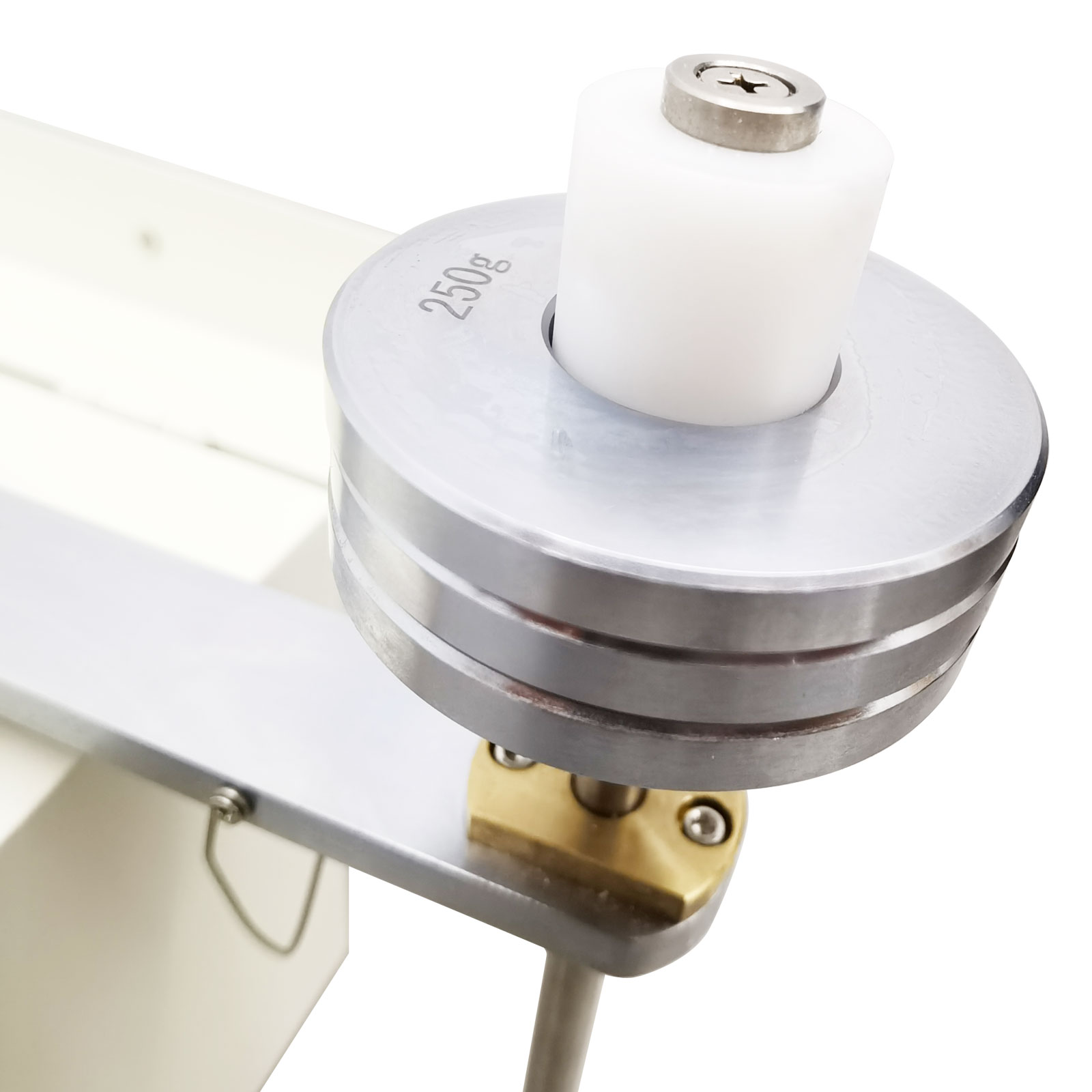

 The use of anodized aluminum, durable, corrosion resistant, lightweight, beautiful. There are three 250 gram disc weights, the surface of the weight is plated with stainless steel, which can prevent corrosion and rust. You can adjust the height of the test rod by simply turning the screw, suitable for testing various thicknesses of materials, easy to use.


Compact Design

Wide Range of Application

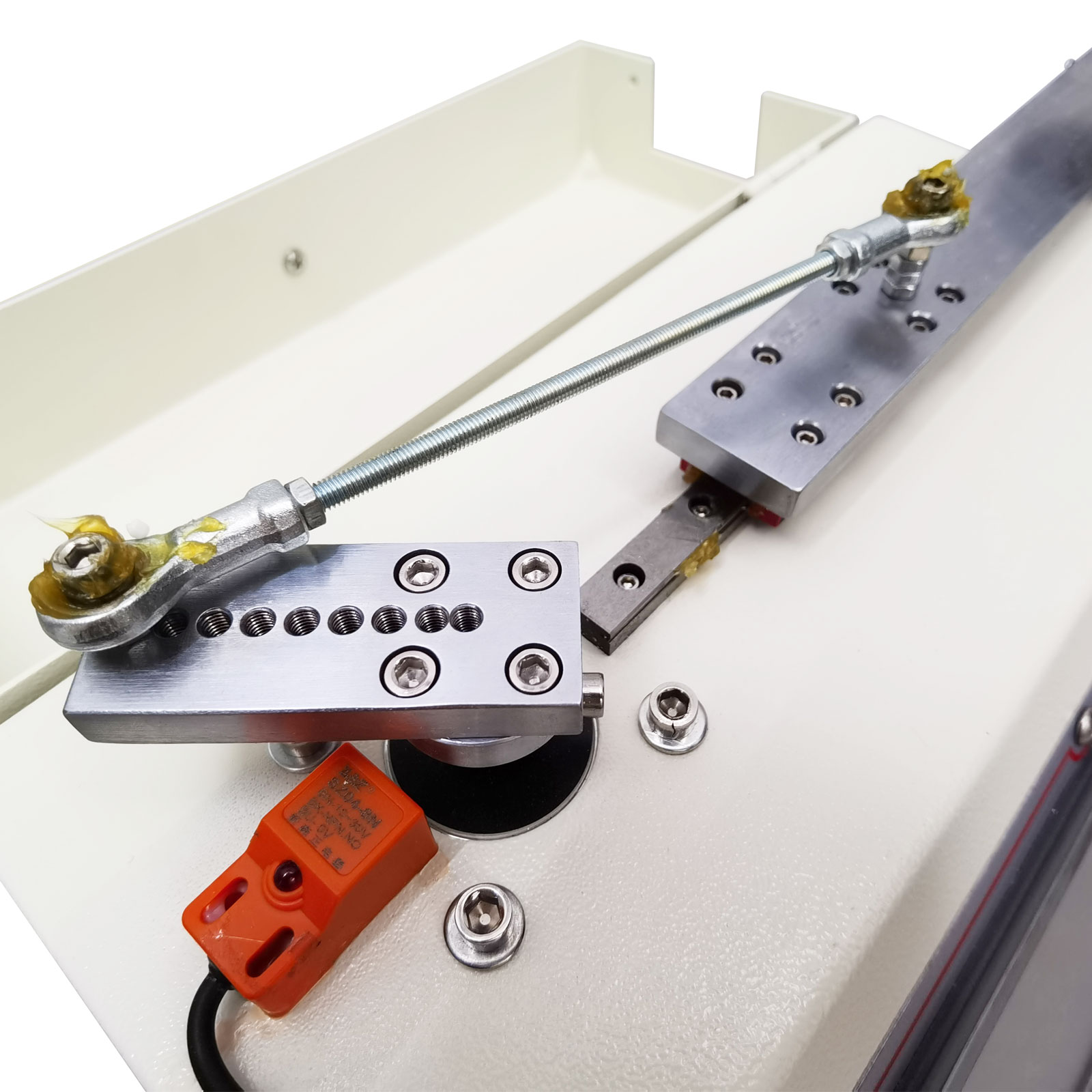

Eccentric shaft construction for adjustable travel. Sensor, each revolution the sensor will sense, the control panel will count, represents how many times the friction. It can test the wear resistance of plastics, auto parts, rubber, leather and textiles, electroplating, paints, printing patterns and other products.

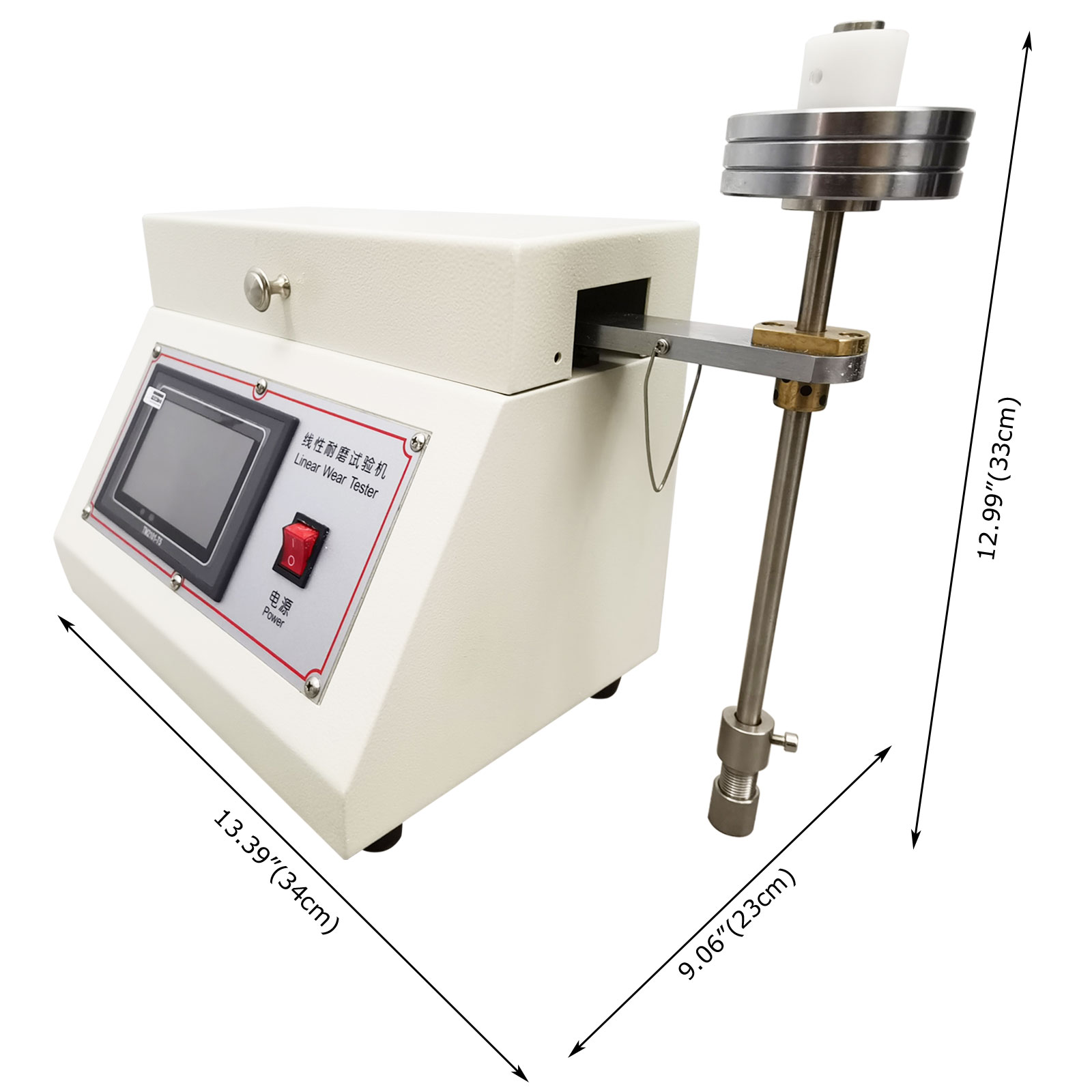

ITEM SIZE DISPLAY
ITEM INCLUDED(056887)

Linear Wear Tester *1

Power Cord *1

Hex Wrench *9

Rubber Strip *1
