1.Simple structure in linear type, easy in installation and maintation.
2.Single workstation, heating box with protects lid.
3.Three hoped heating zone, each zone has different temperatre controller.
4.Hand leaving, the pump will be automatic work.
5.Suction pump at the bottom of the machine.
Specifications

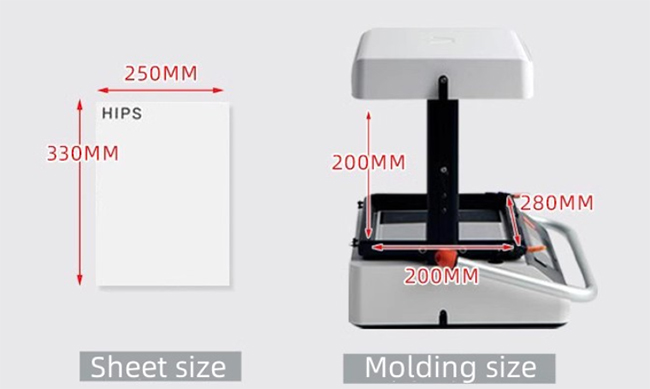

Formed film size: 330 MMX250 MM
Maximum forming film thickness: 3.0 MM
Minimum forming film thickness: 0.2 MM
Molding size: 280 MM X200 MM
Maximum forming depth: 200 MM
Device width: 400 MM
Equipment height: 405 MM
Equipment depth: 335 MM
Equipment weight: 10kg
Input voltage: 100-220VAC
Standard frequency: 50/60HZ
Standard power: 1.32KW
Noise level: 65DB
More introduction:

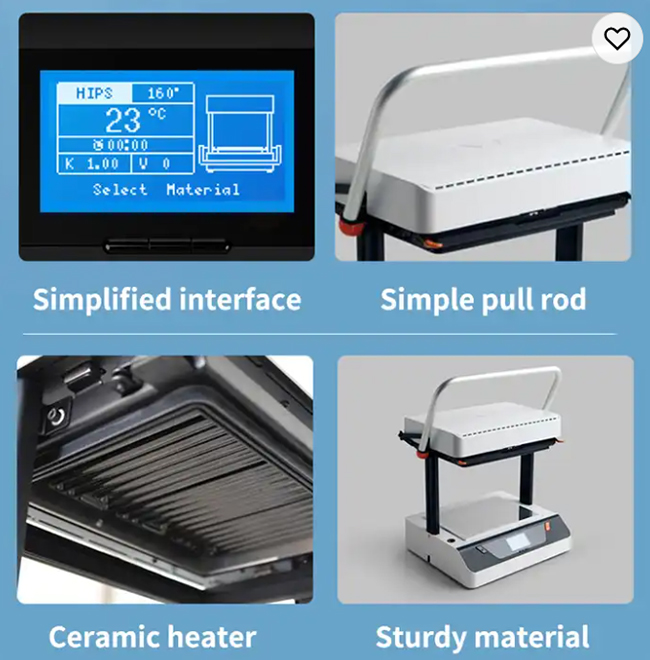

Vaquform is a vacuum (formerly vacuum) molding machine suitable for manual operation. It is easy to use and comes with pre-set control programs and sensors, allowing users to quickly create industrial-grade plastic molds on the desktop. . Vaquform features a powerful ceramic heater that can heat plastic sheets in minutes. The integrated vacuum machine also eliminates the need for an external vacuum cleaner, making production faster and easier.
Vaquform uses 0.3-3.0MM (330mmx250MM) thick plastic sheets, the maximum molding height is 200MM and can be used with 100V-240VAC Power Supplies.
Blister forming machine, also called thermoforming machine, is a machine that absorbs heated and plasticized.Rolls of thermoplastic plastic such as PVC, PE, pppetgips, etc. in various forms of advanced packaging and decoration boxes, frames and other products. Using the vacuum suction generated by the vacuum pump, the thermoplastic plastic heated and softened. Sheets such as PVC and PETG are blistered into various forms of vacuum covers, blister trays, bubble shells, etc.
