HoldPeak HP-570T-APP Bluetooth Clamp Meter Multimeter 4000 counts auto-ranging Test AC/DC voltagecurrent 1000A resistance,capacitance,diode,temperaturecontinuity buzzer test

This is the 570T-App Model:

1.【AC/DC Clamp Meter】

The highly sensitive AC DC volt amp clamp multimeter feature with TRMS 4000 counts auto-ranging, be able to accurately measure AC/DC voltage,AC/DC current to 1000A,resistance,capacitance,diode,temperature(℃/℉),Hz,continuity buzzer test,etc.

2.【Remote Display Via Bluetooth】

Scan the QR code and download the APP first.The wireless Bluetooth digital clamp multi-tester will auto connect with your smart phone in the AILink app(within 15m).Which convenient for you to monitor,log and analyze the max/min/current of volt amp ohm in real time.

3.【Safety & Protection】

The amperage meter with rubber sheeve to protect your volt meter from being broken by fallen. Overload protection is up to standard of CATⅡ1000V or CATⅢ600V in all range.Non-contact voltage(NCV) function can detect voltage without touching any wires and avoid electric shock .

4.【Easy to Operation】

The  voltmeter ammeter with large backlight display,you can read and record the value easily in darkness.Feature with data hold,low battery indication,auto range function.Press “REL” will show the relative testing and zeroing the clamp tester to obtain more accurate measurement.

5.【Accurate Current Meter】

0.1 A Precise Resolution for 0.1-400 A AC DC Current, 1 A for 400 A.1000 A, which means it can accurately test the amperage for both high and low AC DC Current. Ideal pliers meter for solving electromechanical problems in car diagnostics, boats, cables and household appliances, etc
amp clamp multimeter meter ammeter current dc ac clamp probe amperimetro voltimetro  amp clamp multimeter meter ammeter current dc ac clamp probe amperimetro voltimetro  amp clamp multimeter meter ammeter current dc ac clamp probe amperimetro voltimetro

Features

√ Data Hold YES
√ Diode Test YES
√ Auto power off YES
√ Backlight Display YES
√ NCV Testing YES
√ True RMS YES
√ Overload P rotection YES
√Temperature: Celsius, Fahrenheit Unit YES
√ Phone APP Connection YES
Brand: HOLDPEAK

Range selection: Auto Ranging

Maximum display: 4000 counts

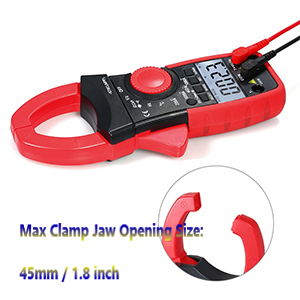

JAW Max Opneing Size: 45mm

DC voltage: 400mV～1000V (+/-0.5%+2)

AC voltage: 4V～750V (+/-1.0%+3)

DC current: 400A～1000A (+/-3.0%+10 )

AC Current:400A～1000A (+/-3.0%+10 )

Resistance: 400Ω～40MΩ

Capacitance: 4nF～200μF

Frequency:9.999Hz～9.999MHz (+/-0.1%+5 digits)

Temperature: -20～1000℃/-4～1832℉

Operating temperature: 0 to 40℃ (relative humidity <85%)

Storage temperature: -10 to 50℃ (relative humidity <85%)

Guaranteed precision Temp.: 23±5 (relative humidity <70%)

Duty Cycle: 0.1%~ 99.9% ±( 2.0% of rdg + 2 digits )

Temperature test: (K-sensor, Celsius, Fahrenheit unit: -20 to 1000°C, -4 to 1832°F)



Wireless connection with your phones Adopt Intelligent Bluetooth APP can find your clamp meter automatically, or you can add BT-570S APP manually in just a few seconds. The app can be used on IOS or Android mobile devices. The app can be used in IOS 7.0 or Android 4.30 system and above on smartphones or tablets.
Both AC/DC volt ampere clamp meter It can accurately measure DCV up to 0.1 m volts, ACV up to 1 m volts; DC/AC current up to 0.1 A; Resistance up to 0.1 Ohm. Equipped with "REL" button for zeroing for magnetic environments to ensure you get accurate readings anytime, anywhere.

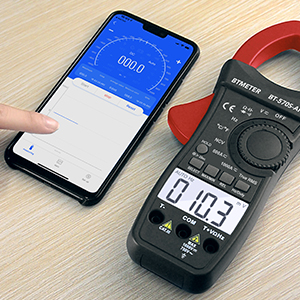

Wireless connection with your phones:

Adopt Intelligent Bluetooth APP can find your clamp meter automatically,
or you can add BT-570S APP manually in just a few seconds.
The app can be used on IOS or Android mobile devices.
The app can be used in IOS 7.0 or Android 4.30 system and above on smartphones or tablets.

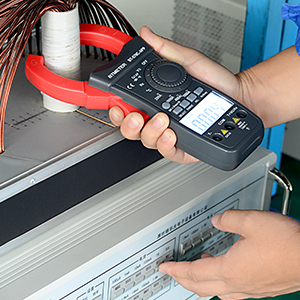

Both AC/DC volt ampere clamp meter:

It can accurately measure DCV up to 0.1 m volts, ACV up to 1 m volts; DC/AC current up to 0.1 A;
Resistance up to 0.1 Ohm. Equipped with "REL" button for zeroing for magnetic environments
to ensure you get accurate readings anytime, anywhere.








Monitor logging remotely The app displays the measured values synchronously, including MAX/MIN/average and measurement time. This means that you can remotely record readings every 1-120 minutes from different floors, from the ground to the roof, within 49 feet from a distance.
Caption


Monitor logging remotely:

The app displays the measured values synchronously, including MAX/MIN/average and measurement time. This means
that you can remotely record readings every 1-120 minutes from different floors, from the ground to the roof,
within 49 feet from a distance.












DC Voltage Range

Resolution

Accuracy

400mV

0.1mV











   ±(0.5% of rdg + 2 digits)










4V

1mV

40V

10mV

400V

100mV

1000V

1V

±(0.8% of rdg + 2 digits)

AC Voltage Range

Resolution

Accuracy

4V

1mV

±(1.0% of rdg + 3 digits)

40V

10mV

 ±(1.0% of rdg + 3 digits)

400V

100mV

 ±(1.0% of rdg + 3 digits)

750V

1V

±(1.5% of rdg + 3 digits)

DC Current  Range

Resolution

Accuracy

400A

100mA

±(2.5% of rdg + 10 digits)

1000A

1A

±(3.0% of rdg + 10 digits)



AC Current  Range

Resolution

Accuracy

400A

100mA

±(2.5% of rdg + 10 digits)

1000A

1A

±(3.0% of rdg + 10 digits)



Resistance  Range

Resolution

Accuracy

400Ω

0.1Ω

±(1.0% of rdg + 3 digits)

4kΩ

1Ω

±(1.0% of rdg + 2 digits)

40kΩ

10Ω

±(1.0% of rdg + 2 digits)

400kΩ

100Ω

±(1.0% of rdg + 2 digits)

4MΩ

1kΩ

±(1.0% of rdg + 2 digits)

40MΩ

10kΩ

±(1.5% of rdg + 3 digits)



capacitance Range

 Accuracy

Resolution

4nF

±(5.0% of rdg + 10 digits)

1pF

40nF

±(3.0% of rdg + 10 digits)

10pF

400nF

±(3.0% of rdg + 10 digits)

100pF

4µF

±(3.0% of rdg + 10 digits)

1nF

40µF

±(3.0% of rdg + 10 digits)

10nF

200µF

±(5.0% of rdg + 10 digits)

100nF



Range

Accuracy

Resolution

9.999Hz

± (0.1% of rdg + 5 digits)

0.001Hz

99.99Hz

± (0.1% of rdg + 5 digits)

0.01Hz

999.9Hz

± (0.1% of rdg + 5 digits)

0.1Hz

9.999kHz

± (0.1% of rdg + 5 digits)

1Hz

99.99kHz

± (0.1% of rdg + 5 digits)

10Hz

999.9kHz

± (0.1% of rdg + 5 digits)

100Hz

9.999MHz

± (0.1% of rdg + 5 digits)

1kHz



Temperature Range

Accuracy

Resolution

℃

-20~150℃

± ( 3℃+ 1digit )

1℃

 ℃





150~1000℃





± ( 3% of rdg + 2digits )

 1℃

℉

-4~302℉

± ( 5℉+ 2digits )

1℉



℉



302~1832℉



± ( 3% of rdg + 3digits )



1℉







Range







Description







Test Condition





          Diode Test



Display read approximately

forward voltage of diode

Forward DC current

approx. 1.5mA

Reversed DC voltage

approx. 4V





        continuity tester



Built-in buzzer sounds if resistance is less than 50Ω



Open circuit voltage



approx. 2V


What's in the package？
1 * HoldPeak 570T-APP Clamp Meters
1 * Test Lead
1 * English Manual
1 * Storage Bag

Note:
If you have any question please contact us, we will reply you ASAP.
If you need a clamp meter with higher test accuracy, the 7200 series clamp meter in the shop is for you to choose


HP-570T-APP connection instructions:
1. scan the QR code or search "AiLink" on Google Play/APP Store to download

2. turn on Bluetooth on your cell phone → open the APP → register the app

3. on the "Devices" page → press "+" in the top right-hand corner → select "Nearby devices" → "Clamp Meter 27:A5"

4. press "Start" → Enjoy your measurement.

Tips:

a) To ensure continuous data recording, the clamp multimeter will not turn off automatically unless the battery is dead

b) You can set the sampling rate from 1 time/minute to 120 times/minute.

c) Make sure that you press "STOP" in the APP after the measurement, otherwise the data will not be saved.
