descriptions：

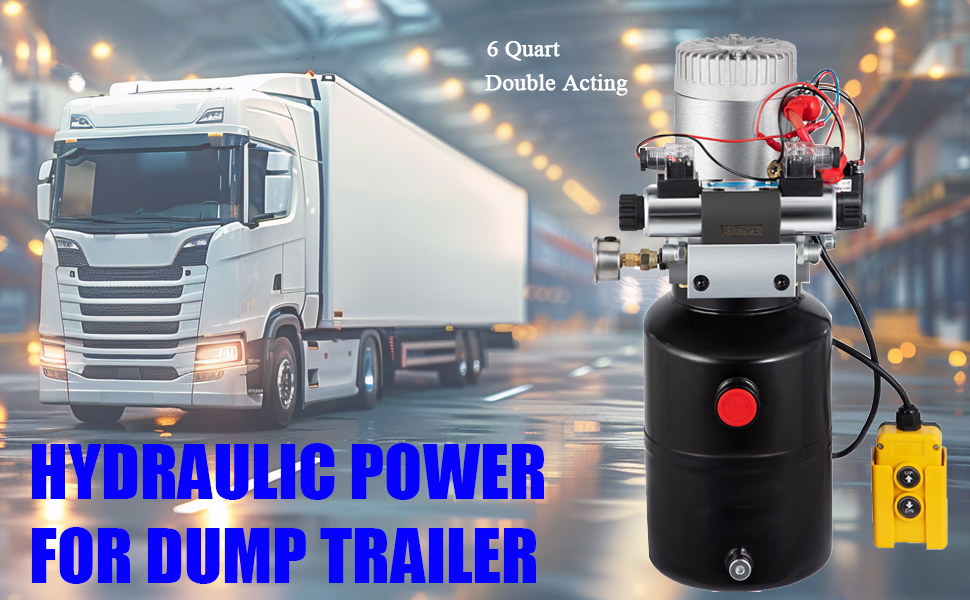

Hydraulic Pump
6L ＆ Double Acting ＆ 12V DC
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 6L sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
1. Upgrade hydraulic power unit
The upgraded electro-hydraulic power unit has the unique characteristics of other hydraulic power units. It has a powerful hydraulic pump and is equipped with a hydraulic gauge, which can accurately display the pressure value and estimate the weight of the lifting object.
2. Dual function and quick start
The dump trailer hydraulic pump is made of stainless steel and is very durable. Dual effect power supply, maximum 3200 PSI. Increase the floating position of the power; the maximum floating position of port B is 1500 HP. It offers you quick start-up and long-term use every time.
3. Excellent oil performance
This hydraulic dump trailer hydraulic pump is equipped with a standard 12V DC motor with a metal tank; it is installed horizontally; a hand-held controller with a 20-foot (approx. 50.8 m) offline and start solenoid hose. It will not crack or leak in harsh environments.
4. Full Equipment
The tilting hydraulic power unit has a hydraulic pressure gauge, monitors the pressure and controls the hanging device remotely, so that it can be operated over a long distance. It also includes hydraulic meters, high-pressure gear pumps, DC motors, integrated multi-function modules, various function valves, fuel tanks and other components.
5. Robust
This hydraulic pump unit is made of high-quality stainless steel. It is more wear-resistant and durable. With pressure relief valve to avoid overpressure damage.
6. Various Applications
Hydraulic power units are often used as a power source for lifting and pushing devices. It is also used in places where the hydraulic cylinder needs to be expanded, such as scissor lifts, dump trucks, dump trucks, RVs, boat lifts, lift gates, trailers, wrecks, car trailers and agricultural equipment.
6L ＆ Double Acting ＆ 12V DC
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 6L sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
Features:
1. Upgrade hydraulic power unit
The upgraded electro-hydraulic power unit has the unique characteristics of other hydraulic power units. It has a powerful hydraulic pump and is equipped with a hydraulic gauge, which can accurately display the pressure value and estimate the weight of the lifting object.
2. Dual function and quick start
The dump trailer hydraulic pump is made of stainless steel and is very durable. Dual effect power supply, maximum 3200 PSI. Increase the floating position of the power; the maximum floating position of port B is 1500 HP. It offers you quick start-up and long-term use every time.
3. Excellent oil performance
This hydraulic dump trailer hydraulic pump is equipped with a standard 12V DC motor with a metal tank; it is installed horizontally; a hand-held controller with a 20-foot (approx. 50.8 m) offline and start solenoid hose. It will not crack or leak in harsh environments.
4. Full Equipment
The tilting hydraulic power unit has a hydraulic pressure gauge, monitors the pressure and controls the hanging device remotely, so that it can be operated over a long distance. It also includes hydraulic meters, high-pressure gear pumps, DC motors, integrated multi-function modules, various function valves, fuel tanks and other components.
5. Robust
This hydraulic pump unit is made of high-quality stainless steel. It is more wear-resistant and durable. With pressure relief valve to avoid overpressure damage.
6. Various Applications
Hydraulic power units are often used as a power source for lifting and pushing devices. It is also used in places where the hydraulic cylinder needs to be expanded, such as scissor lifts, dump trucks, dump trucks, RVs, boat lifts, lift gates, trailers, wrecks, car trailers and agricultural equipment.
Specifications:
| Model: | 6L double-acting hydraulic pump |
| Tank Material : | Metal |
| Tank capacity : |
6L/1.5 Gal |
| Flow ： | 2.0 GPM |
| Rated speed ： |
2850R/MIN |
| Voltage : | DC12V |
| Power : |
1.6KW (Rated Power), 3.0KW (Max) |
| Duty cycle : |
3 minutes |
| Traffic : |
1.1 cc/r |
| Rotation : |
Clockwise |
| Connection : |
SAE #6 |
| Installation position : |
horizontal |
| Control : |
Solenoid and handheld control unit |
| Pendulum control length : |
4.5 m/ 15ft |
PACKAGE INCLUDED:
1 x 6L double-acting hydraulic pump (with pressure gauge)
1 x Remote Control Unit
1 x SAE #6 Connector
1 x set of sealing rings and gaskets
1 x English Manual
