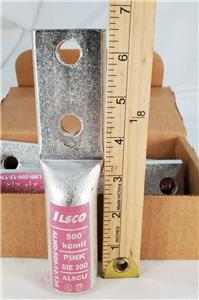

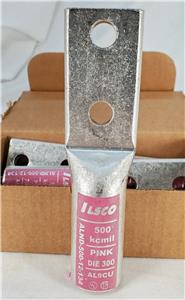

ILSCO ALND-500-12-134 Surecrimp Aluminum Lug Wire Size 500 Bolt 1/2"

You will Receive 1

ILSCO ALND-500-12-134 Surecrimp Aluminum Lug Wire Size 500 Bolt 1/2"

Conductor Type Stranded

Additional Class Attributes

Barrel Marking Hard

Barrel Type Long

Connecting Angle180°

Connection Compression

Contains DE-OX®Yes

Flared End No

ILSCOs Die Catalog Number ILD-300

ILSCOs Die Index Number 300

Mounting Hole Type Thru

Narrow TangNo

Number of Mounting Holes 2

Sight Window No

Slotted No

Tang End Shape Square

Undrilled No

Material and Finish

Conductor Material Copper

Conductor Material Aluminum

Connector Finish Tin

Insulation NA

Material Aluminum

Bolt and Screw Sizes

Mounting Bolt/Stud Size 1/2

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line) 500 kcmil

Conductor Range CU Solid (Primary, run, main, line) NA

Conductor Range CU Stranded (Primary, run, main, line) 500 kcmil

Conductor Range AL Solid (Primary, run, main, line) NA

Expanded Conductor Range 500 kcmil - 4/0 Str

Flex Conductor Range NA

Environment and Temperature

Temperature Rating 90°C

Color

Color Silver

Color Code Pink

Voltage

Voltage Rating 35 kV

Testing Standards

CSA File Number LR-29601

CSA Standard C22.2 No. 65-03

NEBS Rating NA

Prop 65 Compliance This product is in compliance with Prop 65. It is not known to contain any chemicals associated with this regulation

ROHS Indicator IND

UL Control Number 453G

UL / CULUS Specification UL 486A/B Listed

UL File Number E6207

Dimensions

Barrel Length (IN) 2.565

Barrel Length (mm) 65.151

Dimension G (IN) 0.546

Dimension G (mm) 13.8684

Height (IN) 1.36

Height BX (IN) 2.25

Height (mm) 34.544

Inside Diameter (IN) 0.854

Inside Diameter (mm) 21.6916

Length (IN) 6.45

Length (mm) 163.83

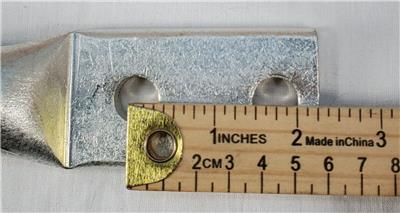

Mounting Hole Diameter (IN) 0.562

Mounting Hole Diameter (mm) 14.2748

Mounting Hole Spacing (IN) 1.75

Mounting Hole Spacing (mm) 44.45

Outside Diameter (IN) 1.315

Outside Diameter (mm) 33.401

Strip Length (mm) 66.7385

Tang Length (IN) 3

Tang Length (mm) 76.2

Tang Thickness (IN) 0.461

Tang Thickness (mm) 11.7094

Tang Width (IN) 1.802

Tang Width (mm) 45.7708

Weight (LB) 0.456

Weight BX (LB) 1.4815

Width (IN) 1.802

Width BX (IN) 4.25

Width (mm) 45.7708

General

Bag Quantity 1

Direct Burial No

Dual Rated Yes

NEMA Code S-588-3

UPC Code 78366968768
