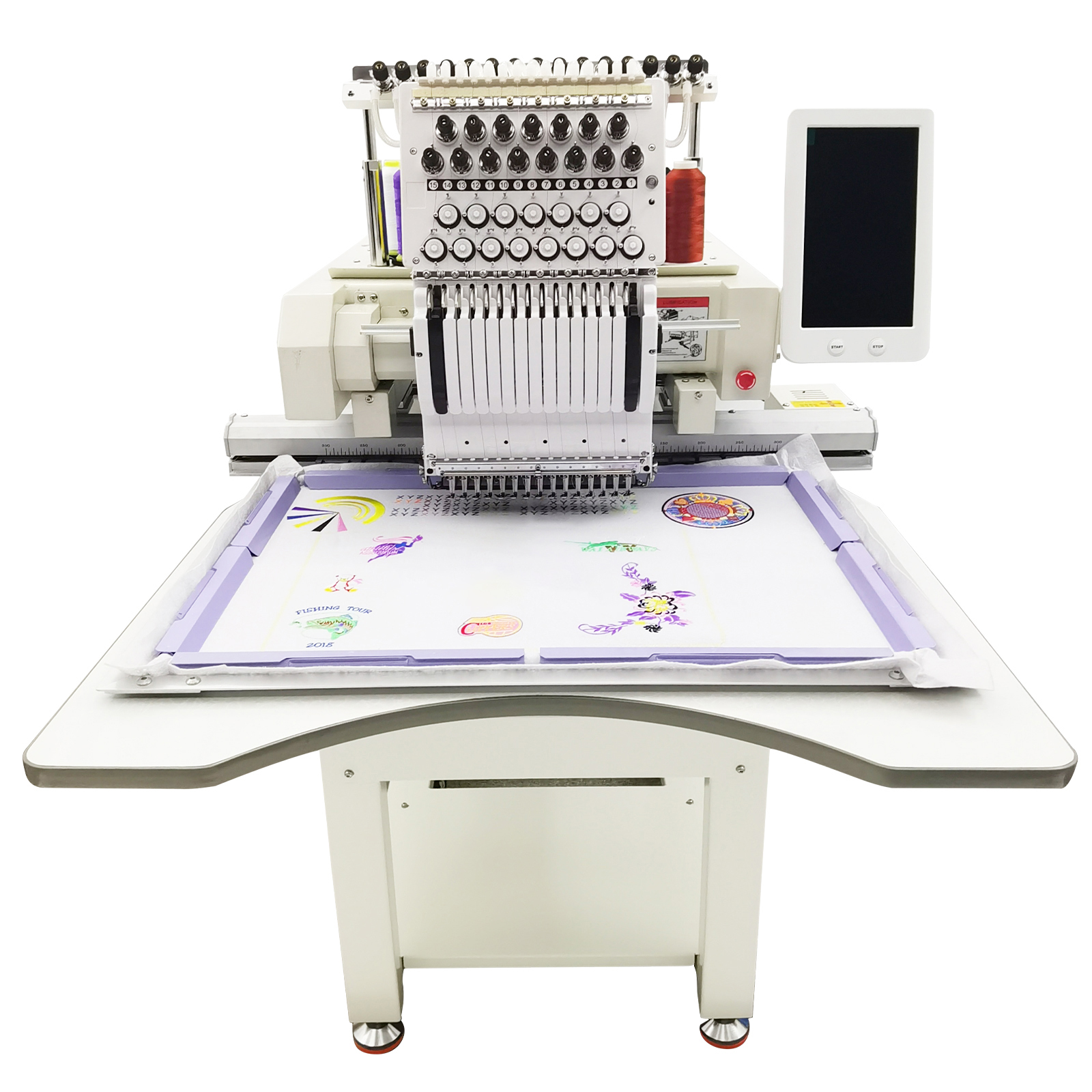

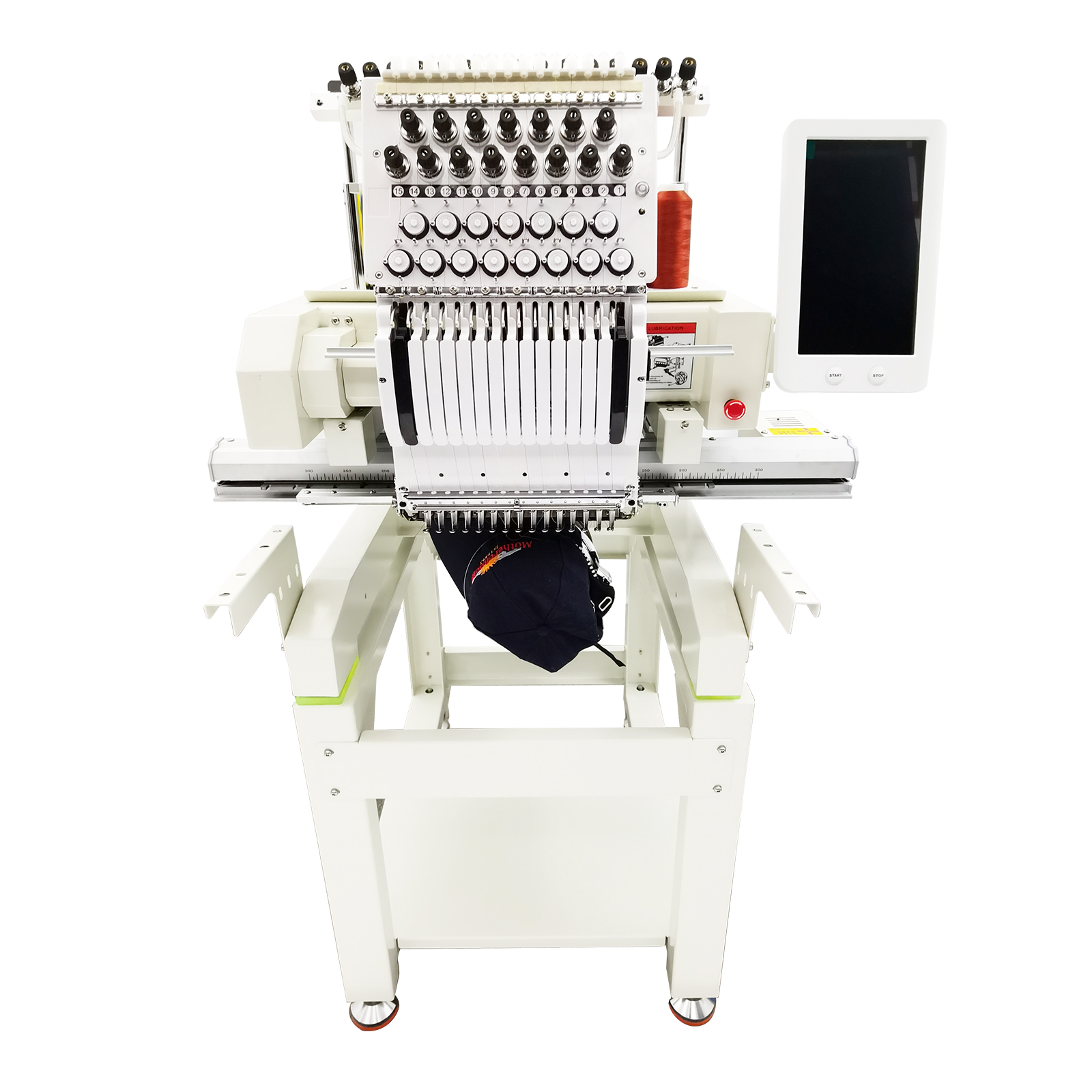

110-220V Single Head 15 Needle Commercial Automatic Embroidery Machine

TECHTONGDA®
​










          ITEM DESCRIPTION

  • Automatic thread tension and trimmer.

  • Automatic color switch.

  • Built-in memory for storing designs.

  • USB port for importing designs.

  • 270 ° wide-angle hat embroidery device.
  • USB input or transferring patterns through a computer.
  • Internet connectivity (WiFi or Ethernet).
  • Retrain embroidery, return to origin, return to embroidery stop point, and power-off protection.
  • Support embroidery frame displacement and embroidery frame wheel path for easy decal embroidery.






  • Pre set embroidery frame parameters to prevent frame collision.
  • Pattern preview and display real-time stitching.
  • Infrared positioning, no difference at all.
  • Multiple sizes of embroidery frames can be selected according to different embroidery needs.
  • Automatic memory retention.
  • Compatible with various embroidery formats.
  • Wooden crate packaging.
The machine adopts single head design for precise control; 15 needles for multi-color embroidery; Large 15.7" x 23.6" embroidery field; High-speed embroidery (up to 1,000 stitches/minute). Widely used in trendy clothing stores, chain specialty stores, DIY personalized embroidery online stores, home/hand embroidery small workshops, college/institutional teaching, factory sampling/small batch production, college students (dream entrepreneurs) and other industries. Suitable for flat embroidery, hat embroidery, ready to wear embroidery, and more applications.
ITEM PARAMETERS(Steam Generator)
Voltage: AC110V-220V
Power: 300W
Motor power: 200W
Number of heads: Single head
Needle count: 15 needles
Embroidery area: 15.7"*23.6"(400*600mm)
Embroidery speed: 1000 stitches/minute
Memory: 20 Million stitches
Display screen:
10-inch LCD touch screen
Screen resolution:
1024*600
Stepping Precision:
Minimum stitch 0.004"(0.1mm)
Stitch range:
0.004"-0.5"(0.1mm-12.7mm)
Pattern input & output:
USB, Network
Thread cutting method: Motor thread cutter
Special embroidery support:
Yes
Lock Encryption:
 Yes
Embroidery format: DST DSB
Multi-Language Support:
13 countries including Chinese, English, Russian, Türkiye, German and Italian
Standard equipment: Flat embroidery, ready to wear embroidery, hat embroidery
(sock embroidery: molds need to be purchased separately)

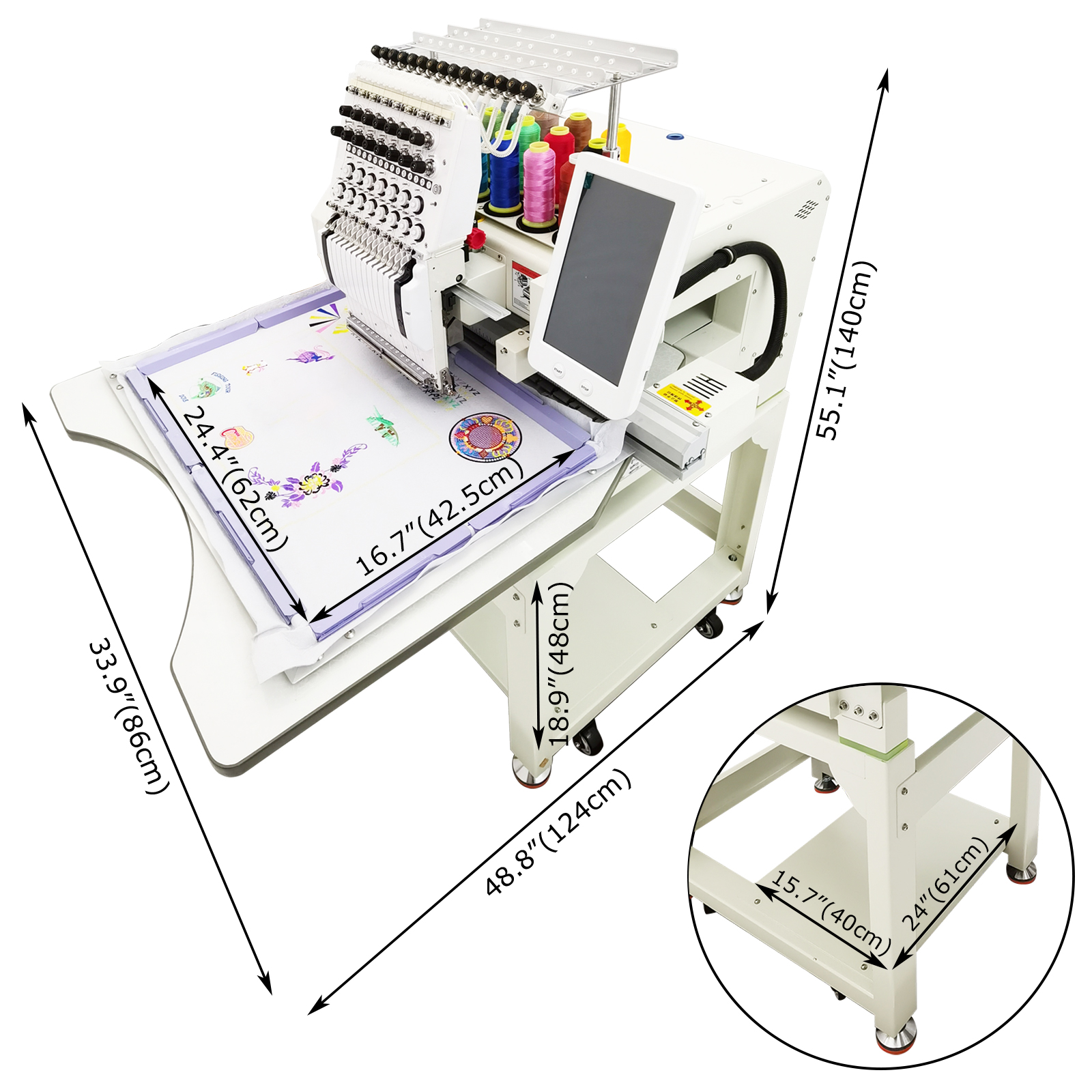

Package size: 44.5"*34.6"*35.8" (113cm*88cm*91cm)
Net weight/Gross weight: 377lbs(171kg) / 500.4lbs(227kg)
ITEM DETAILS

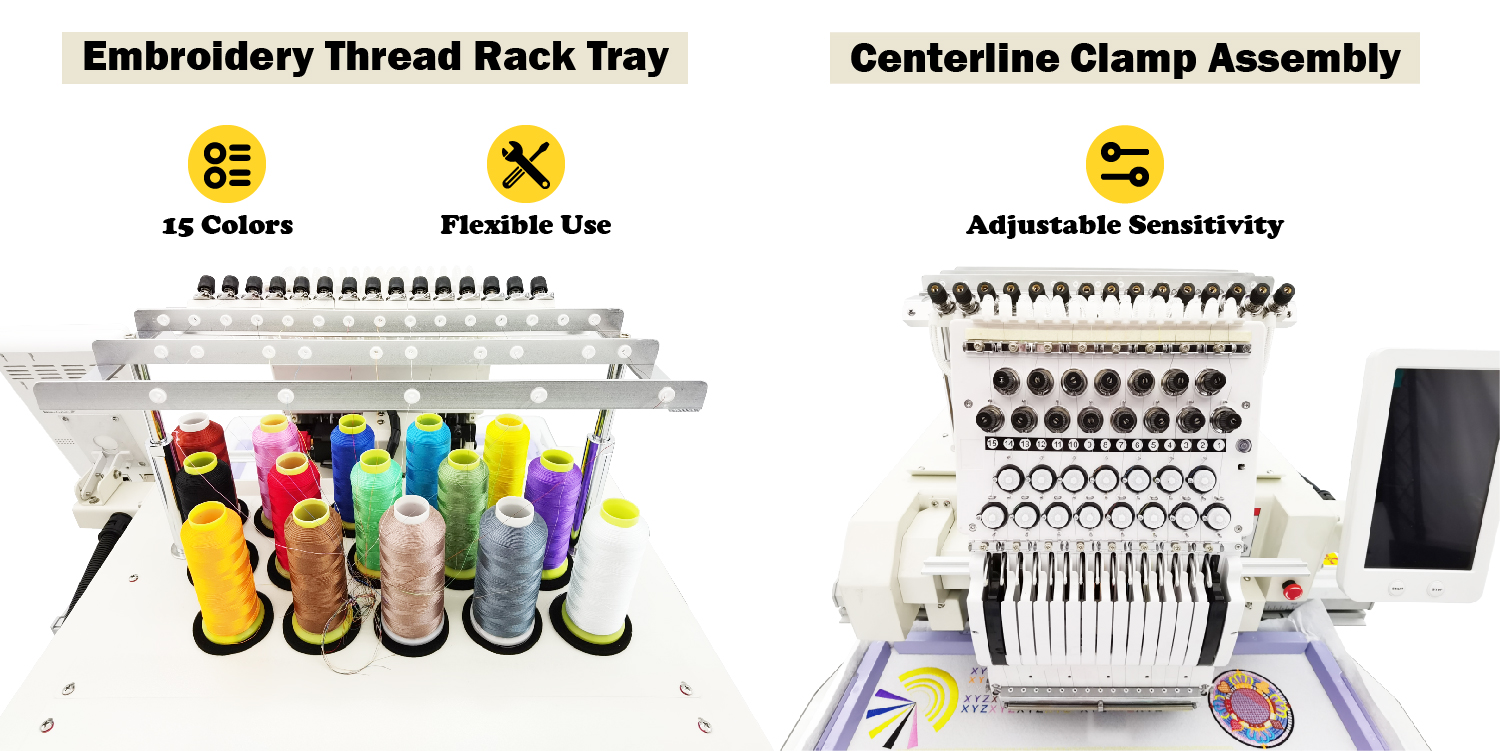

The tray is used to store 15 colors of embroidery threads,
while the tray provides solid support to prevent embroidery errors due to vibration or deflection.
 The centerline clamp assembly can fix the embroidery cloth in the embroidery frame below, and intelligently detect the thread breakage alarm, to ensure the sewing quality.

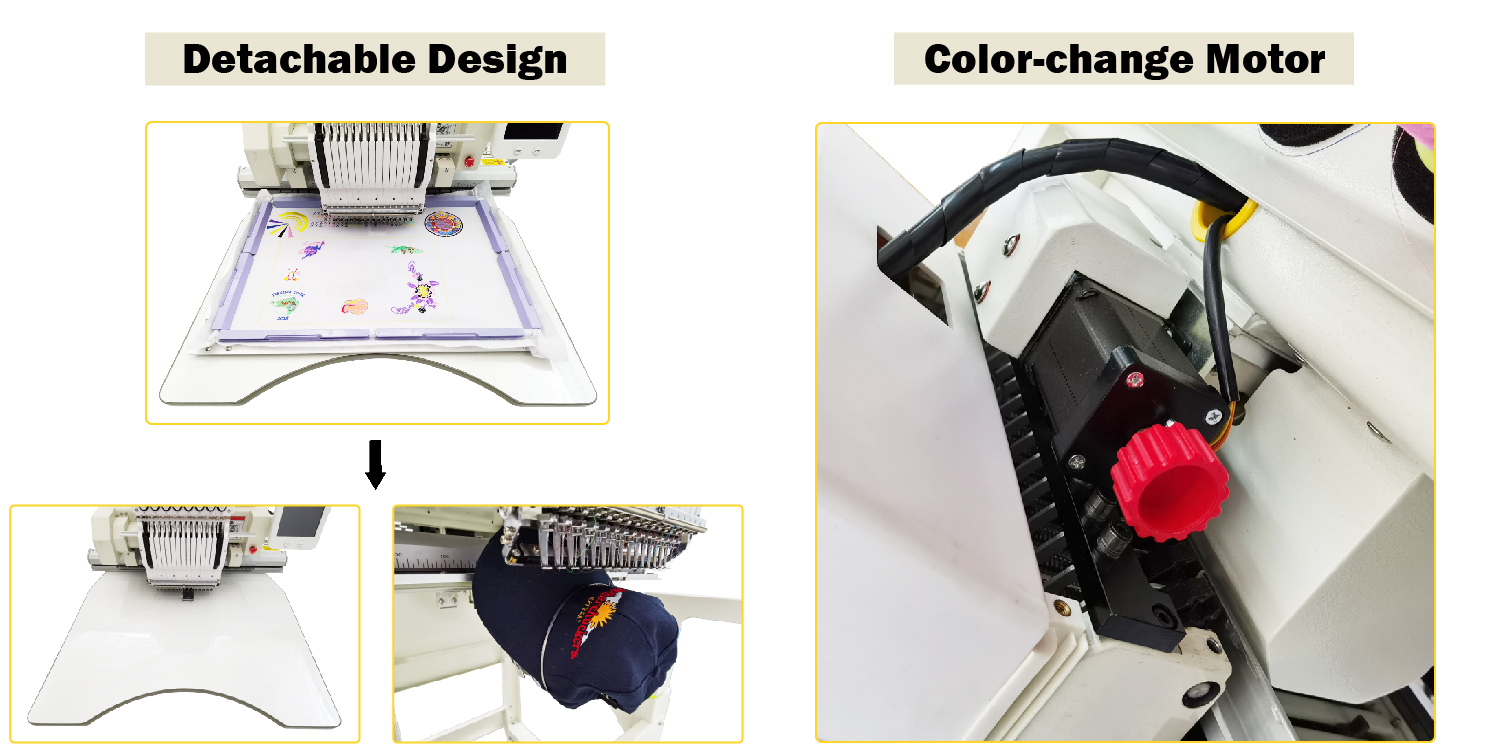

The embroidery frame and table top are removable, making it easy to change embroidery patterns and replace corresponding parts quickly. Through automated control of color change, the color change motor is able to complete embroidery operations in multiple colors, significantly improving production efficiency.

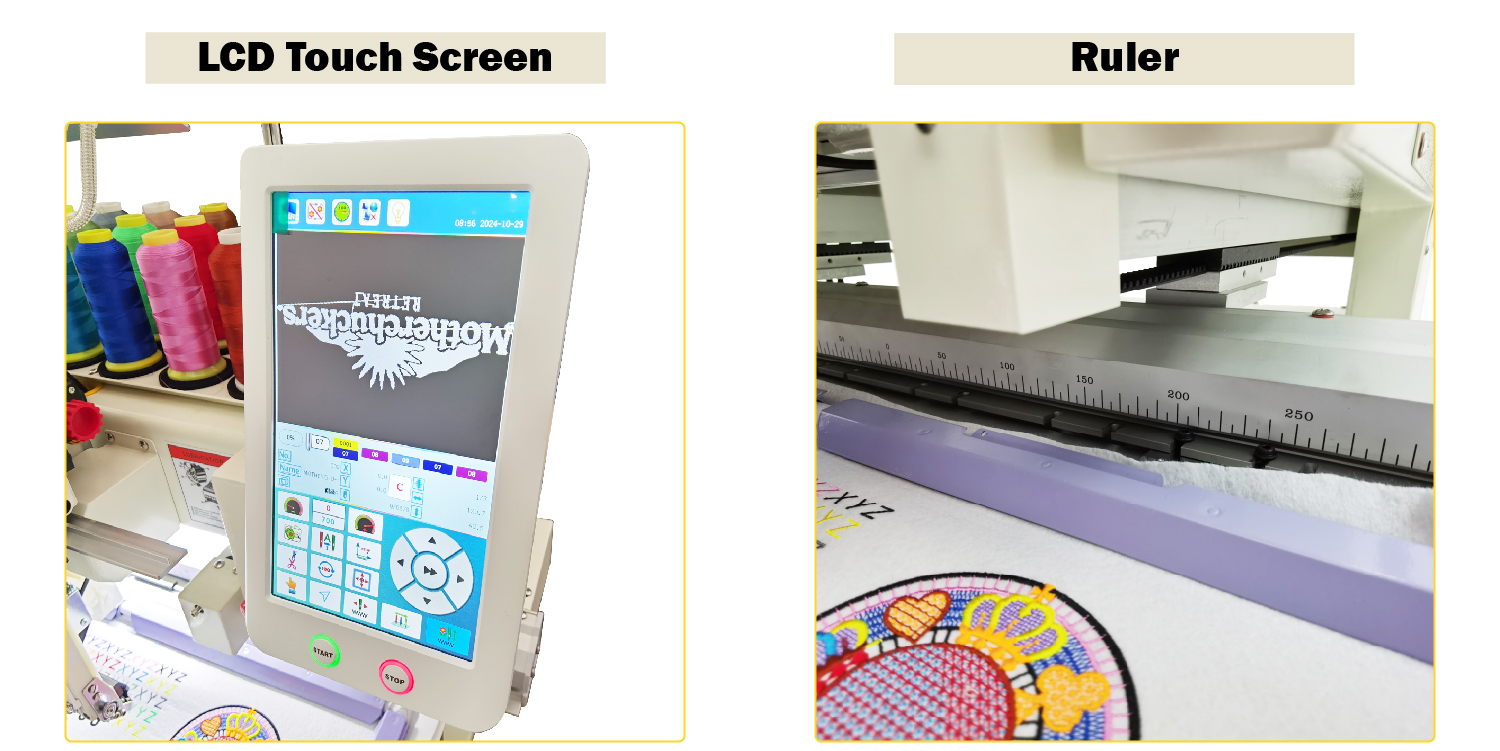

10 inch LCD touch screen, high-definition picture, built-in multi-language, easy to operate and responsive. With the ruler, you can check the movement range of the embroidery frame at any time.

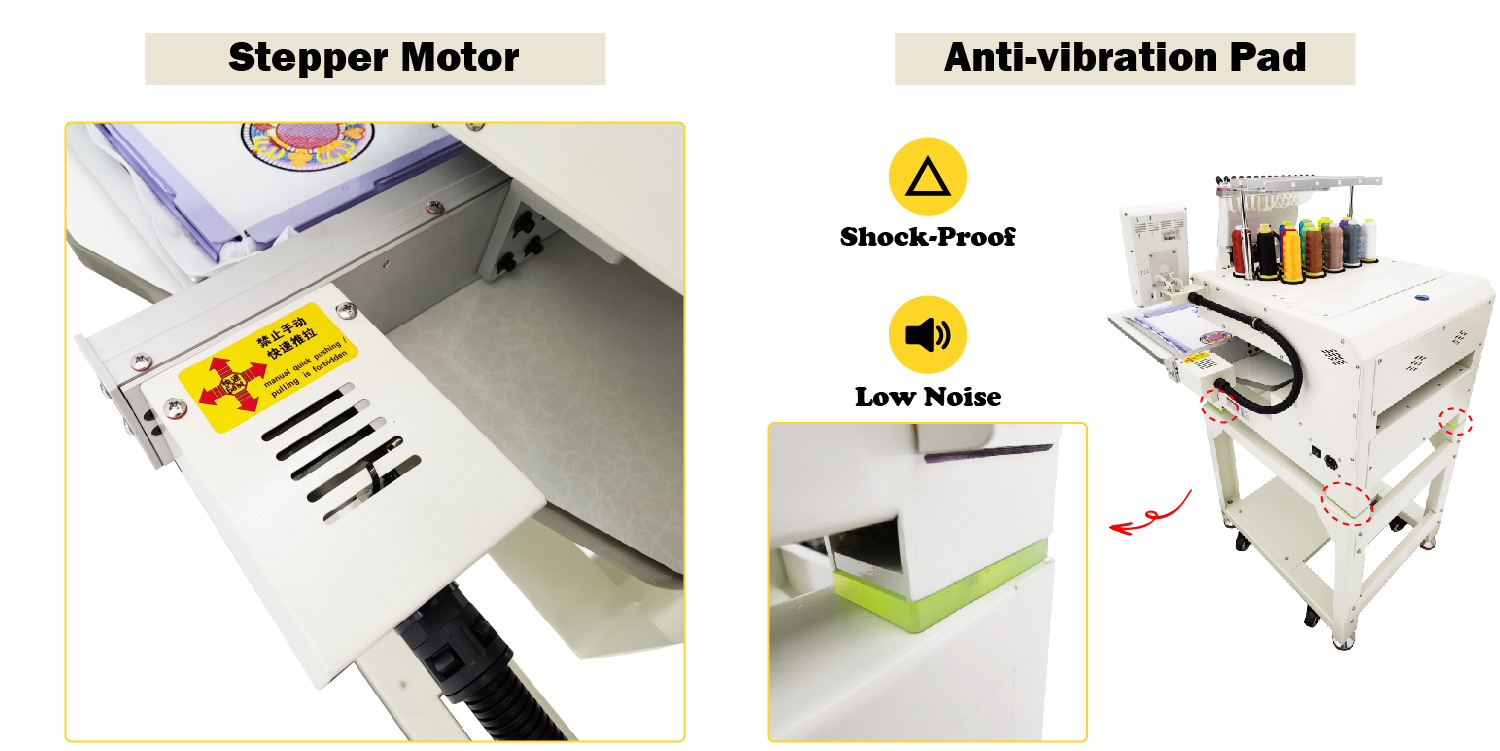

The stepper motor is characterized by light sound, low wear, low failure rate and good stability. It can precisely control the position of each step, thus ensuring the quality and efficiency of embroidery. Since the anti-vibration pad can effectively reduce the vibration, the machine will be more stable in the embroidery process, thus improving the quality and accuracy of embroidery.

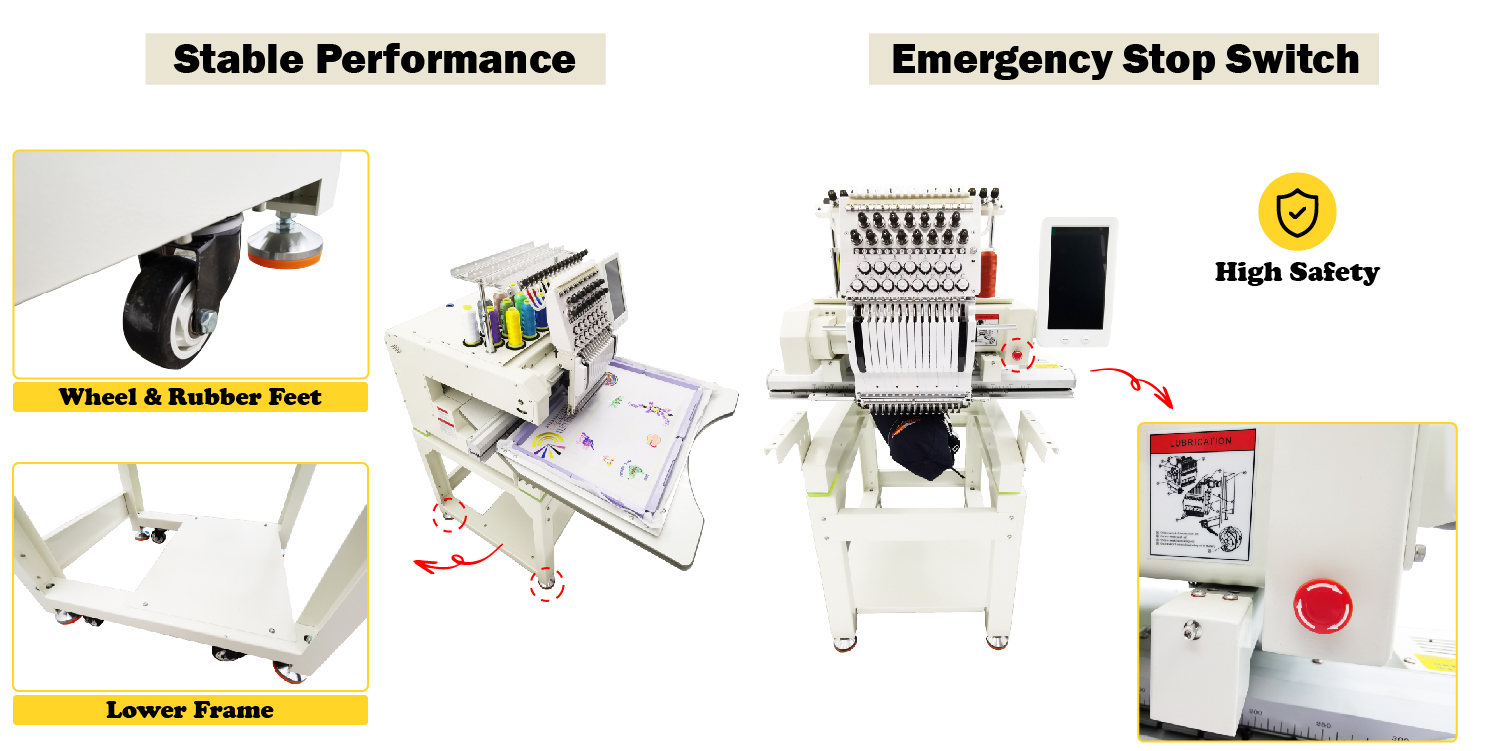

Equipped with four 360° universal wheels, easy to move. The non-slip rubber feet will increase stability, ensuring minimal movement. The lower frame can support the machine well to ensure the stability and precision of the embroidery machine during operation. To protect your safety, we have designed an emergency switch button. In case of danger and emergency, the machine can be stopped immediately, making the operation safer and more reliable.
ITEM INCLUDED(056606)
Automatic Embroidery Machine *1 Accessory Kit *1
You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
