About this item

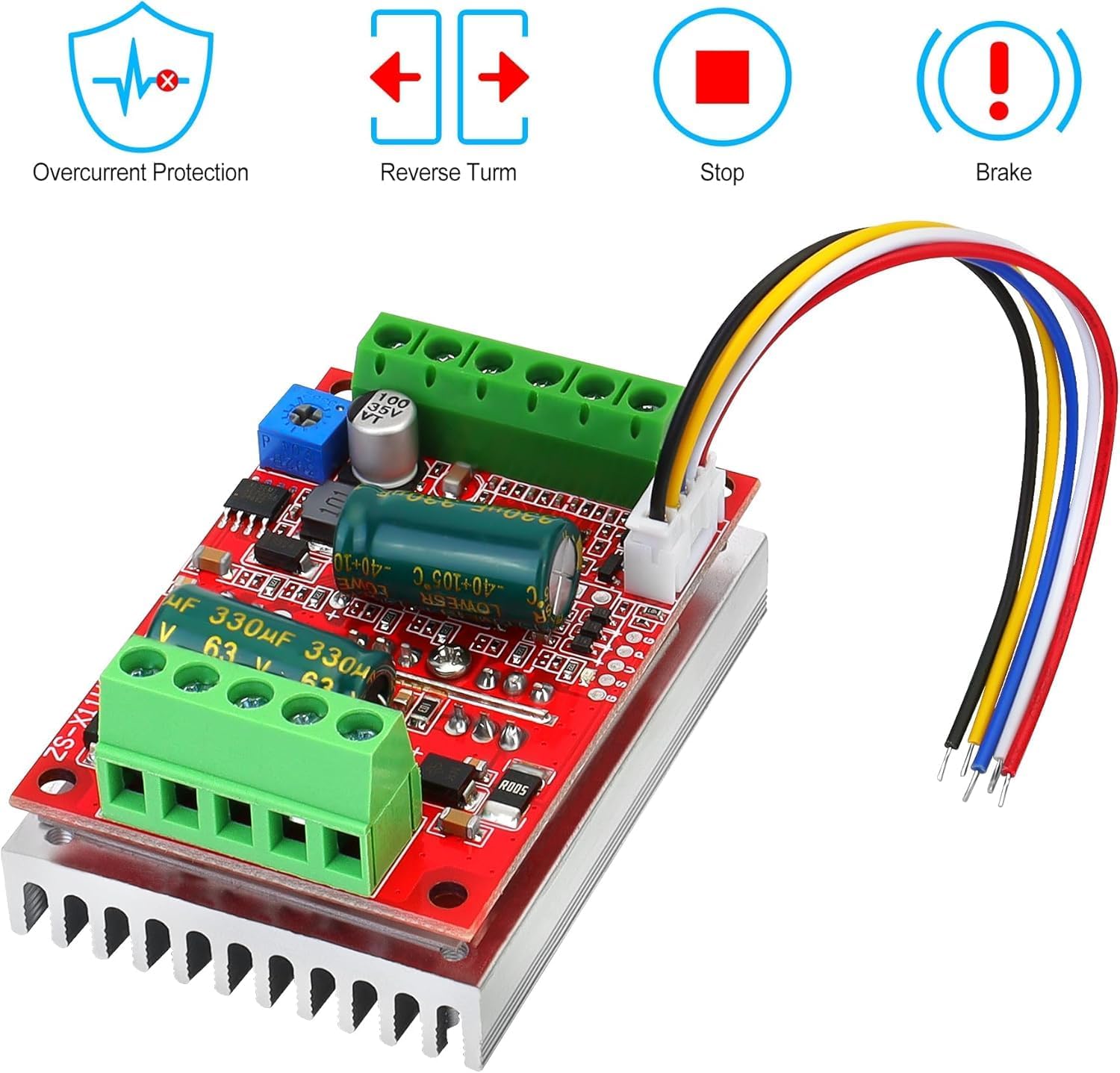

• Product Parameters: BLDC brushless control board wide voltage 6-60V, high power 400W, DC three-phase brushless hall controller, support for PLC 0-5V touch volume control, support for PWM control, amplitude 2.5-5V. This driver is only applicable to the electric angle of 120 degrees of DC brushless hall motor
• Note: Brushless motors also generally have five Hall wires or interfaces. Two of them are hall power supply line, three are hall signal line, to distinguish especially hall power supply line. Three Hall signal lines are generally labeled a b c, the driver board also has ha Hb Hc three ports and other similar characters, respectively, corresponding to connect
• Features: MA MB MC phase line output motor. 5V GND The mainboard comes with a 5V power supply. VCC GND Main power supply. SC speed pulse signal output. DIR Direction control Forward/reverse control interface. STOP Stop the control interface. BRAKE Brake control Indicates the brake control port. Speed control Input speed control signals. Ha Hb Hc +5V GND Hall signal power supply input interface. Generally, the motor with Hall has the corresponding 5 wires
• Note: This controller requires hall to function. If your motor doesn't have a hall then it won't work. The brushless motor application scenarios are very wide, such as electric vehicles, drones, fans, blowers, range hoods
• Package: The product comes with 2pcs of Brushless Motor Controller and wires
