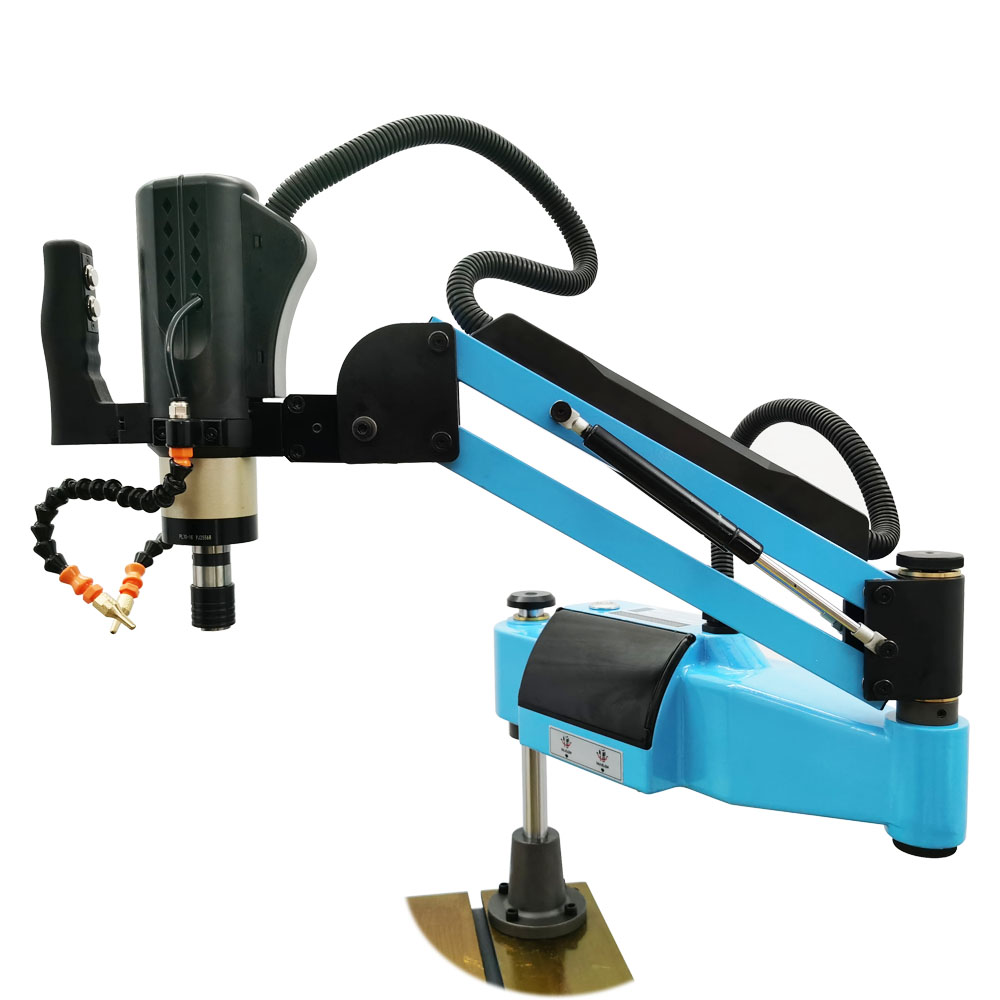

M3-M16 Universal 360° Electric Touch Tapping Machine 220V 600W

TECHTONGDA®
         ITEM DESCRIPTION
  • There are three modes for you to choose: manual, automatic and deep hole machining.
  • The preset torque of the machine plus the double protection of the torque chuck can prevent the tap from breaking.
  • Newly upgraded 600W high power, can bring more torque.
  • The rotating parts are made of graphite copper sleeves and bearings, which are flexible in rotation, more wear-resistant, and have high tapping accuracy.
  • Wide range of processing materials, can process aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H,40Cr, stainless steel and other materials.
This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice.
ITEM PARAMETER
Tapping capacity: M3-M16
Voltage: AC220V
Motor Power: 600W(0.8HP)
Collet type: GT12
Working area: Horizontal:43.3"(1.1m)      Vertical:21.6"(0.55m)
Spindle speed: 1-312rpm
Working angle: 360°universal
Maximum torque: 35N.m
Color: Blue
Package size: 28.7"*29.1"*10.6"(73cm*74cm*27cm)
Net weight/Gross weight: 50.7LB(23kg)/70.5LB(32kg)

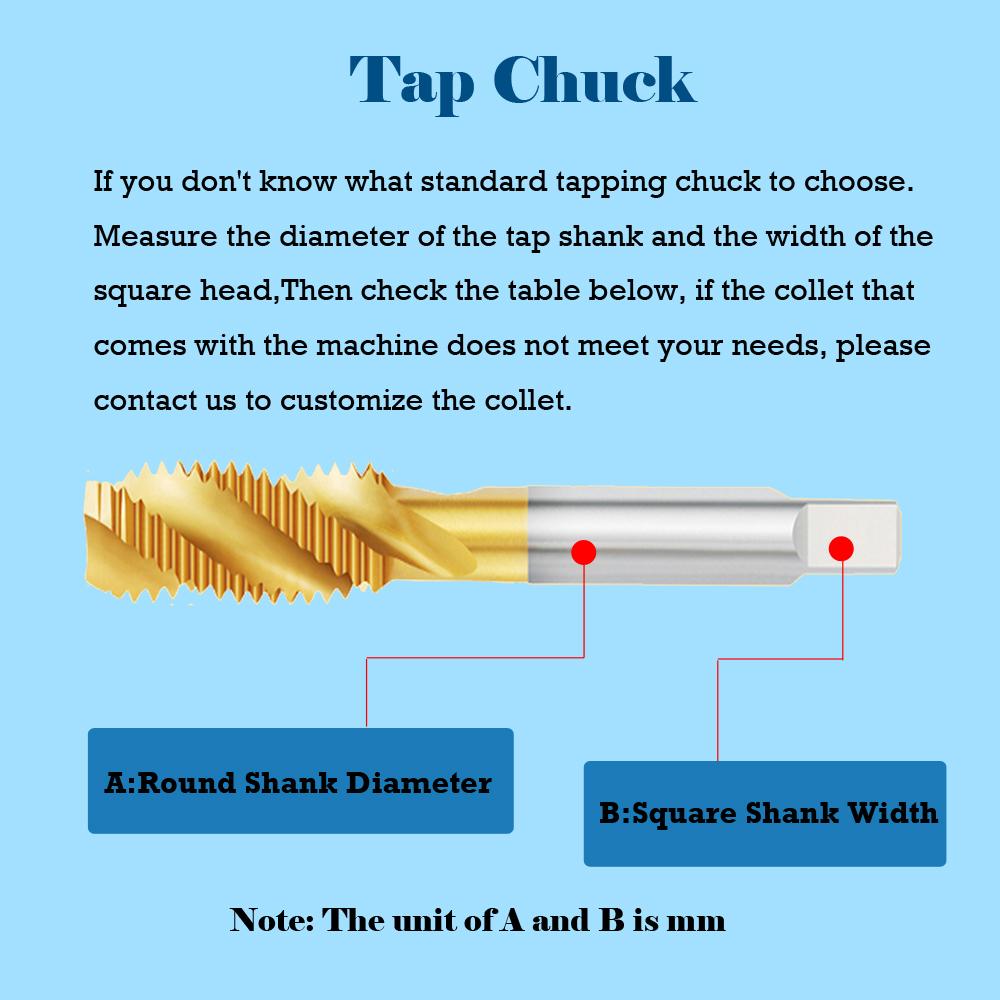

CHUCK SPECIFICATIONS
ISO(Metric) AxB JIS AxB DIN AxB INCH AxB
M2 2.80x2.25 M2 3.0x2.5 M2 2.5x2.1 1/8 4.0x3.15
M3 3.15x2.5 M3 4.0x3.2 M3 3.5x2.7 5/32 5.0x4.0
M4 4.0x3.15 M4 5.0x4.0 M4 4.5x3.4 3/16 5.5x4.5
M5 5.1x4.0 M5 5.5x4.5 M5 6x4.9 1/4 6.0x4.5
M6 6.3x5.0 M6 6.0x4.5 M6 6x4.9 5/16 6.2x5.0
M8 6.3x5.0 M8 6.2x5.0 M8 8x6.2 3/8 7.0x5.5
M10 8.0x6.3 M10 7.0x5.5 M10 10x8 1/2 9.0x7.1
M12 9.0x7.1 M12 8.5x6.5 M12 9x7 9/16 11.2x9.0
M14 11.2x9.0 M14 10.5x8.5 M14 11x9 5/8 12.5x10.0
M16 12.5x10.0 M16 12.5x10.0 M16 12x9 3/4 14.0x11.2
M18 14.0x11.2 M18 14.0x11.0 M18 14x11 7/8 16.0x12.5
M20 14.0x11.2 M20 15.0x12.0 M20 16x12 PT1/8 8.0x6.3
M22 16.0x12.5 M22 13.0x13.0 M22 18x14.5 PT1/4 11.2x9.0
M24 18.0x14.0 M24 19.0x15.0 M24 18x14.5 PT3/8 14.0x11.0
M27 20.0x16.0 M27 20.0x15.0 　 　 PT1/2 18.0x14.0
M30 20.0x16.0 M30 23.0x17.0 　 　 PT3/4 23.0x17.0
M33 22.4x18.0 M33 25.0x19.0 　 　 PT1 26.0x21.0
M36 25.0x20.0 M36 28.0x21.0 　 　 PT11/4 28.0x21.0
M39 28.0x22.4 M39 30.0x23.0 　 　 PT13/8 35.0x26.0
M42 28.0x22.4 M42 32.0x26.0 　 　 PT11/2 38.0x29.0
M45 31.5x25.0 M45 35.0x26.0 　 　 　 　
M48 31.5x25.0 M48 38.0x29.0 　 　 　 　
Note:The maximum tapping capacity of this tapping machine is M16. If you need more tapping capacity, please contact us to buy other models electric tapping machine.
ITEM DETAILS
Smart Touch Sereen Oil & Air Injection Forward & Reverse

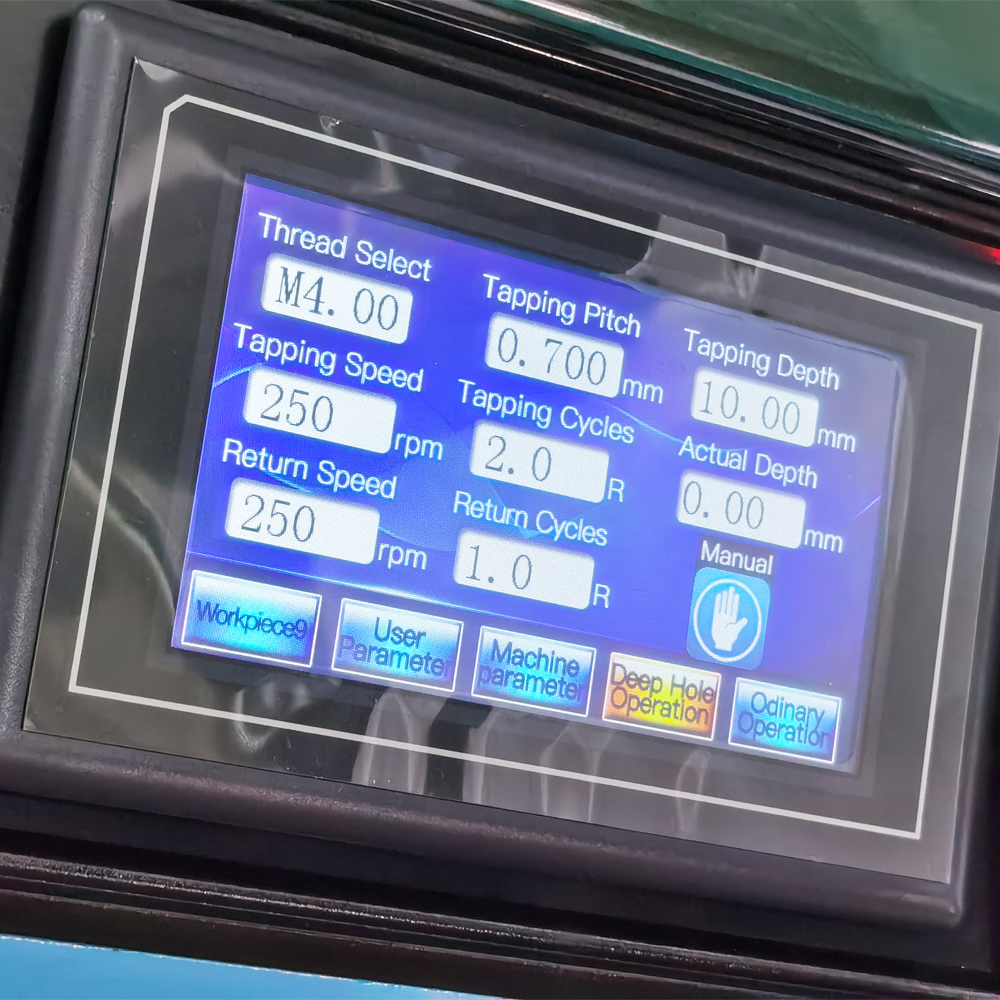

The newly upgraded smart touch
screen is easy to set and responsive,
with two languages, Chinese and
English, and can display the torque
in real time; the protective cover
design can protect the touch screen.
This machine has added the oil
injection & air function, which can be controlled by the control panel
Settings during tapping to control
the oil injection lubrication and air removal of iron filings, greatly saving manpower and improving work
efficiency!

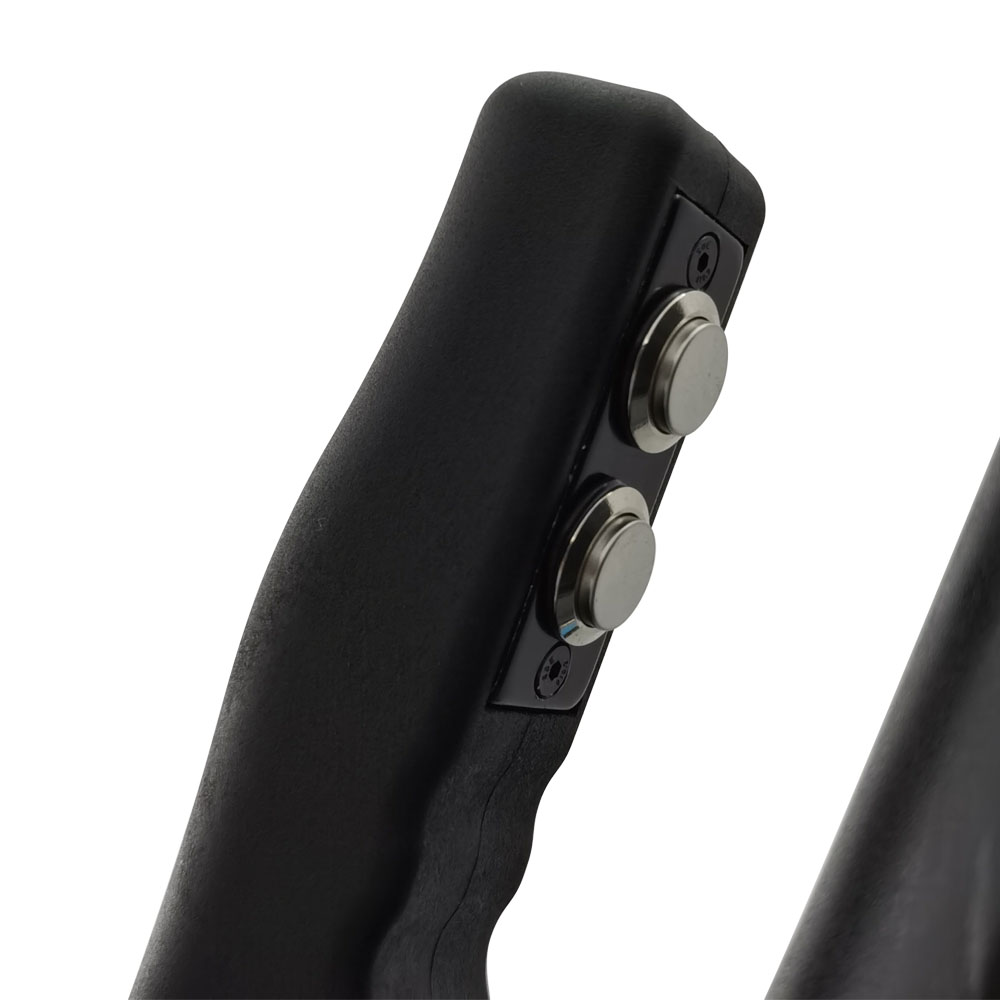

The handle of the machine head is
designed with forward and reverse
buttons, which is comfortable to hold,
and can be tapped during forward rotation. After tapping is completed,
press the reverse button to exit the tap.

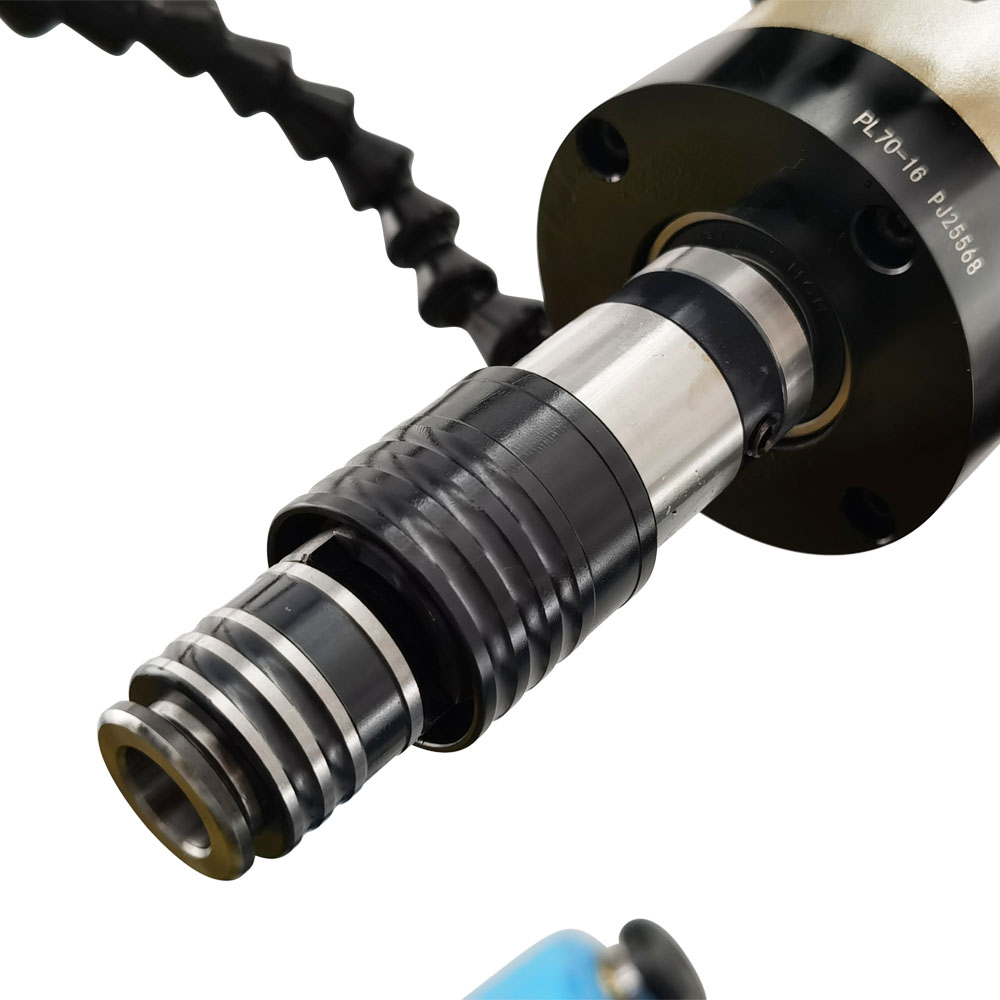

Planetary Reducer Heat Emission Hole Servo Motor
The planetary reducer is oil-proof,
anti-collision and dust-proof, which

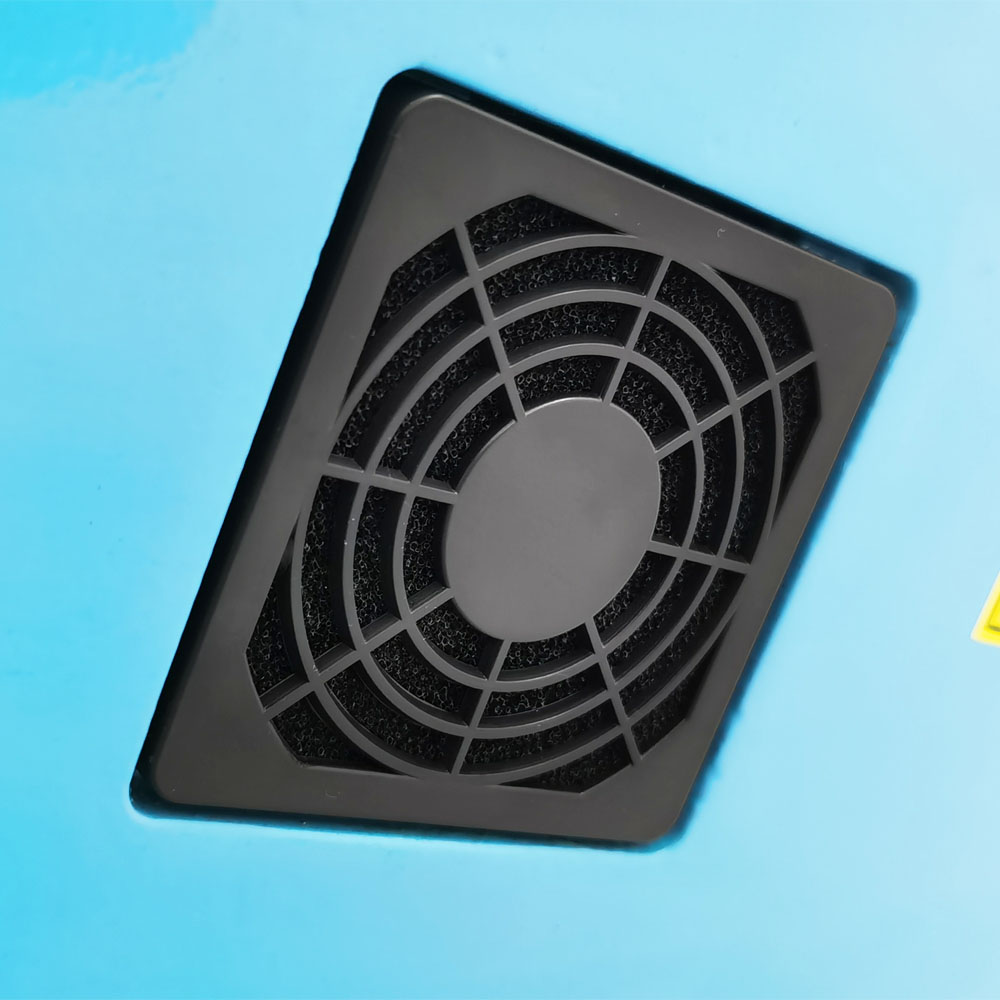

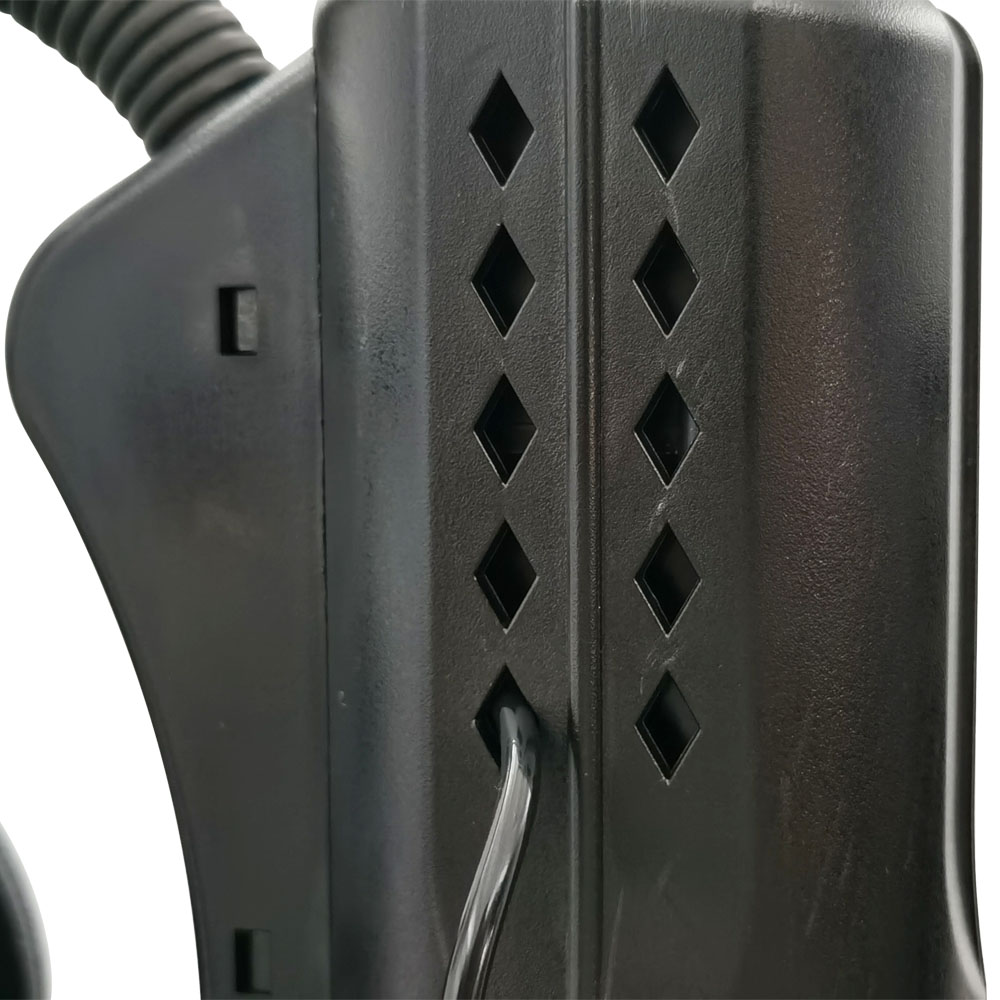

can effectively support the long-term operation of the motor, reduce the motor speed and increase the torque,thereby reducing energy consumption.		 The machine is designed with
heat dissipation holes, which can
timely discharge the excess heat
generated in the process of work,
prevent overheating and protect
the machine.		 High-power servo motor, strong
power and stable operation, can
ensure the tapping accuracy;
fast heat dissipation, can work for
a long time, and has a certain
overload capacity.
ITEM INCLUDED(056148)
Tapping Machine *1 Collet *8 English Manual *1
Wrench *1 Screw *4 Power Cord *1
Air Tube *1 　 　
