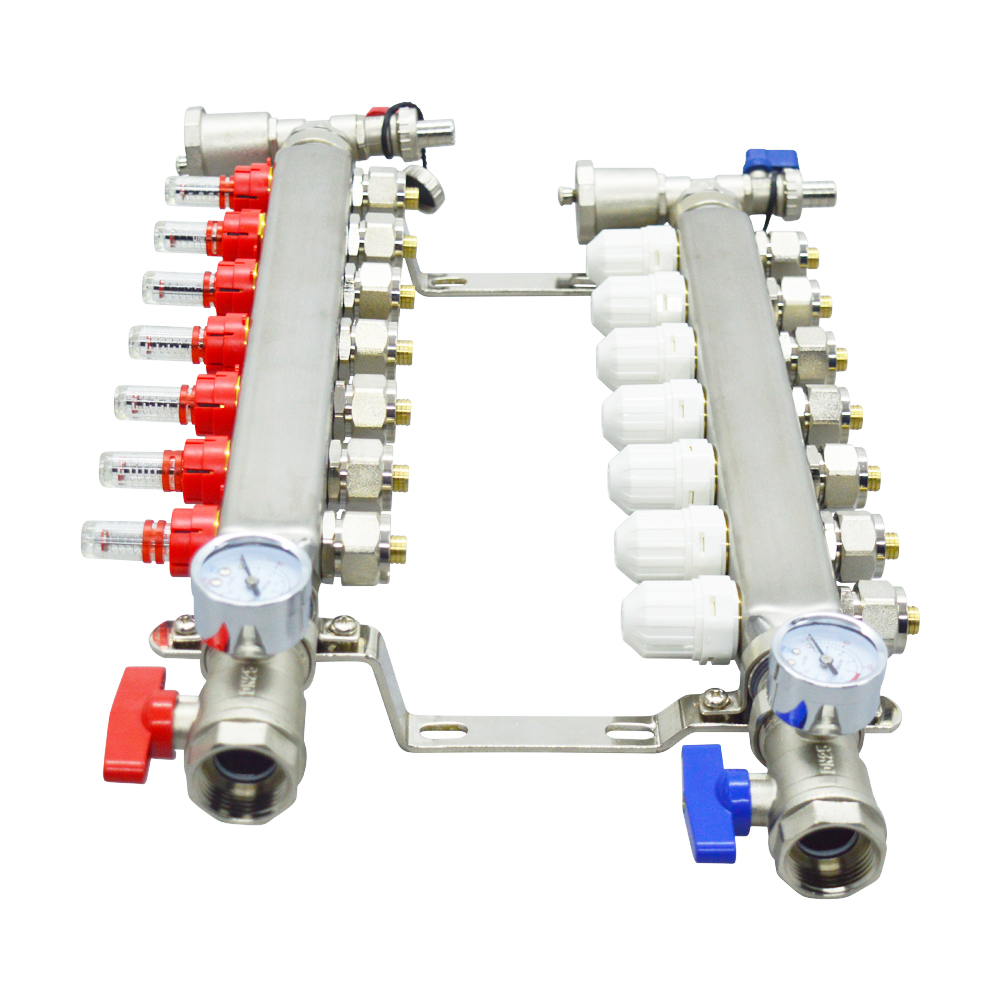

7-Branchs PEX Radiant Floor Heating Manifold Set

TECHTONGDA®
         ITEM DESCRIPTION
  • No matter how the pressure difference of the system changes, the flow of each floor heating branch finally runs stably according to the heat load.
  • Equipped with two brackets, reserved mounting holes, convenient to install the water distributor to the wall or box.
  • Stainless steel surface after drawing and polishing treatment, beautiful and generous, smooth and easy to clean.

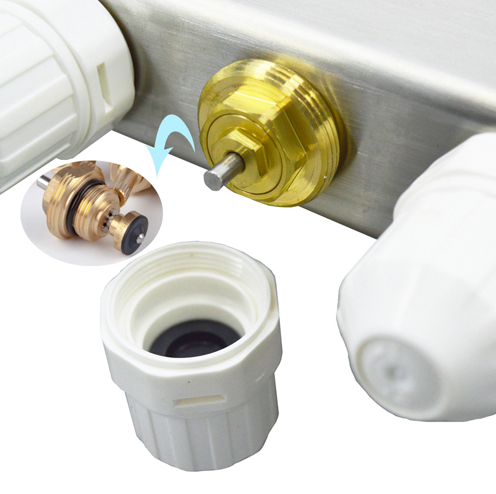

  • Backwater branches are equipped with independently adjusted temperature control valves, which can control the backwater of branches separately to adjust the temperature.
  • The tube body has been degaussed, which does not absorb any impurities, effectively reduces friction and prevents scaling, and prolongs service life.
  • Before leaving the factory, each set will be put in water for sealing test to ensure normal and safe use.

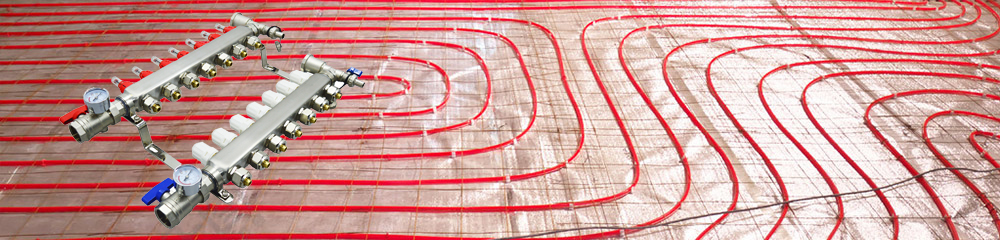

In the floor heating system, the mainfold is mainly responsible for the opening and closing of the water flow in the floor heating loop. When the heated water flows into the mainfold through the main pipeline, the water is evenly distributed to the loop, and after heat exchange, the water is returned to the water outlet. into the heating system. Widely used for heating in homes, schools, hotels, swimming pools and other places.
ITEM PARAMETER
Branch number: Seven
Material: Main 304 stainless steel(chromium＞18% nickel＞8%)copper:59 brass
Ball valve thread: NPT 1"
Branch pipe adapter:  1/2" PEX
Inner diameter of applicable floor heating pipe: 0.47"(12mm)
Spacing of branch pipes: 1.97"(50mm)
Stainless steel tube body thickness: 0.06"(1.6mm)
Temperature control trip: 0.12"(3mm)
Applicable temperature: 1℃-95℃
Applicable pressure: ≤1.5MPa
Applicable medium: Water
Package size: 24.4"*16.9"*4.3"(62cm*43cm*11cm)
Net weight/Gross weight: 13.7Lb(6.2kg)/16.7LB(7.6kg)
ITEM DETAILS
Valve Core Spring Flowmeter Branch Adapter
The valve core spring is made ofhigh-quality 304 stainless steel,and has passed 300,000 stretchfatigue tests, which is durable andhas a good sealing effect.

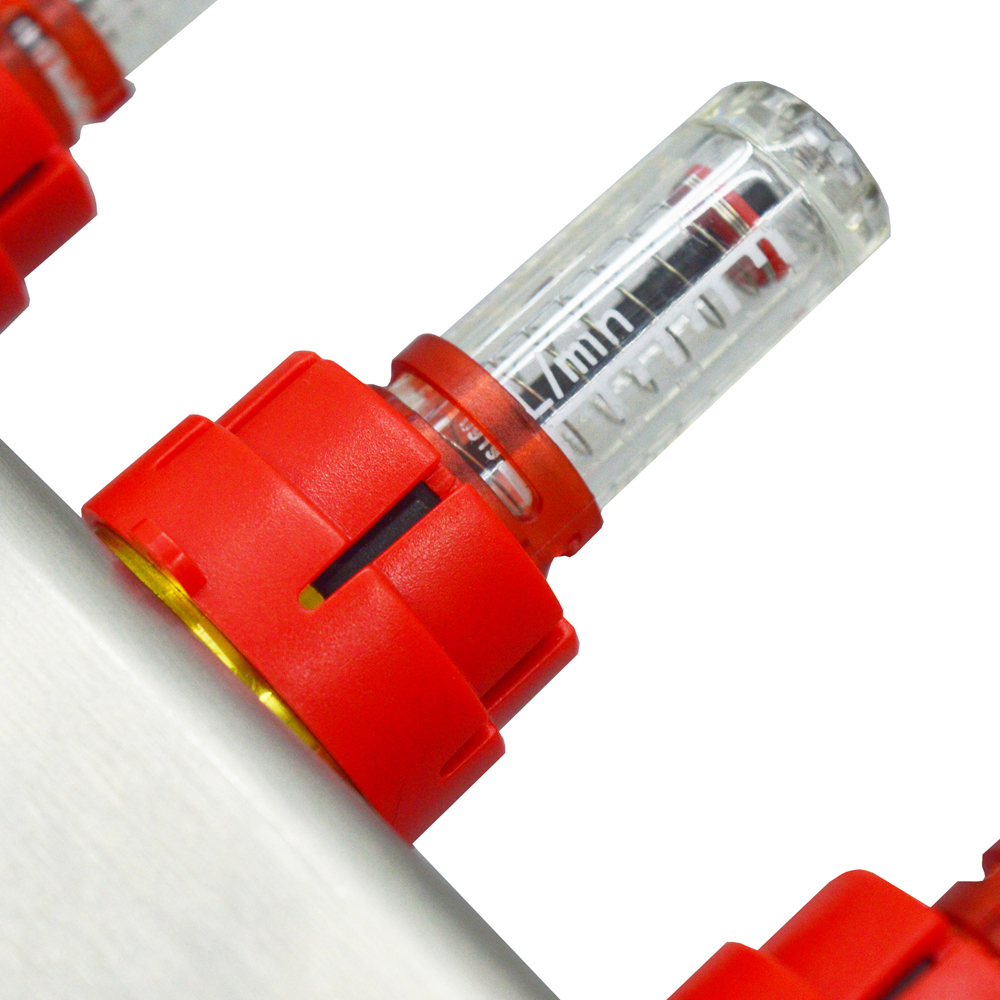

Visual flowmeter, which can clearlyobserve the flow of each branchaccording to the position of the floatand can accurately adjust the water flow of each branch by adjusting the flow meter.

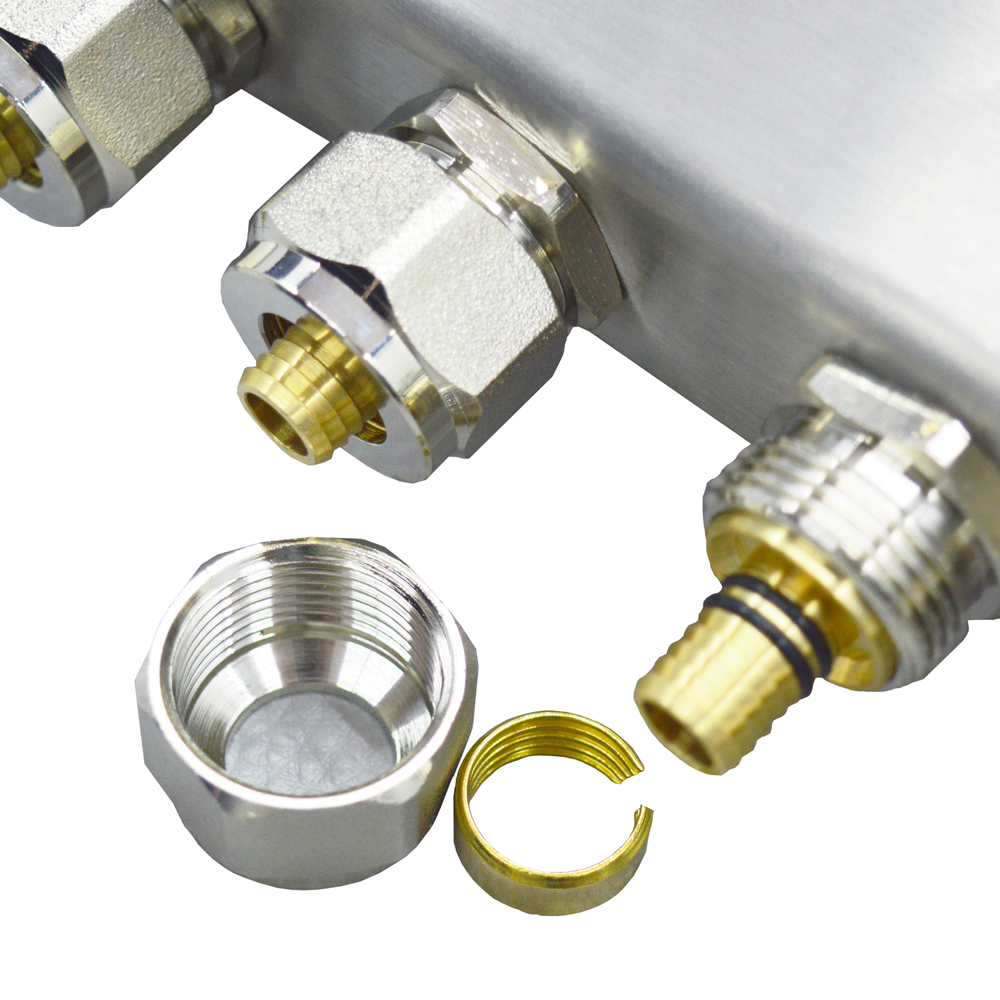

Branch adapter is exquisitely madeof high-quality 304 stainless steeland brass, with a pipe clamp insideto tightly clamp the floor heating pipeto prevent it from falling. Three Orings ensure sealing property.
Pressure Gage Ball Valve Exhaust Valve

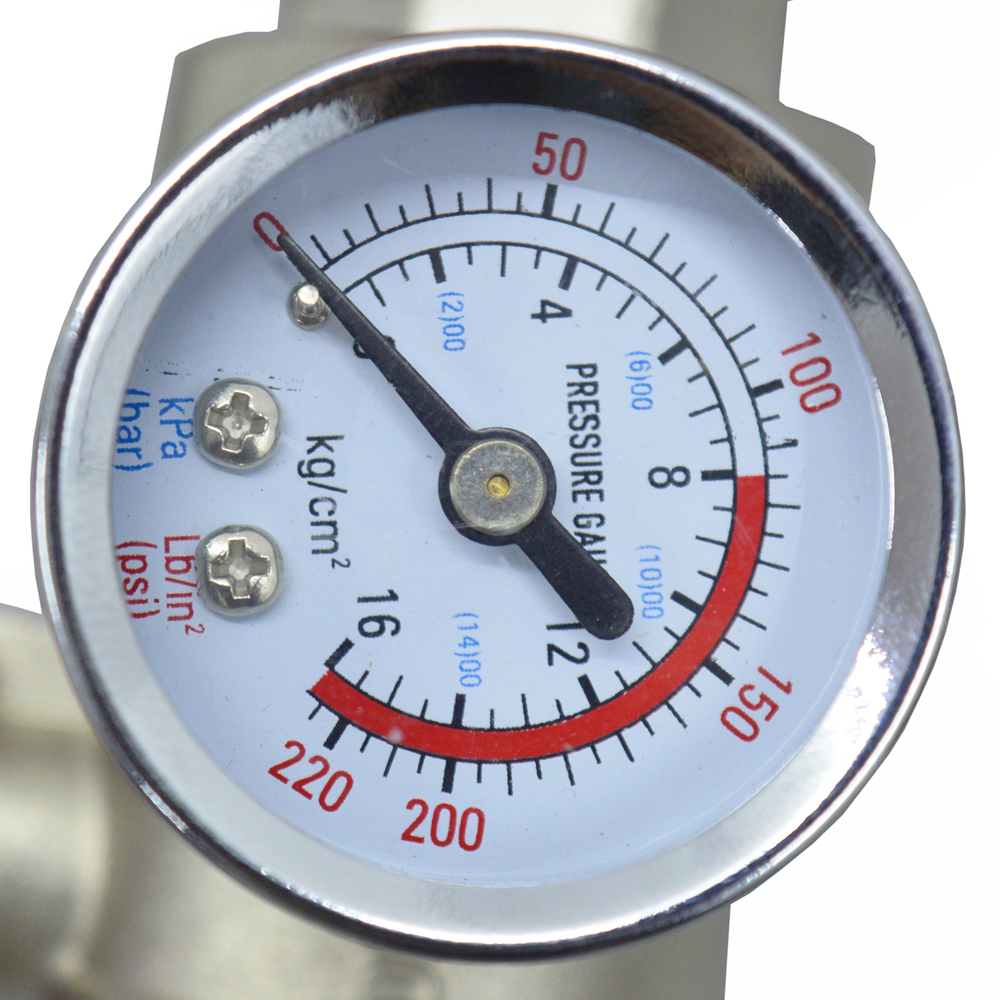

Both the inlet valve and theback-water valve are equippedwith pressure gauges, which candynamically detect the pressureof the inlet and back-water pipes.

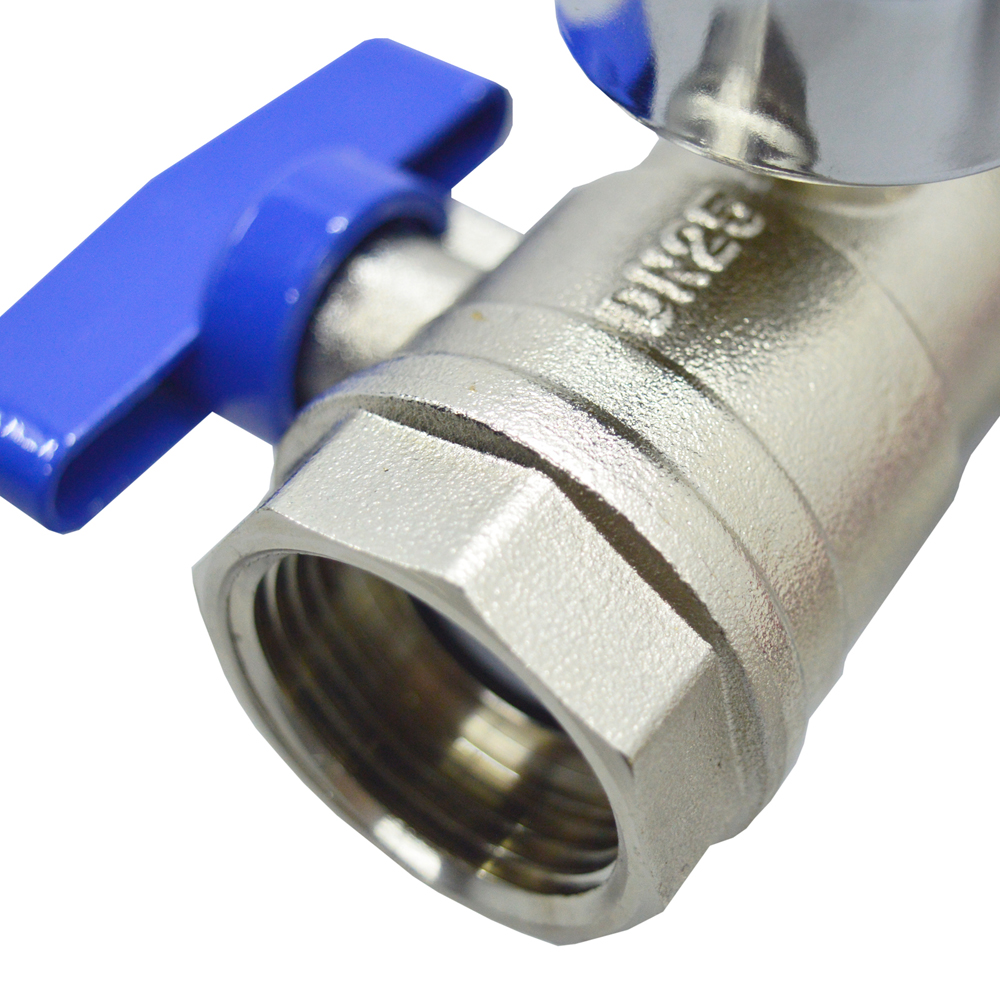

The water inlet and outlet areequipped with 1”G-threaded ballvalves, the switch is easy to turnhas a wide range of applications.good sealing performance, easydisassembly, and long service life.

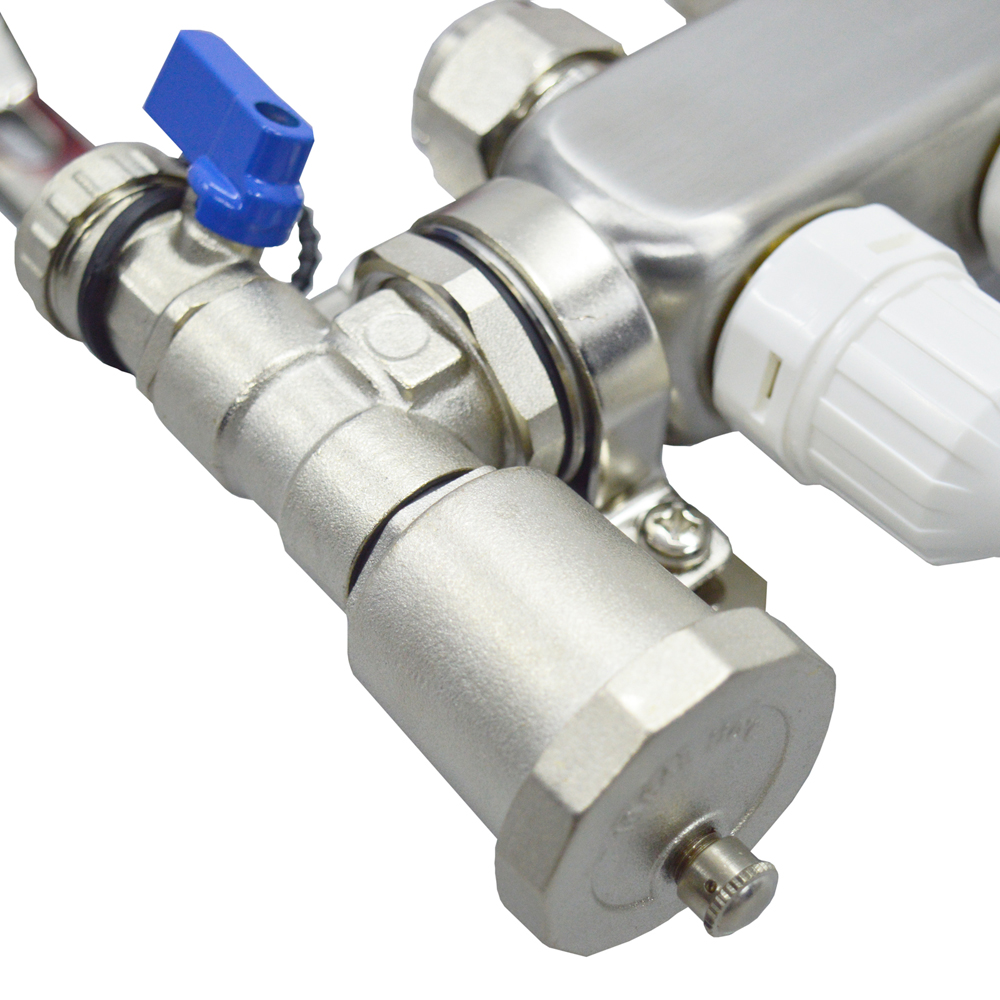

When the pressure in the pipeline istoo large, the two exhaust valves willautomatically open the exhaust holeto exhaust, thereby improving theutilization rate of the pipeline andreducing energy consumption.
ITEM INCLUDED(053041)
7-Branch Manifold *1 English Manual *1
