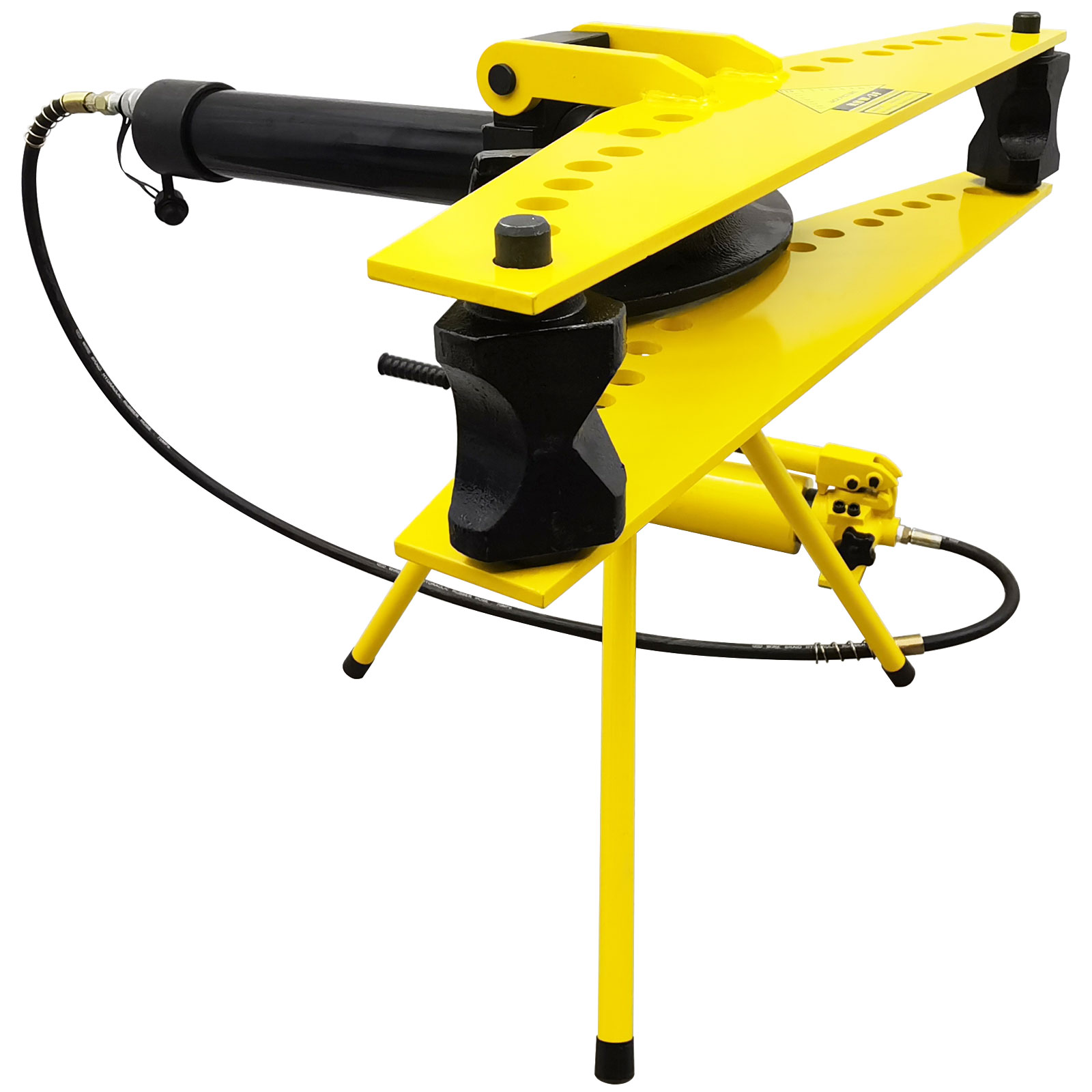

Hydraulic Pipe Bender with Separable Pump (for plumbing only) 20Tons - 1/2"-3"

INTSUPERMAI®
​
         ITEM DESCRIPTION
  • These bender and hand pump sets are for precision cold bending of thick-walled pipes (galvanized pipe, welded pipe, seamless steel pipe, gas pipe, and so on).
  • It can bend round pipes with a maximum wall thickness of 0.2".
  • It adopts split structure, fast and easy to setup on the jobsite, which is easy to install and does not take up space, widely used in all walks of life.
  • The product design is simple, easy to use, no electricity, only manual operation can complete the work.
ITEM PARAMETERS
Model: HHW-3F
Capacity: 20ton
Crimp range: Φ0.84"-Φ3.48" (Φ21.3mm-Φ88.5mm)
Max. stroke: 12.6" (320mm)
Pipe wall thickness: 0.1"-0.2" (2.75-5mm)
Bending formers: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Max bending Angle: 90°
Package size: 39.76"*18.11"*15.35"(101cm*46cm*39cm)
Net weight/Gross weight: 206.13LBS(93.5kg)/244.71LBS(111kg)
Note: This machine is not suitable for tubes with wall thickness less than 0.1"(2.75mm) or greater than 0.2"(5mm); Not applicable to square tubes; Not applicable to stainless steel pipe, please be sure to read it before buying!
ITEM DETAILS

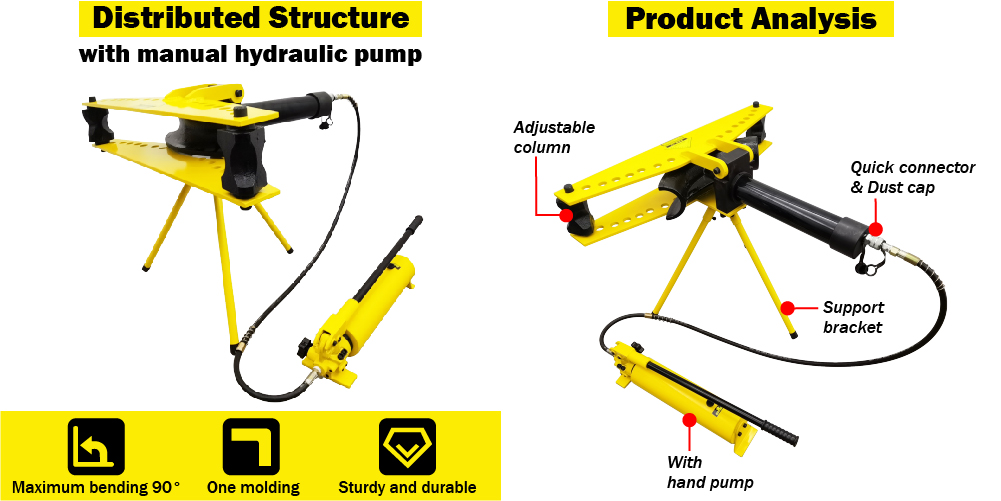

It adopts split structure, which is easy to install and does not take up space. Capable of bending angles from 0° to 90° on pipes ranging from 1/2”to 4”, one molding, easy to operate, greatly improve production efficiency.
Hand pump with 1.7 meter hose allows operation from a distance, increasing flexibility and safety. Triangle bracket design, less effort for stable support and easier for tube bending.

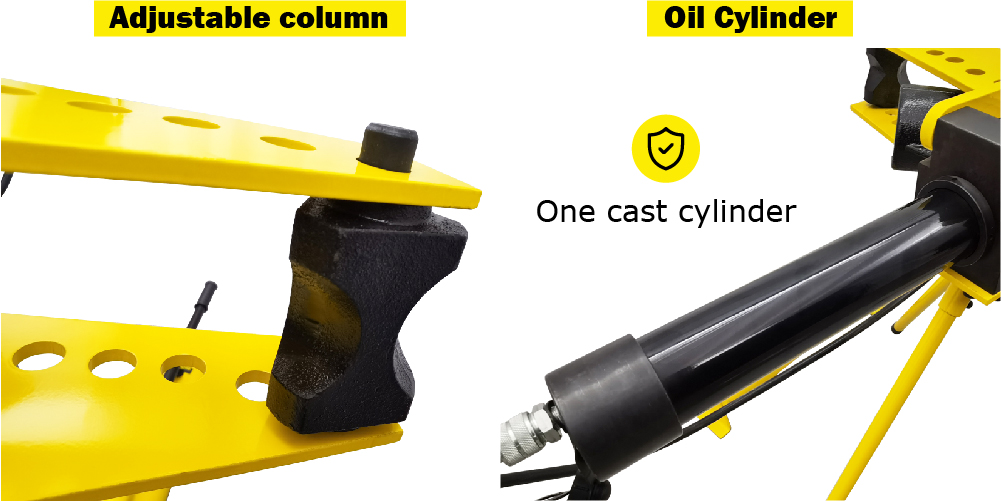

By adjusting the relative distance between the two supporting iron blocks, the bending amplitude of the object to be bent can be flexibly adjusted to meet different bending requirements, strong hardness, high precision.
Higher strength, better seal, good stability, long service life, safe from oil leakage, can ensure the accuracy requirements in the working process. When the liquid in the cylinder plays the role of transmitting force, the pressure is high and the flow rate is large, which can provide a large torque.
Thickened design, smooth edge grinding, and connection with the bend mouth.

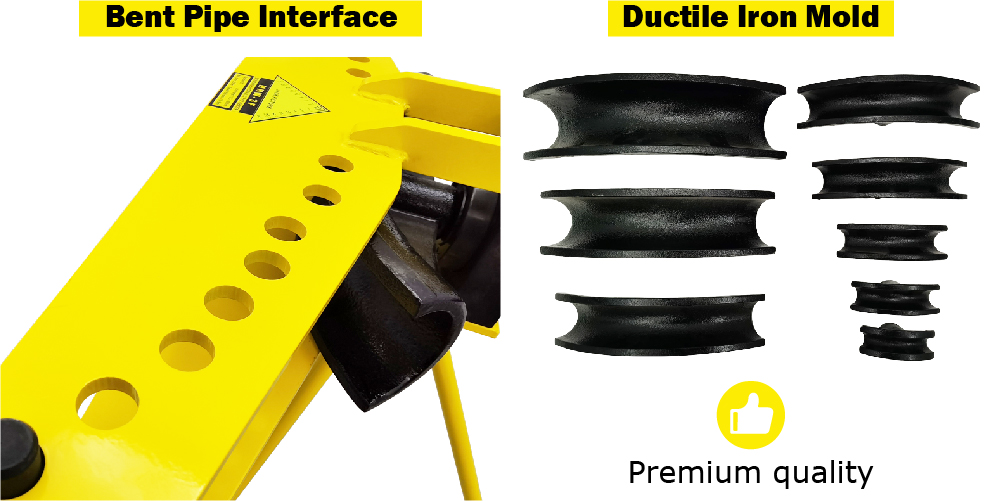

Dies are cast with ductile iron, high strength, good toughness and plasticity, long-term use without deformation and cracking, higher strength than ordinary gray cast iron, not easy to break.
ITEM INCLUDED(056879)
Pipe Bending Machine *1 Fabric gloves *2 Hex wrench *3
Sealing ring *1 Dies *8 　
