Open Box, any questions, pls contact us, we must solve it well, pls don't worry.

iPoster Upgrade Dual Backup Camera Monitor Kit,7-inch LCD1280X720P HD,IP69 Waterproof Rearview Reversing Rear View Camera Reversing Monitor Truck/Semi-Trailer/Box Truck/RV — HD Transmission
+2x 4Pin Metal Case 18 IR LEDs Night Vision Waterproof 700TVL Reversing CCD Color Camera
+ 2x33Ft / 10m 4Pin Extention Cable(No need extra power cable)
+ Remote Control

Buy it now, we will present you with a sunshade cover, you will see more clear reversing picture while the sunshines are harsh!

NEWVERSION 1V-24V REVERSING KIT

For Truck / Caravan / Bus / Motorhome / Horse trailer


Features:
An ideal Kit for Truck / Caravan / Bus / Autocaravana / Camión
7" 4-Pin Monitor TFT LCD Conector 4-Pin Connector Waterproof IR CCD Camera 10m 4-Pin Waterproof Shield CableRemote Control
4 Pin Connector Wateproof &Shockproof CCD Camera IP 68 waterproof grade can cope with marine environmentCCD camera provides clearer image, wider view angle

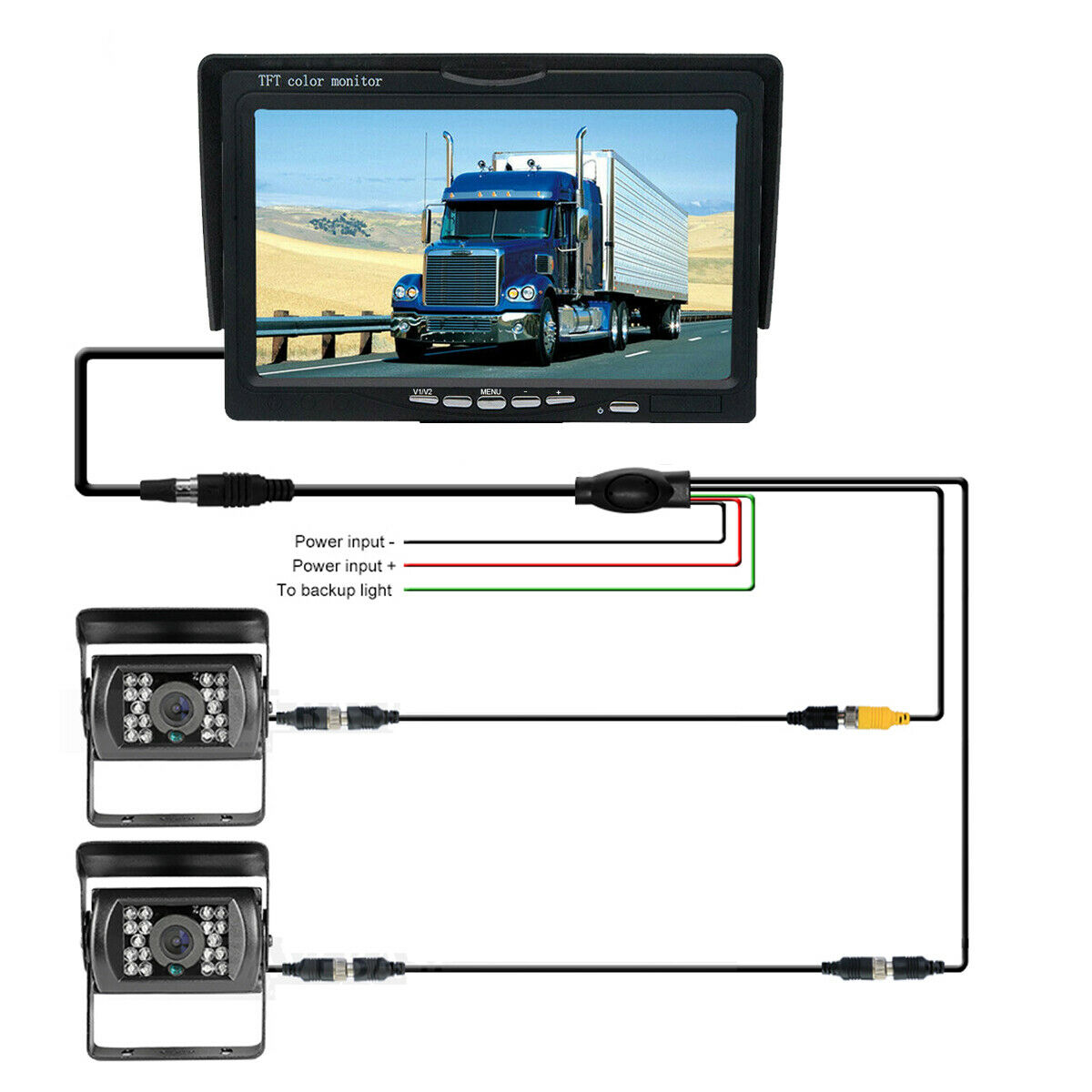

Installing Diagram for reference:




? Waterproof IR cameras
This kit has 2 IR cameras with CCD image sensor; it outputs digital signals that improve picture's clarity, color contrasting and sharpness to a better level than CMOS camera. With its 18 individual Infrared (IR) LED, CCD camera shows clear images in low light conditions especially at night circumstances. This heavy duty CCD camera is hard metal cased, waterproof and mud proof. All the cameras could provide rearview at all time without heating up.
photo 003150_waterproof_camera_zpsagscfabk.jpg
? 4-pin connector cable
One cable solution deals with both power and signal transmission. No power cable is needed to connect cameras. Expecially thick hard wire can shield vehicle's circuit interference better than normal AV cable.
photo 003150_4_pin_zpsnk6axjn5.jpg

photo NORMAL-MIRRORFORINCAR_zpsgpcqlxep.jpg
Note: Default 2 cameras are all mirror image. If you need non-mirror image cameras please inform us ASAP.
Working Range:


Outstanding Points:

Take 4pin technology

Image can be rotated horizontally and vertically for mirror or normal viewing

Monitor automatically turns on and switch to rearview camera when reversing

Support 2 channle video inputs, V1/V2 Selectable

Monitor can be roof mounted or dash mounted to meet your special need

7'' TFT color monitor with remote control

Refined facture and moderate size

4 Pin Connector Wateproof &Shockproof CCD Camera

IP 68 waterproof grade can cope with marine environment

CCD camera provides clearer image, wider view angle

One cable solution deals with both power and singal transmission. No power cable is needed to connect camera. It will shield vehicle's circuit interference better than normal AV cable.

Monitor
Style
 7'' TFT LCD Color Monitor
Color System PAL/NTSC (AUTO)
Display Resolution 800(H) x 480(V)
Vedio Input 2 Channel
Brightness 350(cd/m²)
Operating temperature -20°C - +70°C
Voltage DC12V-24V
Camera
Style
 4 PIN
Sensor 1/4 "SHARP Color CCD
Horizontal Resolution 700TV Lines
Effective pixel NTSC :810(H) x 792(V)
PAL : 800(H) x 782(V)
Mimimum Illumination 0LUX(18 IR LEDs for night vision)
View angle 120°
Video Output 1.0Vp-p75Ω
Voltage DC12V-24V
Waterproof grade IP68
Shockproof 10G
Dimension 89(W) x 53(H) x 48(D) mm

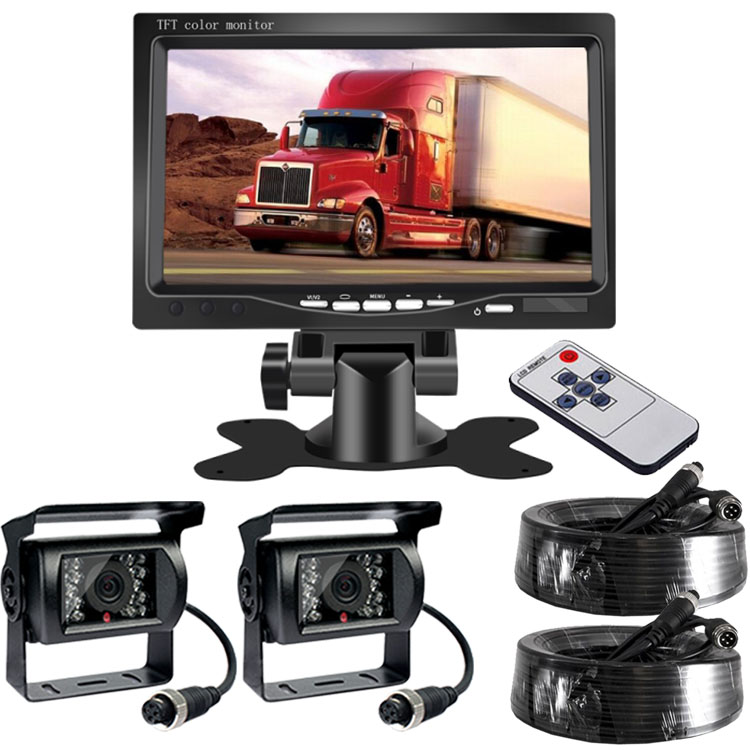

What is included:
    • 1 x 7" TFT LCD Monitor
    • 1 x Holder
    • 1 x Detachable Sunshade Cover
    • 1 x Remote Controller (None Battery in it due to airline limitations)
    • 1 x Universal User Manual
    • 2 x Reversing CCD Cameras
    • 2 x 33Ft / 10m 4Pin Cables
