Features：

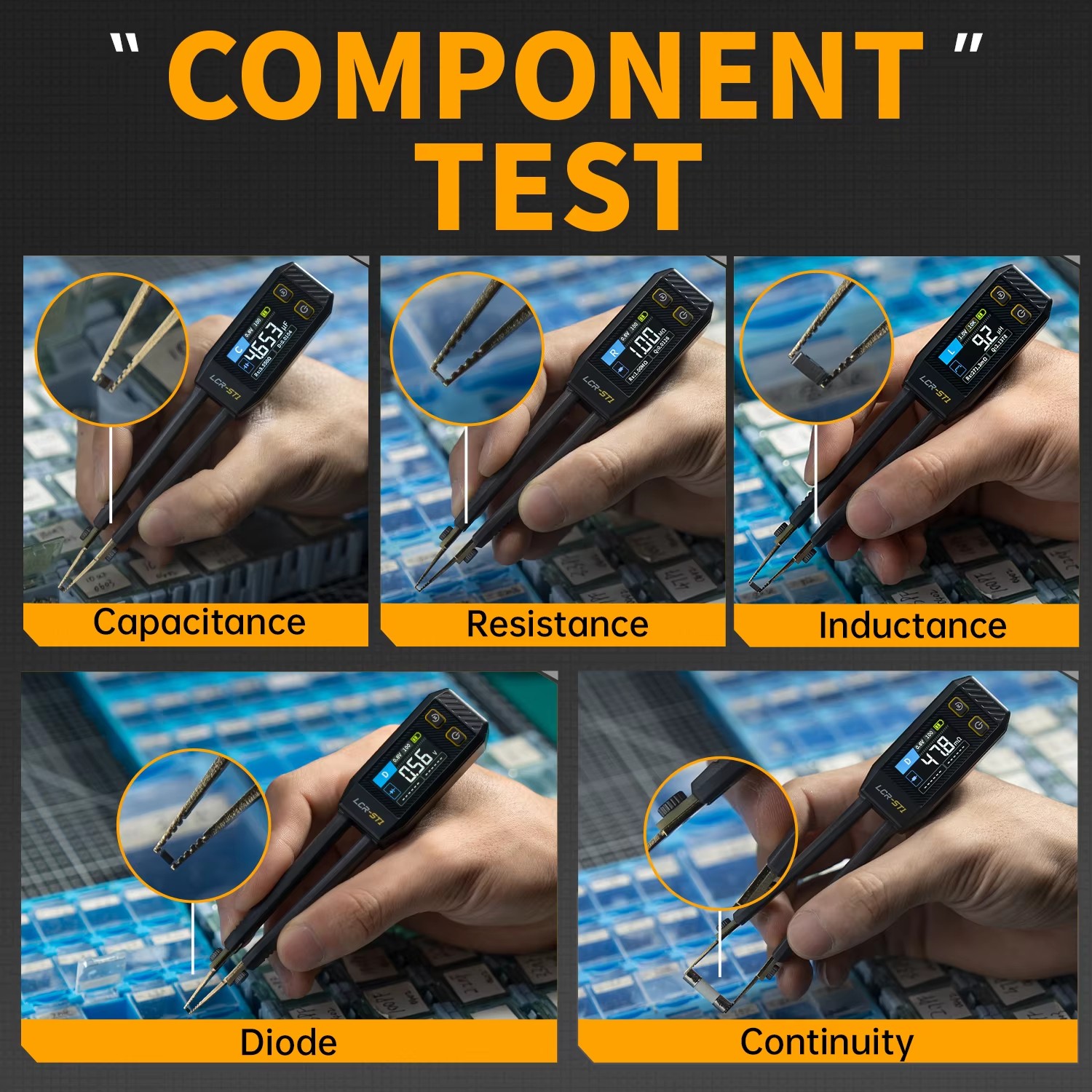

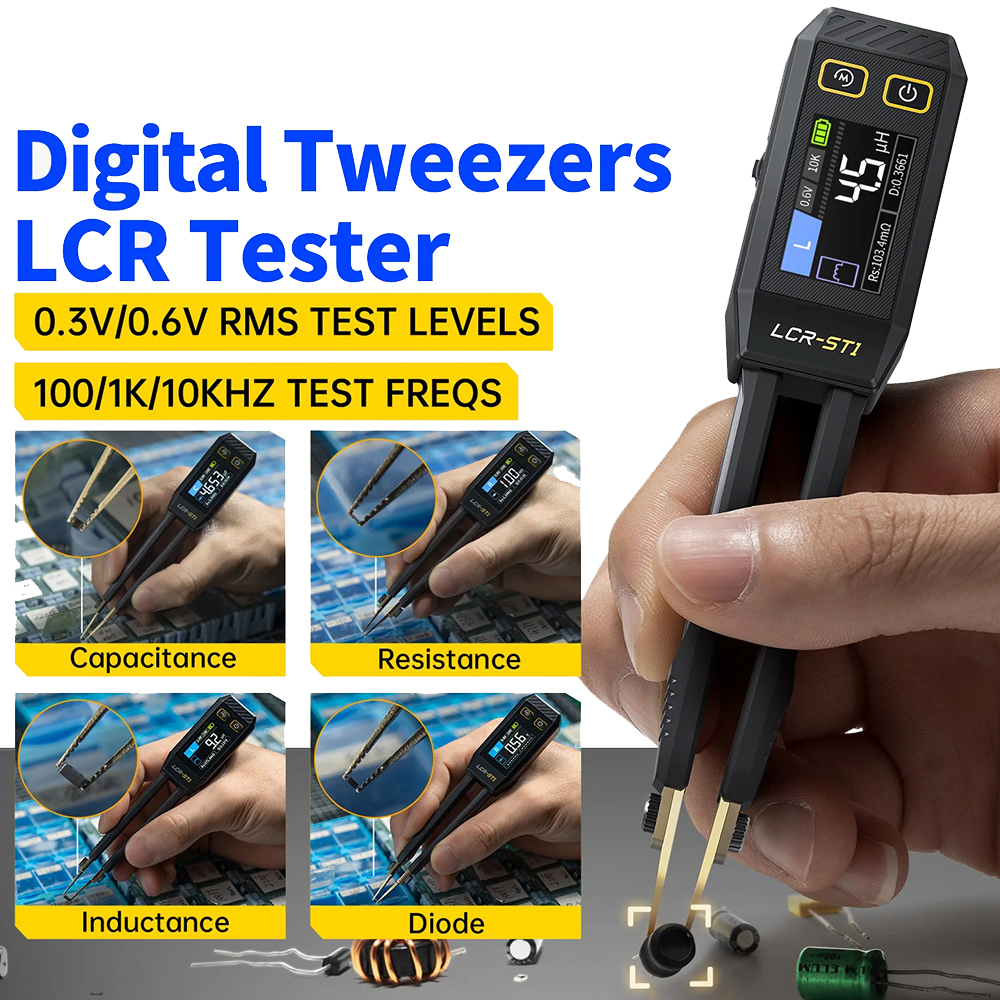

1.The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic
1.measurements of resistance, capacitance, inductance, diodes and Continuity.
2.This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels

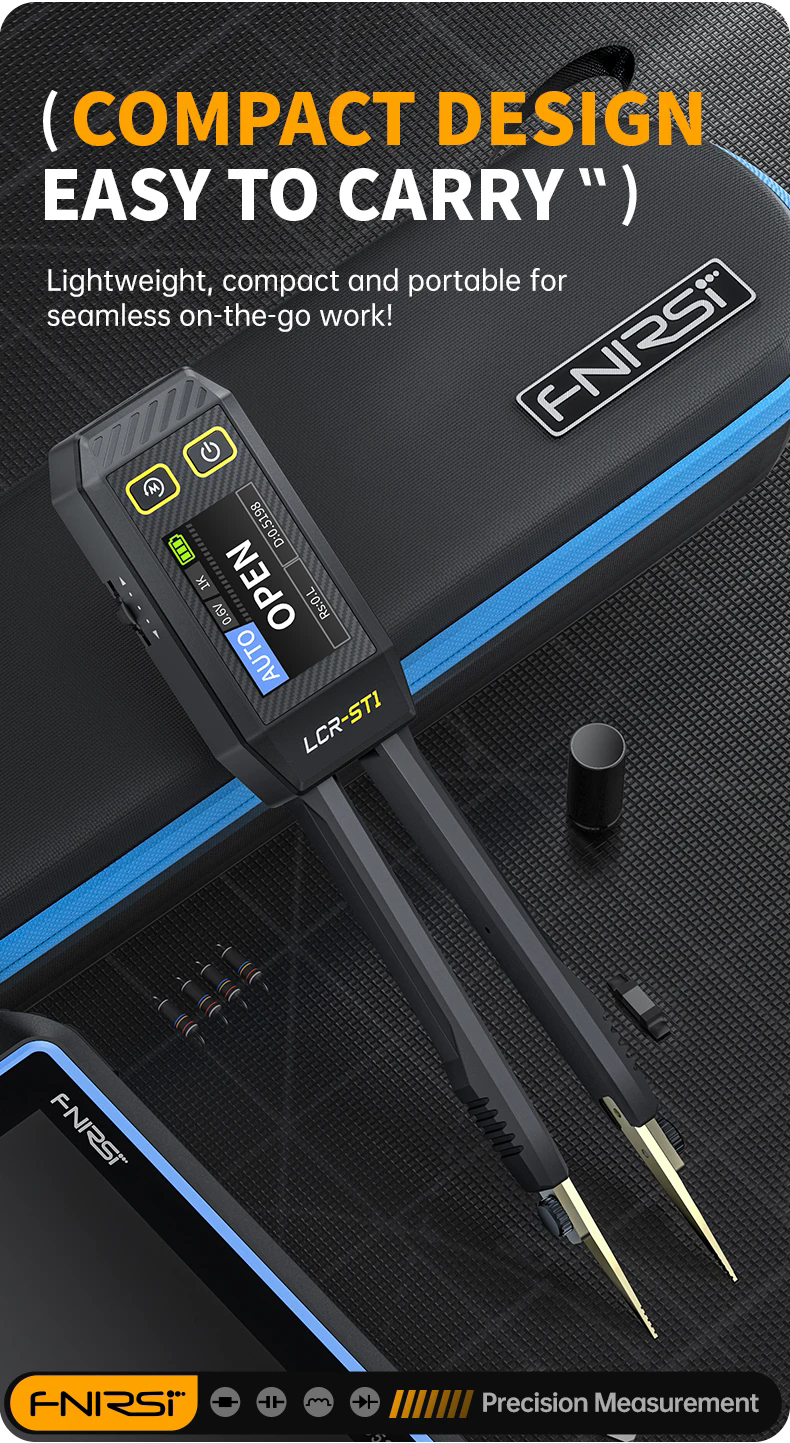

3.The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.

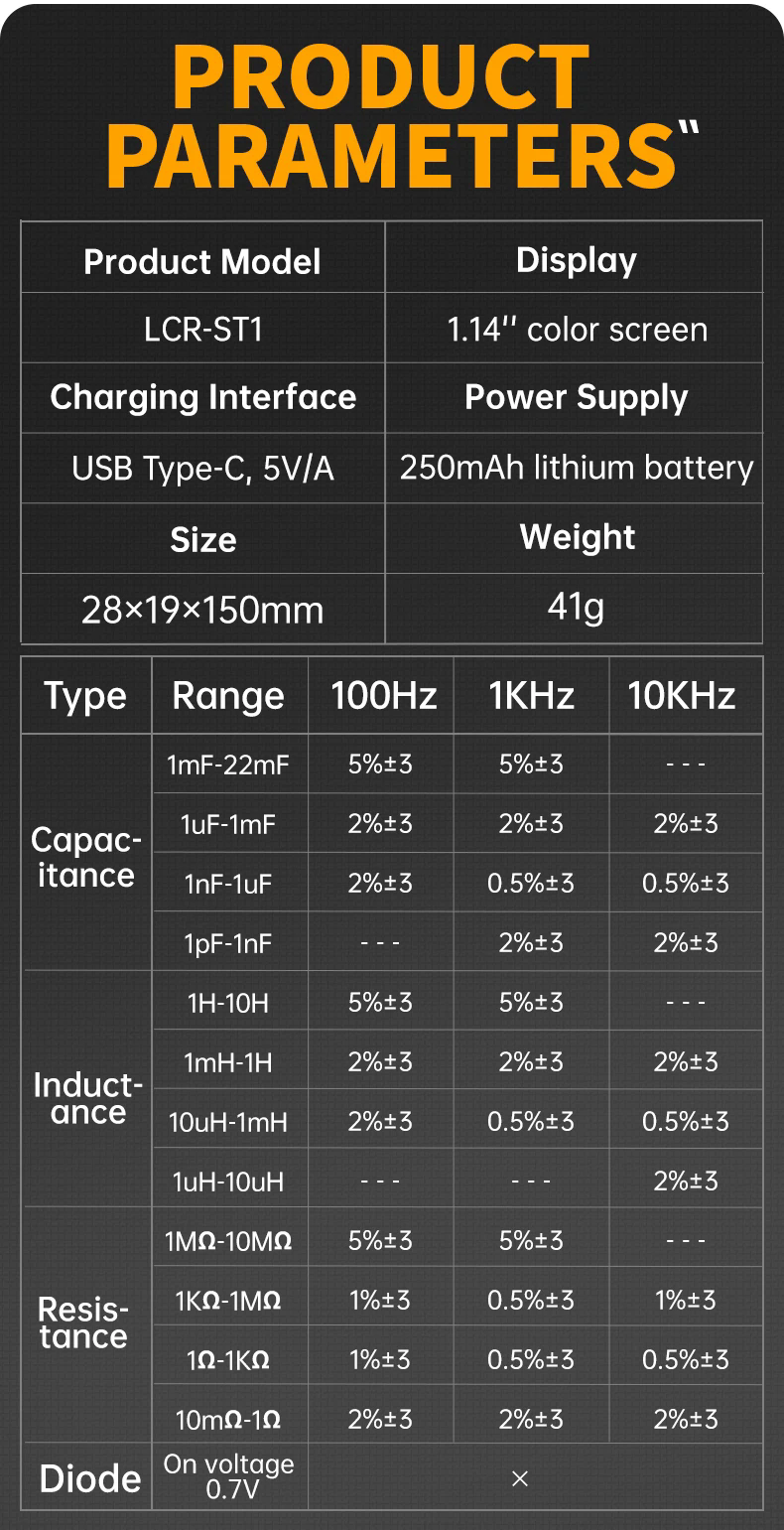

Specifications：
1.Product Model: LCR-ST1
2.Capacitance range: 1pF-22mF
3.Inductance range: 1μh-10H
4.Resistance range: 10mΩ-10MΩ
5.Diode: On voltage 0.7V

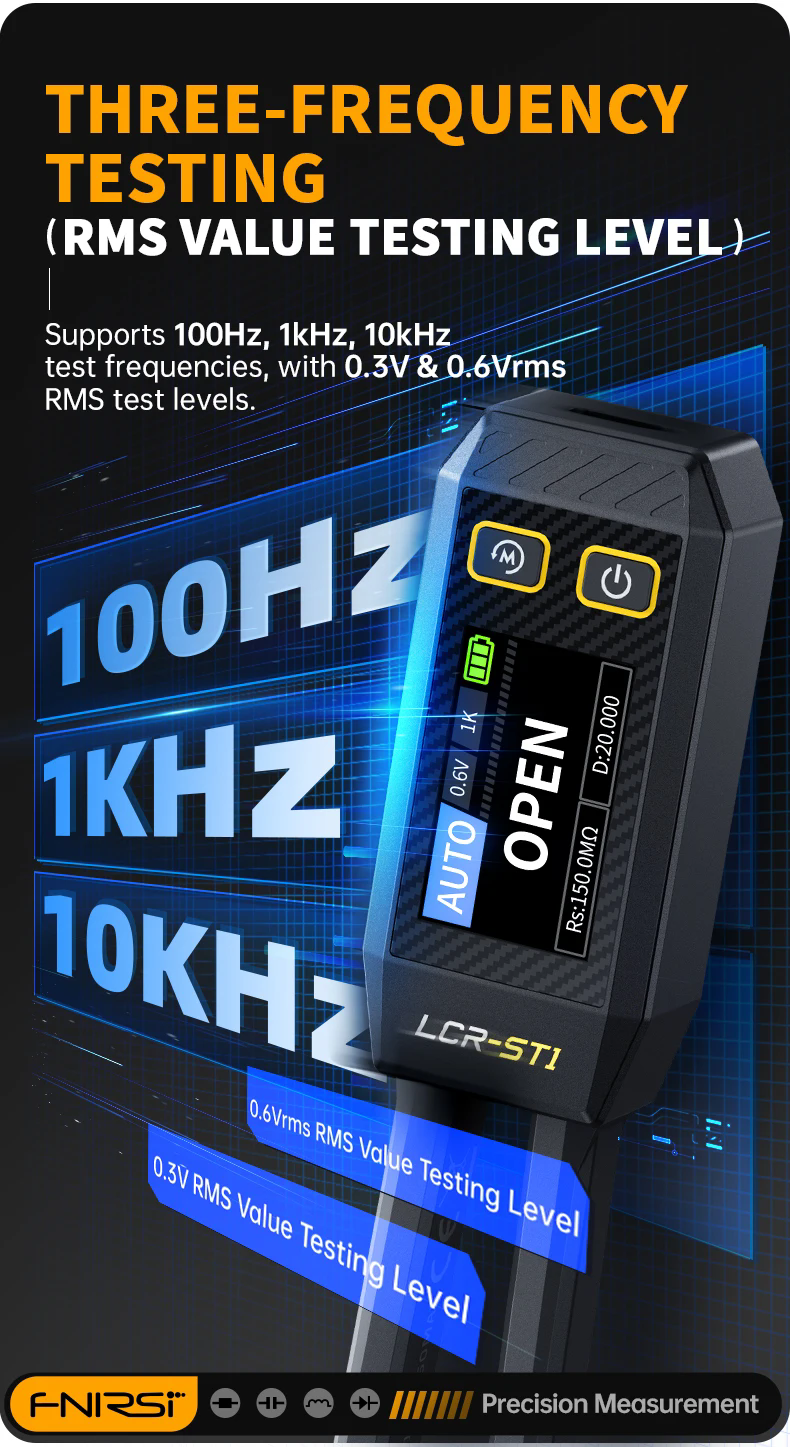

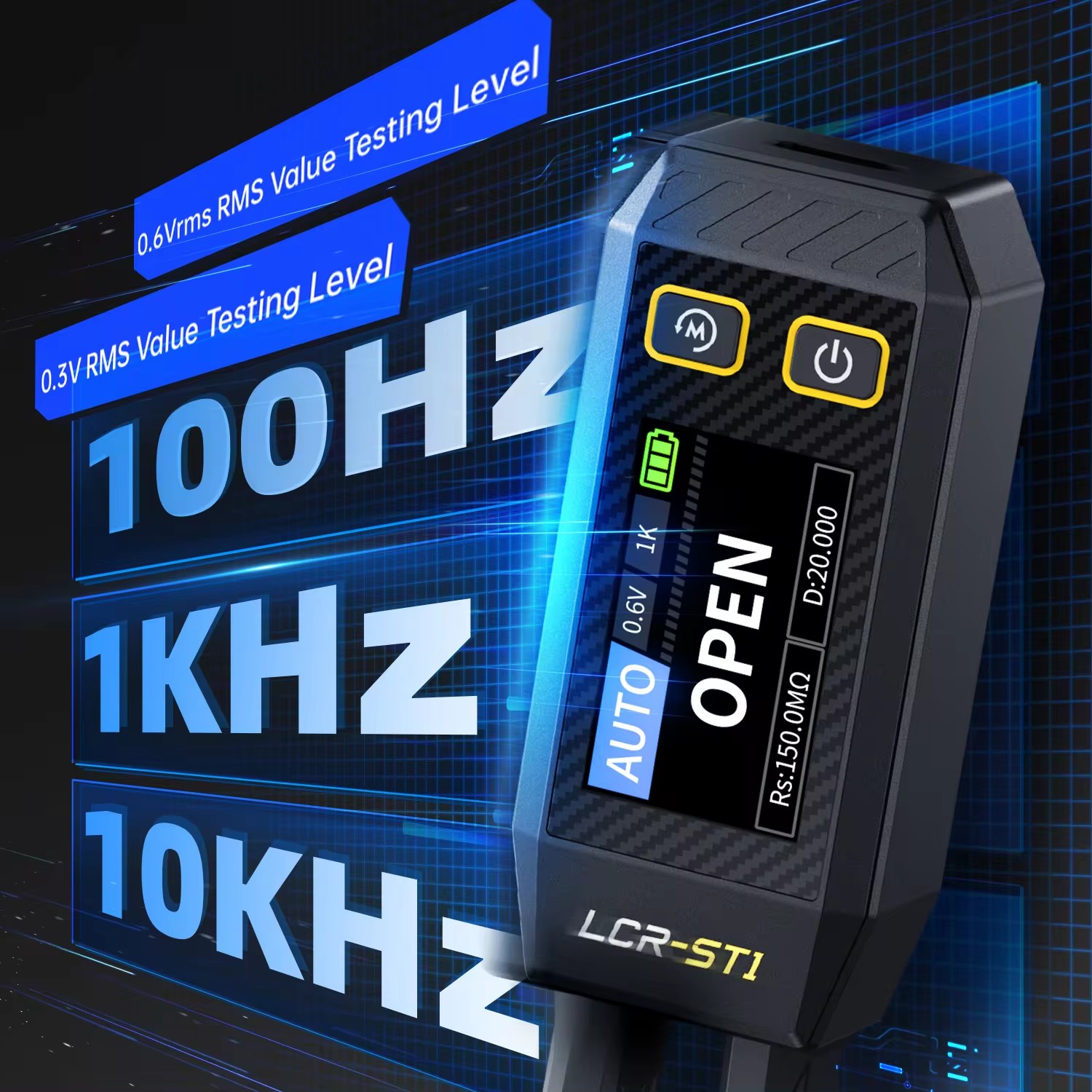

6.Frequency test: 100Hz, 1kHz, 10KHz

7.Level test: 0.3V, 0.6V RMS

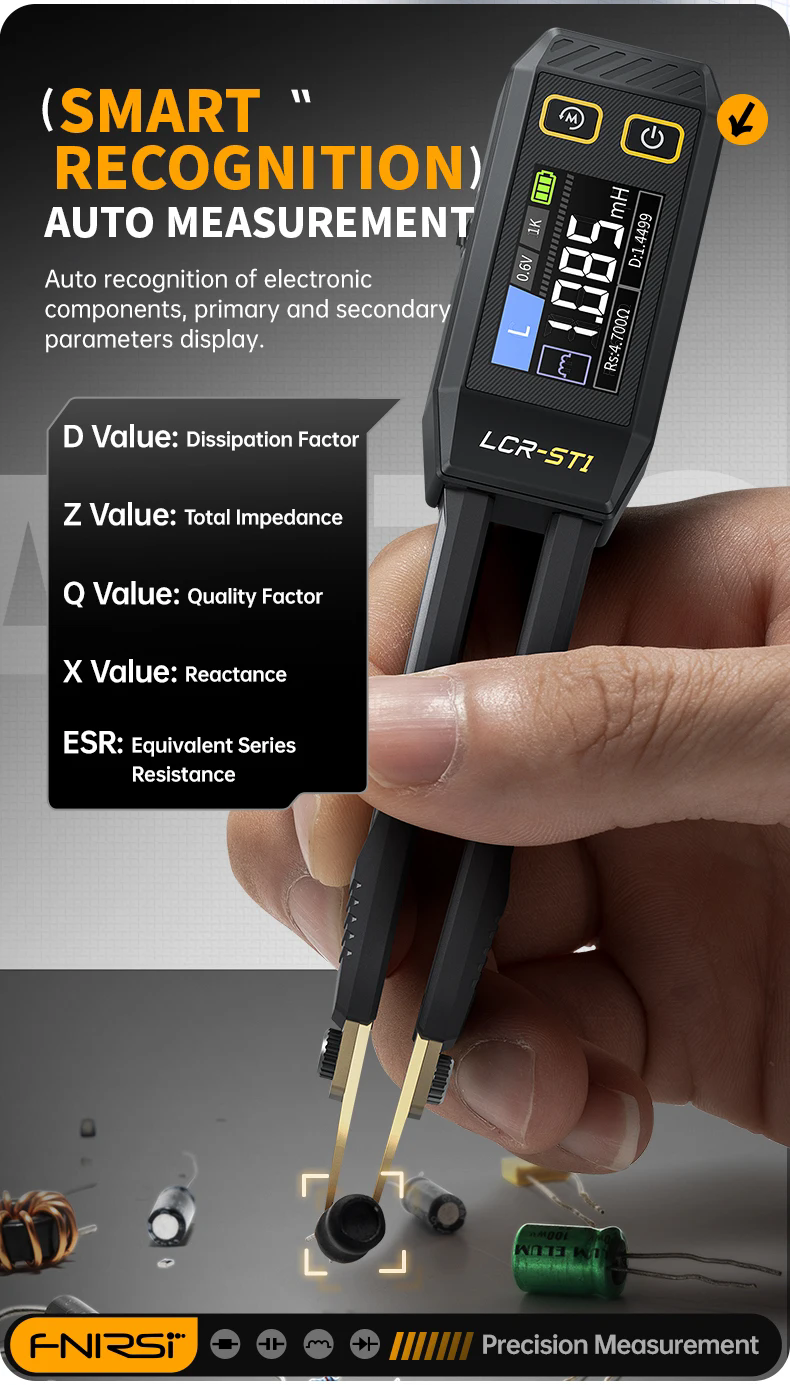

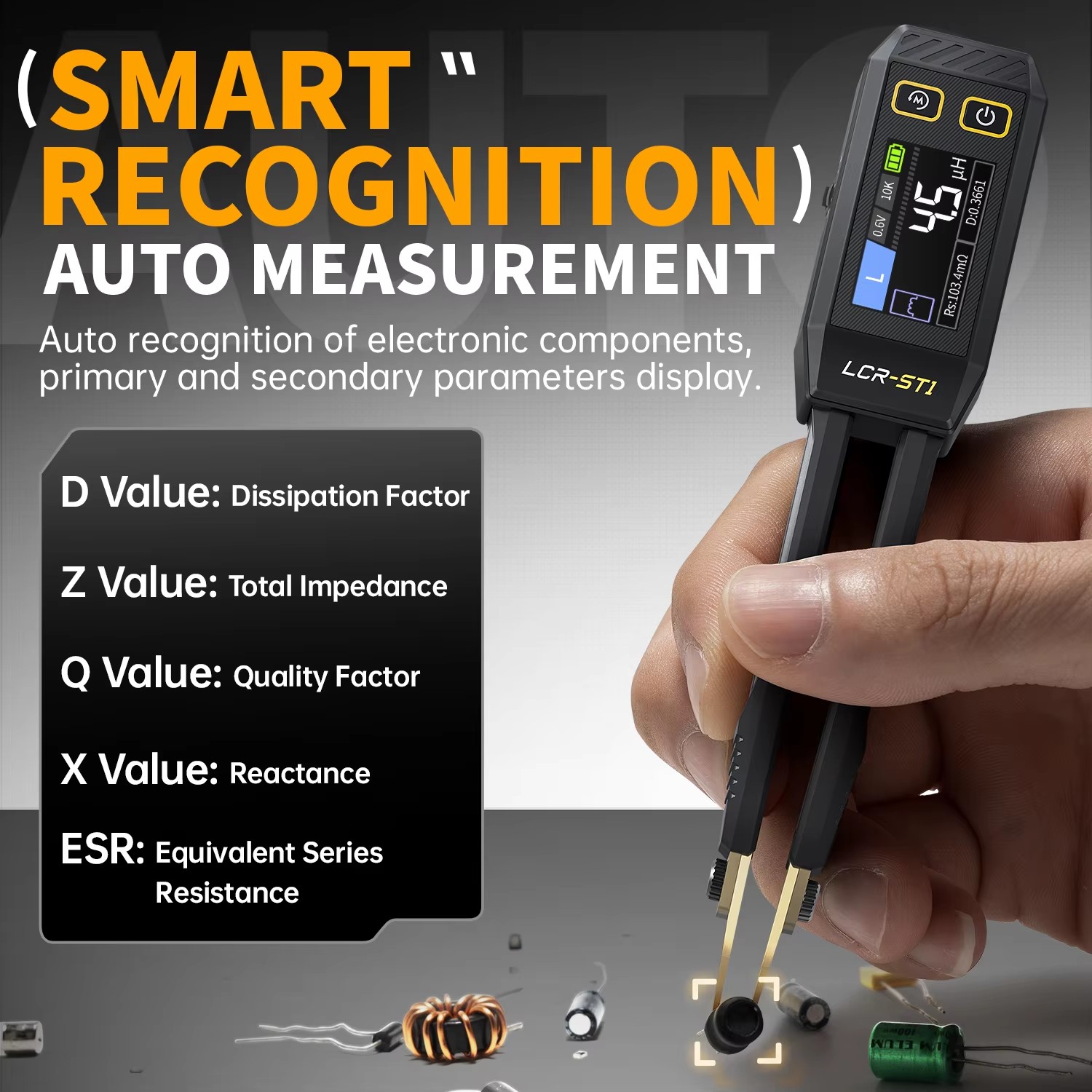

8.Parameter display: ESR, D value, Q value, Z value, X value
9.Display: 1.14'' color screen
10.Charging Interface: Type-C, 5V/A
11.Power Supply: 250mAh lithium battery
12.Auto recognition measurement: Support

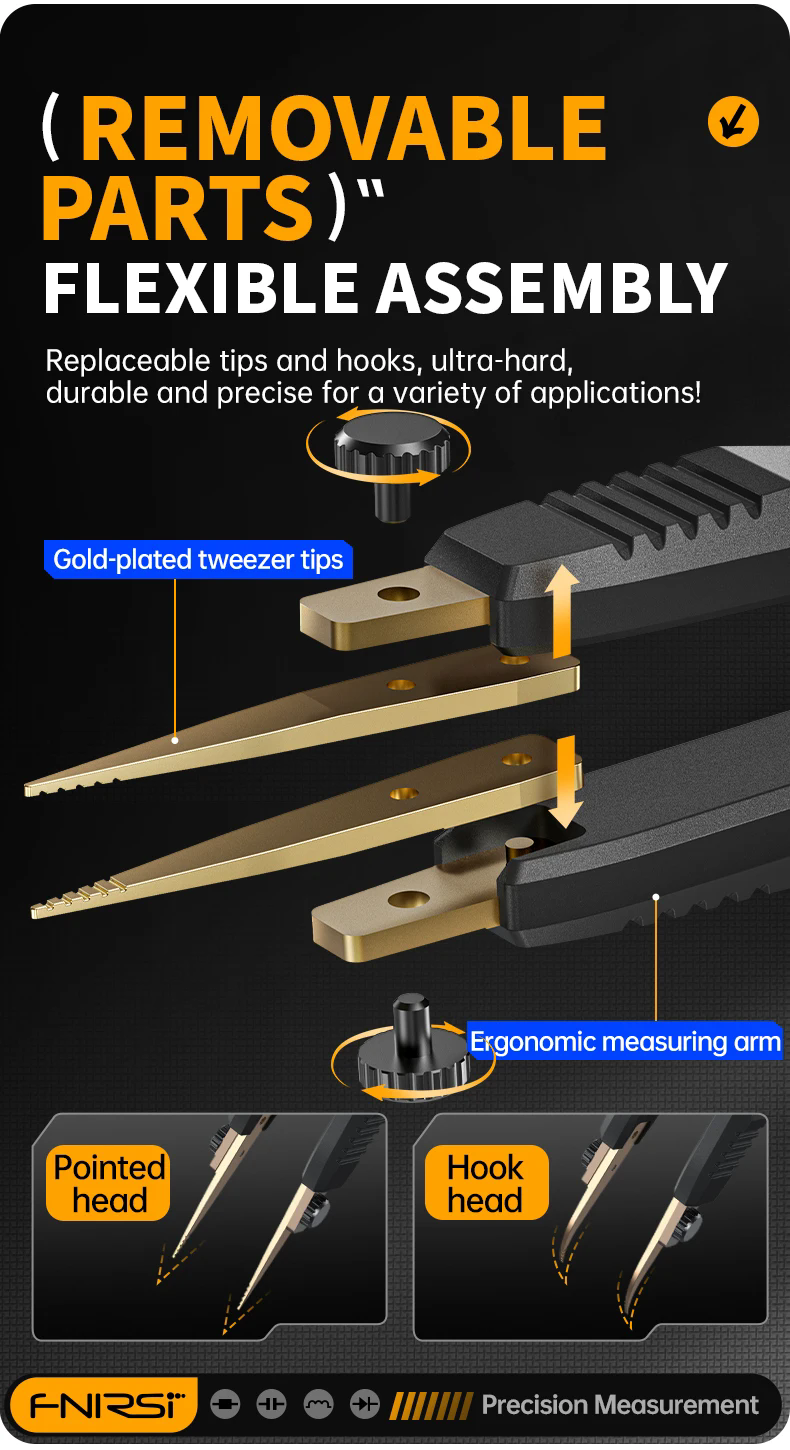

13.Replaceable tweezer head: Support
14.Auto shutdown: Support
15.Data hold: Support

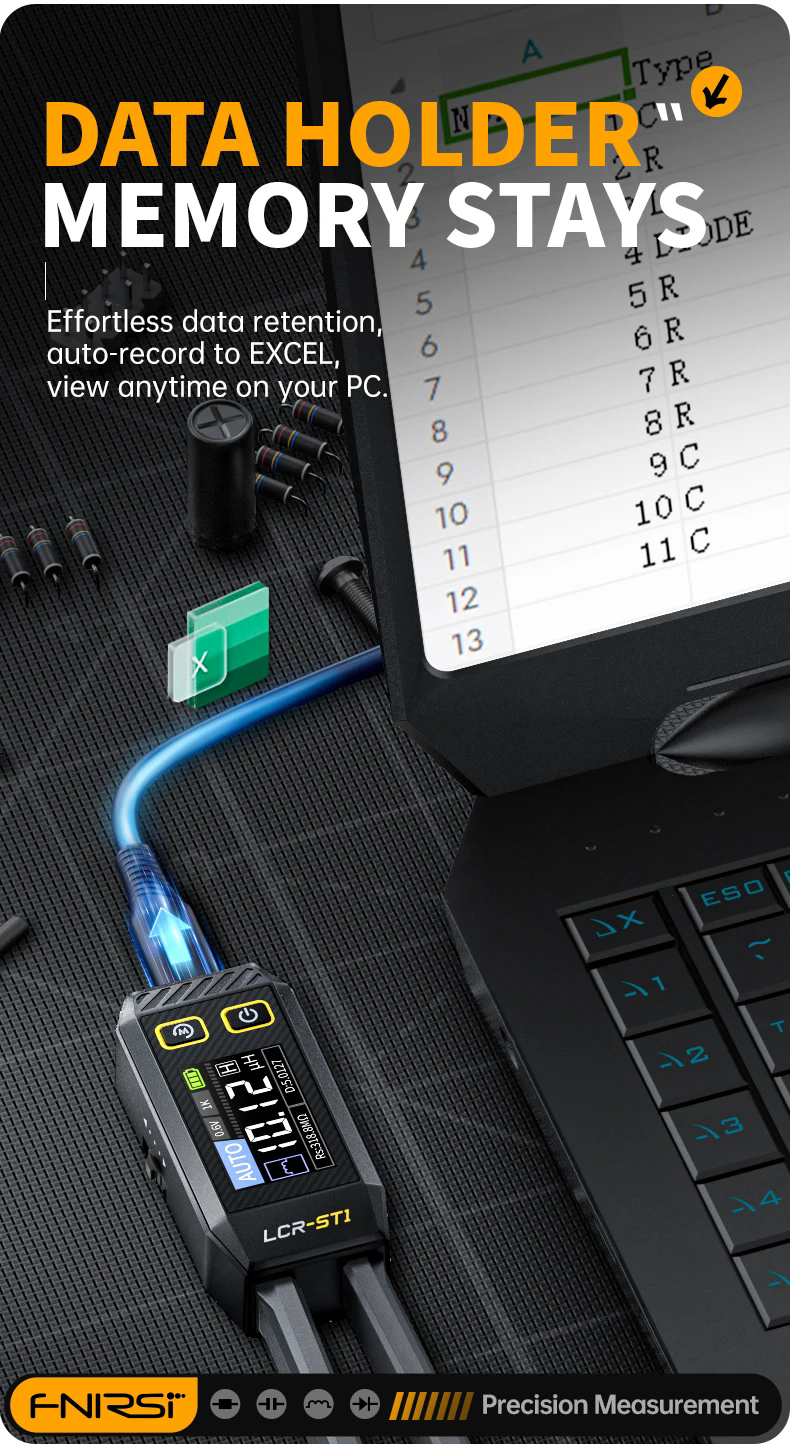

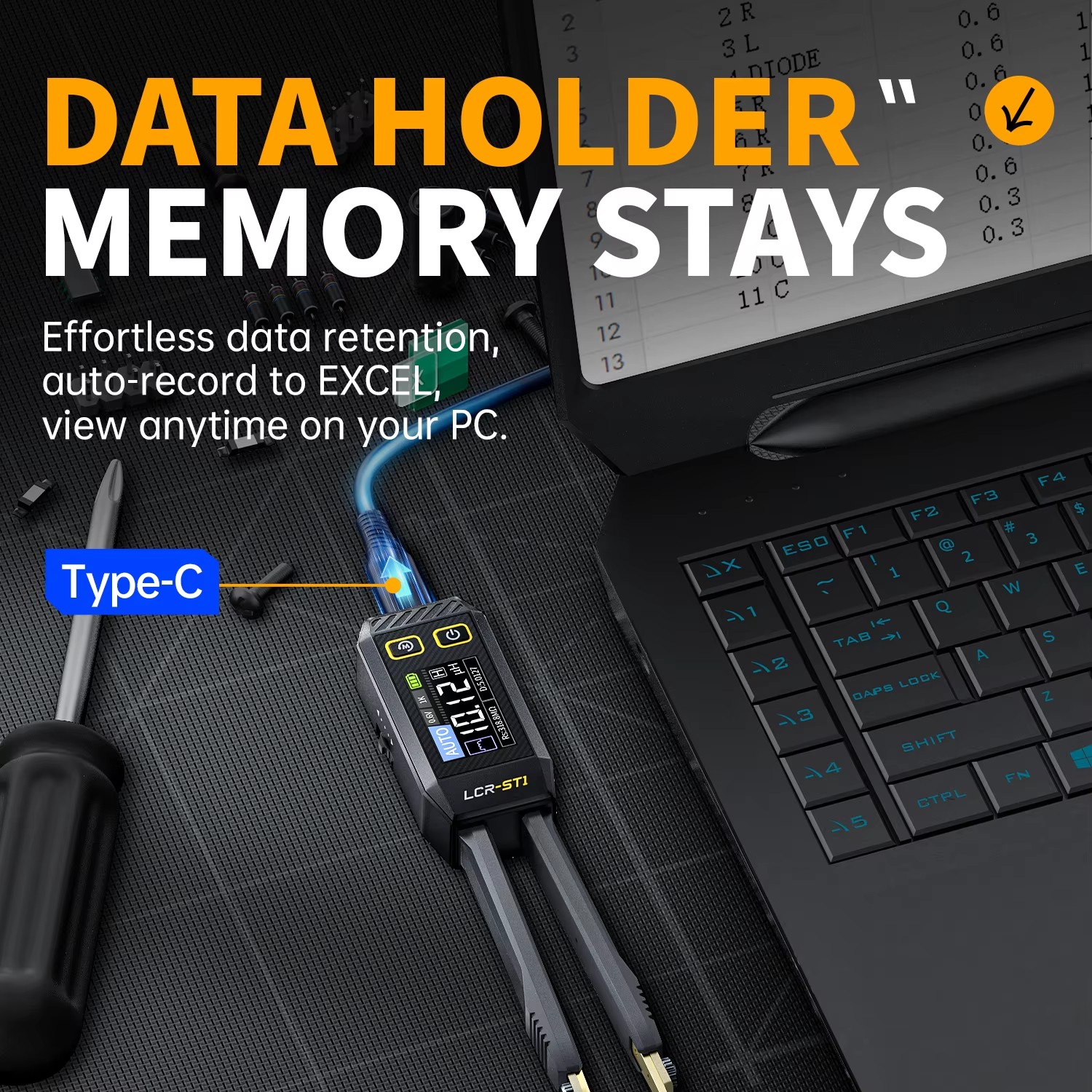

16.History record: Connect to PC to view and export
17.Language: Chinese, English
18.Size: 28×19×150mm

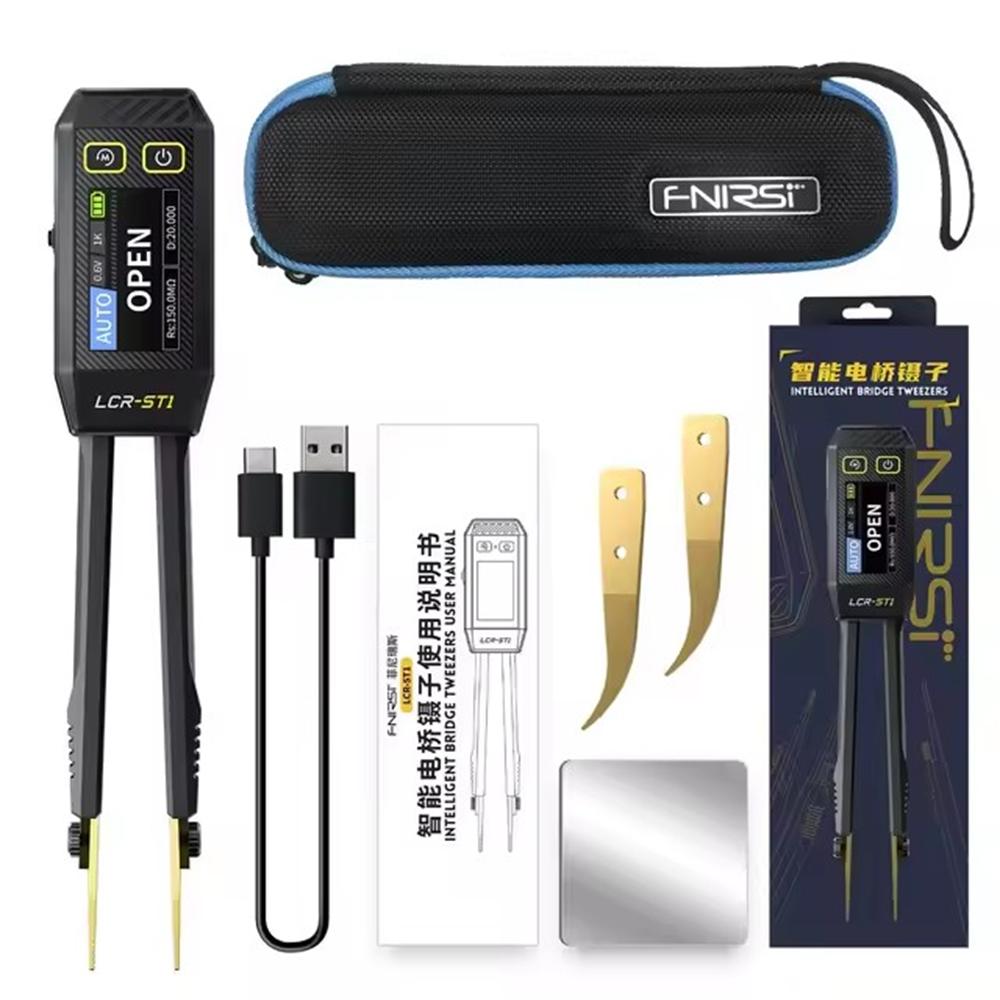

Package includes：
1* LCR-ST1 smart tweezers

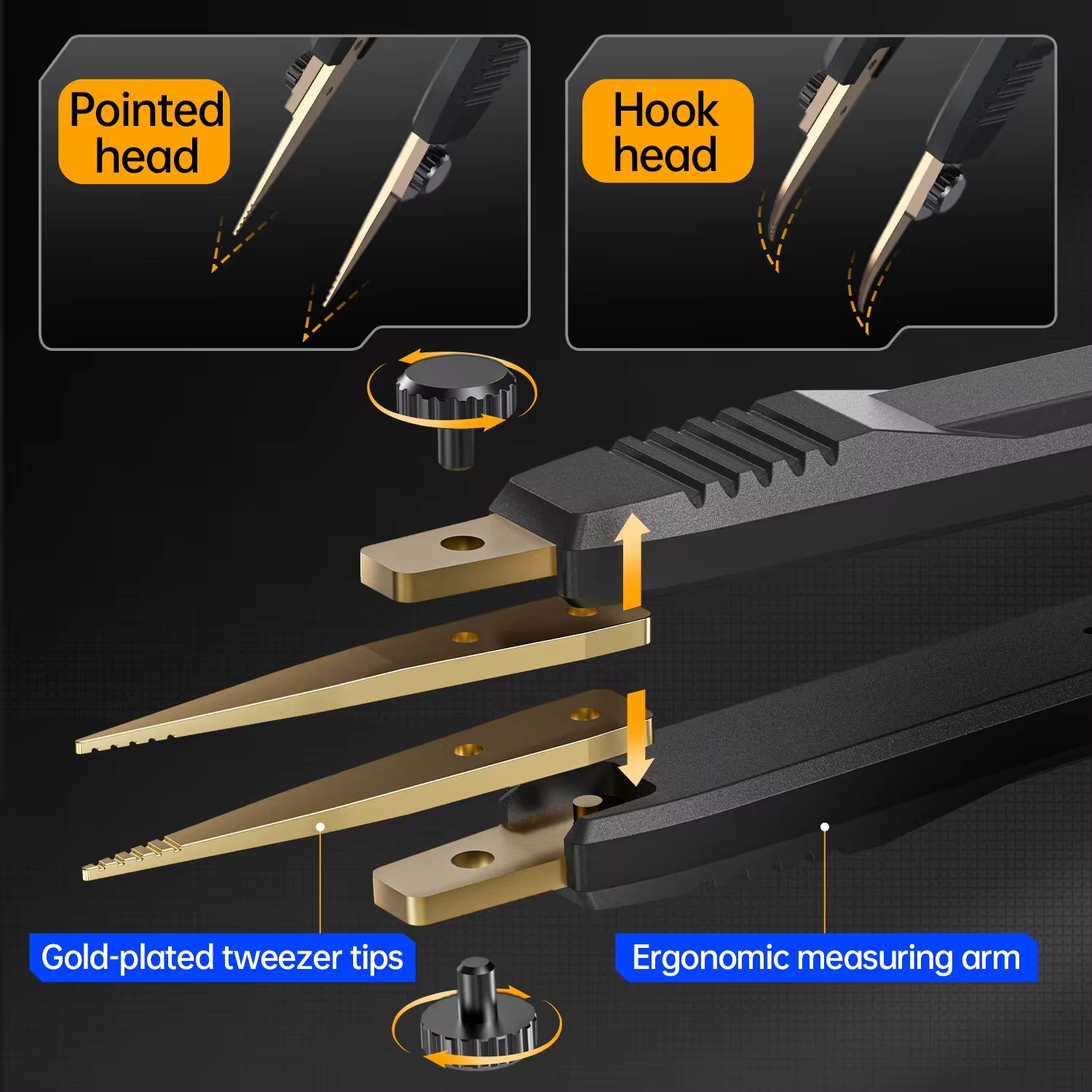

1*Pointed head (one pair) + Hook head (one pair)
1*Storage bag
1* Magnetic patch
1*USB data cable
1*User manual

Note:  other accessories are NOT include.
