PRODUCT DESCRIPTION
Duplicolor Paint Code: 1643 Torque N Teal Engine

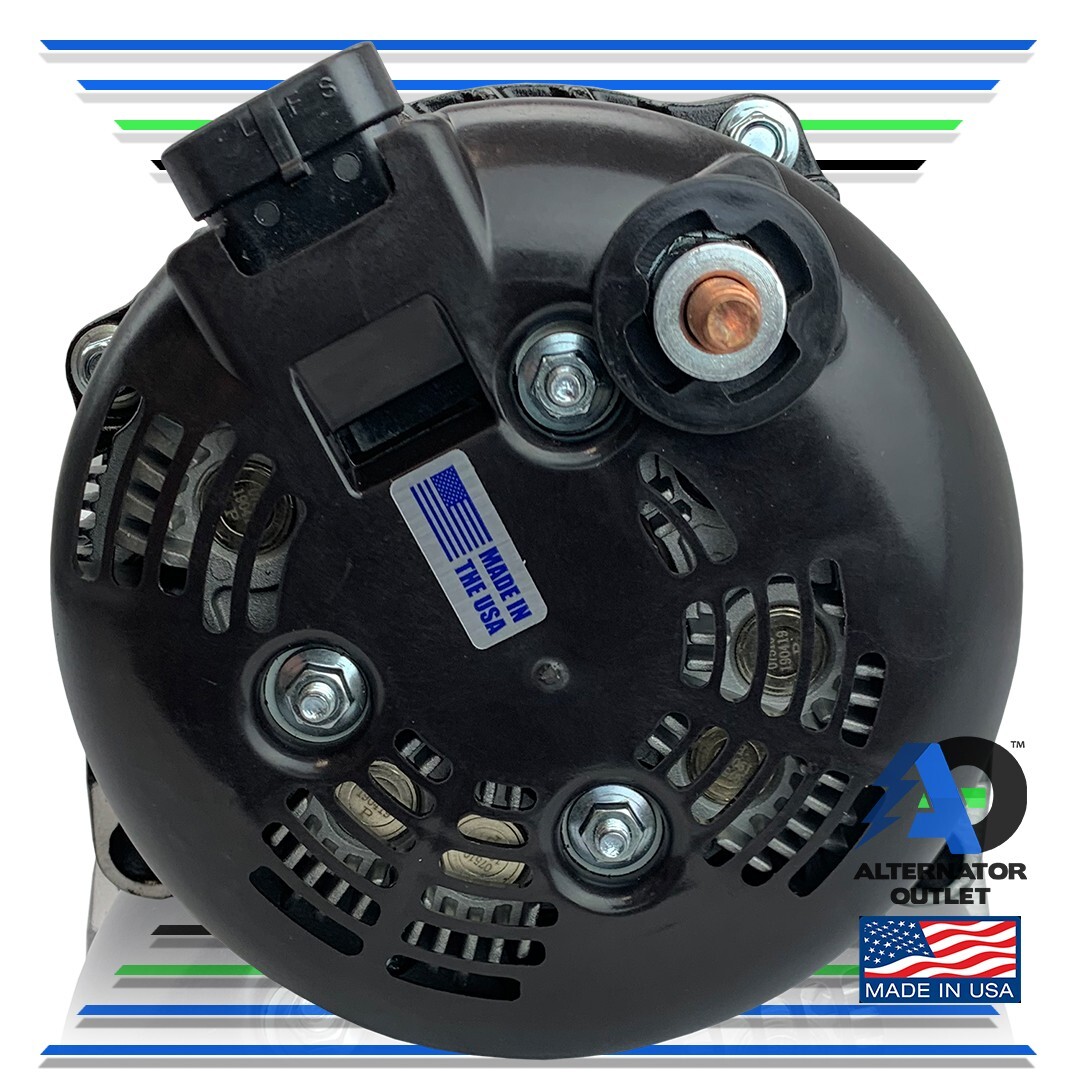

400 Amp high output billet alternator
GM Trucks 1996 - 2004

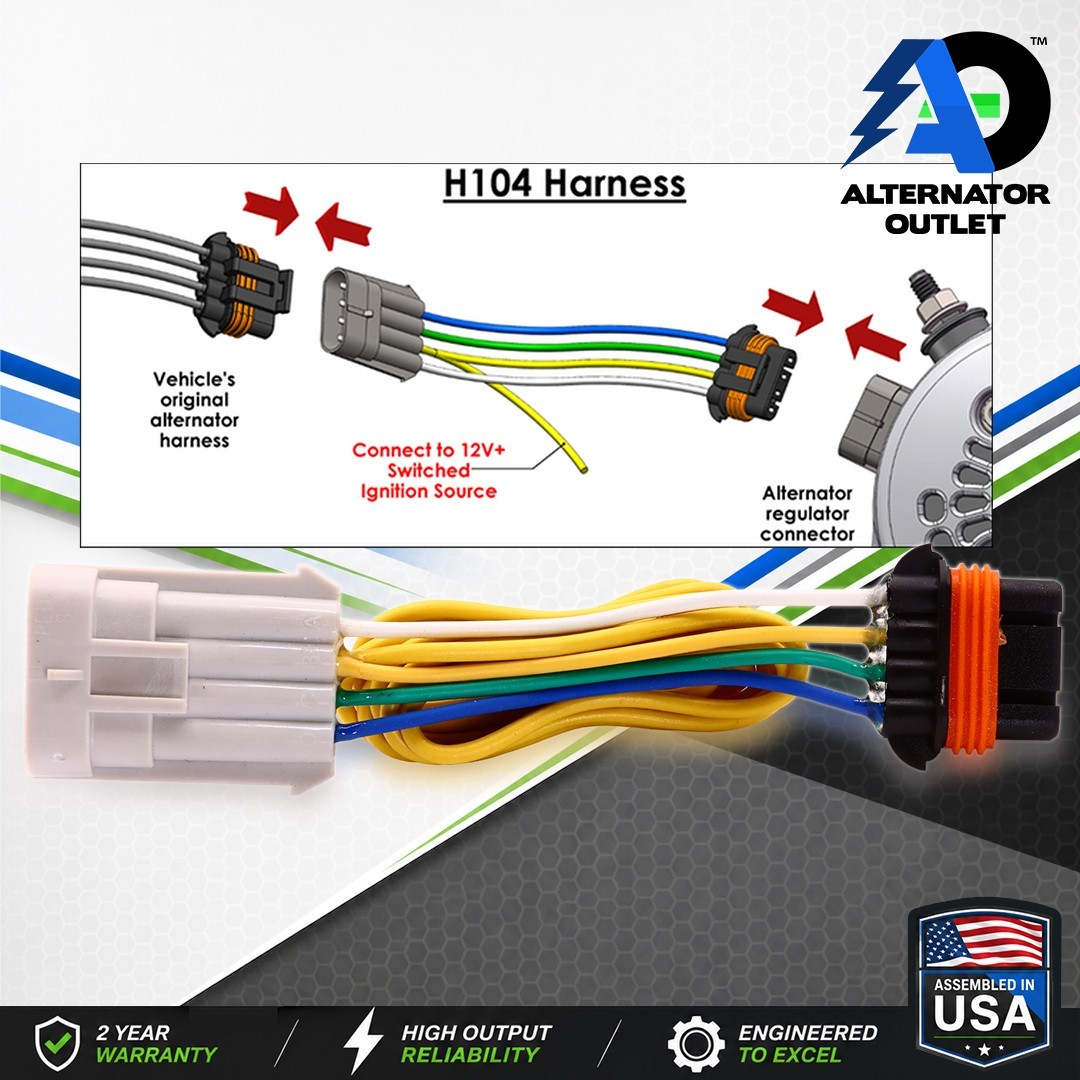

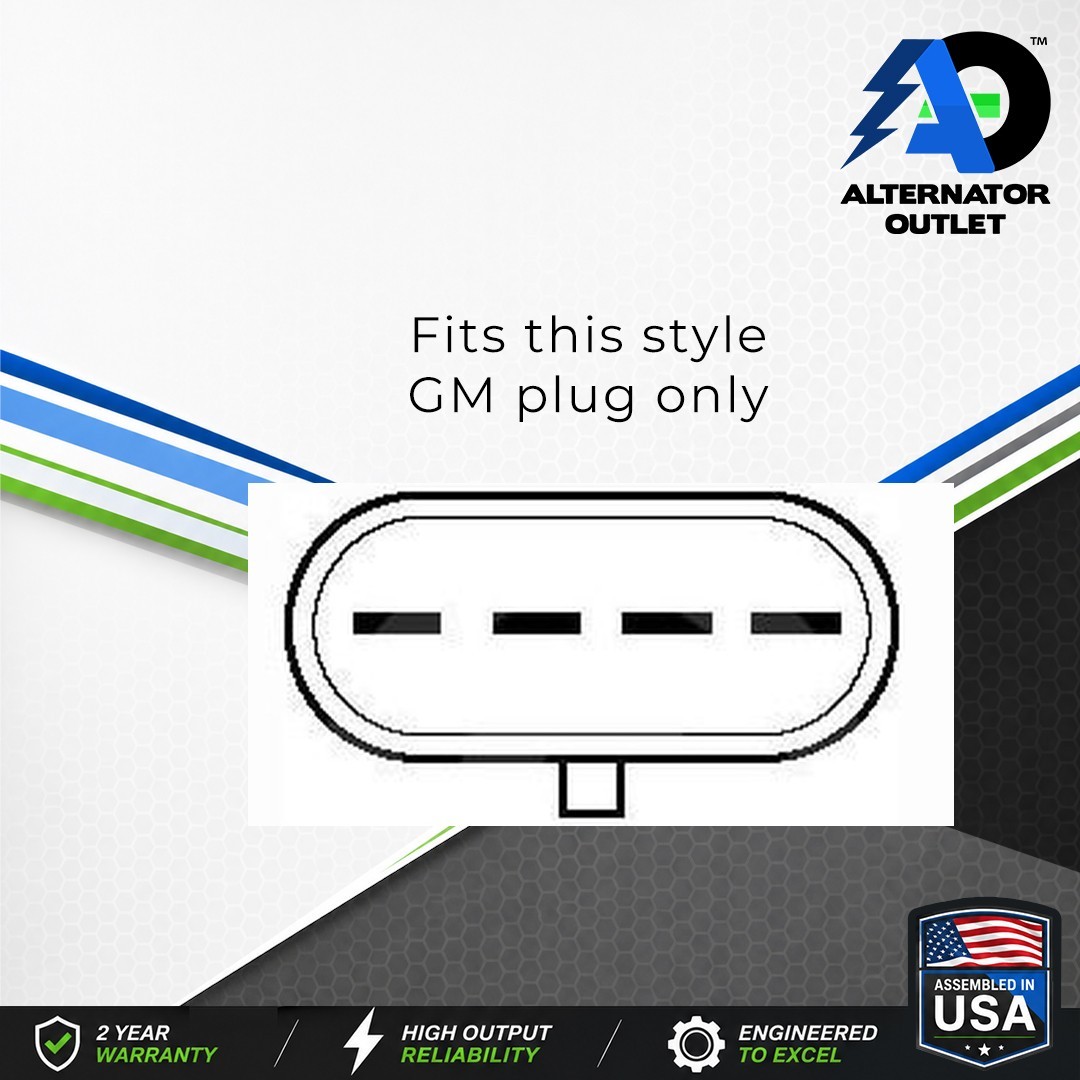

The Elite series 400 amp alternator offers great amperage output and durability at a great price. 6 phase technology, combined with massive twin rectifier assemblies and 12 huge diodes make these alternators totally durable for daily use. These impressive alternators produce 200+ at engine idle RPM and 400+ amps at cruising speeds HOT RATED. Like most high output alternators, this unit comes with a smaller diameter pulley, and will require a 1/2 inch to one inch shorter than stock length belt for proper belt tension in most applications. Installation Notes: This unit may require an additional rectangle to oval adapter harness if the vehicle was originally equipped with the CS144 Heavy duty charging option from the factory. (this is not common) This unit is a direct plug in for any truck originally equipped with the more common oval shaped 4 pin plug as shown.
Installation Notes:
This unit comes equipped with a smaller 1.75 inch diameter alternator pulley, and will require a slightly shorter drive belt for proper belt tension. Not recommended for sustained use above 5,000 RPM engine speed. ((Check instructions section for finding belt sizes and wiring)). If you DO NOT use the correct shorter belt, this will result in very low to no output and create extra work load for the alternator.
About Mechman Alternators:
Since 1978, Mechman Alternators has been committed to providing extremely high quality, High Output Alternators, in Short, you receive a product exactly as advertised unlike other eBay "High Output Alternators". Mechman High Output Alternators are torture tested in the most extreme environments to ensure the best quality and craftsmanship possible. They Race what they build! They specialize in bolt-in high output charging solutions for your vehicle, with applications to fit almost any application. Mechman offers alternator upgrades for many applications that use the latest technology to provide a high output alternator that is far superior to the original design in both durability and performance. Mechman is continually developing new applications to provide the broadest coverage of vehicles of any high output alternator manufacturer.
Make |
Model |
Engine Size |
Year |
| Buick | Rainier | 5.3L | 2004 - 2006 |
| Cadillac | Escalade | 5.7 / 6.0 / 6.2 | 1999 - 2004 |
| Chevrolet | Astro Van | 4.3L | 1996 - 2005 |
| Chevrolet | Avalanche | All Engines | 2002 - 2004 |
| Chevrolet | Camaro | 5.0 / 5.7 | 1998 - 2002 |
| Chevrolet | Express Van w/4 pin plug | 1996 - 2016 | |
| Chevrolet | Full Size Truck | All Gas Engines | 1996 - 2004 |
| Chevrolet | Full Size Truck | 6.6L Duramax | 2001 - 2007 |
| Chevrolet | S-10 / Blazer | 4.3L | 1994 - 2004 |
| Chevrolet | SSR | 5.3 / 6.0 | 2003 - 2006 |
| Chevrolet | Suburban | w/4 pin plug | 1996 - 2004 |
| Chevrolet | Tahoe/Full Size Blazer | All Gas Engines | 1996 - 2004 |
| Chevrolet | Trailblazer | 5.3L | 2003 - 2006 |
| GMC | Envoy | 5.3L | 2003 - 2006 |
| GMC | Full Size Truck / Sierra | 4.3L | 1996 - 2004 |
| GMC | Full Size Truck / Sierra | 4.8L | 1999 - 2004 |
| GMC | Full Size Truck / Sierra | 5.0L | 1996 - 1999 |
| GMC | Full Size Truck / Sierra | 5.3L | 1999 - 2004 |
| GMC | Full Size Truck / Sierra | 5.7L | 1996 - 2000 |
| GMC | Full Size Truck / Sierra | 6.0L | 1999 - 2005 |
| GMC | Full Size Truck / Sierra | 6.6 Diesel | 2001 - 2006 |
| GMC | Full Size Truck / Sierra | 7.4L | 1996 - 2000 |
| GMC | Full Size Truck / Sierra | 8.1L | 2001 - 2005 |
| GMC | Safari | 4.3L | 1994 - 2004 |
| GMC | Savana Van | w/ 4 pin oval plug | 1996 - 2016 |
| GMC | Suburban | w/ Oval plug | 1996 - 2004 |
| GMC | Yukon | w/ Oval plug | 1996 - 2004 |
| Hummer | H2 | 6.0L | 2003 - 2007 |
| Oldsmobile | Bravada | 4.3L | 1994 - 2001 |
| Pontiac | Firebird | 5.0 / 5.7 | 1998 - 2002 |
Specifications
- Fitment Type Direct Replacement
- Item Diameter 5.5 in
- Manufacturer Part Number 8206400-DupliColor-1643
- Superseded Part Number 10463686, 10480133, 8206605N, 8219-5, REPC330105
- Brand Mechman High Output Alternators
- Type Alternator
- Interchange Part Number 10463686, 10480133, 8206605N, 8219-5, REPC330105
- Manufacturer Warranty 2 Year
- OE/OEM Part Number 10463686, 10480133, 8206400-BLAC, 8219-5
- Features Pulley Included
- Country/Region of Manufacture United States
- Universal Fitment No
- Finish Natural, Painted
- Performance Part Yes
