220V Type35 77LB Metal Parts Dehydration Equipment Dehydrator Machine Suitable for Metal

TECHTONGDA®

         ITEM DESCRIPTION

  • The machine base is made of cast iron, with heavy weight, low center of gravity, stable operation and not easy to shake.

  • Under the dual action of centrifugal force and hot air, the moisture attached to the surface of the workpiece is quickly removed and dried at the same time.

  • The three feet at the bottom of the machine are made of cast iron to reduce shaking, and are equipped with a high-speed operation device after slow start and a shock-absorbing spring to maintain the smooth operation and durability of the whole machine.

  • The structure is simple, the processing efficiency is high, the noise is low, and the use is simple and convenient.

  • If you need a larger capacity, please contact us.
Industrial centrifuge is made of stainless steel, corrosion and rust resistant; Reasonable design, strong power, fast speed; Step on the foot switch to complete the discharge, more time and labor saving. Industrial suitable for all kinds of metal parts and small hardware polishing, chamfering, taking out rough edge, rust removal, rough polishing, precision polishing, gloss polishing, etc. Note: Can not be used to dry clothes.
ITEM PARAMETER
Equipment model: Type 35
Voltage: AC220V
Power: 1.1KW
Phase number: 1

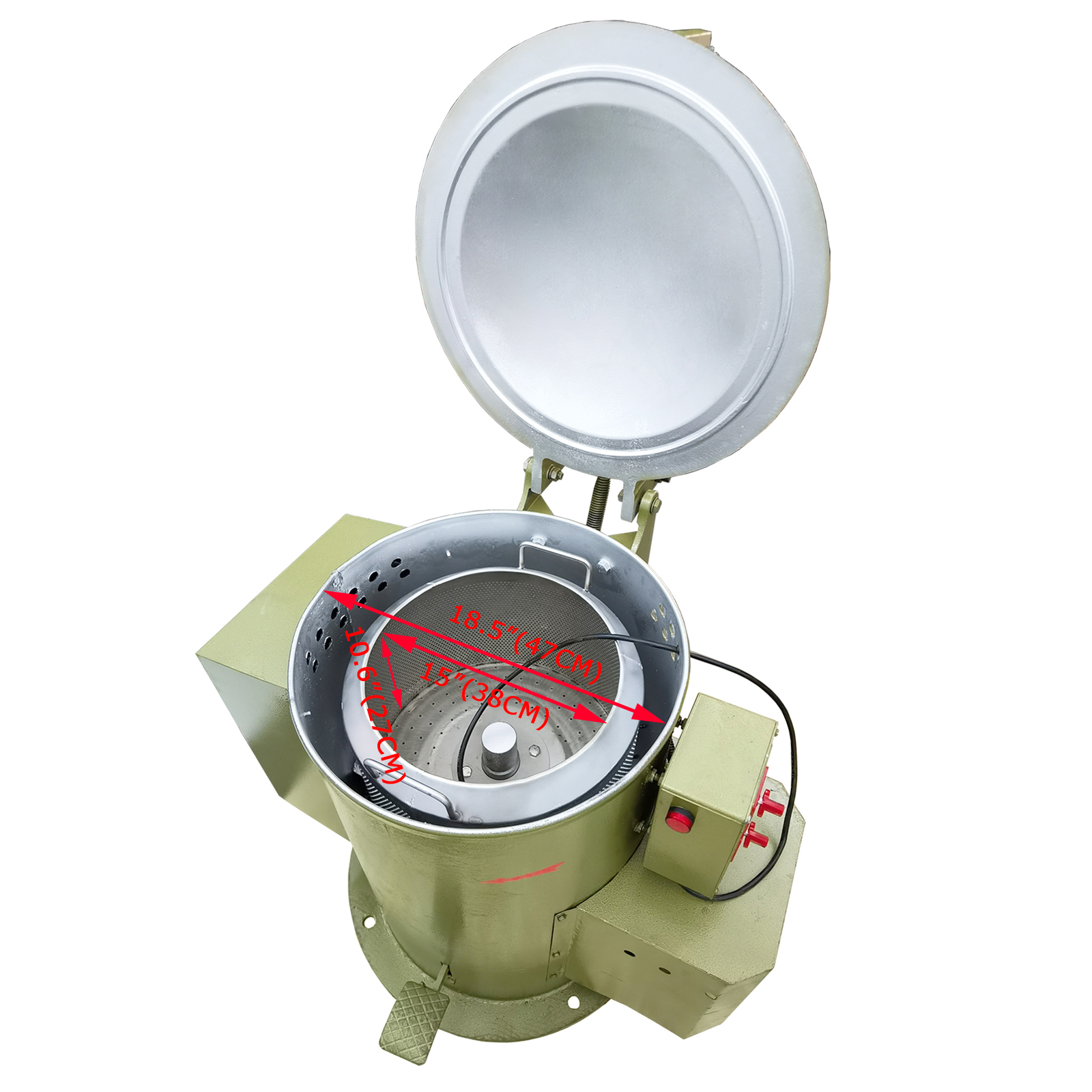

Drum size: φ15.7"*11.8" (φ400*300mm)
Drum load: 77LB (35kg)
Drum speed: 630RPM
Heating wire power: 3KW
Drum material: 304 stainless steel
Package size: 35"*30"*38" (89cm*77cm*96cm)
Net/gross weight: 247LB(112kg) / 313LB(142kg)
ITEM DETAILS

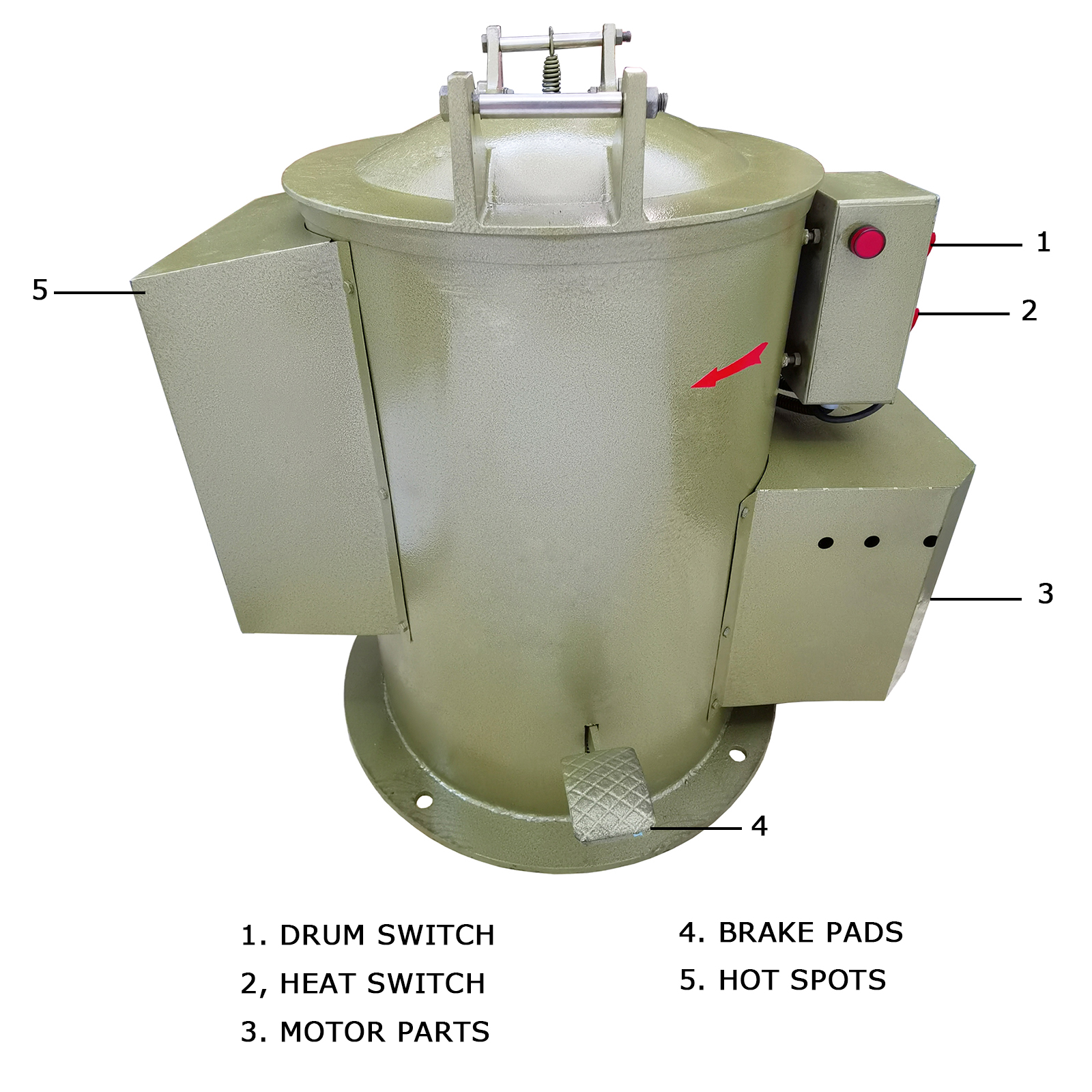

Operation Panel Brake Plate Drying drum

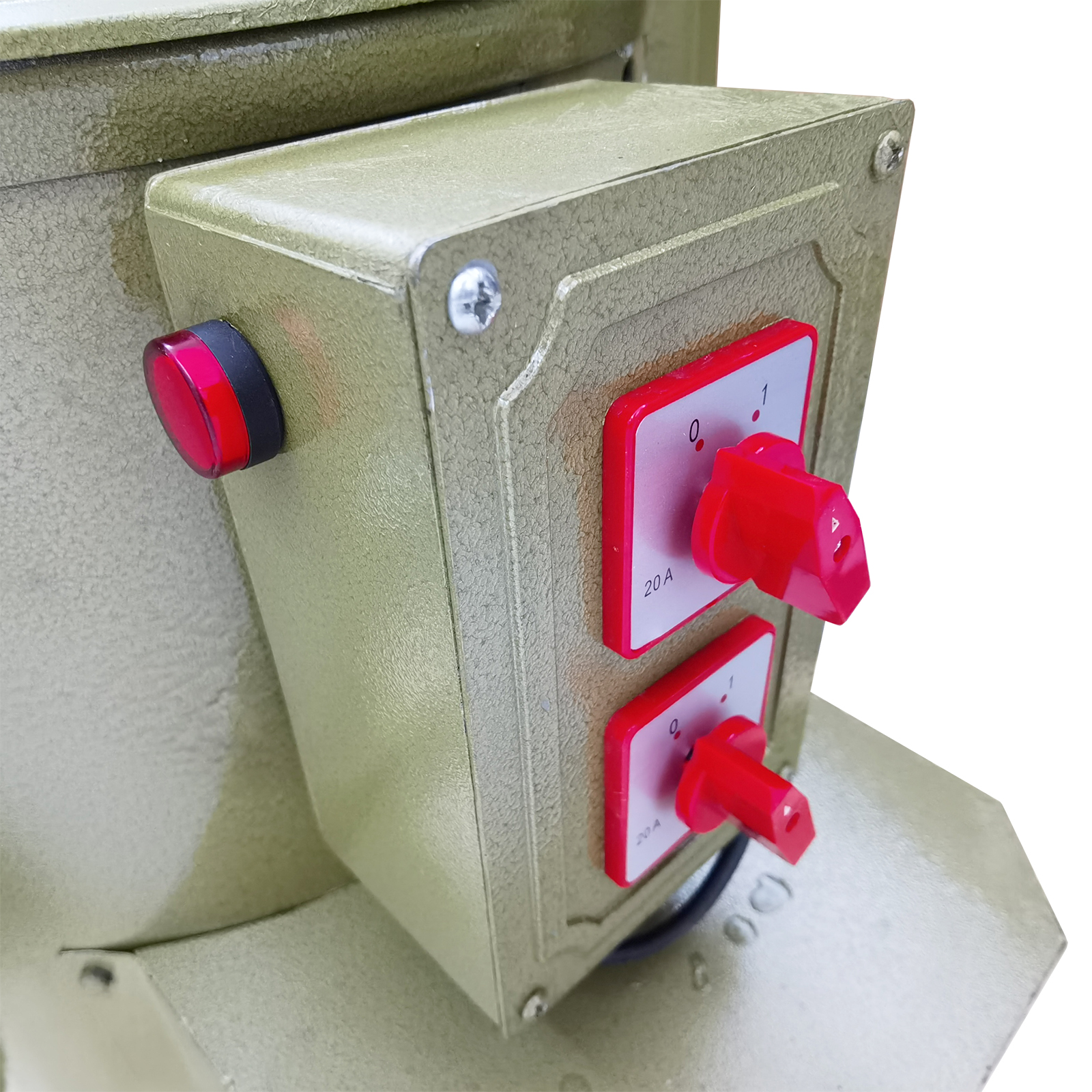

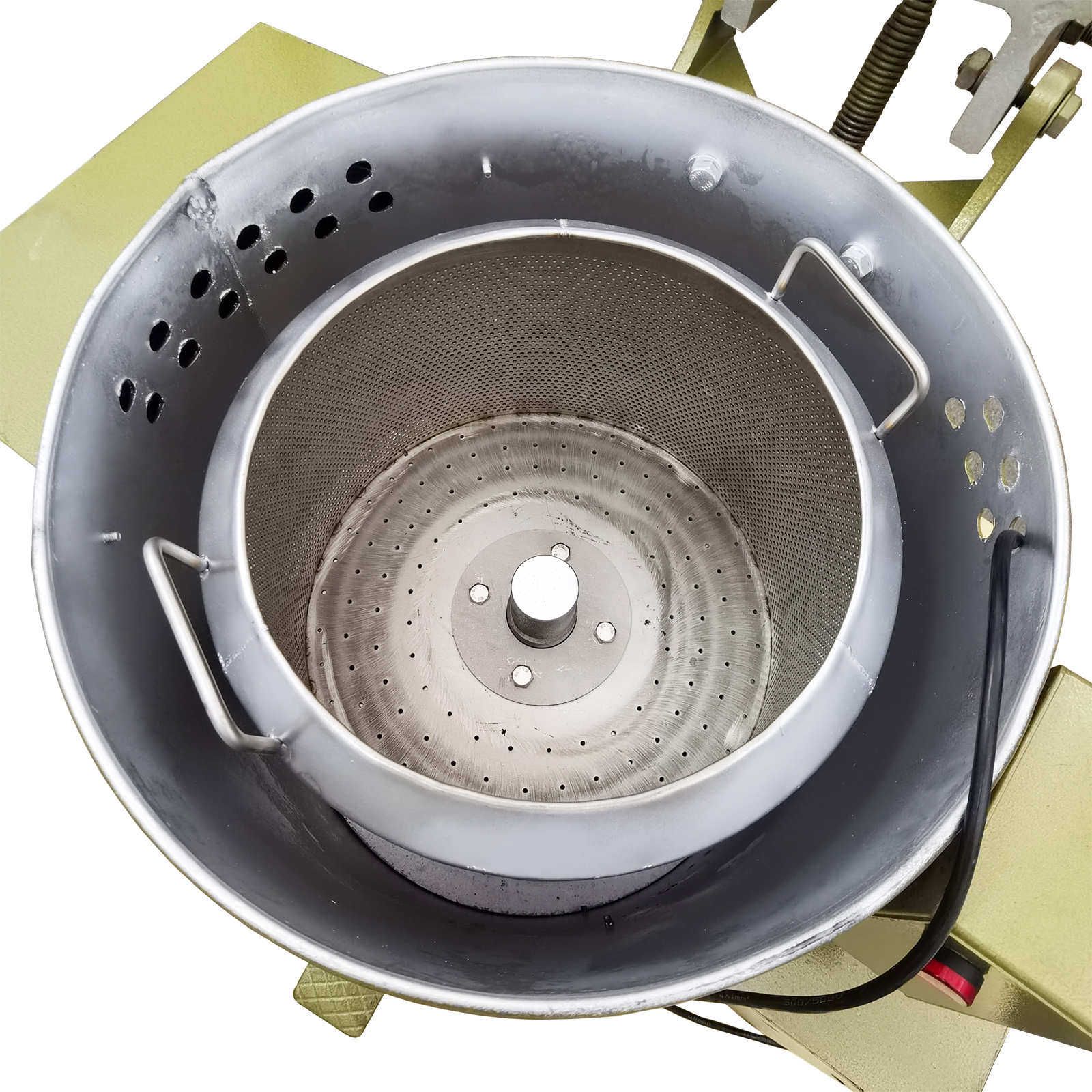

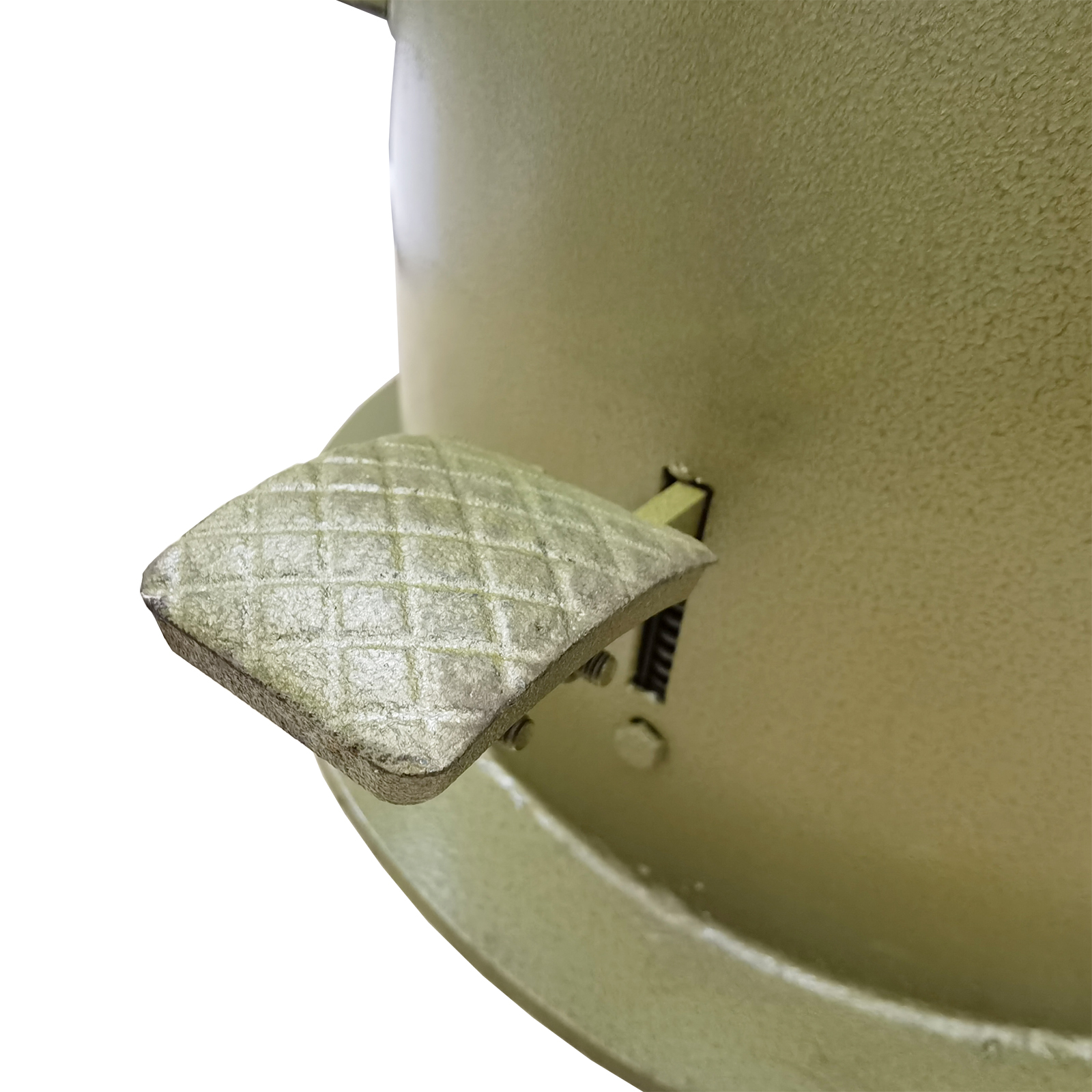

The design of the operation panel is simple and beautiful, the top is the rotary switch, the bottom is the heating switch; One click start, easy to get started. There is a brake plate design at the bottom of the machine, when you want to stop the rotating cylinder, first turn off the motor, and then step on the brake plate to improve the safety and efficiency of use. The drying drum is made of stainless steel, and the middle of the barrel is a flat bottom structure, which is durable and easy to install the workpiece.
Filter Hole Spring Damping Selected Material

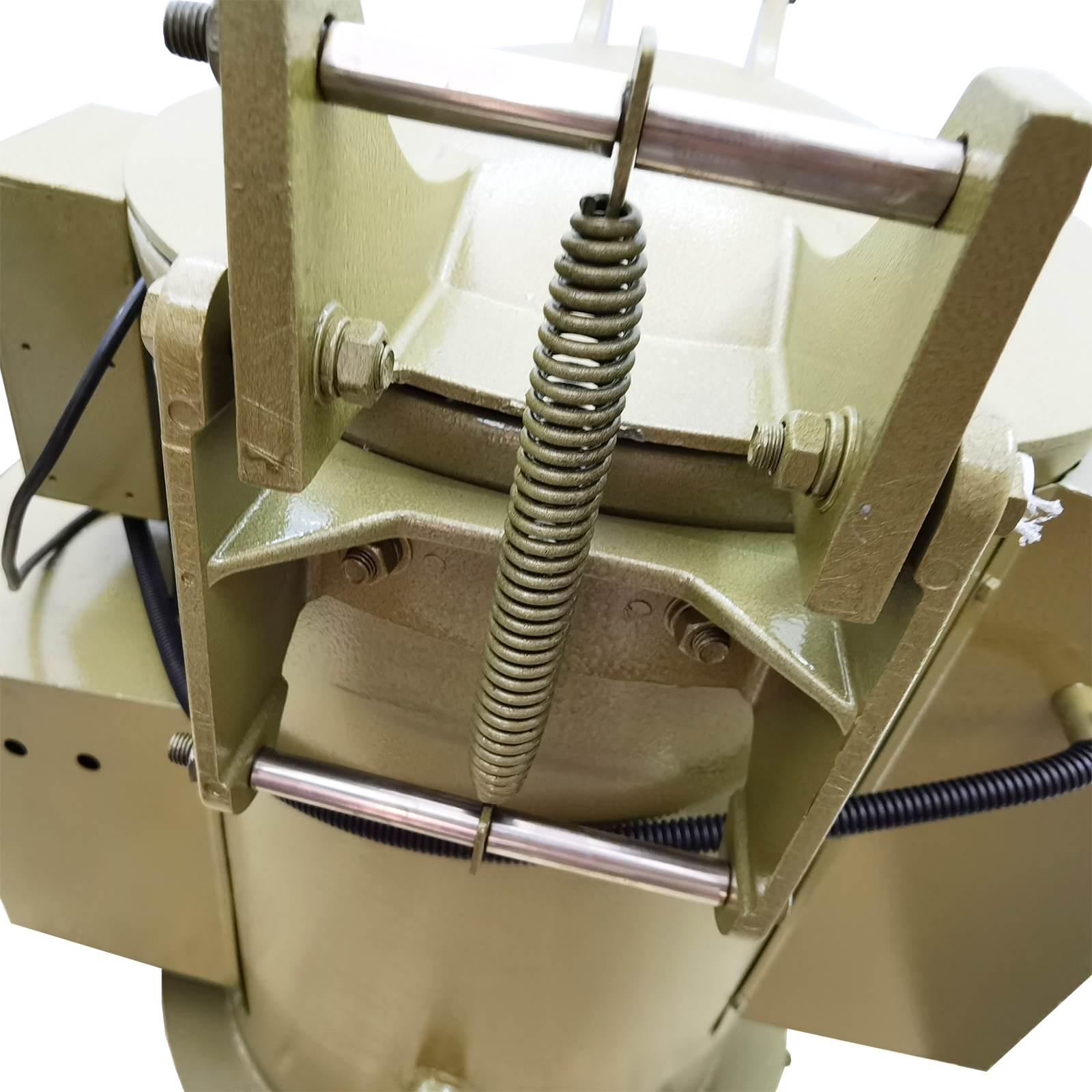

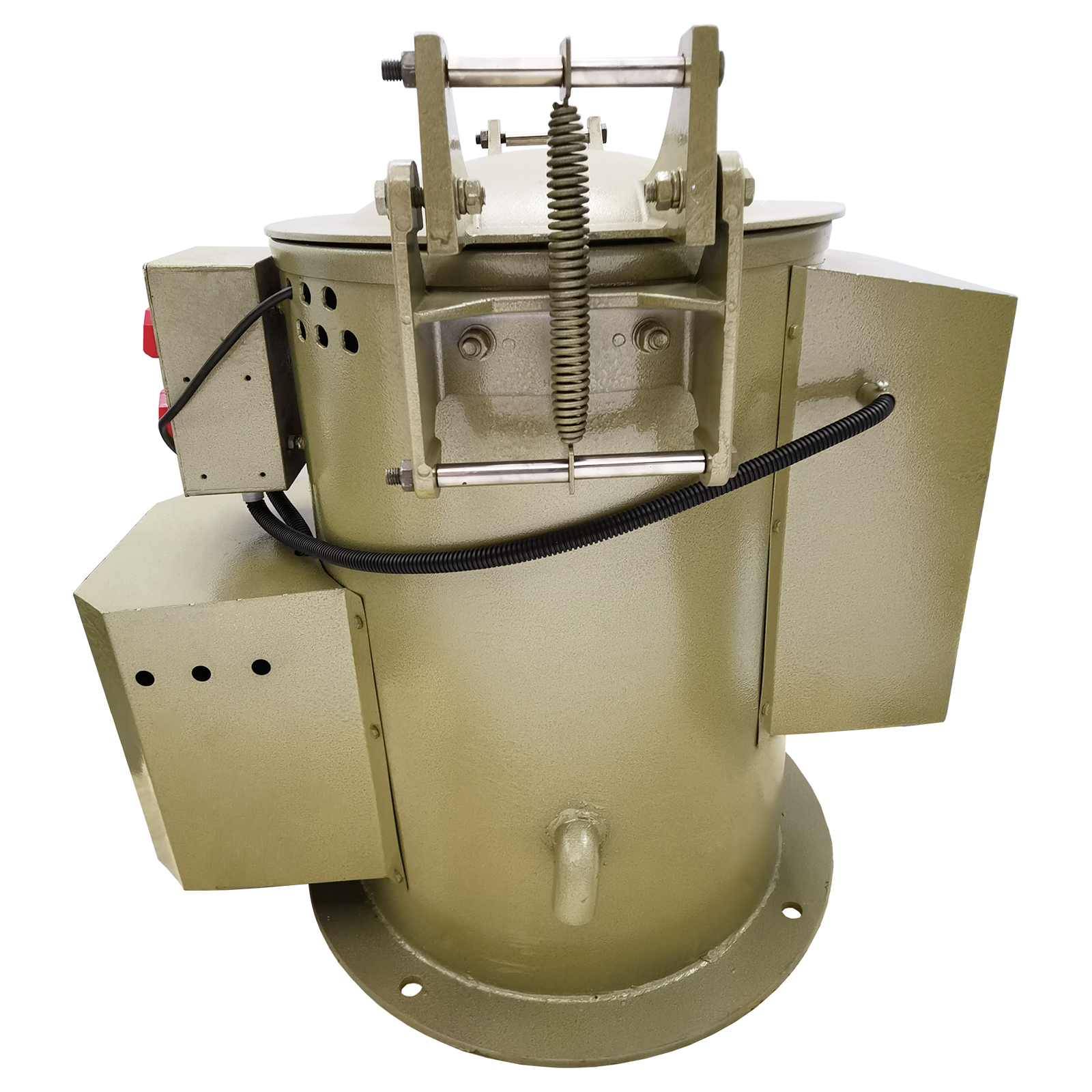

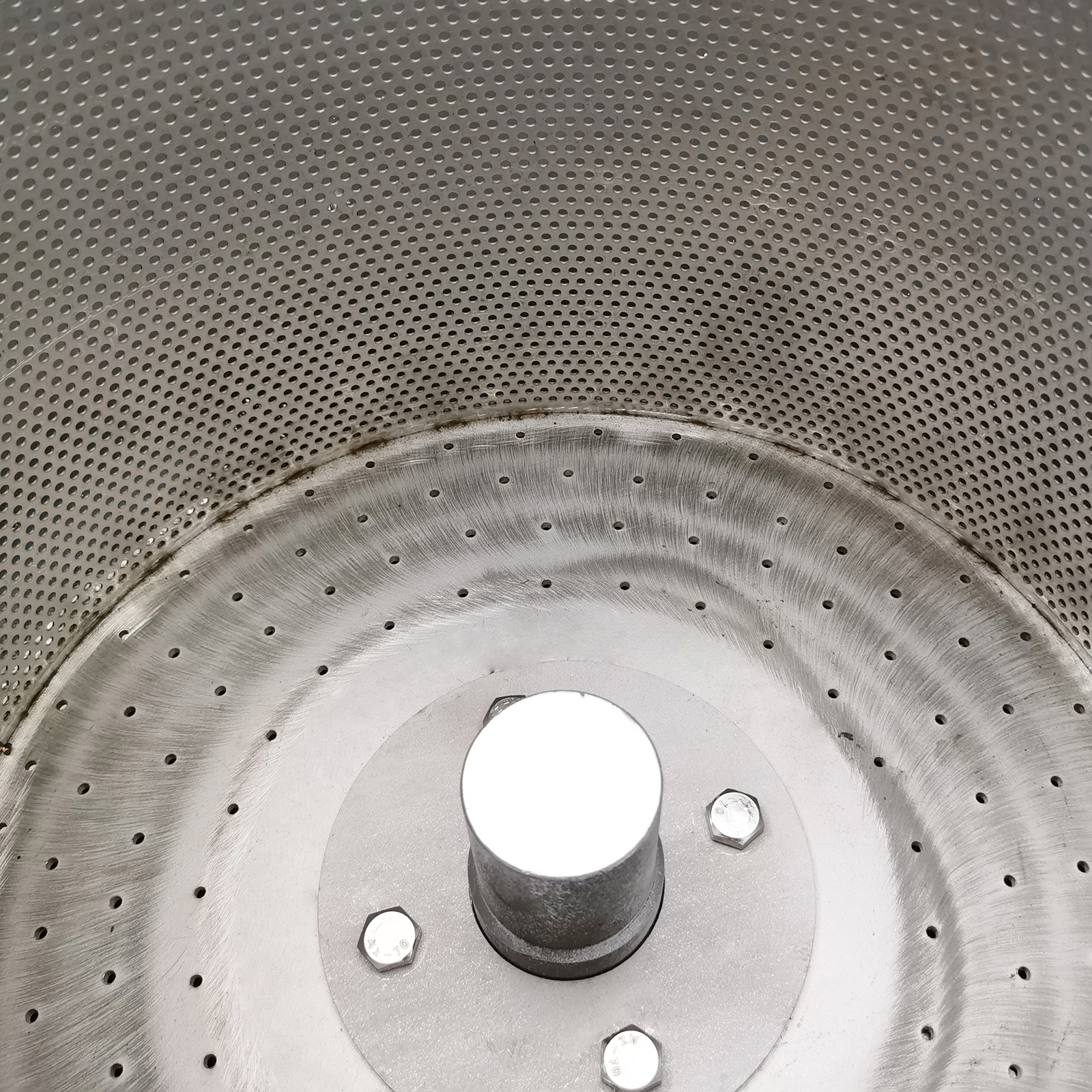

High density filter hole design, filter hole diameter is only 0.24 inches, can greatly improve the dehydration rate, can play a good water washing effect, will not damage the material. The mechine is equipped with suspension spring damping, which can greatly reduce the amplitude generated during operation and ensure smooth operation. The machine adopts stainless steel body and inner liner, which is not easy to rust, corrosion resistance and long service life.
ITEM USE METHOD
1. Before starting up and using, check the power supply connection and whether the fixed position of the cylinder is correct. Connect the power supply, open the top cover, switch on the motor switch, let the cylinder run idling, the steering should be the same as the pointer arrow in the housing, turn on the electric heating wire switch, hot air can be discharged after a few minutes If the hot air is not discharged after 5 minutes of work, stop the machine to check whether the exhaust outlet of the hot wire is blocked.

2. The drying work should be put down the lid, the loading and unloading parts should be stopped, pay attention to the workpiece should be evenly distributed in the cylinder, otherwise the centrifugal force will not be parallel, and the dehydration opportunity will be violently shaken. The workpiece can not be overloaded or overfilled. If the drying workpiece is small and dense, or easy to store liquid, first centrifugal drying 1-2 minutes, take out the drum, turn the workpiece position, in heating centrifugal drying, to achieve satisfactory results.

3. To use the rotary drum to stop, first turn off the motor, and then step on the brake plate with your foot, but remember to turn off the motor before braking! The dehydrator may not be heated for separate centrifugal drying, but the motor cannot be turned off for separate heating for drying.

4. Before using the dehydrator, read the instruction manual, understand the operating principle, check and maintain the dehydrator frequently, add lubricating oil to the bearing regularly, and keep the dehydrator in good condition.
Dehydrator common faults and solutions
Breakdown Cause Solution
Not rotate 1. Motor burned. 1.Motor replacement.

2.Check whether the switch contact is good.

3.Whether the fuse is blown.

4.Adjust motor position or replace belt.
2. Lack of phase.
3. Loose or broken belt.
Abnormal temperature 1. Wind leaf reversal. 1.Adjust the power phase line to change the motor steering.

2.Reheating tube.

3.Replace the conductive wire of the heating tube.
2. The heating pipe is burned.
3. The conductive line of the heating tube is burned off.
Loud vibration or noise 1. Uneven placement of the workpiece. 1.Stop and place the workpiece evenly.

2.Reinstall the smooth dryer.

3.Retighten the housing retaining bolt.

4.Pressure enough high temperature grease from the pressure oil.

5.Change bearing.
2. The drying machine is not stable.
3. Bearing oil loss.
4. Bearing damage.
5. The fixing bolt of the bearing seat is loose.
Brake failure 1. Excessive wear of brake skin. 1.Brake replacement.
ITEM PRESENTATION
ITEM INCLUDED(056964)
Industrial Centrifuge Dehydrating Machine *1
