The monitor supports up to 1080p60 video input via its SDI and HDMI inputs, and it features SDI and HDMI loop outputs to send video to an external display or switch. It also allows you to record your program as an MP4 proxy using the built-in microSD/TF card slot. Multiple imaging tools are available using the built-in CINE OS software, including scopes, peaking, and storage of up to 50 3D LUTs on the monitor.
Display

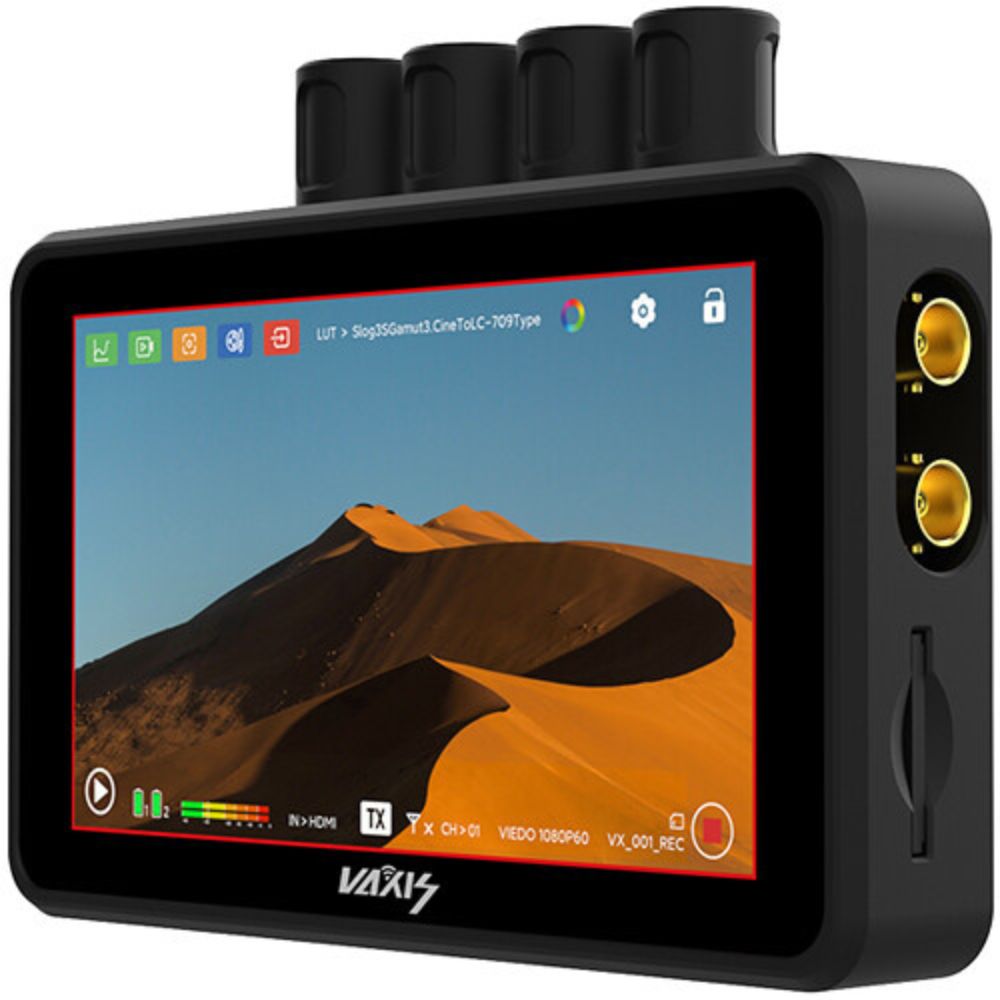

5.5" touchscreen LCD screen with 1080p resolution and 2000 cd/m² brightness
Input/Output
The Atom A5 SDI features SDI and HDMI inputs as well as SDI and HDMI loop outputs; it also features a 3.5mm headphone output on the side
Wirelessly Transmit and Receive Video
Transmitter and receiver in one; can transmit or receive to or from multiple Atom series transmitters and receivers
Recording
Record MP4 video files onto a microSD/TF card with the built-in media slot, and the Atom A5 SDI allows you to instantly play the footage back
Compatibility
Compatible with the Atom ecosystem, including the Atom 500 HDMI or SDI, Atom 600 KV TX, and Atom A5H
Timecode Sync
The Atom A5 SDI can sync timecode with the camera so you can simultaneously trigger record on the monitor when the camera records
Wireless Range
Transmission distance up to 1000'
Image Tools
The updated CINE OS software features multiple imaging tools such as peaking and scopes, and it supports up to 50 3D LUTs to be stored on the monitor
Antennas
Two replaceable antennas can be swapped out for optional longer-range antennas
Battery

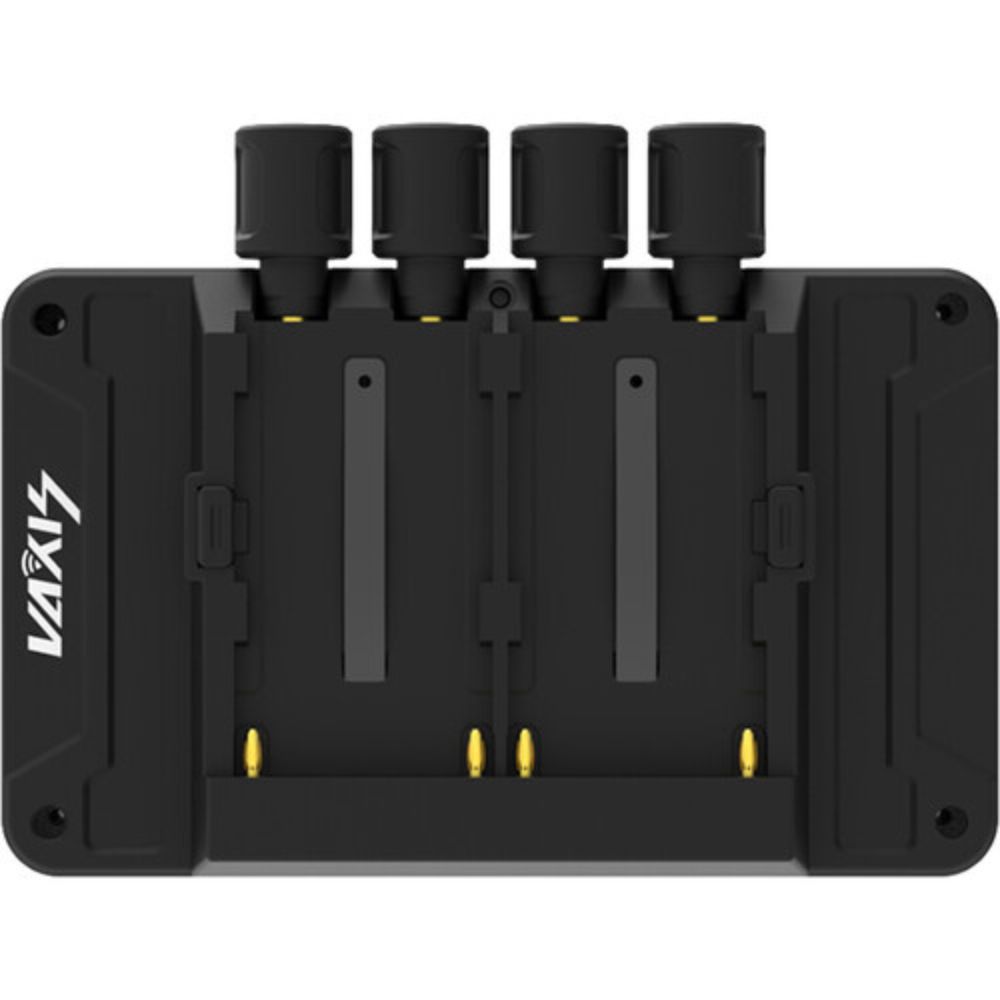

Built-in dual NP-F970 L-series battery plate
Box Contains
-
Vaxis Atom A5 5.5" Wireless RX/TX SDI/HDMI Monitor
- 4 x Antenna
- 1 x SD Card (32GB)
- 1 x SDI Cable
- 1 x Screen Protector
-
Vaxis Atom A5 5.5" Wireless RX/TX SDI/HDMI Monitor
- 4 x Antenna
- 1 x SD Card (32GB)
- 1 x SDI Cable
- 1 x Screen Protector
| Brand | Vaxis |
| Model | Vaxis VA21-600-TR01 |
| MPN | VAXIS-VA23-A5-SDI-TR01 |
| Type | Video Monitor |
| Display Size | 5.5 / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | No, |
| Video I/O | 1x BNC (3G-SDI) Input 1x HDMI (Unspecified Signal) Input 1x BNC (3G-SDI) Output 1x HDMI (Unspecified |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC |
| Video Format | HDMI/SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Panel Type | LCD |
| Aspect Ratio | 16:9 |
| Maximum Brightness | 2000 nits / cd/m2 |
| Contrast Ratio | 1200:1 |
| Pixels Per Inch (ppi) | 401 ppi |
| Image Controls | Focus Peaking, Histogram, Pixel Zoom, Vectorscope, Waveform |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8 / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel Input |
| Other I/O | 1x USB-C Input |
| Encryption | No |
| Wireless Range | 984.3' / 300 m |
| RF Power | 17 dBm |
| RF Sensitivity | -80 dBm |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Audio Format | 2-Channel 48 kHz |
| Built-In Battery | Yes |
| Environmental Protection | No |
| Certifications | No |
| Dimensions | 5.9 x 3.6 x 1.2 / 151 x 92 x 30.5 mm |
| Weight | 12.7 oz / 360 g |
