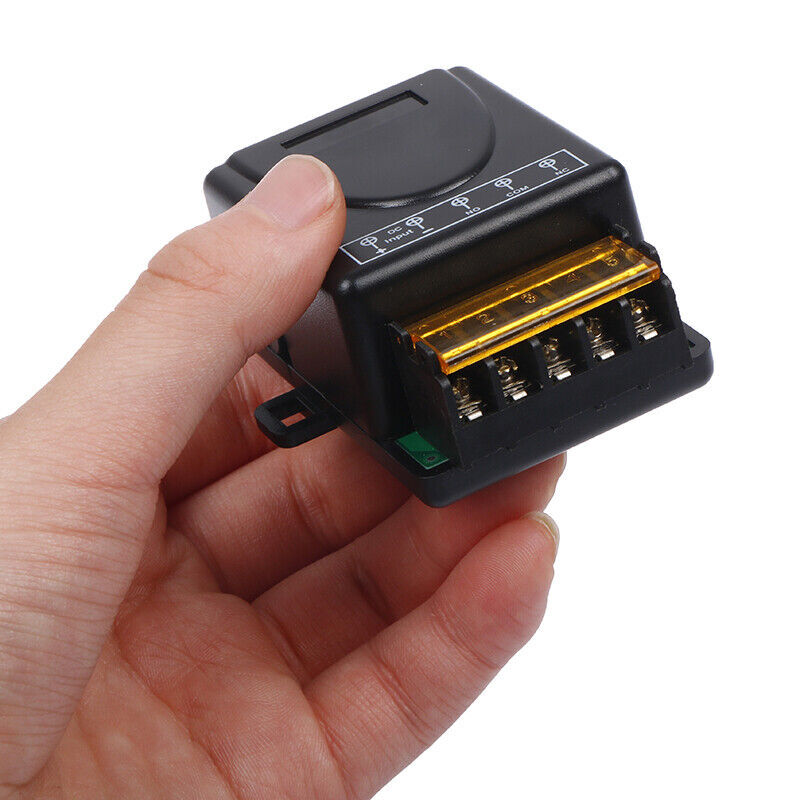

Technical data:
Click 1: Jog; Click 2: Self locking; Click 3: Interlock; Click on a 4-5 second delay; Click 5: 10s delay; Click on 6:15 to delay; Click on 7:30 to delay; Click on 8:1 minute delay; Click on 9:1.5 minute delay; Click on the 10:2 minute delay; Click on the 11:3 minute delay; Click on 12:5 minute delay; Click on 13:10 minute delay; Click on 14:15 minute delay; Click on 15:20 minute delay; Click on 16:30 to delay; Click on 17:1 delay; Click on 18:3 to delay; Click 19:10 to delay; Click 20: Clear Code

Working voltage: 220V
Working frequency: 433Mhz.
Modulation mode: ASK.
Receiving sensitivity: -104dBm.
Working temperature: -30~+70.
Maximum load: 30A relay, resistive load ≤ 25A, inductive load ≤ 20A.
Launch distance: Indoor 20-50 meters, open space 50-100 meters.
Function options: Instantaneous/Switching/Locking.
Matching mode: Intelligent learning code.
Output mode: dry contact/voltage output.
Can learn transmitters: 1-25 transmitters.
Size: 60x40x30 (mm).

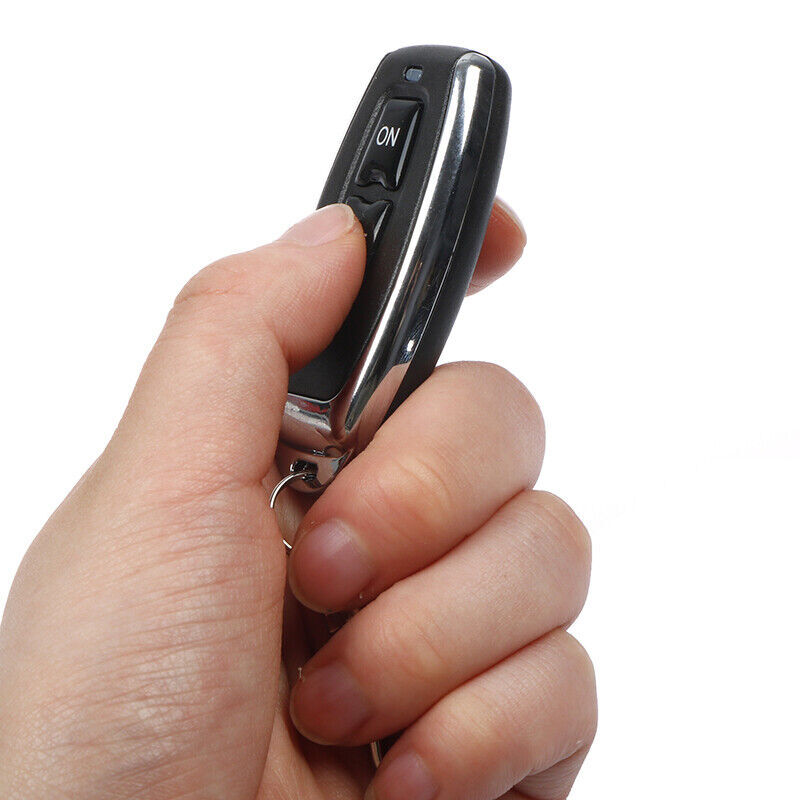

Remote control specifications:
Working frequency: 433.92MHz
6V coin battery button battery power supply (including battery),
Material: PVC.
Button: AB button
Size: 55mm x 30mm
Working voltage: 220V
Transmission power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transmission distance: 80m
Attention:
Different options include different software packages:
