New NanoVNA-F V3 1MHz-6GHz Vector Network Analyzer VNA for MF/HF/VHF/UHF/SHF
Details
Description:
NanoVNA-F V3 is a Portable Vector Network Analyzer (VNA) with frequency range of 1MHz~6GHz. It can be used for S11 and S21 measurements. The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB.
NanoVNA-F V3 is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands, such as

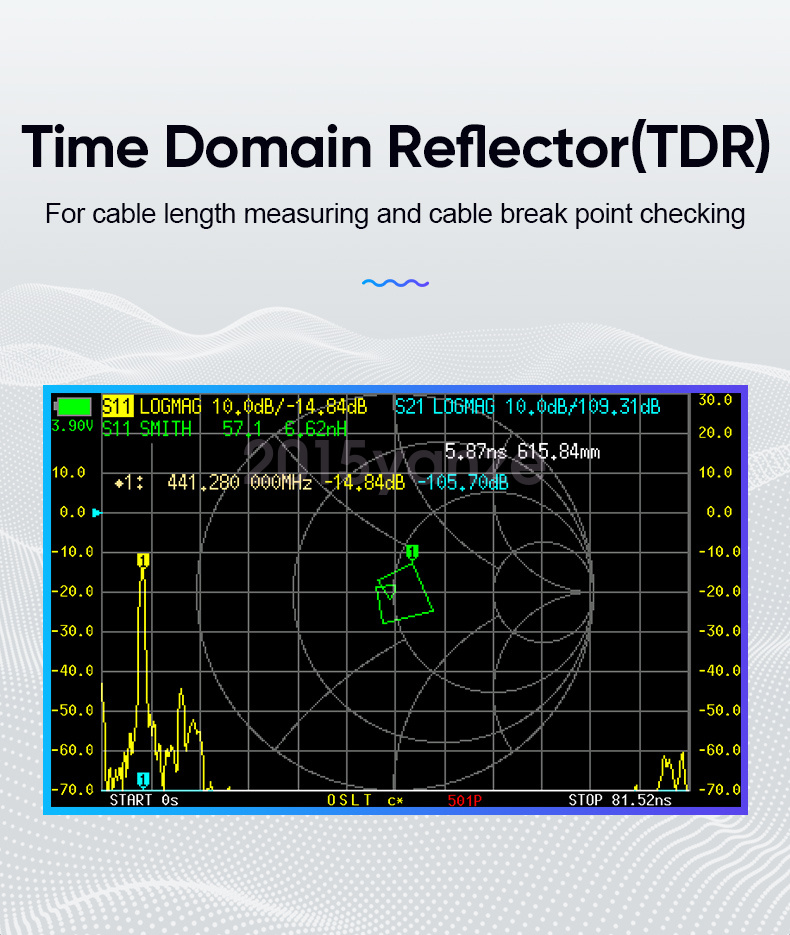

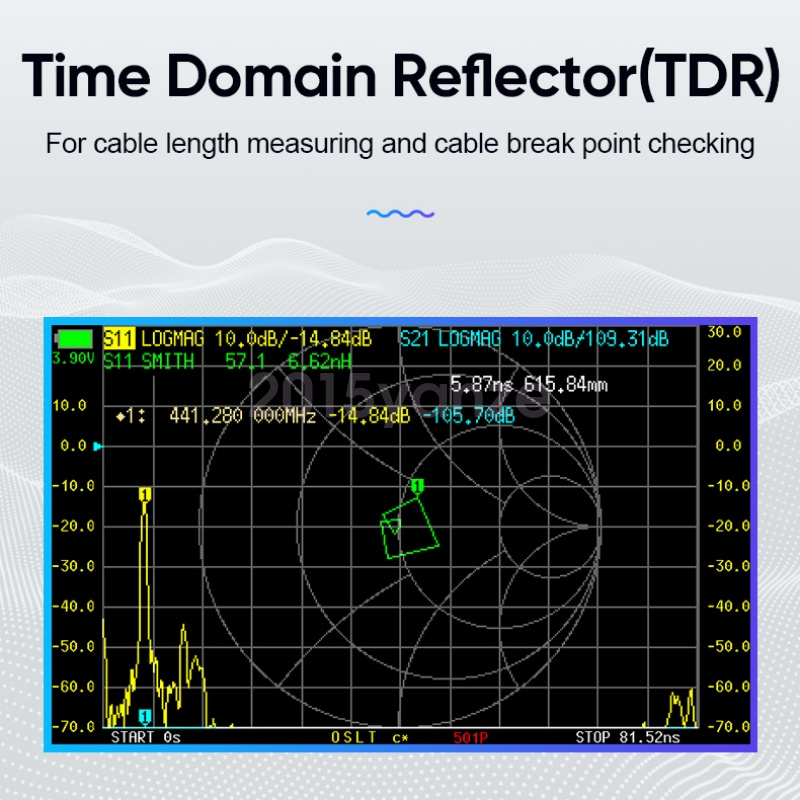

shortwave antennas, ISM band antennas, WiFi antennas, Bluetooth antennas, GPS antennas, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components. NanoVNA-F V3 supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. In addition, NanoVNA-F V3 supports TDR function which is useful for cable lengths measurement.
NanoVNA-F V3 is designed with metal case, which is durable and can effectively shield

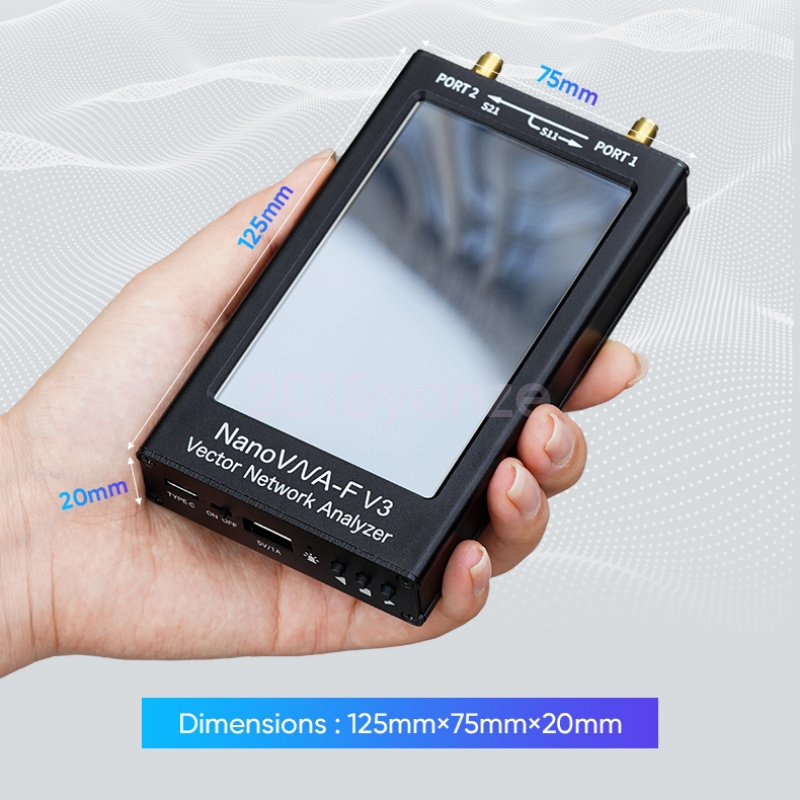

electromagnetic interference. The dimension of NanoVNA-F V3 is 125 x 75 x 20mm/4.9 x 3 x 0.8". The RF interface of NanoVNA-F V3 is SMA connector witch can be used to connect DUTs directly. With the optimally designed signal processing system, the scan speed of NanoVNA-F V3 is up to 200 points/s and the maximum scanning points is up to 801.
The screen of NanoVNA-F V3 is a 4.3-inch high-brightness IPS with resistive panel, which allows users to see the screen contents clearly in outdoor. NanoVNA-F V3 adopts a full touch screen design, with 3 physical buttons, users can quickly set frequency range, scale, turn on/off traces, add/delete markers, and so on. The operation is quite convenient and smooth.
The NanoVNA-V3 has 4500mAh lithium-ion batteries with a battery life of up to 5 hours. The charging interface is USB Type-C, and the Type-C cable can be used to charge the device and also for data transfer.
Features:
- Frequency range: 1MHz-6GHz
- S21 dynamic range: 65dB and S11 dynamic range: 50dB
- 4.3" high-brightness IPS display with resistive touch panel
- Metal case can effectively shield electromagnetic interference
- SMA connector is stable and durable to use
- Full touch screen and 3 physical buttons enable convenient and smooth operation
- Dimensions: 125 x 75 x 20mm/4.9 x 3 x 0.8"
- Built-in 4500mAh lithium-ion batteries with endurance time up to 5 hours
- TDR function can be used to measure cable length
- Up to 4 reference traces
- Up to 4 markers, and the marker table can be dragged to anywhere on the screen
- 12 save/recall slots
- Charging via USB Type-C, and the charging voltage is 5V DC
- Designed with a 5V/1A USB power output port
- Firmware upgrade via virtual U disk with USB Type-C cable
- Comes with SMA calibration kit and 2 x 20cm/7.9" SMA-JJ RG405 coaxial cable
- Supports console commands and PC software

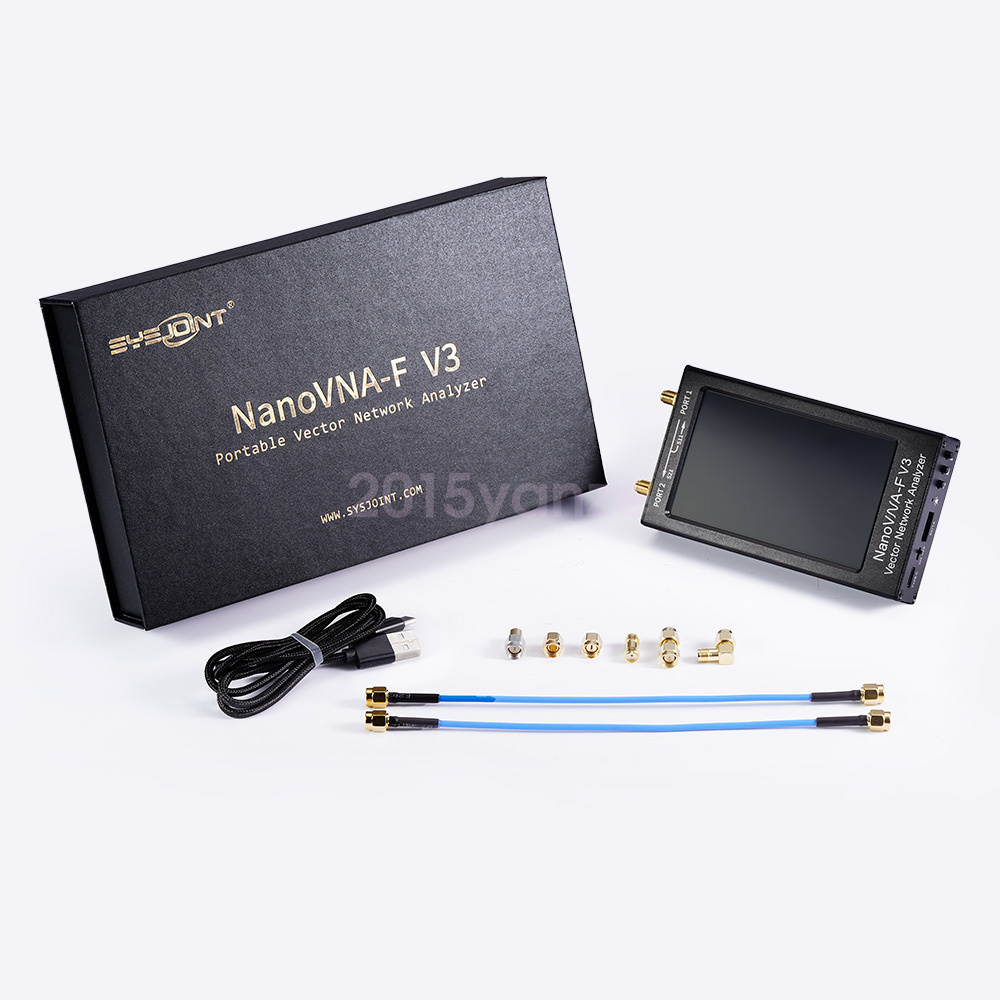

Package Included:
- 1 x NanoVNA-F V3
- 1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT)
- 1 x SMA Female to SMA Female Connector
- 1 x SMA Male to SMA Male Connector
- 1 x SMA JKW Connector
- 2 x 20cm/7.9" RG405 Cables
- 1 x USB Type-C Data Cable
NanoVNA-F V3 is a Portable Vector Network Analyzer (VNA) with frequency range of 1MHz~6GHz. It can be used for S11 and S21 measurements. The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB.
NanoVNA-F V3 is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands, such as
shortwave antennas, ISM band antennas, WiFi antennas, Bluetooth antennas, GPS antennas, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components. NanoVNA-F V3 supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. In addition, NanoVNA-F V3 supports TDR function which is useful for cable lengths measurement.
NanoVNA-F V3 is designed with metal case, which is durable and can effectively shield
electromagnetic interference. The dimension of NanoVNA-F V3 is 125 x 75 x 20mm/4.9 x 3 x 0.8". The RF interface of NanoVNA-F V3 is SMA connector witch can be used to connect DUTs directly. With the optimally designed signal processing system, the scan speed of NanoVNA-F V3 is up to 200 points/s and the maximum scanning points is up to 801.
The screen of NanoVNA-F V3 is a 4.3-inch high-brightness IPS with resistive panel, which allows users to see the screen contents clearly in outdoor. NanoVNA-F V3 adopts a full touch screen design, with 3 physical buttons, users can quickly set frequency range, scale, turn on/off traces, add/delete markers, and so on. The operation is quite convenient and smooth.
The NanoVNA-V3 has 4500mAh lithium-ion batteries with a battery life of up to 5 hours. The charging interface is USB Type-C, and the Type-C cable can be used to charge the device and also for data transfer.
Features:
- Frequency range: 1MHz-6GHz
- S21 dynamic range: 65dB and S11 dynamic range: 50dB
- 4.3" high-brightness IPS display with resistive touch panel
- Metal case can effectively shield electromagnetic interference
- SMA connector is stable and durable to use
- Full touch screen and 3 physical buttons enable convenient and smooth operation
- Dimensions: 125 x 75 x 20mm/4.9 x 3 x 0.8"
- Built-in 4500mAh lithium-ion batteries with endurance time up to 5 hours
- TDR function can be used to measure cable length
- Up to 4 reference traces
- Up to 4 markers, and the marker table can be dragged to anywhere on the screen
- 12 save/recall slots
- Charging via USB Type-C, and the charging voltage is 5V DC
- Designed with a 5V/1A USB power output port
- Firmware upgrade via virtual U disk with USB Type-C cable
- Comes with SMA calibration kit and 2 x 20cm/7.9" SMA-JJ RG405 coaxial cable
- Supports console commands and PC software
Package Included:
- 1 x NanoVNA-F V3
- 1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT)
- 1 x SMA Female to SMA Female Connector
- 1 x SMA Male to SMA Male Connector
- 1 x SMA JKW Connector
- 2 x 20cm/7.9" RG405 Cables
- 1 x USB Type-C Data Cable
