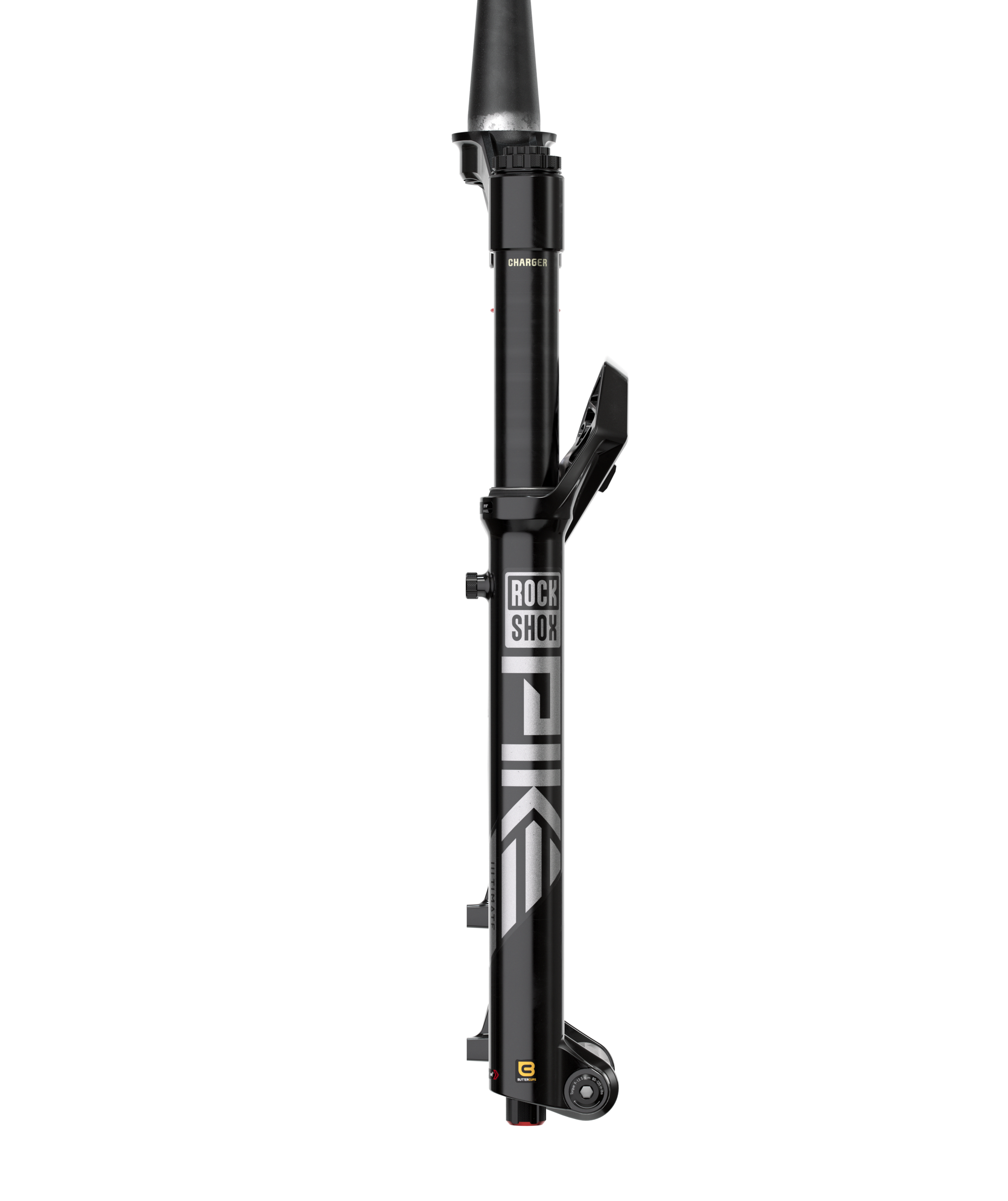

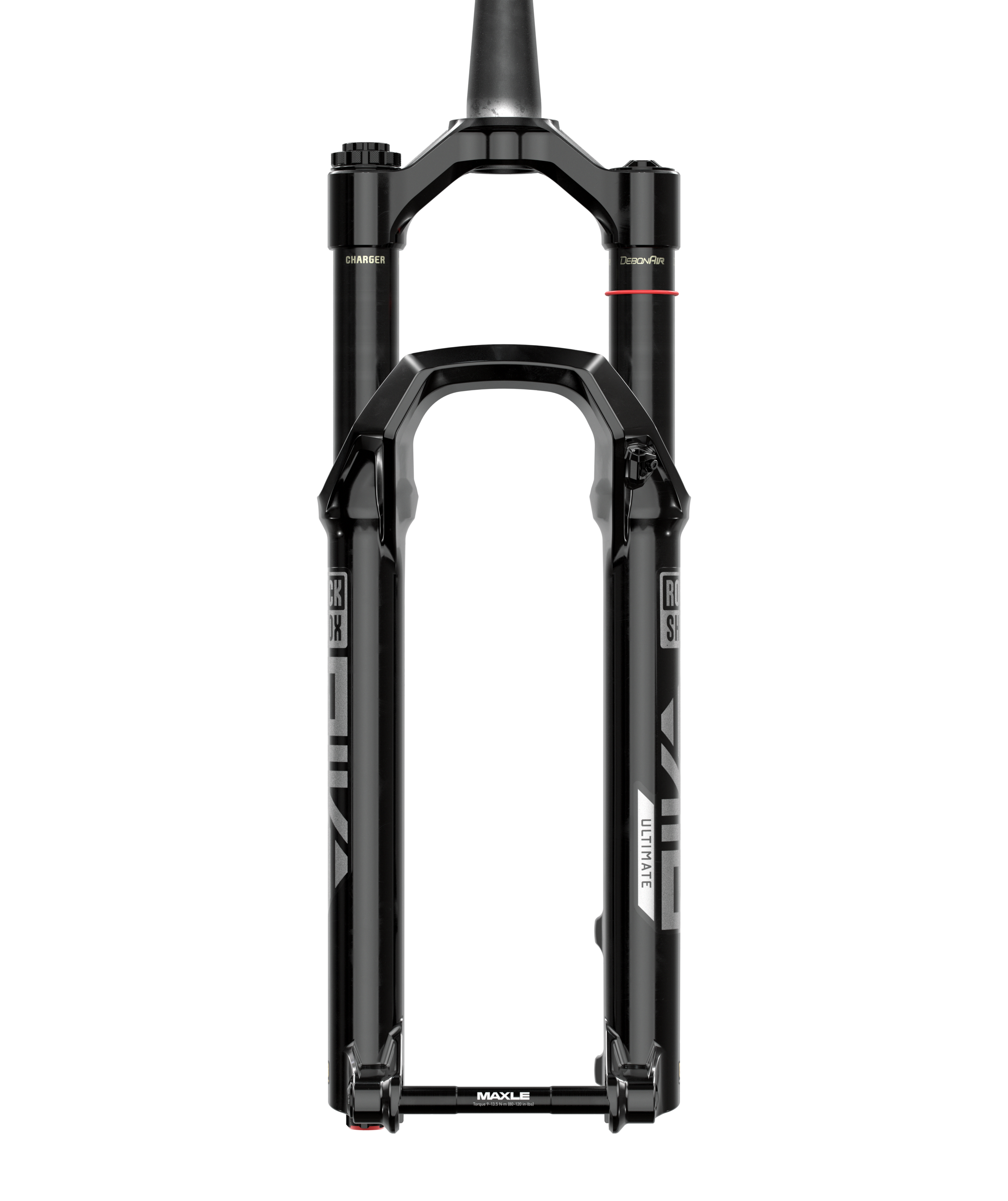

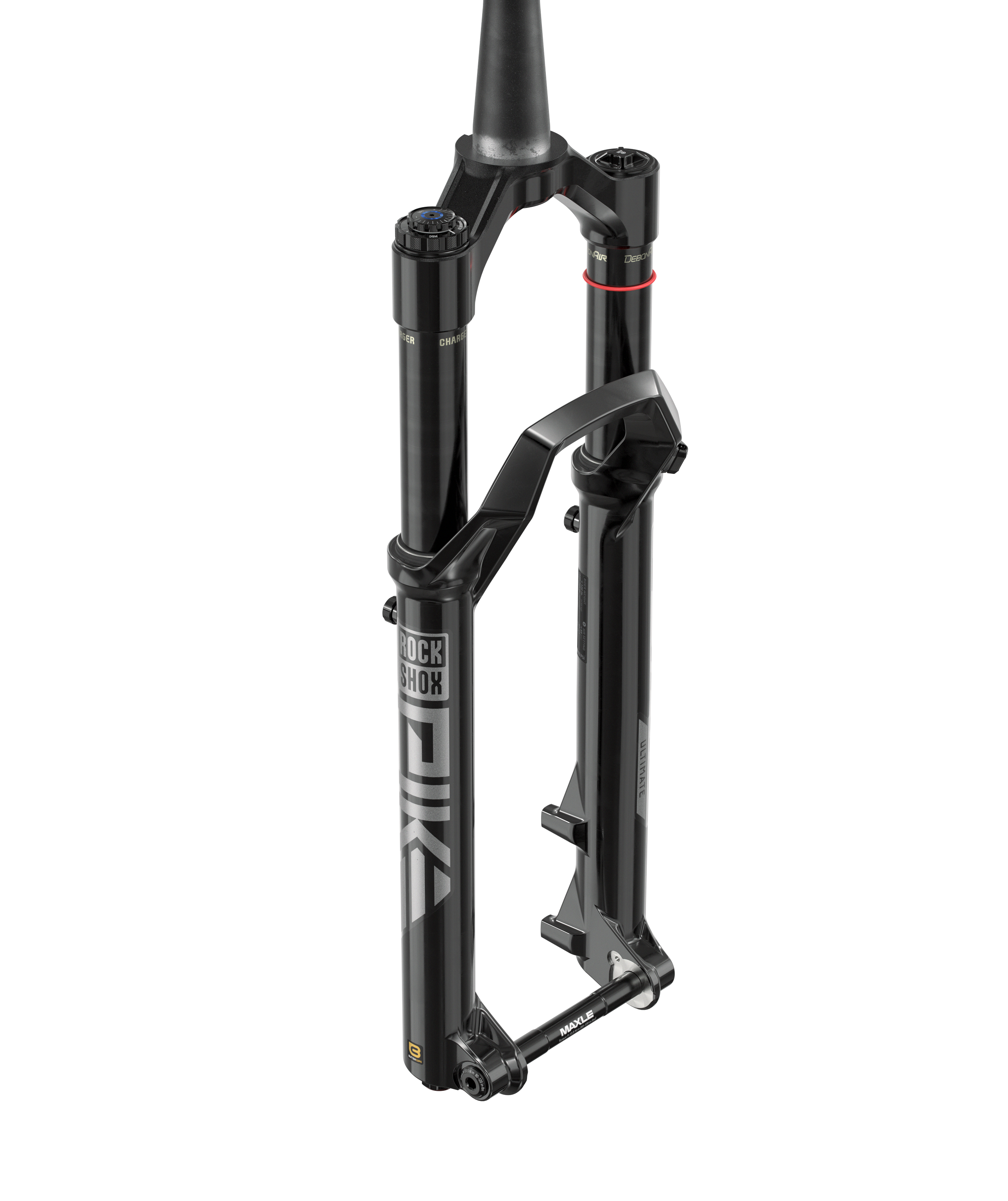

RockShox Pike Ultimate Charger 3.1 RC2 Suspension Fork 27.5in 140mm 15x110 Boost Tapered 37mm Gloss Black
Reference Number: DDXDCL
Upgrade your trail bike with the RockShox Pike Ultimate C2 Suspension Fork - 27.5", the ultimate choice for riders seeking precision, durability, and versatile performance. Engineered with cutting-edge materials and advanced damping technology, this lightweight fork is designed to conquer challenging terrain-from rooty chutes to aggressive climbs-while delivering exceptional control and comfort.
Materials & Construction
Featuring a rugged aluminum crown and steerer tube, magnesium lower tubes, and high-precision anodized finish, the Pike Ultimate C2 boasts durability and a sleek, premium look. The aluminum stanchions (35mm diameter) provide sturdy support and reliable performance, while SKF ultra-low friction wiper seals ensure long-lasting, frictionless suspension for consistent damping action ride after ride.
Performance & Engineering
Equipped with the DebonAir+ air spring, this fork offers a buttery small-bump feel, increased support throughout the travel, and a higher ride height for improved stability. The Charger 3.1 RC2 damper featuring ButterCups technology enhances vibration absorption by blocking 20% of high-frequency vibrations, significantly reducing rider fatigue and arm pump. Its expanded damping range includes high and low-speed compression, as well as rebound adjustments, giving riders full control over suspension tuning-ideal for customizing setup based on terrain and riding style.
Components & Technology
- Tapered Steerer Tube (1-1/8" to 1.5") for precise steering responsiveness
- 15x110mm Thru-Axle for added stiffness and security
- Post Mount 180mm disc brake compatibility ensures effective stopping power
- External damping adjustments include high and low-speed compression, rebound, and begin stroke rebound, enabling fine tuning for maximum traction and control
- ButterCups technology reduces 20% of high-frequency vibrations, decreasing hand fatigue and enhancing rider comfort during long rides
Design & Use Case
Designed to be lightweight without sacrificing strength, the Pike Ultimate C2 is perfect for aggressive trail riding, enduro, and e-bike applications. Its stylish gloss black finish complements any mountain bike setup, while its versatile 140mm travel makes it suitable for a wide range of trail conditions. Whether you're tackling technical descents or powering over climbs, this fork offers the performance, adjustability, and durability to level up your trail game.
Innovative & Differentiating Features
- Charger 3.1 RC2 Damper: A refined damping platform with broader adjustability for customized ride quality
- ButterCups Technology: Significantly reduces high-frequency vibrations for increased rider fatigue resistance
- DebonAir+ Spring: Provides increased air volume for support and plushness, ensuring a smooth ride across uneven terrain
- High-Performance Seals & Lubes: Maxima Plush Lube to reduce friction and promote longer service intervals
Specifications Highlights
- Travel: 140mm
- Wheel Size: 27.5"
- Axle: 15mm Thru-axle
- Steerer Tube: Tapered (1-1/8" to 1.5")
- Displacement for custom setup with Bottomless Tokens and air pressure adjustments
- Designed for e-bikes and high-performance trail riding
Elevate your mountain biking experience with the RockShox Pike Ultimate C2 Suspension Fork. Built for riders who demand precision, lightweight strength, and innovative damping control, this fork is your trusted partner for conquering every trail challenge. Explore the legend today!
- Enhanced trail performance with lightweight yet durable materials such as aluminum crown and stanchions, magnesium lower tubes, and high-quality SKF wiper seals for long-lasting suspension feel.
- Equipped with the advanced Charger 3.1 RC2 damper featuring high and low-speed compression adjustments, rebound control, and ButterCups technology to crush vibrations and reduce arm fatigue on rough terrains.
- DebonAir+ air spring technology delivers a butter-like small bump responsiveness, increased support through the travel, and a higher ride height for improved stability and control across diverse trail conditions.
- Designed for versatile riding styles, this 27.5" suspension fork offers a 140mm travel, tapered steerer tube (1-1/8" to 1.5"), and 15x110mm thru-axle compatibility, making it ideal for trail, enduro, and e-bike applications.
- Featuring premium anodized finishes, external damping adjustments, and compatibility with disc brakes (post mount 180), the RockShox Pike Ultimate C2 combines innovative engineering and sleek style to level up your mountain biking experience.
| Item Specifications | |
|---|---|
| Steerer Type | Tapered |
| Lockout Switch | Crown |
| Brake Type | Post Mount 180 |
| Negative Spring | Air |
| Travel (mm) | 140 |
| Offset | 37 |
| Axle to Crown Length | 532 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 81 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Gloss Black |
| Crown Race | 40 |
| Wheel Size | 27.5" |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| keyword search | RockShox MY25 |
| keyword search | RockShox Model Year 25 |
| Stanchion Diameter | 35 |
| Steerer Tube Length (mm) | 245 |
| Brake Caliper Type | Disc |
| Damping | Charger 3.1 RC2 W/ButterCups |
| Damping Adjustments | External begin stroke rebound, low speed compression, high speed compression |
| Crown Material | Aluminum |
| Offset (mm) | 37mm |
| Rotor Size (Fork) | 220mm |
| Tire Width | 81mm |
| Defined Color | Black |
| External Adjustments | Air pressure, Bottomless tokens |
| Positive Spring | DebonAir+ W/ButterCups |
| eBay Steerer Tube Diameter | 1-1/8''-1.5'' |
| Steerer Tube Material | Aluminum |
| Lower Tubes Material | Magnesium |
| Stanchions Material | Aluminum |
| Travel (mm) | 140mm |
| Wheel Size | 27.5'' |
| Stanchion Diameter | 35mm |
| Rear Axle Spacing | 15x110mm TA |
| Designed for ebike | Yes |
