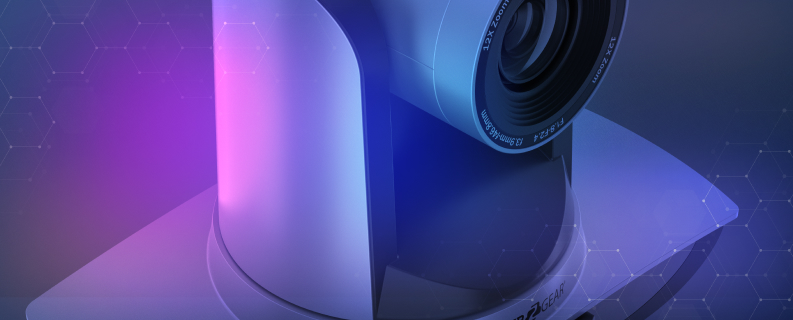

BG-LVUPTZ-SD

The BG-LVUPTZ-SD helps presenters create engaging video content as they move around a classroom, platform, or stage. This powerful PTZ camera captures details in crisp 1080p HD images. With set and forget programming, the BG-LVUPTZ-SD lets presenters focus on what they do best without the worry of capturing the right camera angle.

The chassis of the BG-LVUPTZ-SD contains two separate cameras. In addition to the moving PTZ head, there is a wide-angle panoramic camera with a separate output. This provides users with two simultaneous Full HD video signals. Each camera is equipped with simultaneous 3G-SDI and IP streaming outputs.

Available in 12X and 20X zoom levels, this versatile camera gives a single user access to both widescreen and close-up angles, enabling them to create dynamic content without the assistance of a dedicated camera operator.

ONVIF, RTSP, and RTMP protocols enable operators to stream the video output directly from the BG-LVUPTZ-SD to online streaming services like Facebook and YouTube. The 3.5mm audio input allows stereo sound to be embedded into the video signals.

Configuration

Configuration is a breeze with BZBGEAR’s wizard-based setup utility, BG-Autotrak. Customizable options allow users to fine tune the camera’s performance to suit their environment. When tracking mode is disabled, the BG-LVUPTZ-SD can also be controlled by RS232, RS485, IP commands, and IR remote.

This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

U.S.-Based Company
1-Year Warranty
U.S.-Based Company
1-Year Warranty
U.S.-Based Company
1-Year Warranty
U.S.-Based Company
1-Year Warranty

Features

  • Auto Tracking
    Fully automatic PTZ control follows movement
  • Full HD
    Cameras output up to 1080p@60Hz resolution
  • Dual Outputs
    Both cameras have completely independent output signals
  • Locking Connectors
    SDI locking connectors ensure your cables do not accidentally come unplugged
  • Multi-Format
    Available with 3G-SDI and IP streaming outputs
  • 12x Zoom
    Perfect for medium to large sized rooms

Specification

Tracking camera, lens parameters
Image sensor1/2.8inch high quality CMOS sensor
Effective pixels 2,070,000 16:9
Video signal 1080p @ 60/50/30/25/59.94/29.97, 1080i @ 60/50/59.94, 720p @ 60/50/30/25/59.94/29.97
Lens optics zoom12X optical zoom f= 3.9 ~ 46.1mm
Visual angle6.3° (narrow angle) ~ 72.5° (wide angle)
Aperture coefficientF1.8 ~ F2.4
Digital zoom 10X
Minimum illumination 0.5Lux (F1.8, AGC ON)
Digital noise reduction 2D & 3D digital noise reduction
White balance Manual/auto/one-key white balance /3000K/4000K/5000K/6500K
Focus Auto/manual
ApertureAuto/manual
Electronic shutterAuto/manual
Backlight compensationOn/off
Wide dynamicOff/dynamic grade adjustment
Video regulationBrightness, hue, saturation, contrast ratio, sharpness, Gamma
Signal to noise ratio>55dB
Panoramic lens
Image sensor1/2.8inch high quality CMOS sensor
Effective pixels2,100,000
LensManual focus
Output portNetwork port, 3G-SDI
Field angle (D/H/V)112°/82°/57.6°
Input/output port and support protocol
Video portSDI
Network port100M internet access (10/100BASE-TX) 5GWiFi (optional), support network VISCA control protocol
Network protocolRTSP, RTMP, ONVIF, GB/T28181
Compression image code streamDual stream output
Video compression formatH.265, H.264
Control signal portRS-232/485
Control protocolVISCA/Pelco-D/Pelco-P; Baud rate: 115,200/9,600/4,800/2,400bps
Audio input portDual track 3.5mm linear input
Audio compression formatAAC, MP3, PCM
Power portHEC3800 power socket (DC12V)
Holder parameters
Horizontal rotation-170°~+170°
Vertical rotation-30°~+90°
Horizontal control speed0.1 ~ 100°/s
Vertical control speed0.1 ~ 45°/s
Preset speedHorizontal: 100°/s, vertical: 45°/s
Preset quantityUser can set 255 presets at most (10 pcs of mobile control)
Other parameters
Power adapterInput AC110V-AC220V output DC12V/2.5A
Input voltageDC12V±10%
Input current1.5A (maximum)
Power consumption18W (maximum)
Storage temperature14°F ~ 140°F / -10°C ~ +60°C
Storage humidity20%~95%
Operating temperature14°F ~ 122°F / -10°C ~ +50°C
Operating humidity20%~80%
Dimension (WxHxD)10in x 5.7in x 6.9in [254mm x 144mm x 174mm]
Weight (approx.)3.3 lbs [1.50kg]
Operating environmentIndoor only
Remote maintenance (network port)Remote upgrade, restart and reset

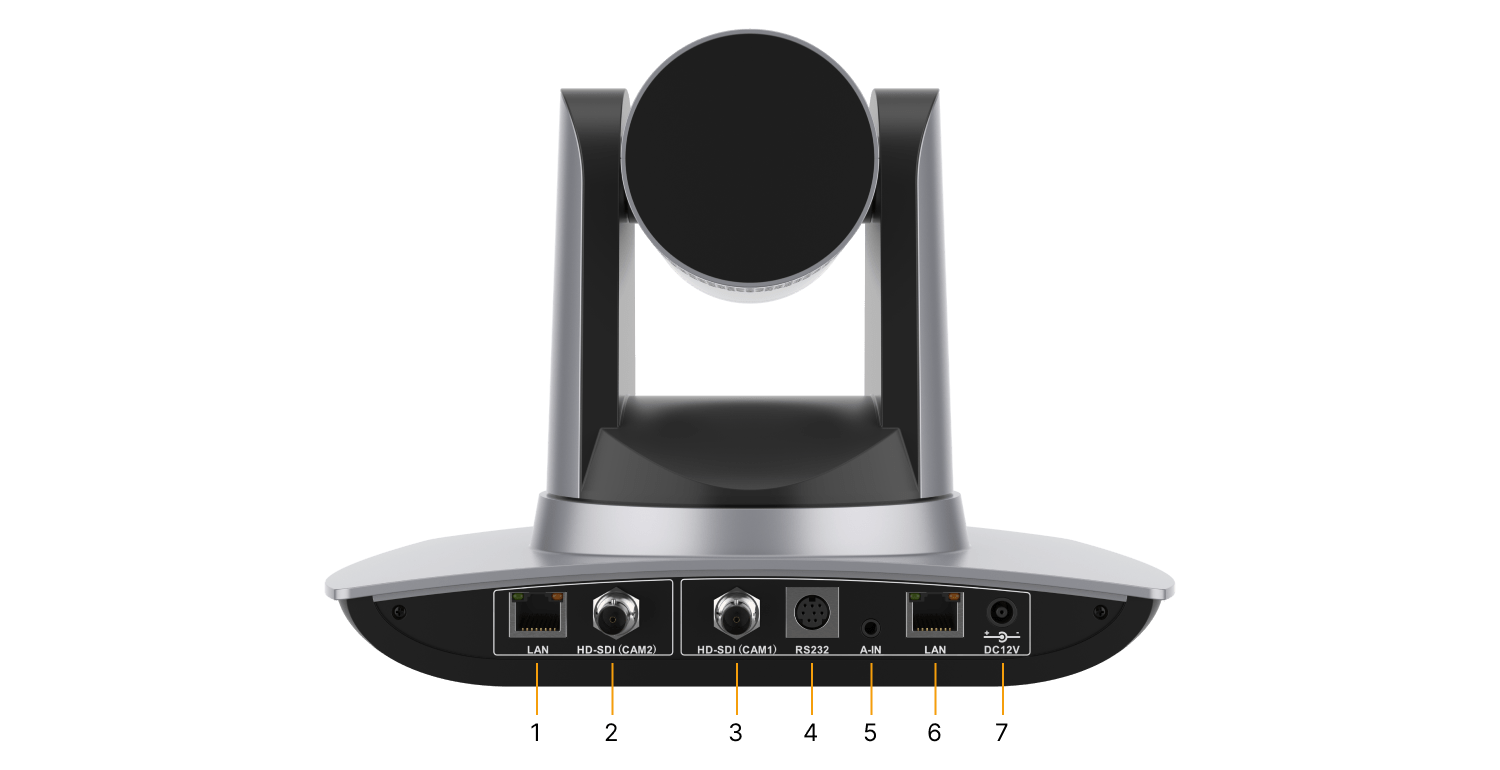

Interfaces

1. LAN (Cam-2):
Connect Camera-2 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
2. HD-SDI (CAM2):
Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling to view close-up lens.
3. HD-SDI (CAM1):
Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) over SDI cabling to view (panorama lens.
4. RS-232:
Connect RS-232 to control the camera with a joystick controller or control software.
5. A-In:
Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
6. LAN (Cam-1):
Connect Camera-1 to a network switch via category cable to control (TCP/IP or webGUI) and stream.
7. Power:
Connect supplied 12V power adapter.

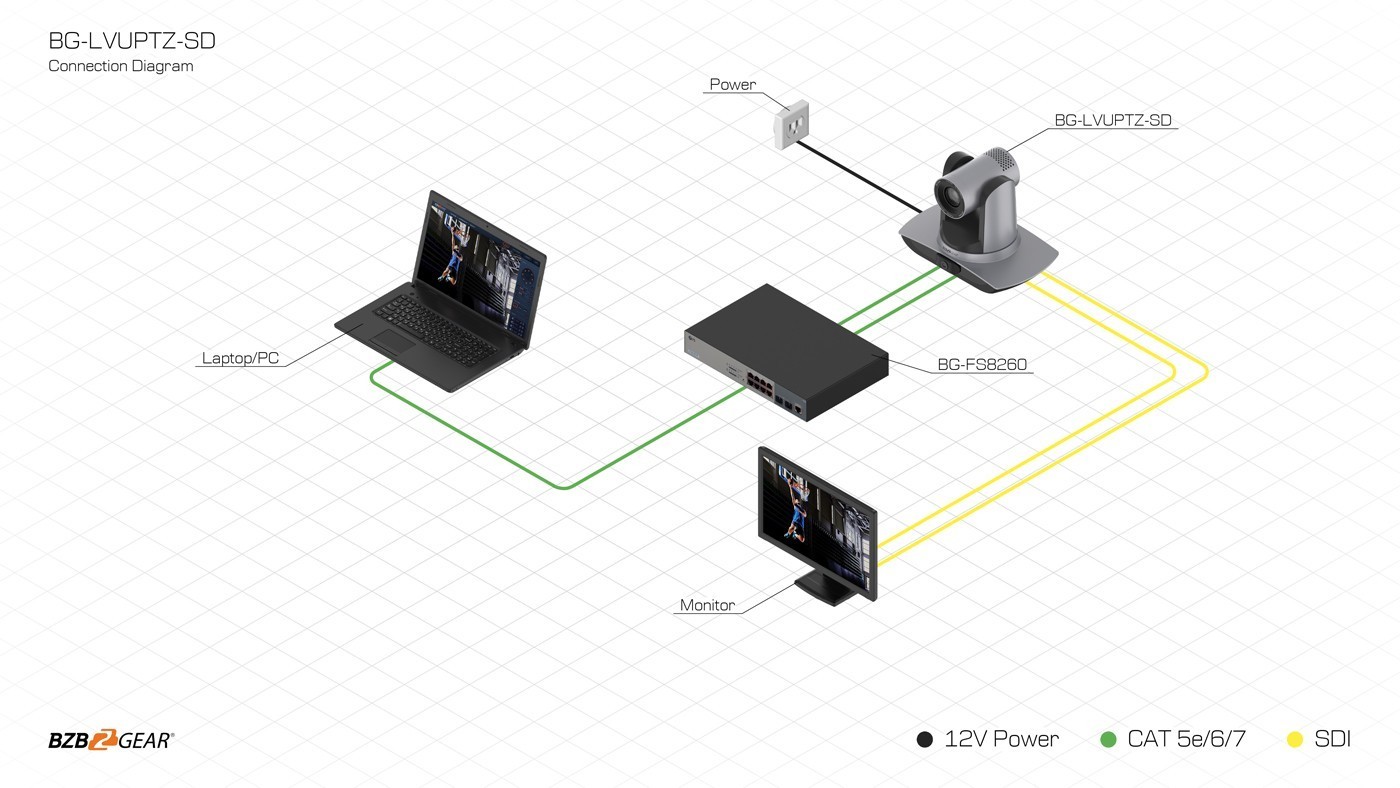

Connection Diagram

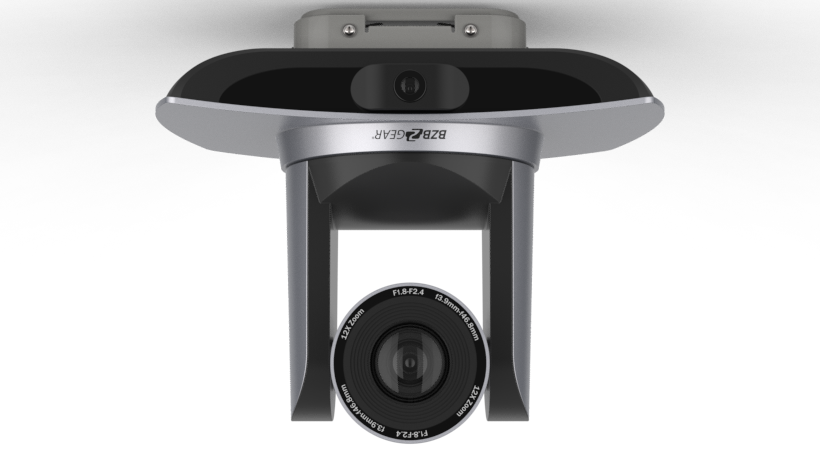

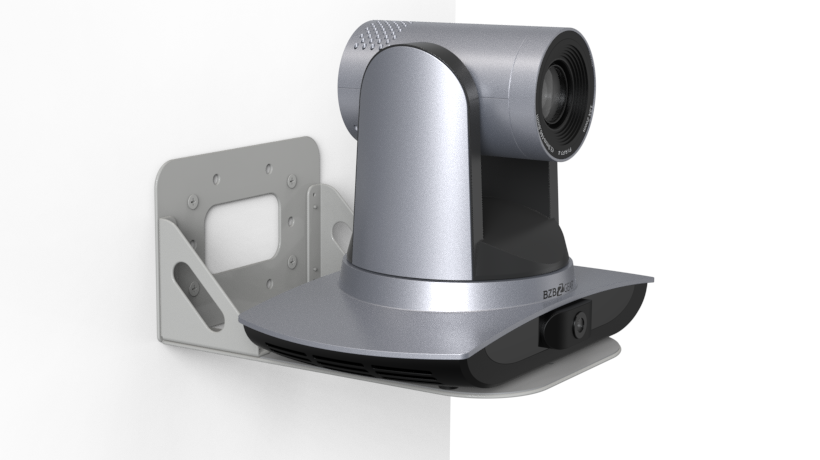

Mounting Ideas

Package Contents

  • 1x Camera
  • 1x 12V/1.5A Power supply
  • 1x RS232 control line
  • 1x Remote control
  • 1x User Manual
