PRODUCT DESCRIPTION

CAMPING HQ
of
Congleton, Cheshire


(highlands, islands & NI, please contact shop before buying)

Note the following features:

  • complete with shower head assembly and fixing screws
  • good security - no connector, no flow
  • push and turn activation
  • innovative, attractive design
  • high quality for a long reliable life
  • compact
  • lightweight
  • easy to fit - requires 60mm cutter
  • non return valves are fitted to each inlet
  • 1.5m long shower hose - but this can be lengthened - see below
  • longer shower head assemblies are now available as extras - 2.0 m long (SP6088U) and 2.5 m long (SP6088AA)
  • swivel head with fixed pattern spray with lever control
  • high flow rate
  • maximum water inlet pressure - 10 bar
  • nett weight with shower head assembly - 740g

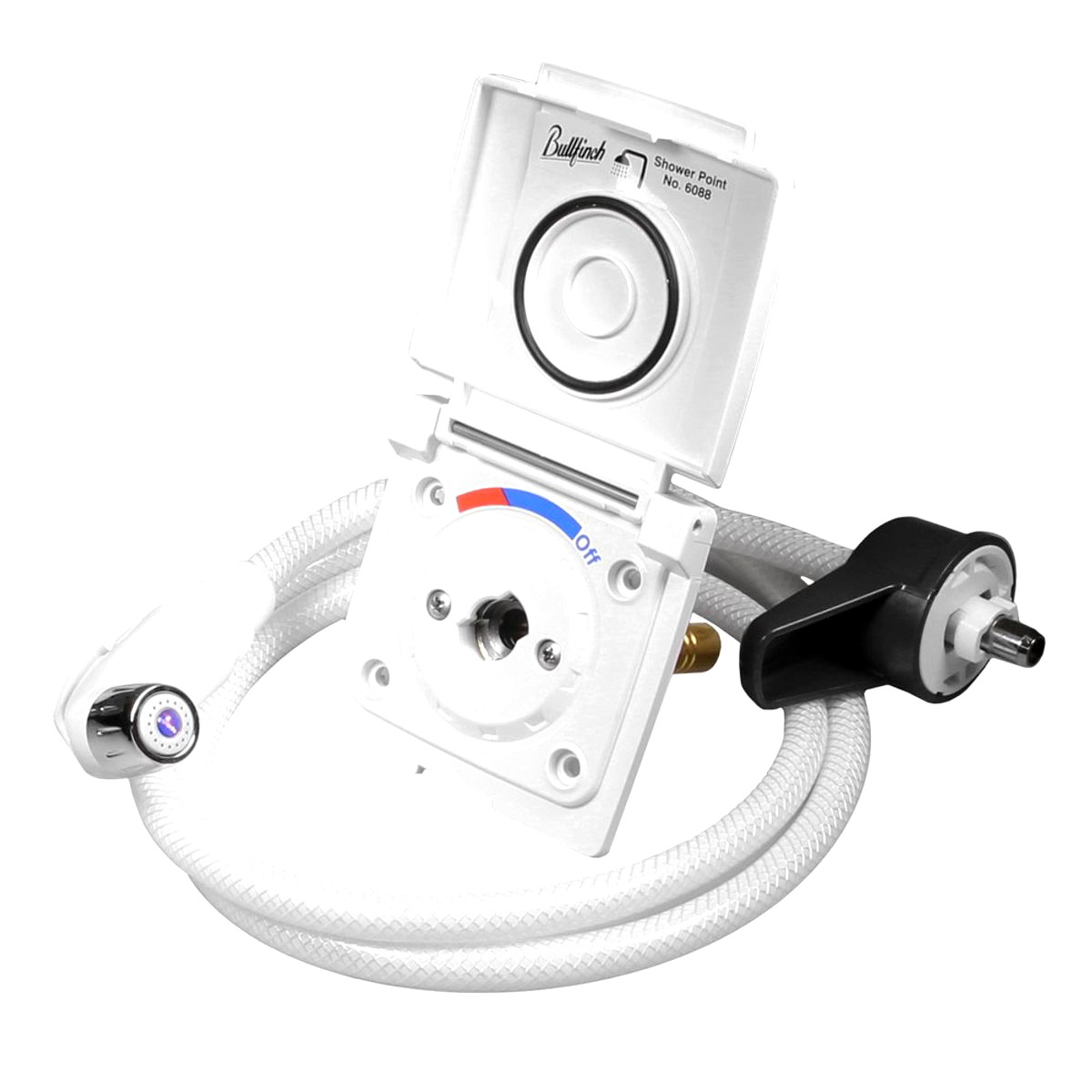

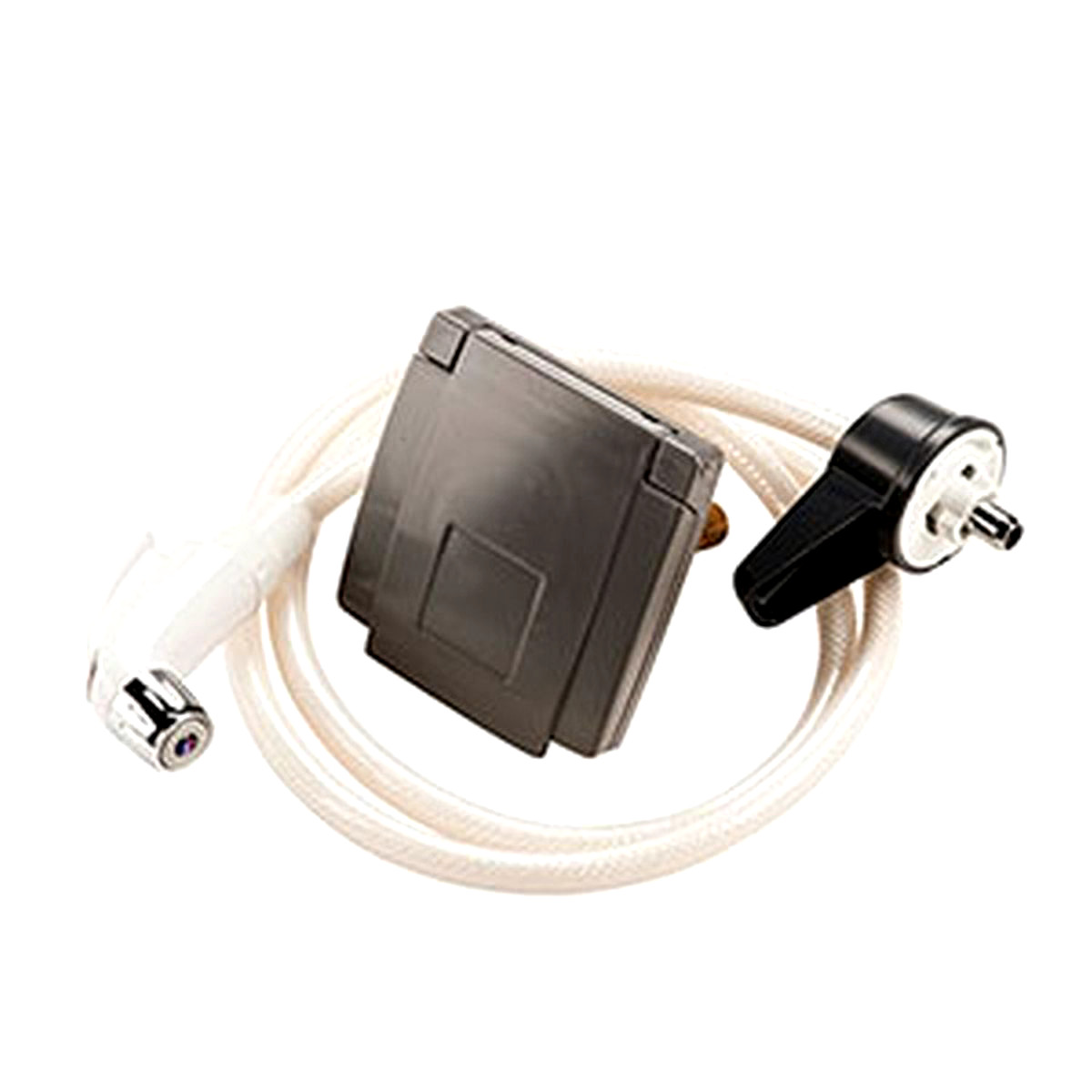

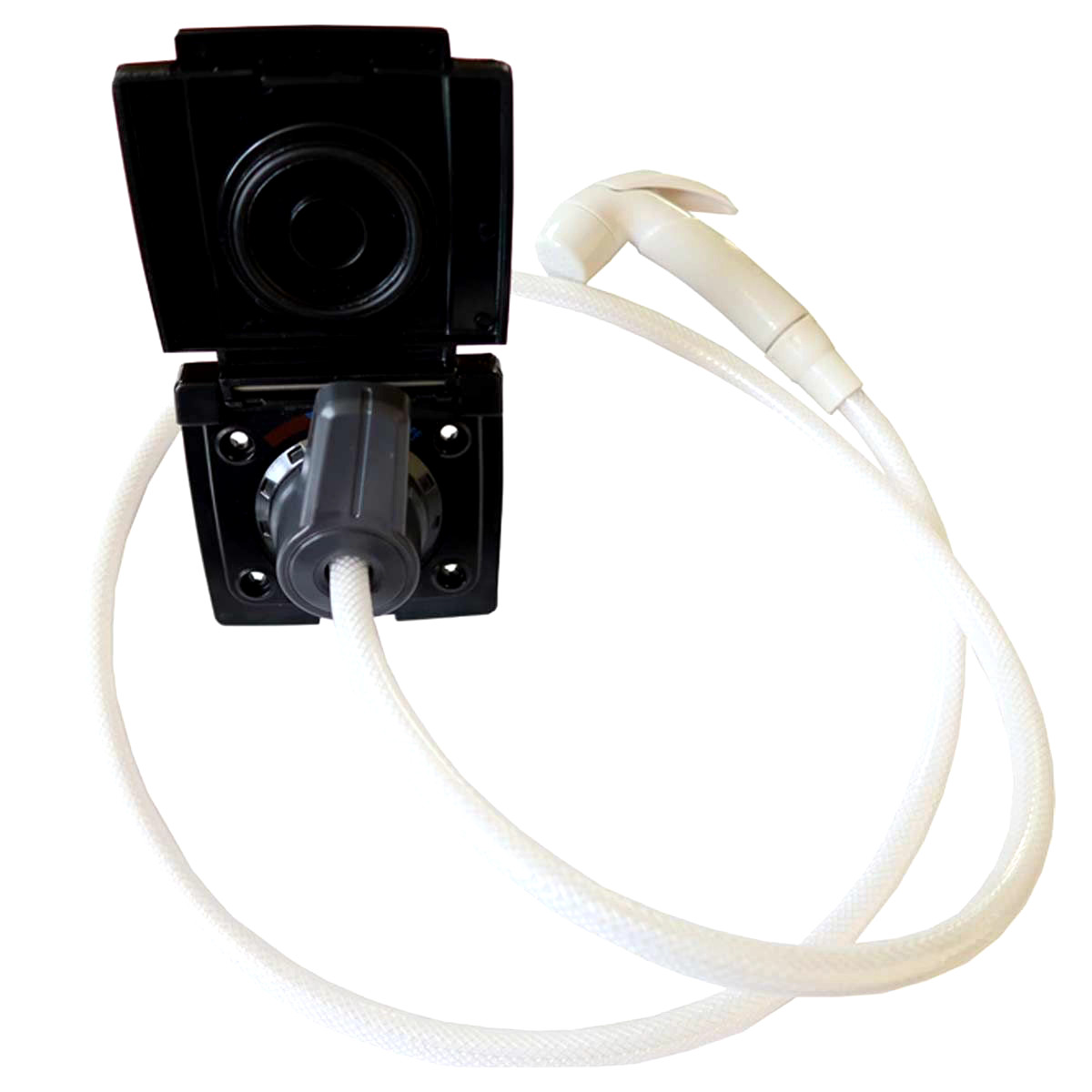

The External shower point comes complete with a Shower head assembly (shower fitting, shower hose and swivel head). It uses the unit’s existing hot and cold water supplies. Inserting the shower assembly, locks it in place and turns on the water. Temperature adjustment by turning the assembly.

You will need a 60mm cutter to create the orifice.

Inlet connections for hot and cold water - you will need Whale quick connect plumbing system fittings, size 15mm - we recommend Equal elbow item code WX1503(B) or Equal straight WX1504(B) or similar. John Guest Speedfit work well too. If you have 12mm tube then the Whale WU1512 straight reducer will make the connections. All these fittings can be easily found by putting the part number into Google.

Please note the cold feed is the one on the right looking from the front (plastic side), the one on the left from the back.

We supply 4 fixing screws.

In winter take care to drain down the shower unit to prevent damage from freezing water - it is therefore good to put isolation valves onto the feeds.


CAMPING HQof Congleton, Cheshire(highlands, islands & NI, please contact shop before buying)Note the following features:complete with shower head assembly and fixing screwsgood security - no connector, no flowpush and turn activationinnovative, attractive designhigh quality for a long reliable lifecompactlightweighteasy to fit - requires 60mm cutternon return valves are fitted to each inlet1.5m long shower hose - but this can be lengthened - see belowlonger shower head assemblies are now available as extras - 2.0 m long (SP6088U) and 2.5 m long (SP6088AA)swivel head with fixed pattern spray with lever controlhigh flow ratemaximum water inlet pressure - 10 barnett weight with shower head assembly - 740gThe External shower point comes complete with a Shower head assembly (shower fitting, shower hose and swivel head). It uses the unit’s existing hot and cold water supplies. Inserting the shower assembly, locks it in place and turns on the water. Temperature adjustment by turning the assembly.You will need a 60mm cutter to create the orifice.Inlet connections for hot and cold water - you will need Whale quick connect plumbing system fittings, size 15mm - we recommend Equal elbow item code WX1503(B) or Equal straight WX1504(B) or similar. John Guest Speedfit work well too. If you have 12mm tube then the Whale WU1512 straight reducer will make the connections. All these fittings can be easily found by putting the part number into Google.Please note the cold feed is the one on the right looking from the front (plastic side), the one on the left from the back.We supply 4 fixing screws.In winter take care to drain down the shower unit to prevent damage from freezing water - it is therefore good to put isolation valves onto the feeds.

SPECIFICATIONS

  • Colour White
  • Brand Bullfinch
